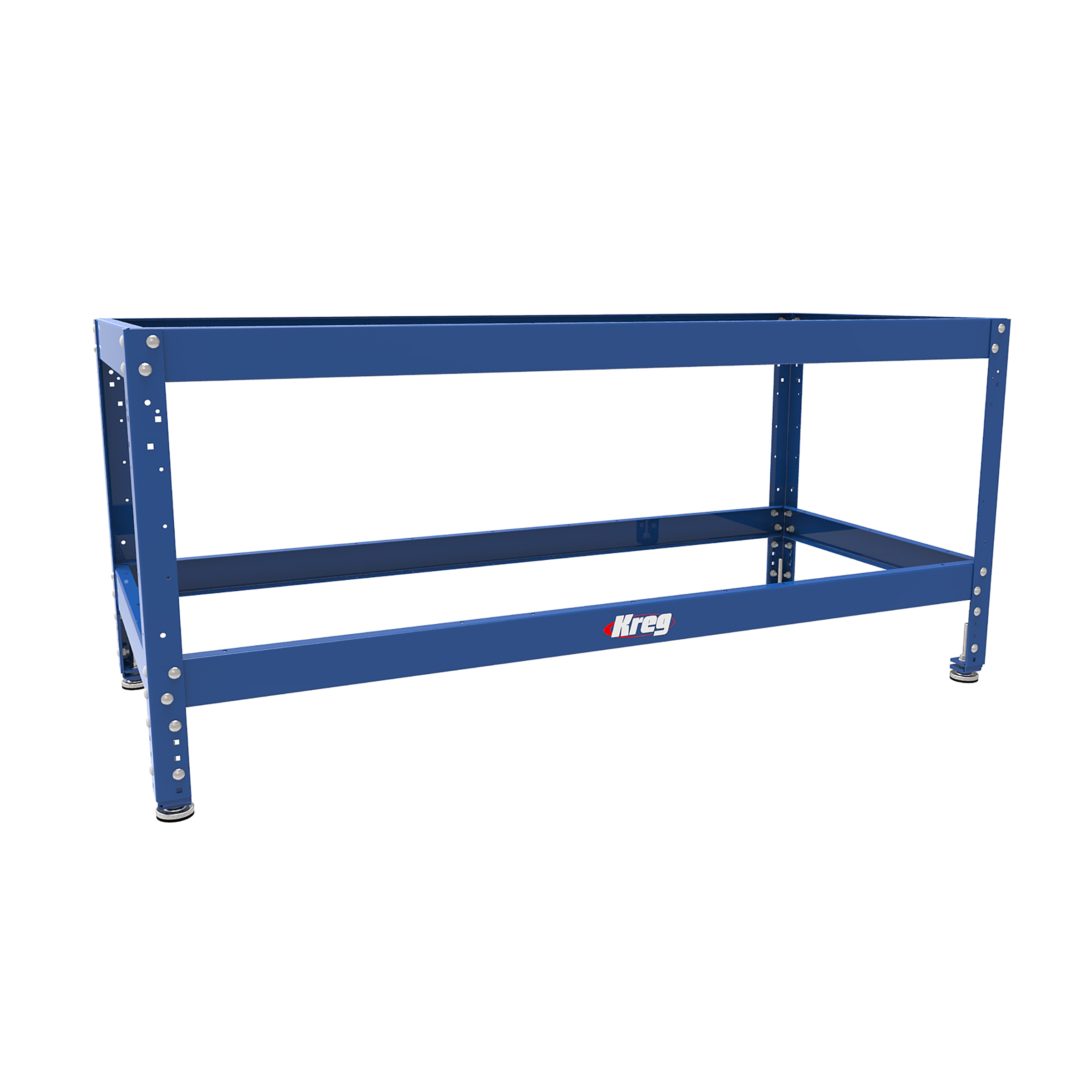

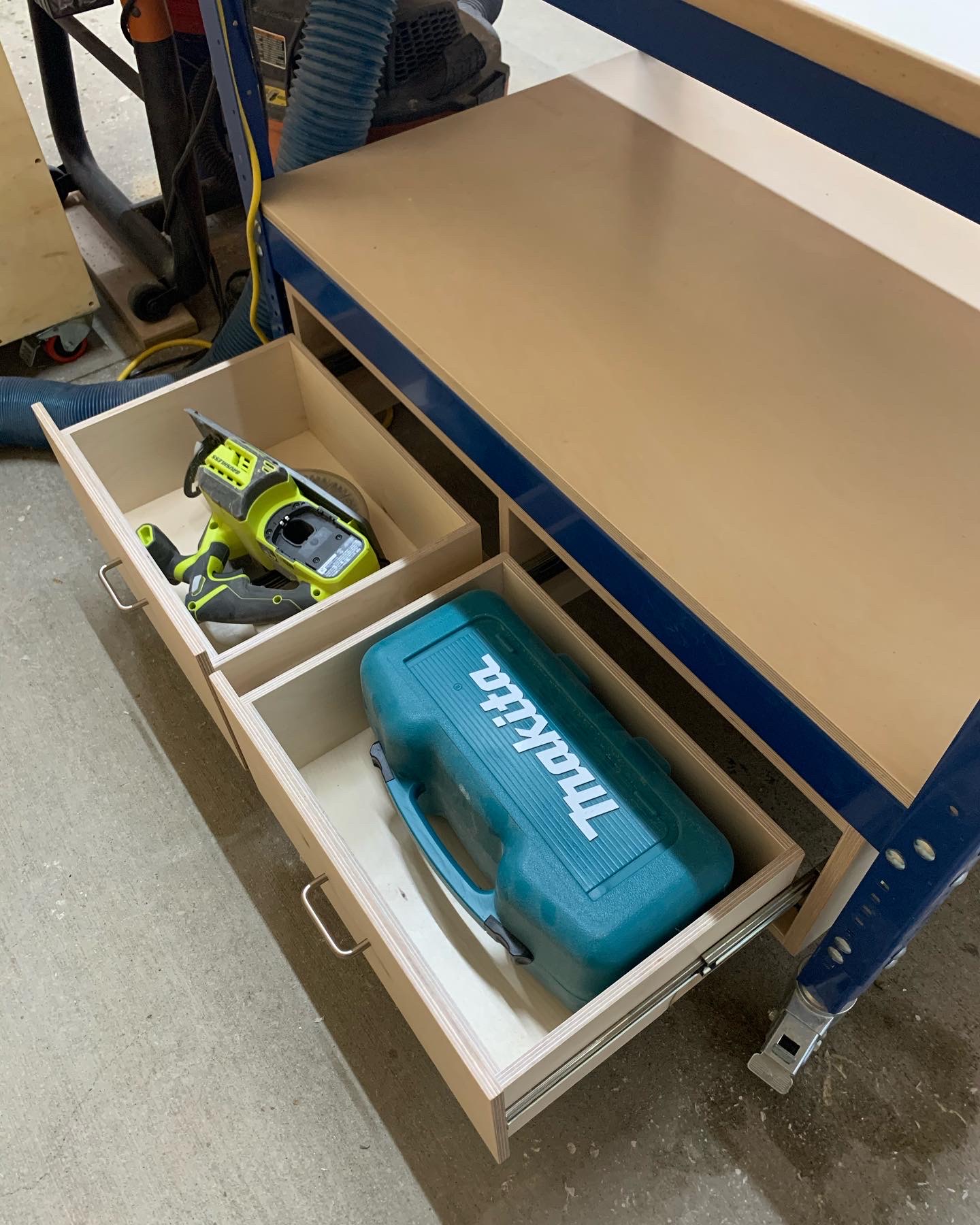

This is the perfect storage solution to put underneath your Kreg workbench!

Difficulty easy

Tools

Kreg Tools

Materials

Wood Products

  • 1 3/4" Plywood
  • 1 1/2" Plywood

Hardware & Supplies

  • 4 Drawer Pulls
  • 4 Sets of Drawer Slides
See All Tools & Materials

Cut List & Parts

  • 2 Case Sides - 3/4 Ply , 27 1/2 x 10 1/2 x 3/4
  • 1 Case Interior - 3/4 Ply , 27 1/2 x 9 3/4 x 3/4
  • 3 Case Lower Braces - 3/4 Ply , 37 1/4 x 2 x 3/4
  • 6 Case Upper Braces - 3/4 Ply , 18 1/4 x 2 x 3/4
  • 4 Drawer Bottoms - 1/2 Ply , 12 3/8 x 16 3/4 x 1/2
  • 2 Large Drawer Front - 1/2 Ply , 8 3/4 x 18 x 1/2
  • 4 Large Drawer Back/Front - 1/2 Ply , 6 3/4 x 16 1/4 x 1/2
  • 4 Large Drawer Sides - 1/2 Ply , 6 3/4 x 12 7/8 x 1/2
  • 2 Small Drawer Front - 1/2 Ply , 3 1/4 x 18 x 1/2
  • 4 Small Drawer Back/Front - 1/2 Ply , 2 1/2 x 16 1/4 x 1/2
  • 4 Small Drawer Sides - 1/2 Ply , 2 1/2 x 12 7/8 x 1/2
See Full Cut List & Parts

Directions

  • Watch Video

    Check out the video first, and as you build. It'll help with a few instructions!

    Under Workbench Storage Video

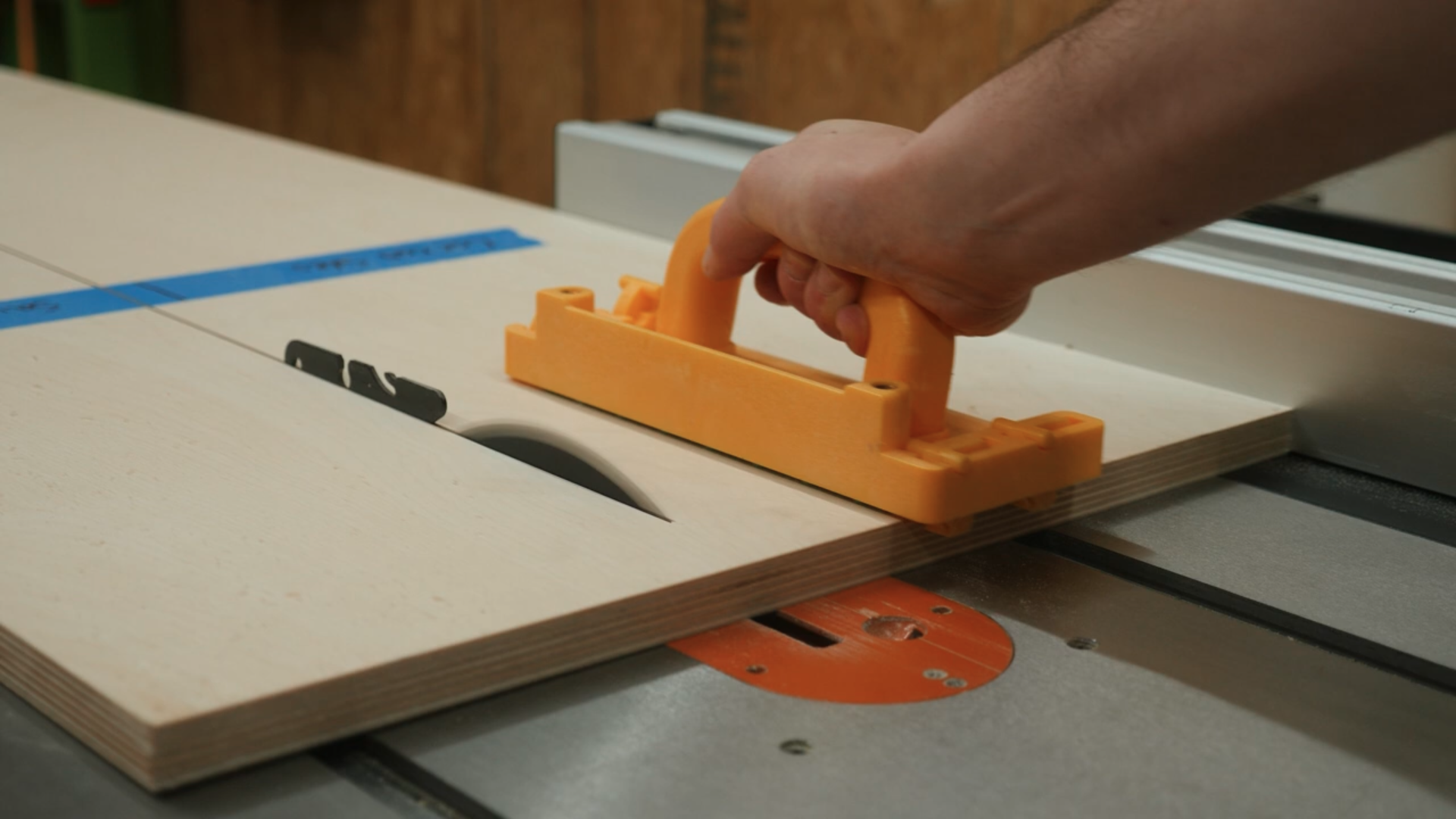

  • Cut Parts

    Cut down plywood parts according to the cutlist provided above

    Step 2

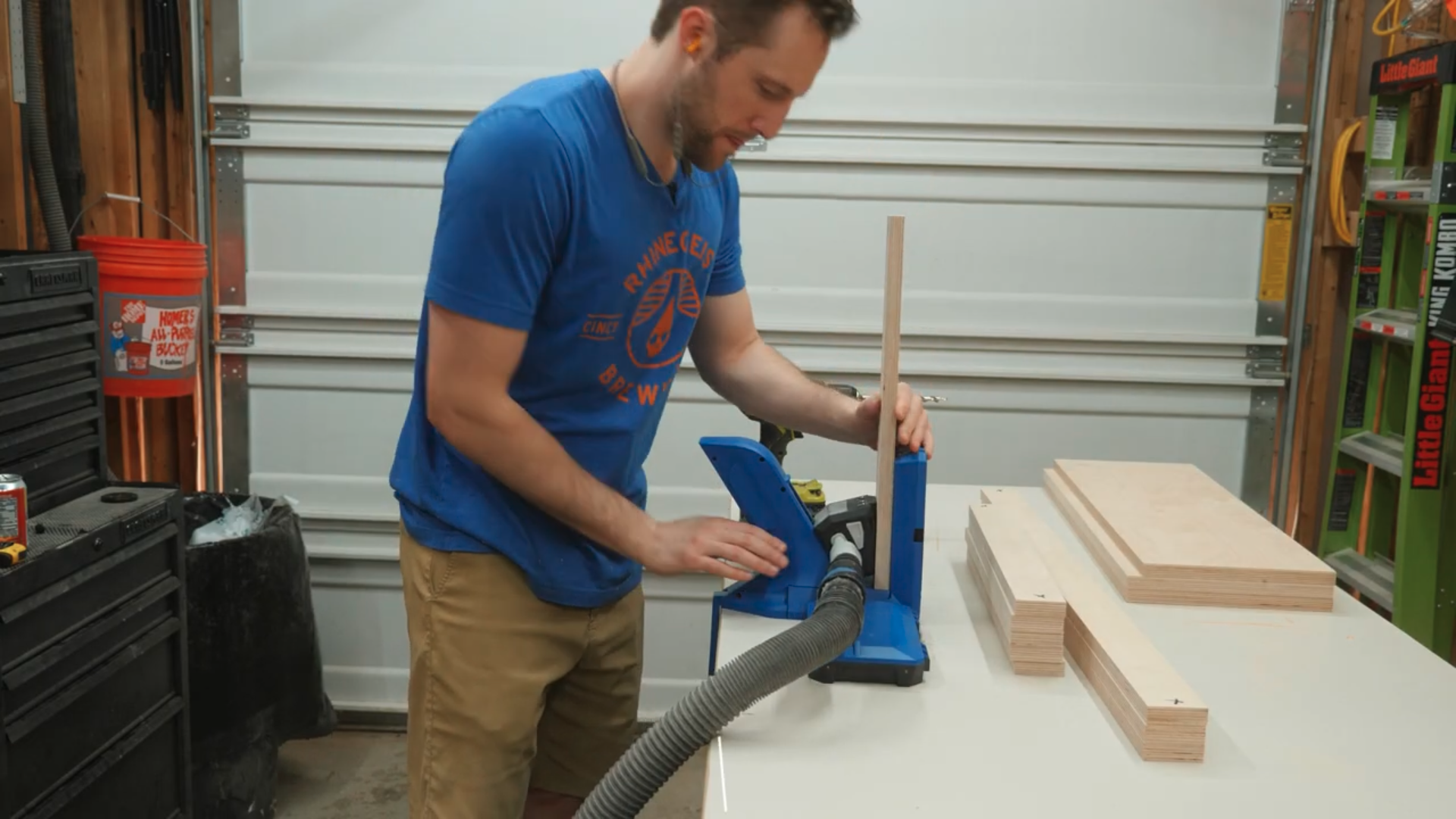

  • Drill Pocket Holes

    Grab all of your 3/4" thick plywood brace pieces to construct the case and drill pocket holes into them

    Step 3

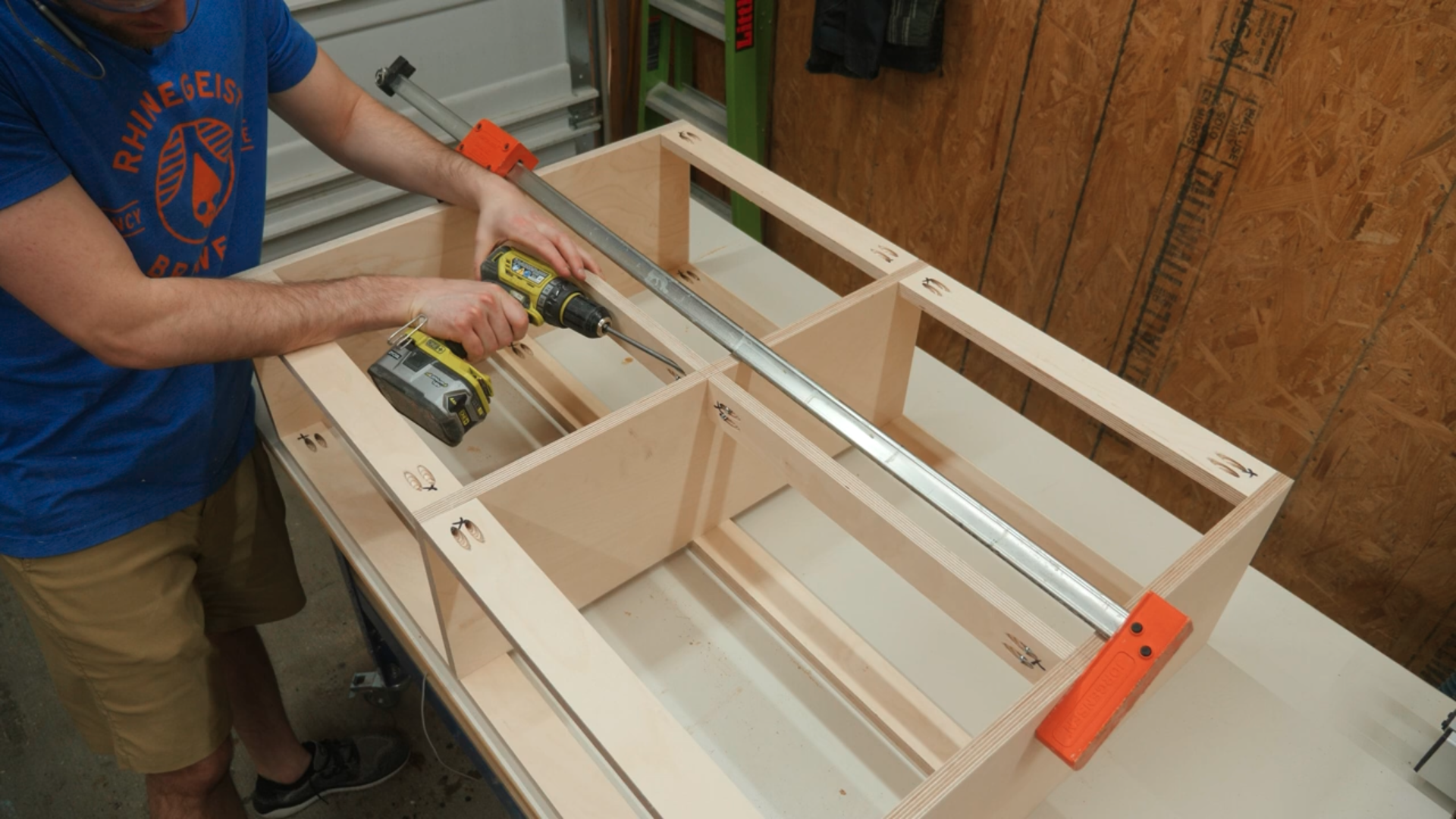

  • Construct Case

    Using 1 1/4 pocket hole screws, assemble the case together

    Step 4

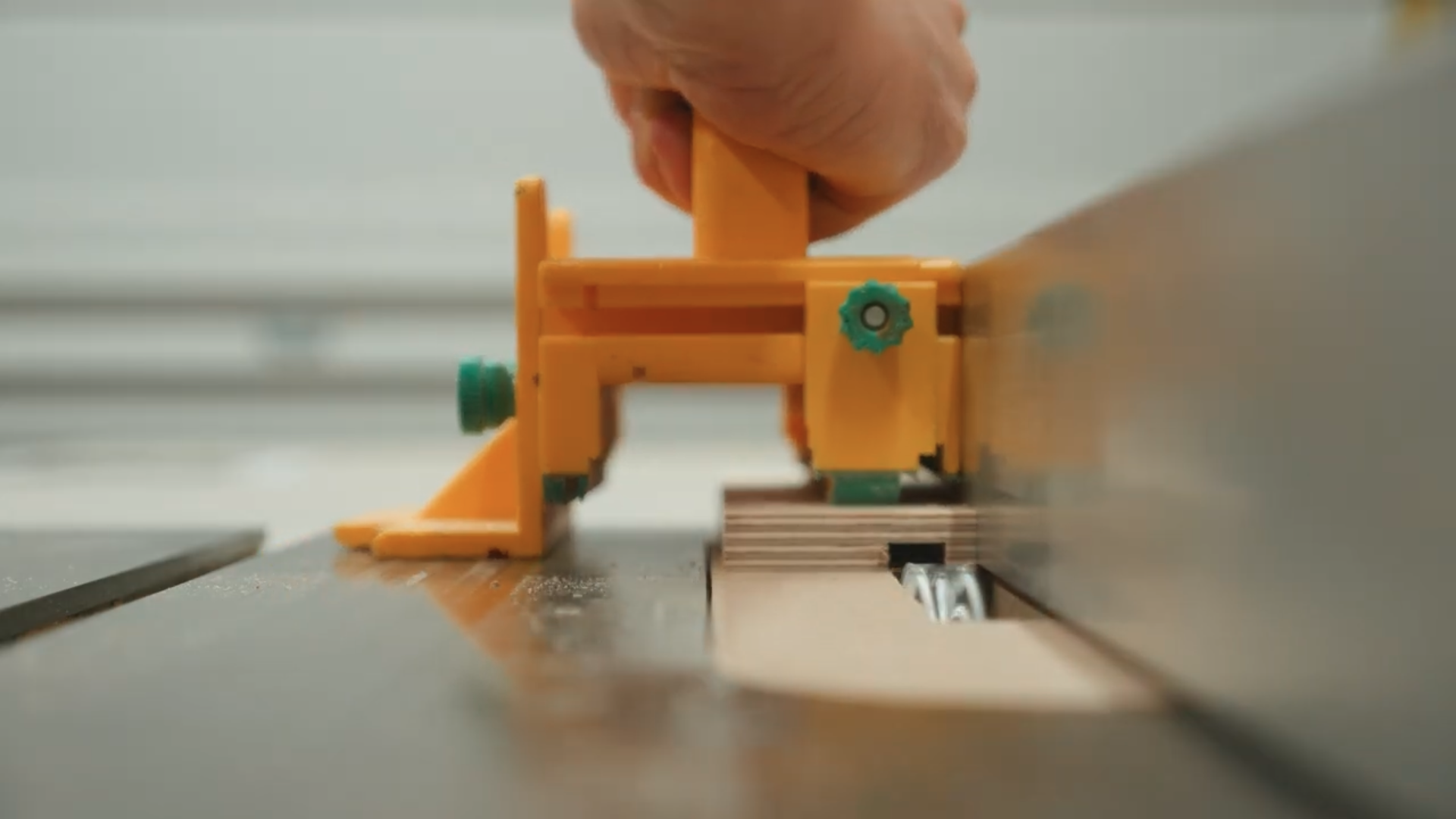

  • Cut Drawer Dados

    In all of the 1/2" thick plywood drawer pieces, (excluding the false fronts) cut a 1/2" wide and 1/4" deep dado to house the drawer bottoms

    Step 5

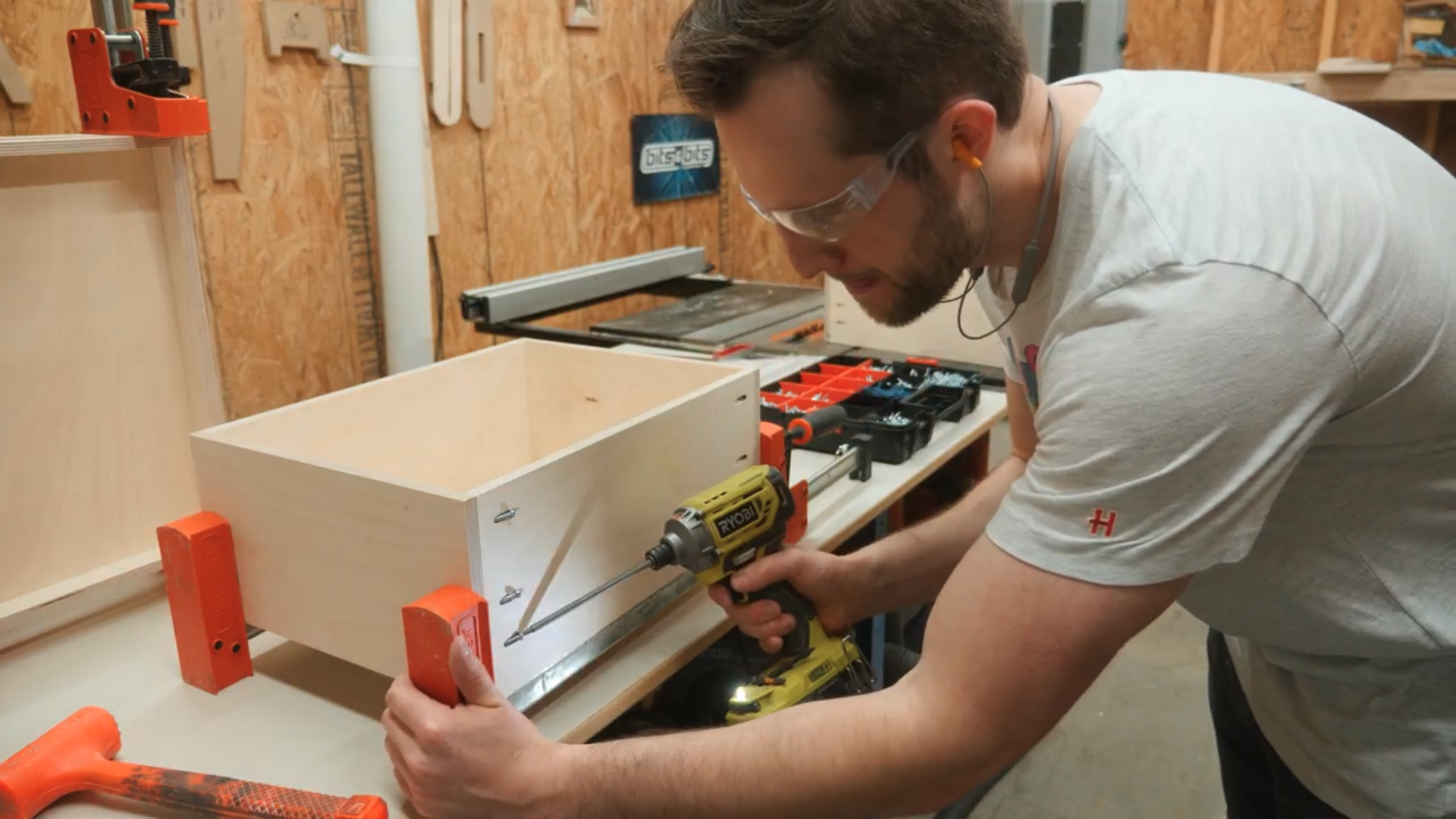

  • Assemble Drawer Boxes

    Assemble all 4 drawer boxes using 1" long pocket hole screws

    Step 6

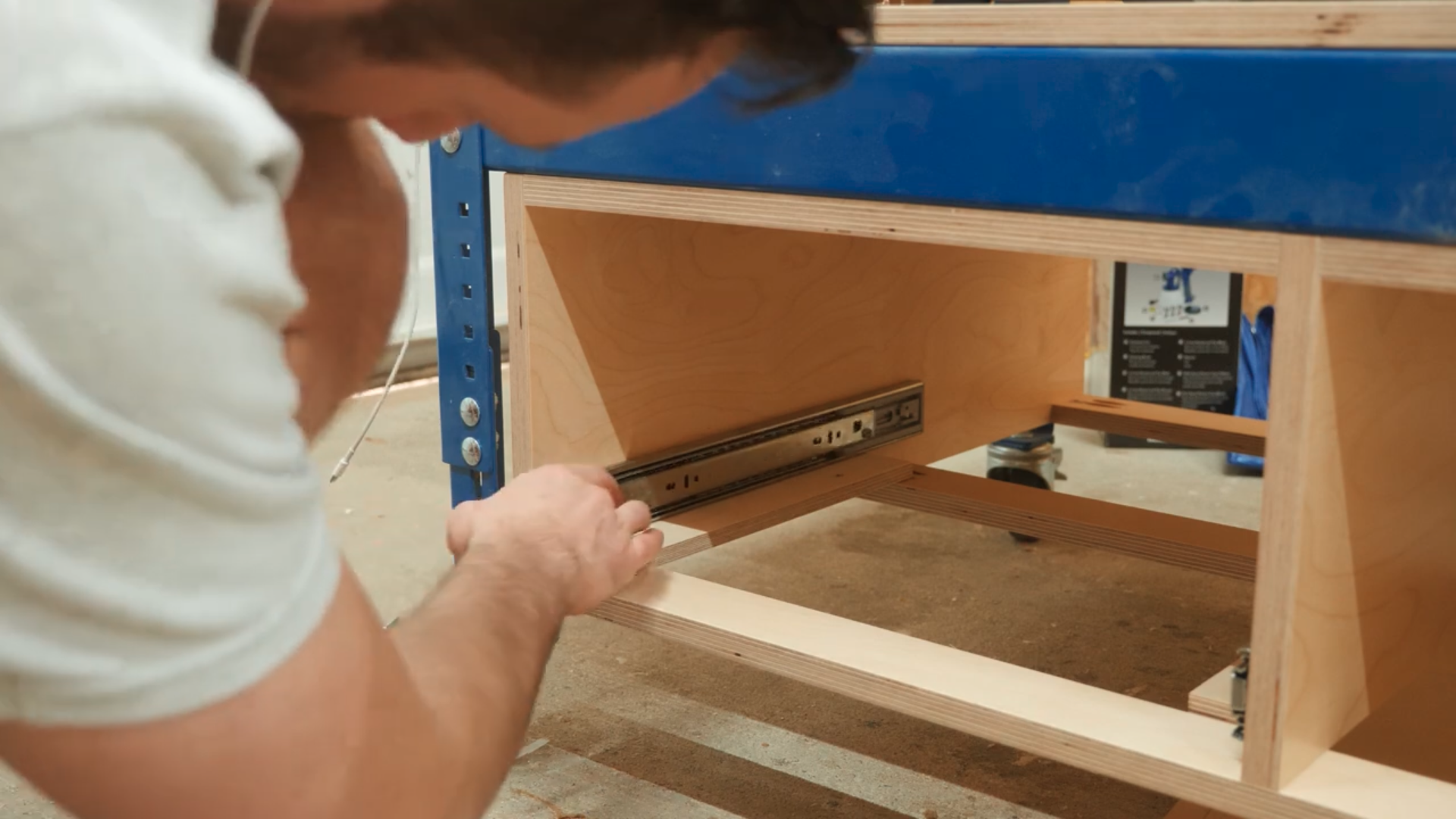

  • Install Drawer Slides

    Using a small spacer, install 4 sets of drawer slides inside the case

    Step 7

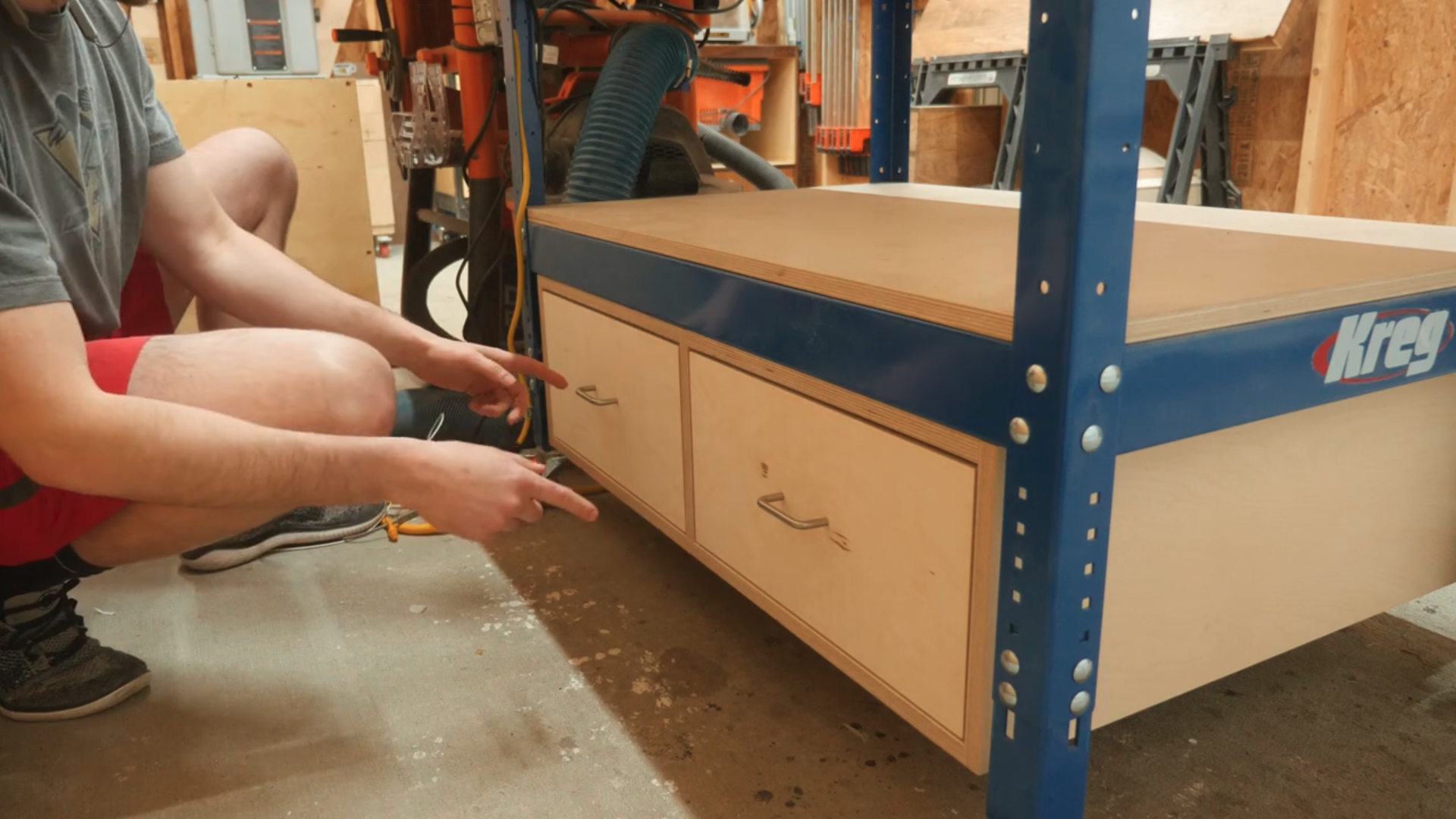

  • Install Large Drawers

    Install large drawers between the drawer slides, attach the drawer front, and attach the drawer pull

    Step 8

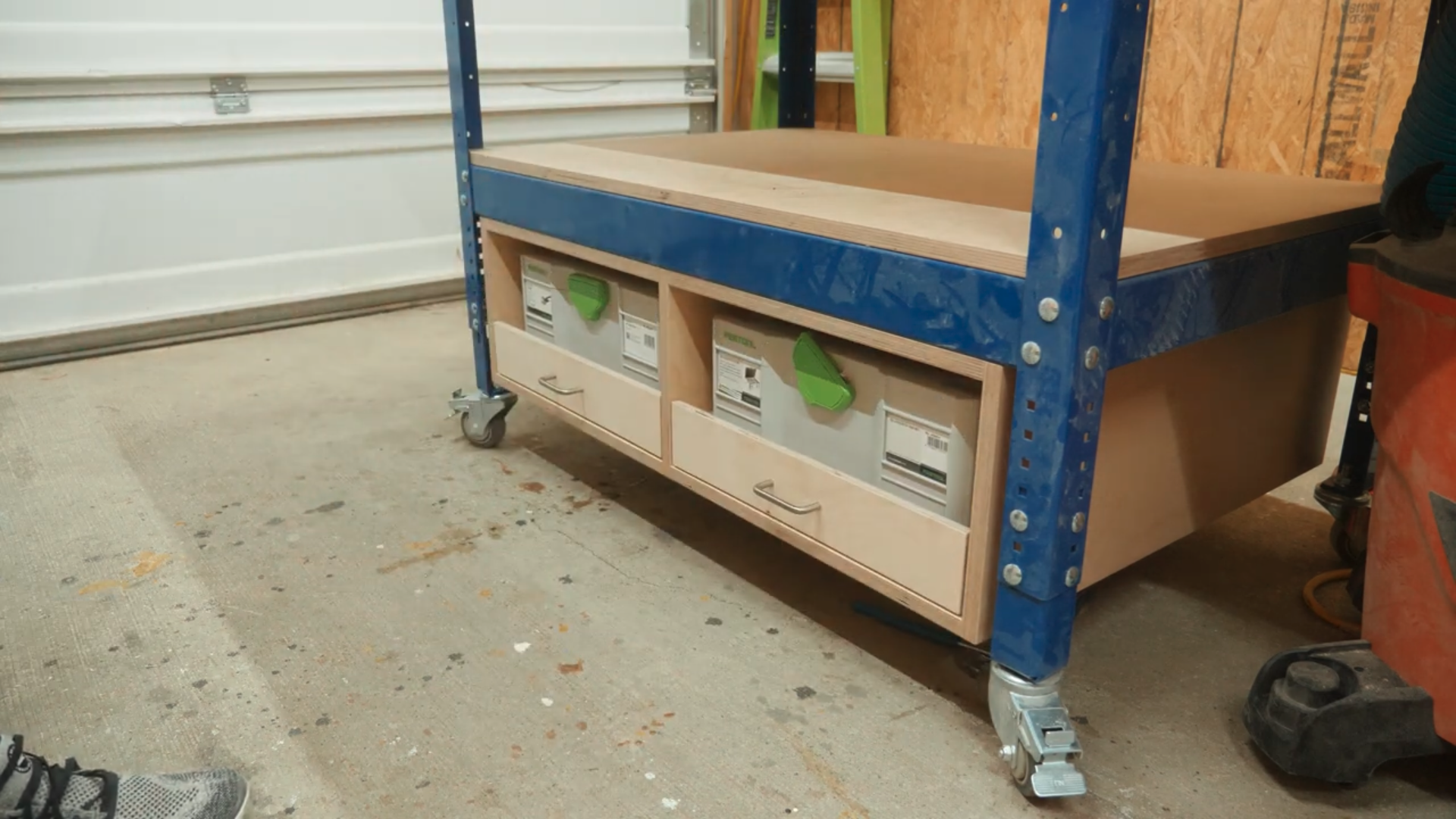

  • Install Small Drawers

    Install small drawers between the drawer slides, attach the drawer front, and attach the drawer pull

    Step 9

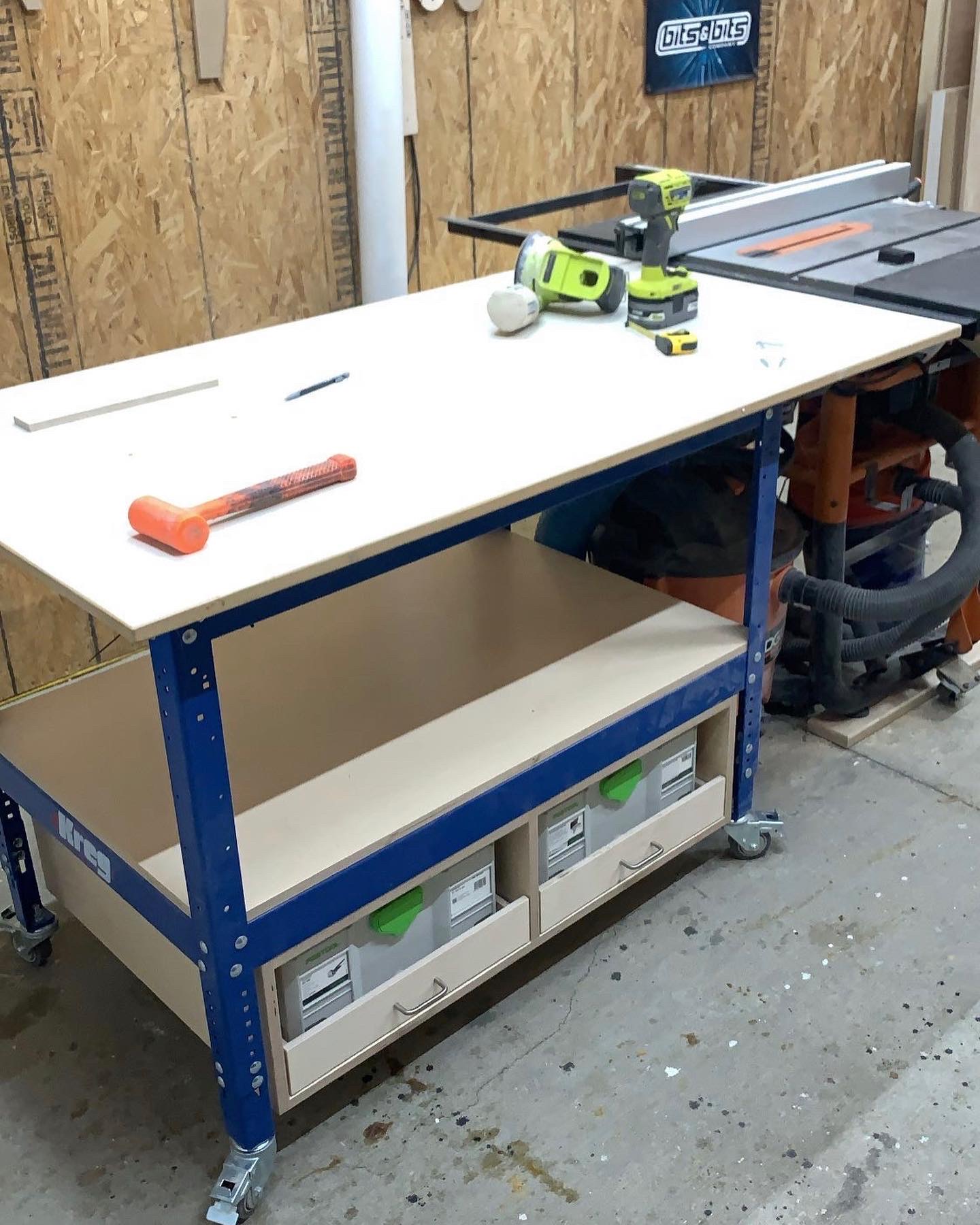

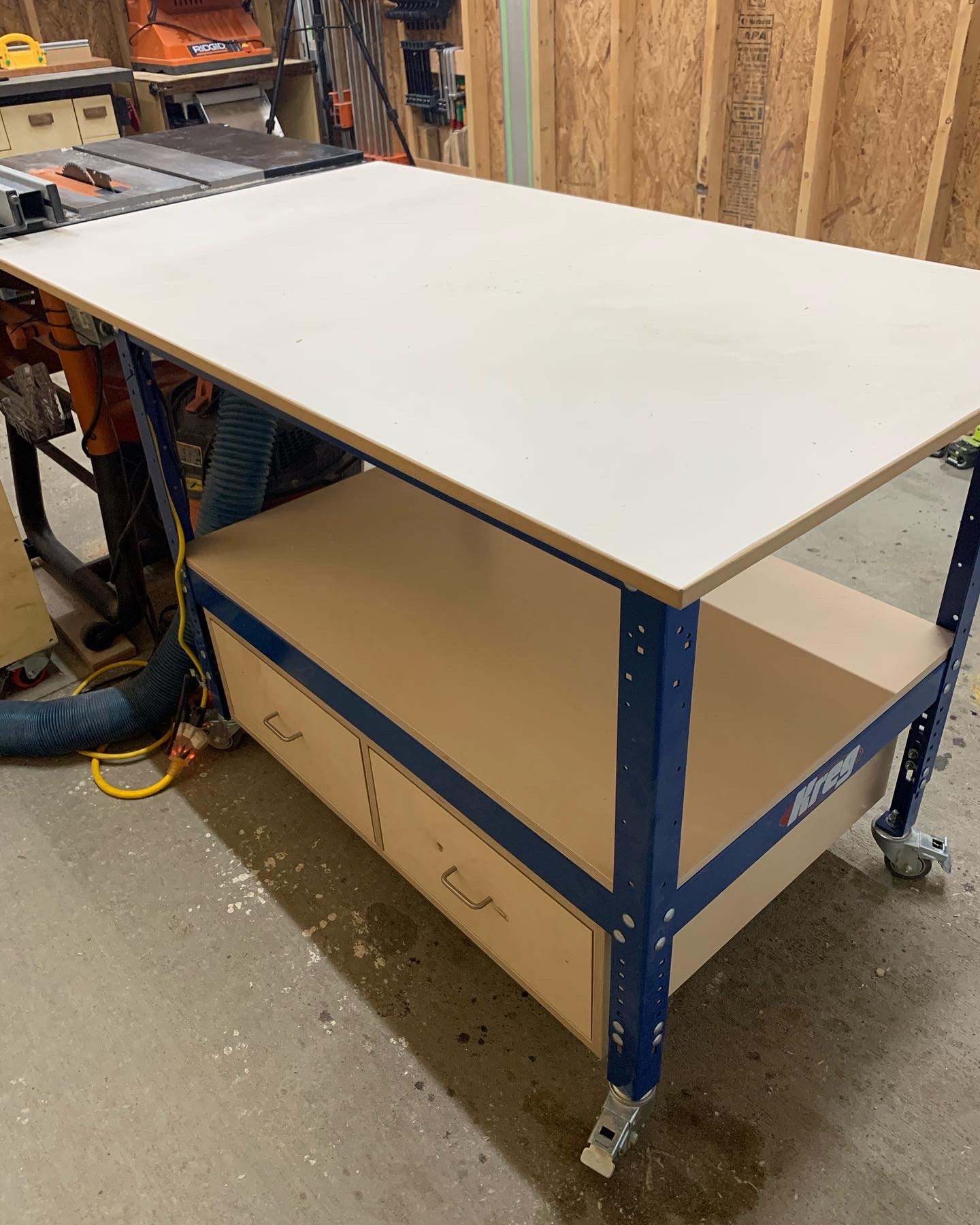

  • You Are Done!

    Congrats on building the under workbench storage!
