Adirondack Counter Height Side Table

By Jaime Costiglio
kreg-booth-side-table-1

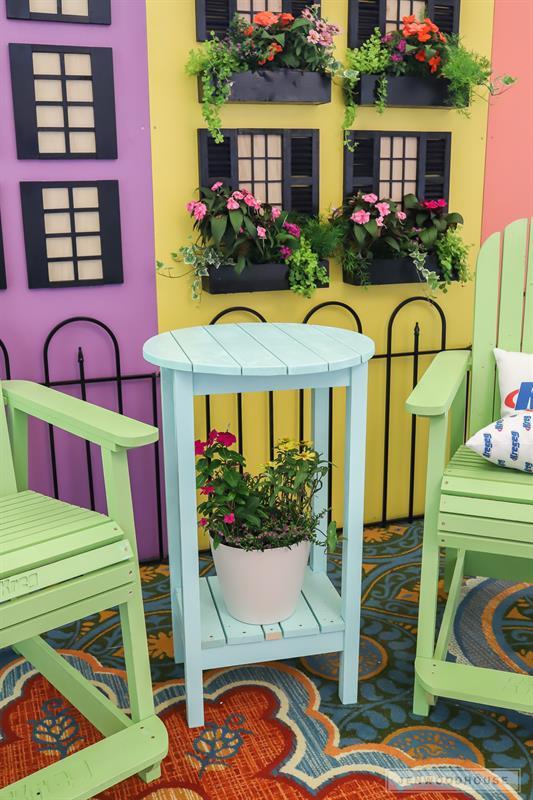

kreg-booth-side-table-3

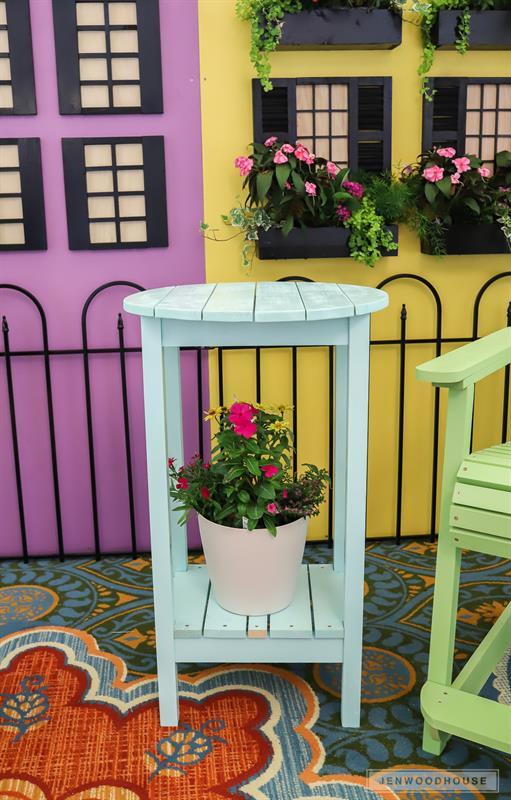

kreg-booth-side-table-2

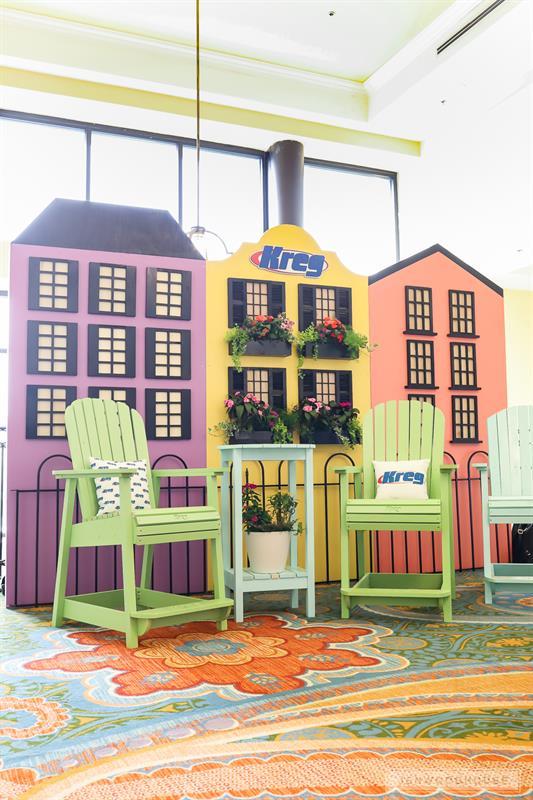

img_0227-2

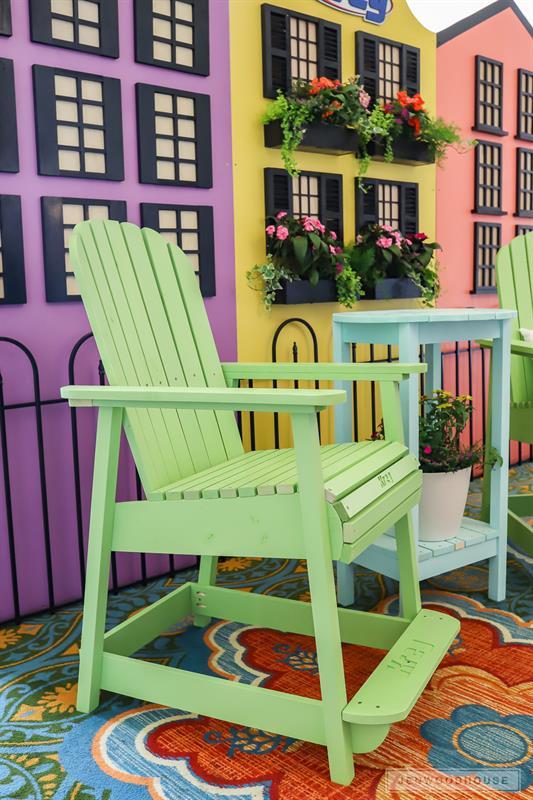

img_0231-2
Kreg Academy Kreg Academy

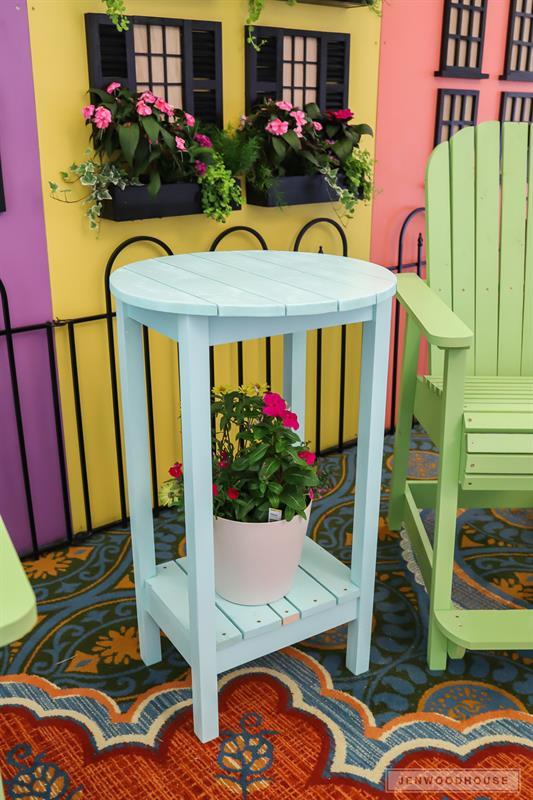

This Adirondack style side table completes your outdoor seating area by providing a flat functional surface area. The side table coordinates with the Adirondack counter height chair and makes the perfect outdoor seating area.

Difficulty advanced

Tools

Kreg Tools

Other Tools

  • Jigsaw
    Jigsaw
  • Miter Saw
    Miter Saw
  • Tape Measure
    Tape Measure
  • Drill (cordless)
    Drill (cordless)
  • Nail Gun
    Nail Gun
  • Sander
    Sander

Materials

Wood Products

  • 1 Board , 1x3 , 96"
  • 2 Board , 1x4 , 96"
  • 2 Board , 2x2 , 72"

Hardware & Supplies

  • 24 1 1/4" pocket hole screws
  • 12 1 1/4" finish nails
See All Tools & Materials

Cut List & Parts

  • 4 Legs , 2 x 2 @ 35 1/4"
  • 4 Short side aprons , 1 x 3 @ 9 1/2"
  • 4 Long side aprons , 1 x 3 @ 14"
  • 2 Table top middle , 1 x 4 @ 22"
  • 2 Table top sides , 1 x 3 @ 21"
  • 2 Table top outer edge , 1 x 3 @ 20"
  • 4 Bottom shelf slats , 1 x 4 @ 12 1/2"
See Full Cut List & Parts

Directions

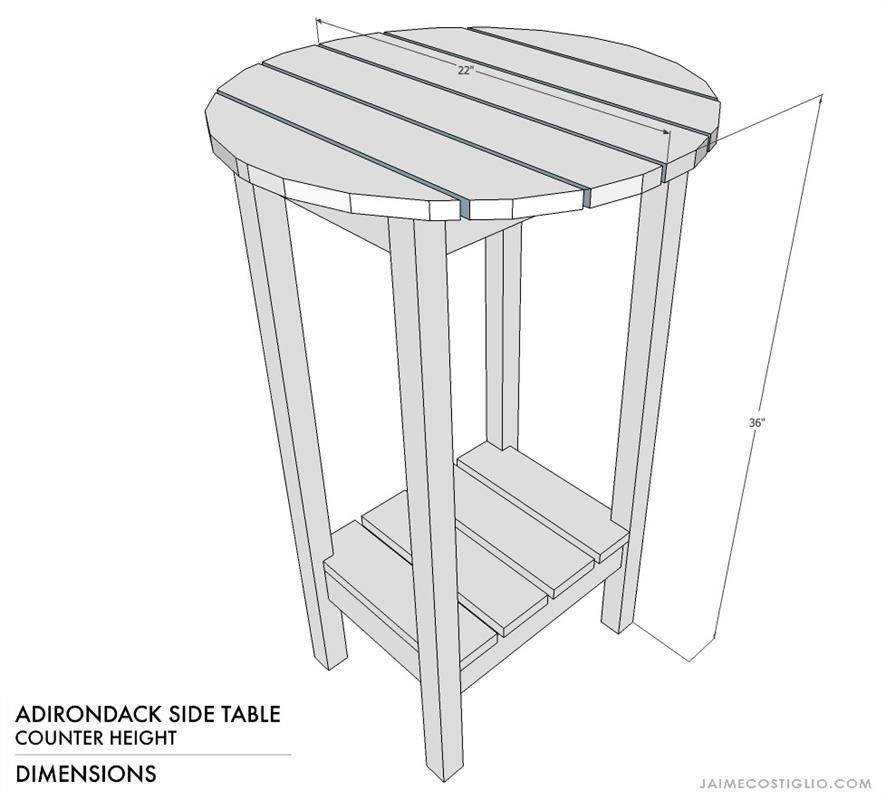

  • Dimensions

    22"diameter top x 36"h

    Step 1

  • Step 1

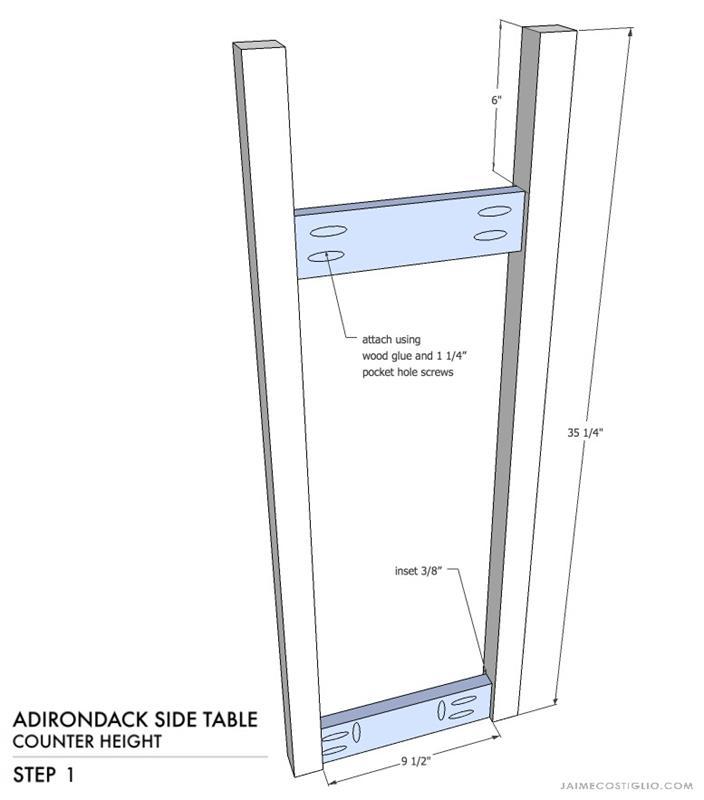

    STEP 1: Attach short side aprons to legs using wood glue and 1 ¼” pocket hole screws. Keep apron inset 3/8”. Make 2 sets.

    Step 2

  • Step 2

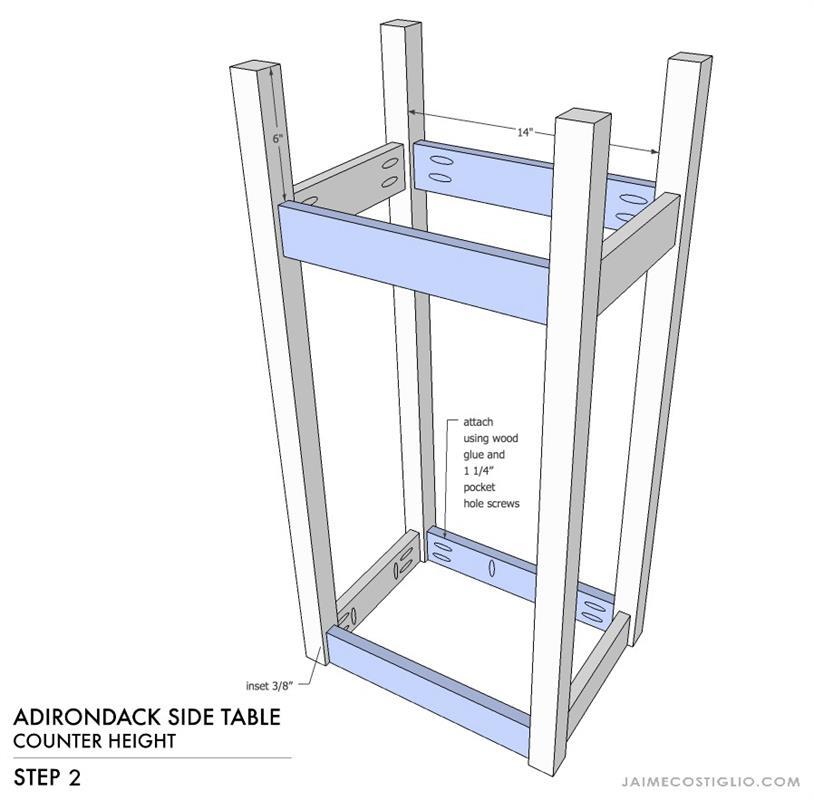

    STEP 2: Attach long side aprons to short side panels at legs using wood glue and 1 ¼” pocket hole screws.

    Step 3

  • Step 3

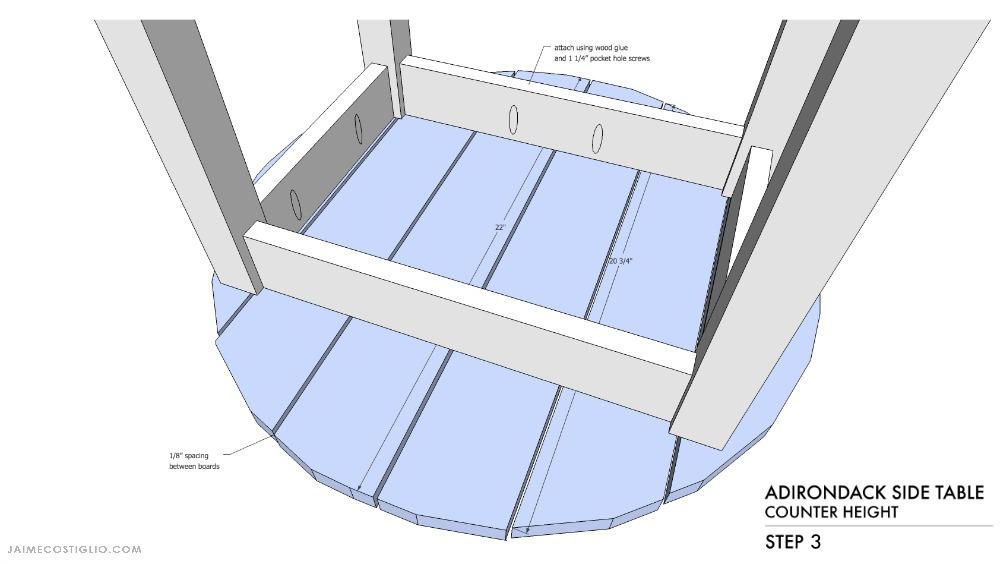

    STEP 3: Attach table top pieces to aprons using wood glue and 1 ¼” pocket hole screws. Keep 1/8” spacing between boards. Use a jig saw to trim boards to 22” diameter circle.

    Step 4

  • Step 4

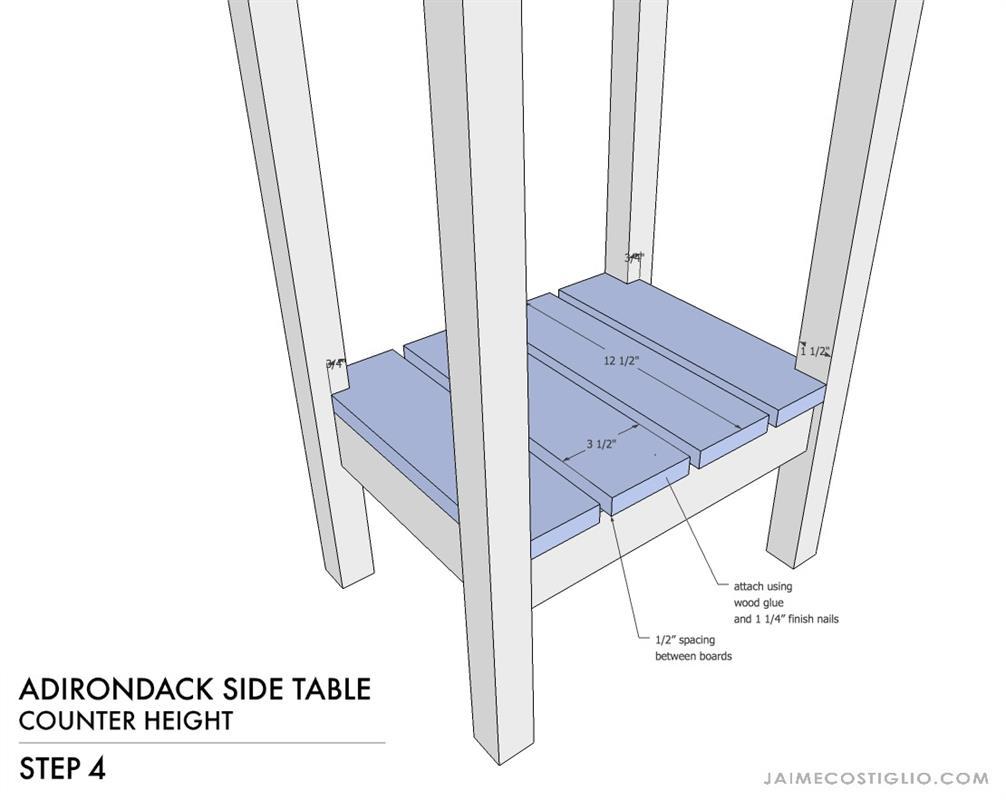

    STEP 4: Attach bottom shelf slats to aprons using wood glue and 1 ¼” finish nails. Notch out corners using jigsaw to fit around legs.
