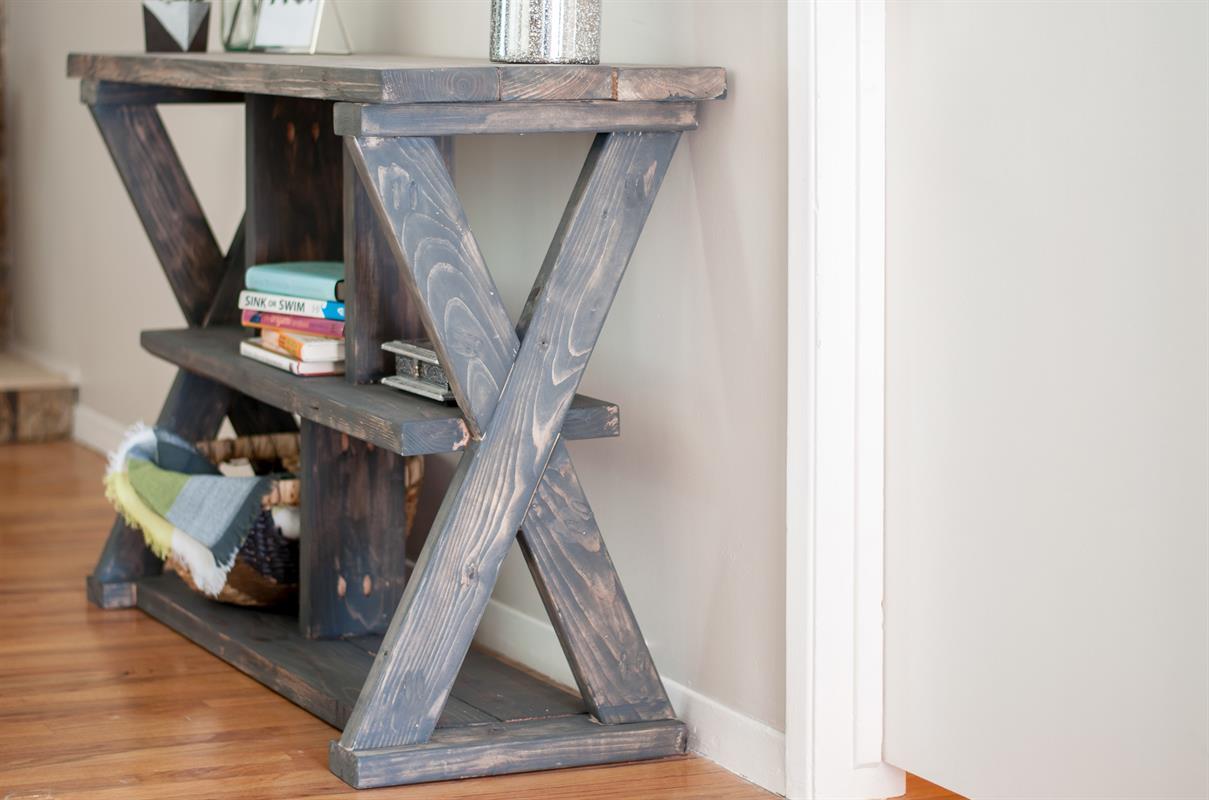

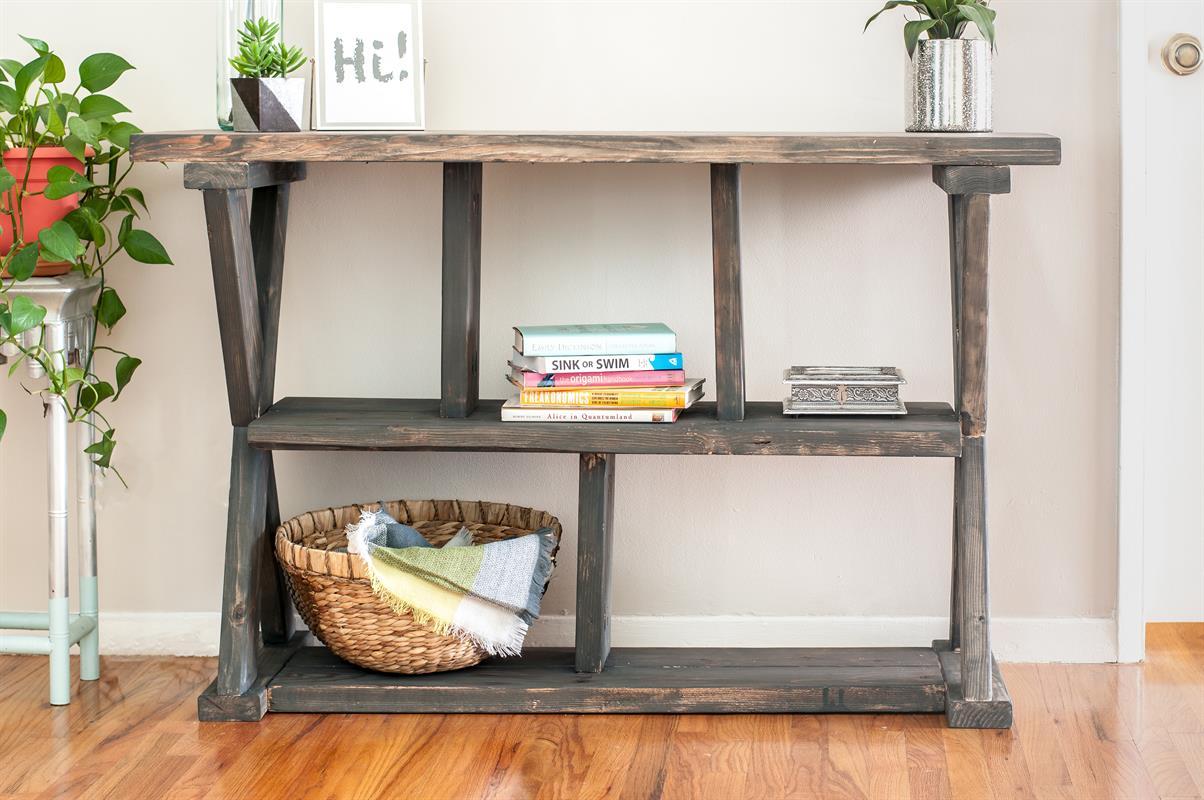

Looking for the perfect entryway table? This X-leg Console table combines style and function. The shelves provide added storage and can look amazing when styled. This unique design blends right in with any decor – farmhouse or modern.
Materials
Wood Products
- 2 Board , 2x4 , 96"
- 3 Board , 2x6 , 120"
Hardware & Supplies
- 50 2 1/2" pocket hole screws
- 6 1 1/2" wood screws
- 1 Wood glue
- 1 Wood filler
Cut List & Parts
- 4 Leg Supports , 2 x 4x 16 1/2"
- 1 Bottom Divider , 2x6x12 3/4"
- 2 Top divider , 2 x 6 x 14 1/4"
- 3 Top , 2 x 6 x 50"
- 2 Middle shelf , 2 x 6 x 39 1/8"
- 2 Bottom Shelf , 2 x 6 x 37 1/8"

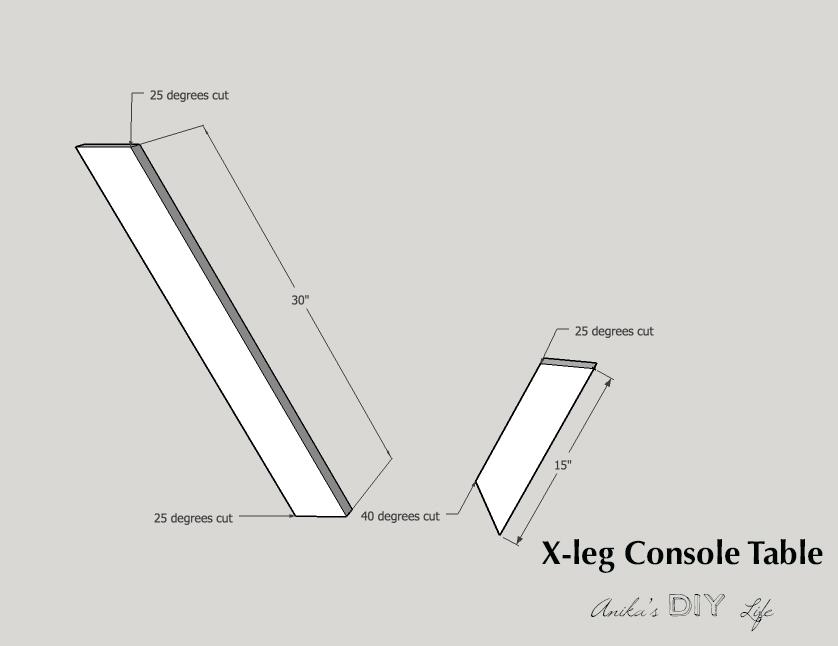

- 2 Long Angled cut (see picture) , 2 x 4 x 30"
- 4 Short Angled Cut (See Picture) , 2 x 4 x 15
Directions
-

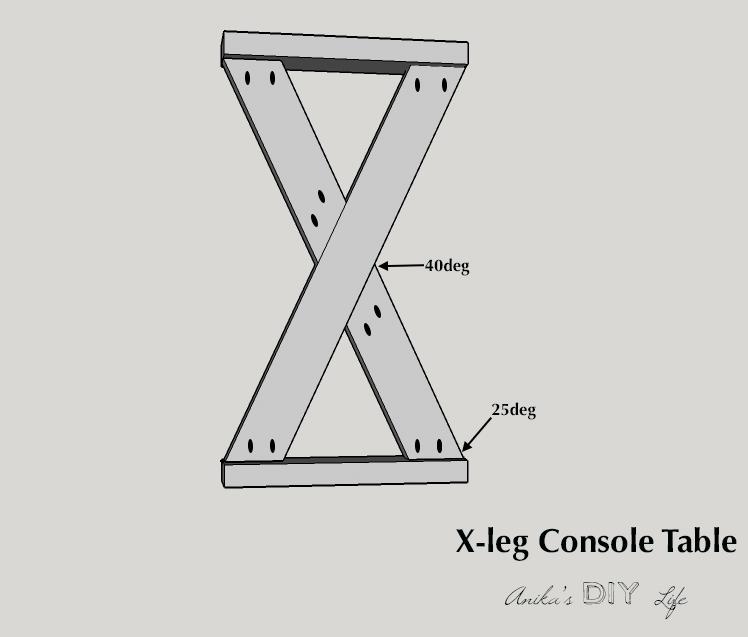

Build the legs
Drill 1 1/2" pocket hole screws and attach the long angled cut to the legs supports using 2 1/2" pocket screws.
Attach the short angled cuts using 2 1/2" pocket screws to create the X.
Note - the 40-degree angle is towards the middle of the X.
-

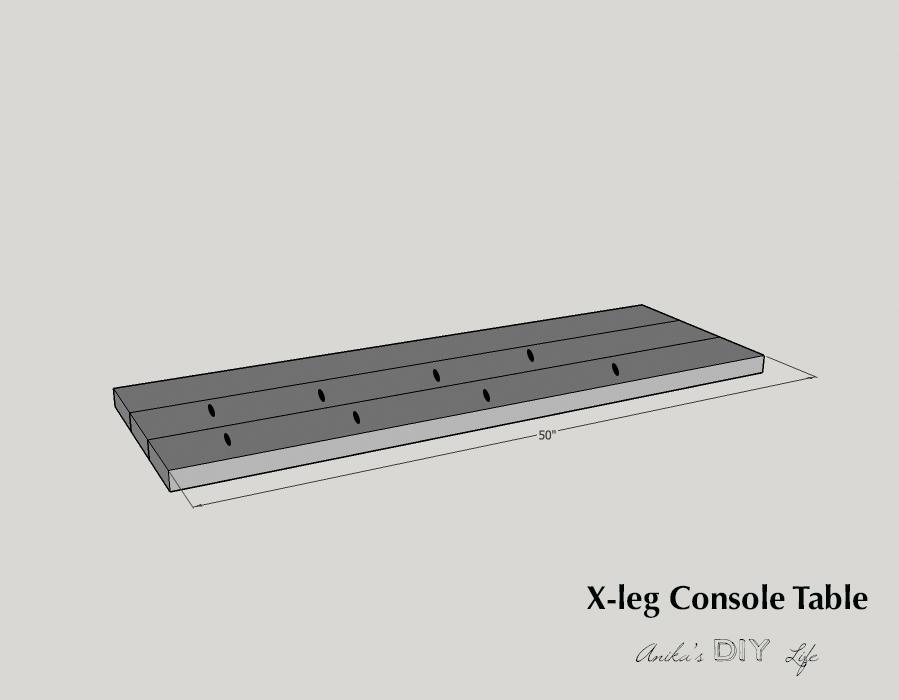

Build shelves and Top
Drill 1 1/2" pocket hole screws and put together the two shelves and top using 2 1/2" pocket screws.
-

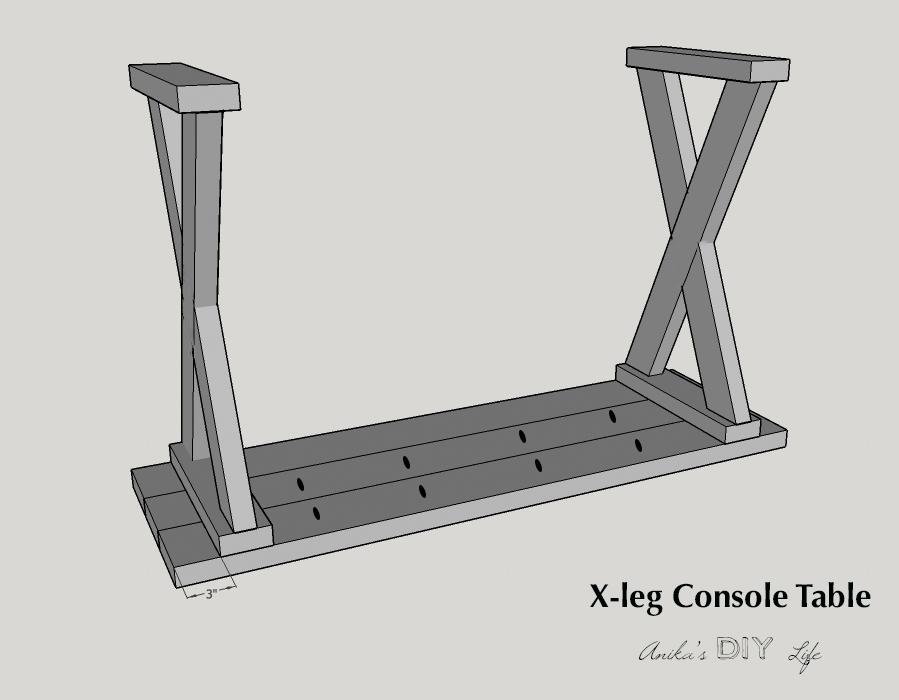

Attach legs to top
Lay the top face down and attach the two X-legs using 1 1/2" wood screws drilled into the leg supports.
Make sure the pocket holes face inside.
-

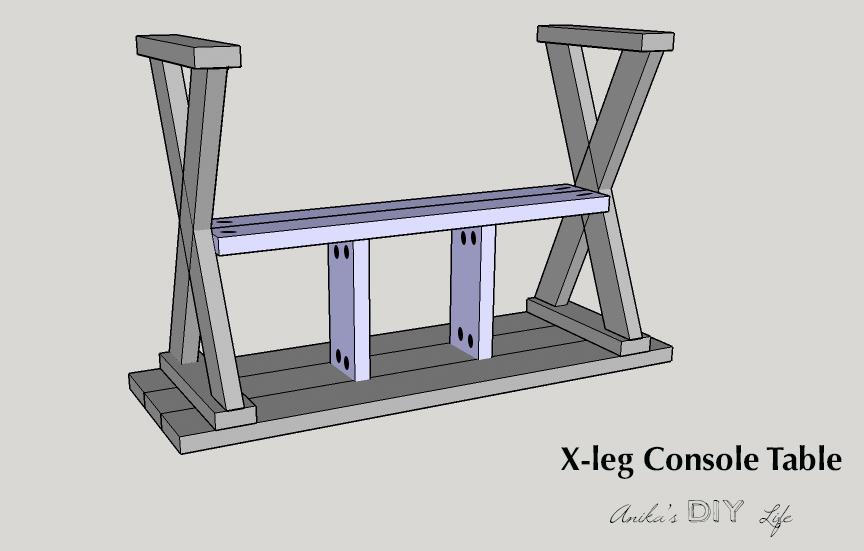

Attach middle shelf
Attach the top dividers and the middle shelf.
Use 1 1/2" pocket holes and 2 1/2" pocket screws.The dividers are 12 1/4" from each end.
The shelf is 13 1/2"" from the Top.There are pocket holes on the ends of the shelf that attach to the middle of the X.
-

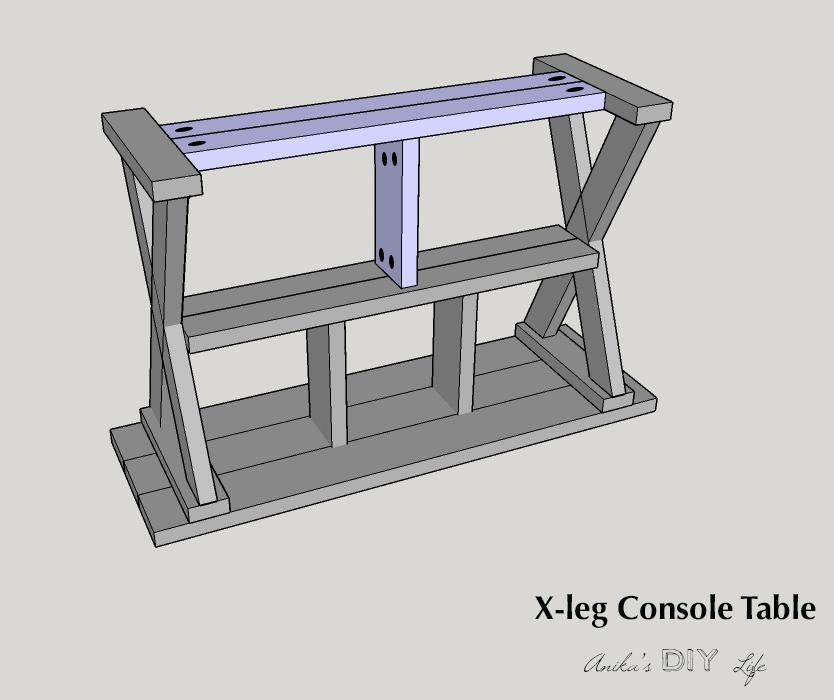

Attach bottom shelf
Attach the bottom divider and the bottom shelf using 1 1/2" pocket holes and 2 1/2" pocket screws.
The divider is 18 1/4"" from one end.The Bottom shelf is attached to the leg supports using pocket holes and screws.
-

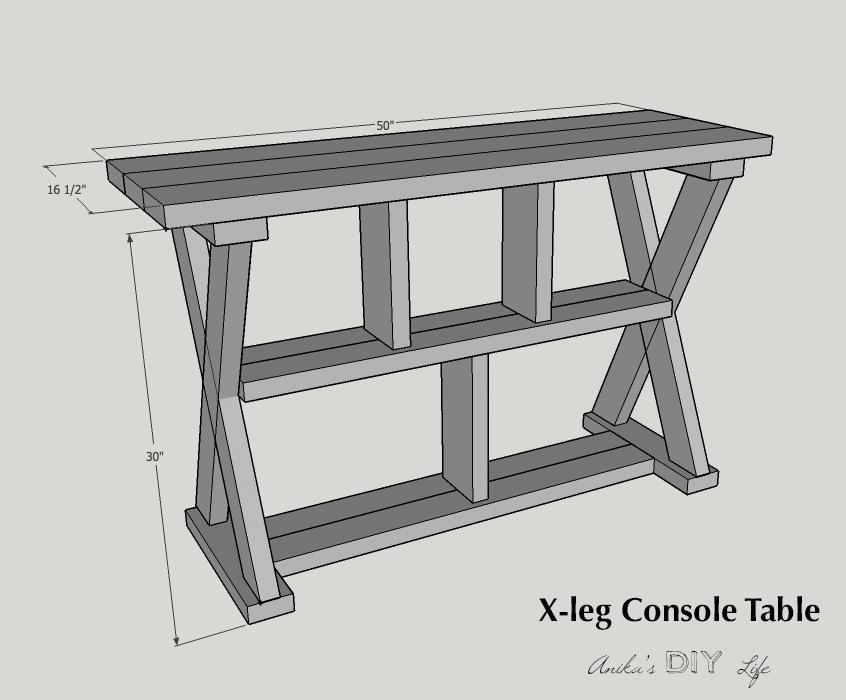

Final steps

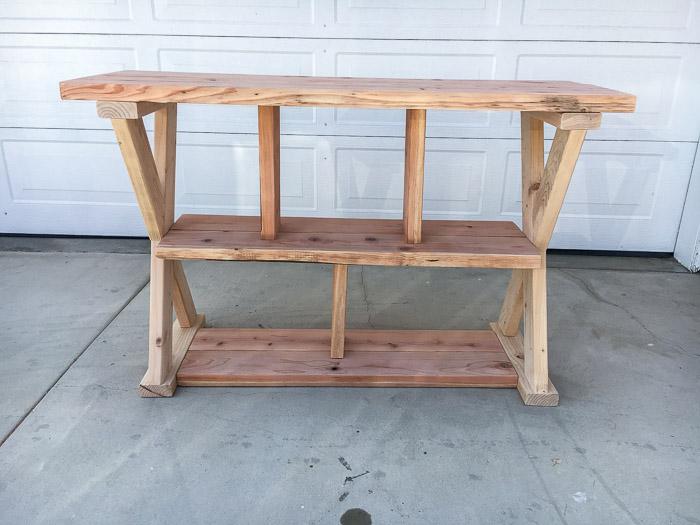

The X-leg console table is ready.
Sand and finish as desired.
-
