storage mirror

By Jaime Costiglio

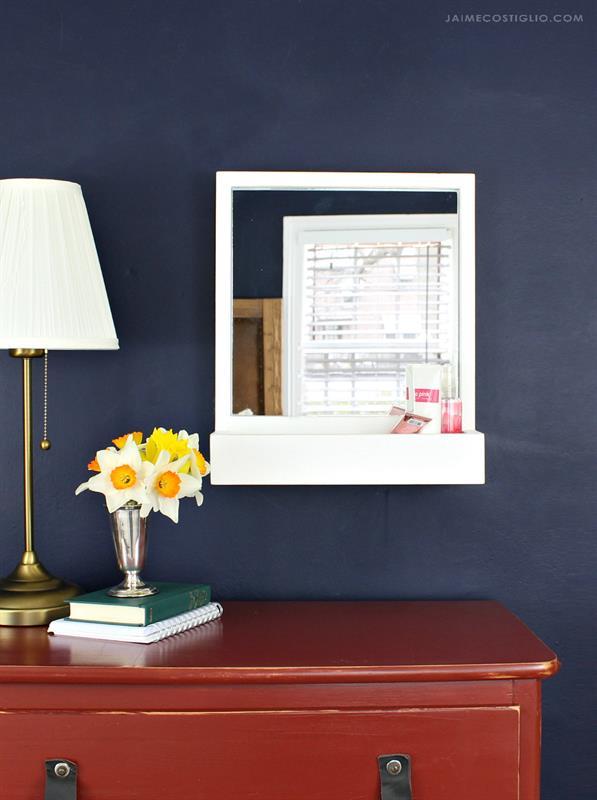

storage-mirror-1

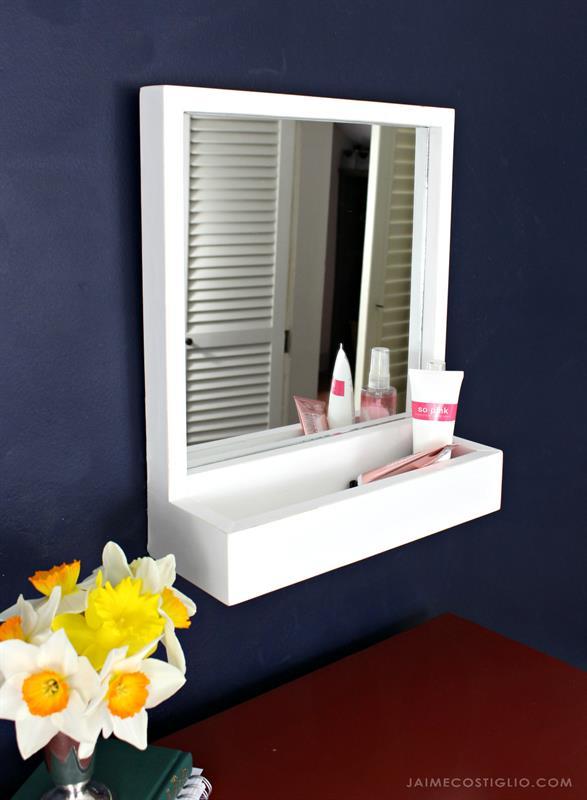

storage-mirror-4

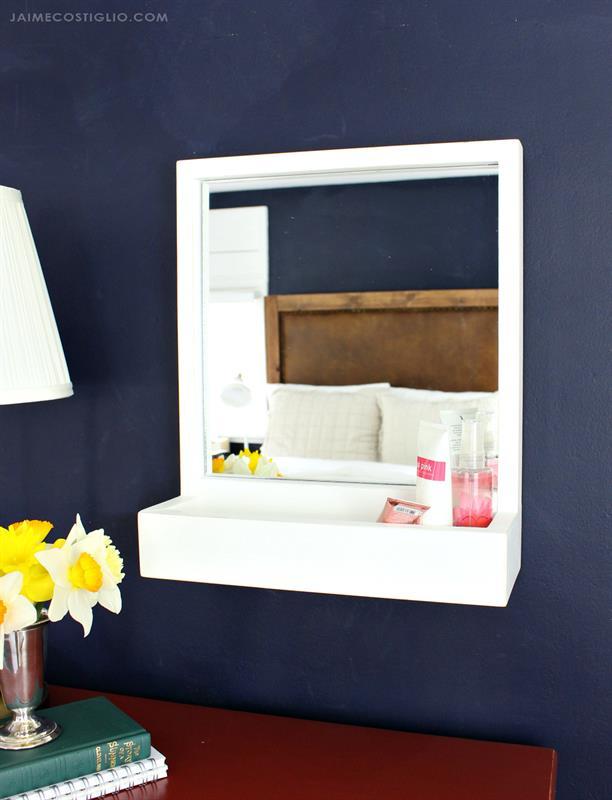

storage-mirror-5

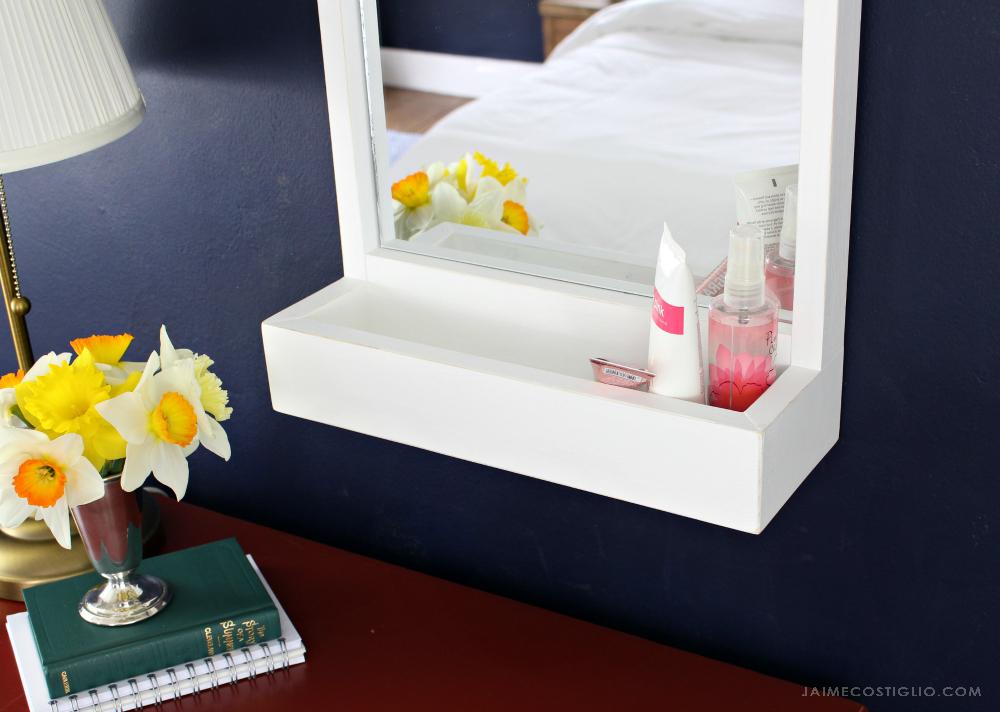

storage-mirror-6

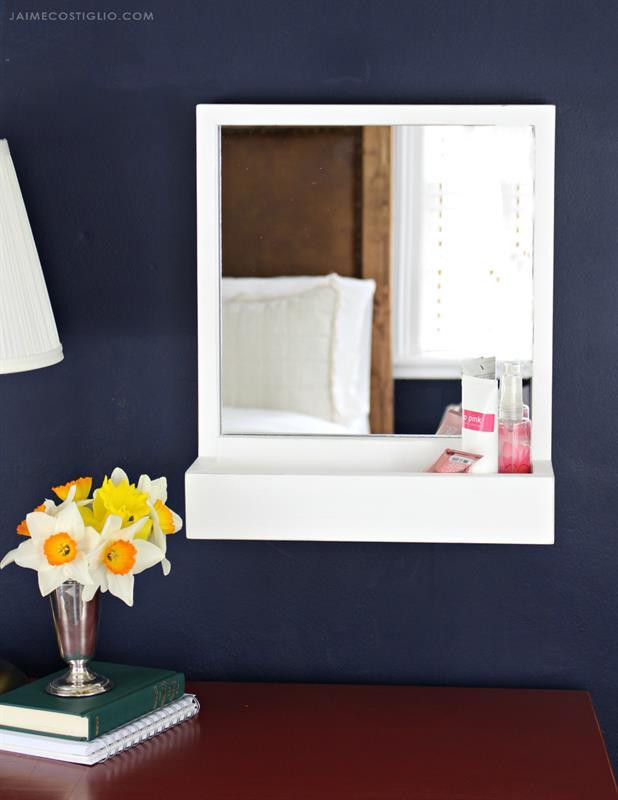

storage-mirror-2
Kreg Academy Kreg Academy

This mirror with storage is the perfect solution for nearly any spot in your home. Hang it above a dresser to keep perfume, lotions and clutter at bay. Or position it to hold make up and beauty supplies in the bathroom. In the foyer for a quick check before heading out, bonus a home for your keys

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Circular Saw (cordless)
    Circular Saw (cordless)
  • Miter Saw
    Miter Saw
  • Nail Gun
    Nail Gun
  • Sander
    Sander

Materials

Wood Products

  • 1 Plywood , 3/4" Thick , 16" x 13"
  • 1 Board , 1x4 , 12 1/8"
  • 1 Board , 1x3 , 72"
  • 1 Board , 1x2 , 72"

Hardware & Supplies

  • 30 1 1/4" finish nails
  • 1 12" square mirror
  • 1 Wood glue
  • 1 Construction adhesive
See All Tools & Materials

Cut List & Parts

  • 1 Backing , 3/4" x 15 3/8” x 12 1/8”
  • 1 Base , 1x4 @ 12 1/8"
  • 1 Frame bottom , 1x3 @ 12 1/8”
  • 2 Base sides , 1x3 @ 5”, one end 45 miter
  • 1 Base front , 1x3 @ 13 5/8”, both ends 45 miter not parallel
  • 2 Frame sides , 1x2 @ 13 5/8”, one end 45 miter
  • 1 Frame top , 1x2 @ 13 5/8”, both ends 45 miter not parallel
See Full Cut List & Parts

Directions

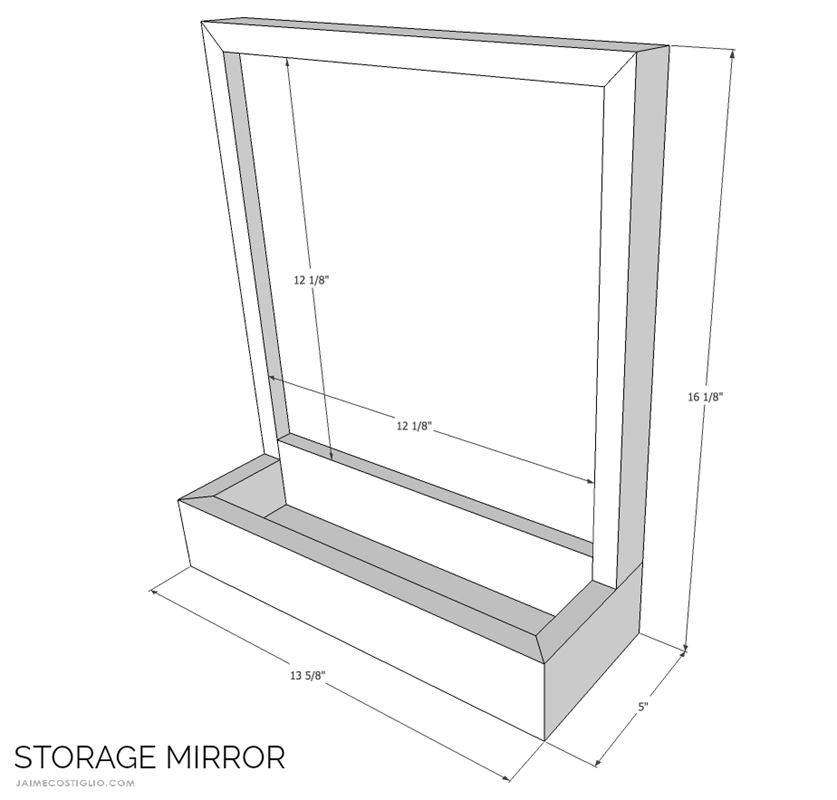

  • dimensions

    mirror dimensions

    Step 1

  • Step 1

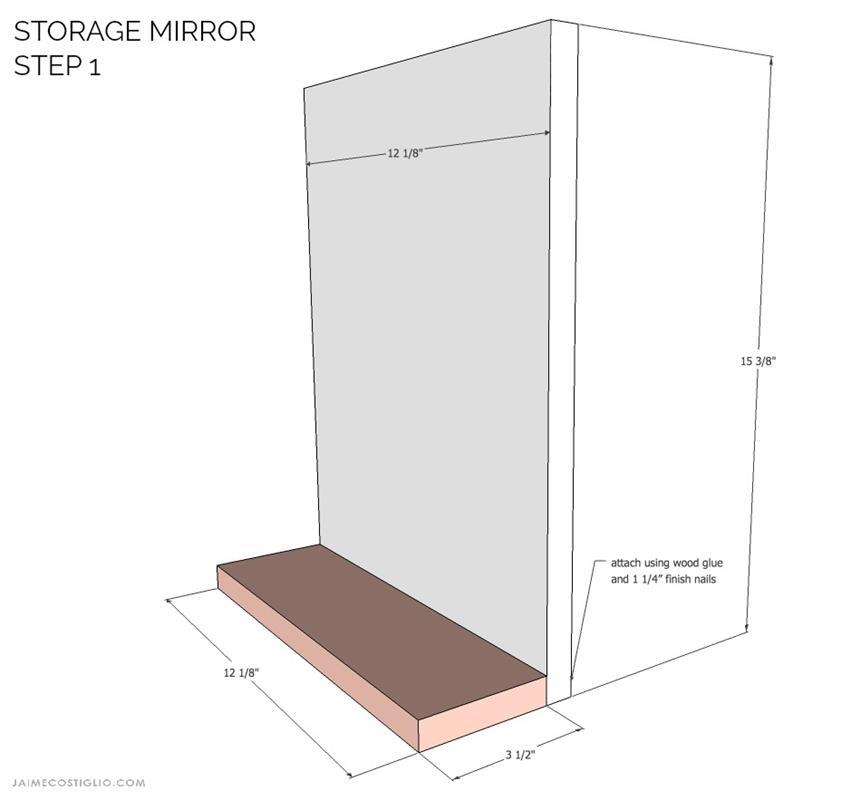

    Step 1: Attach the base to the backing using wood glue and 1 ¼” finish nails.

    Step 2

  • Step 2

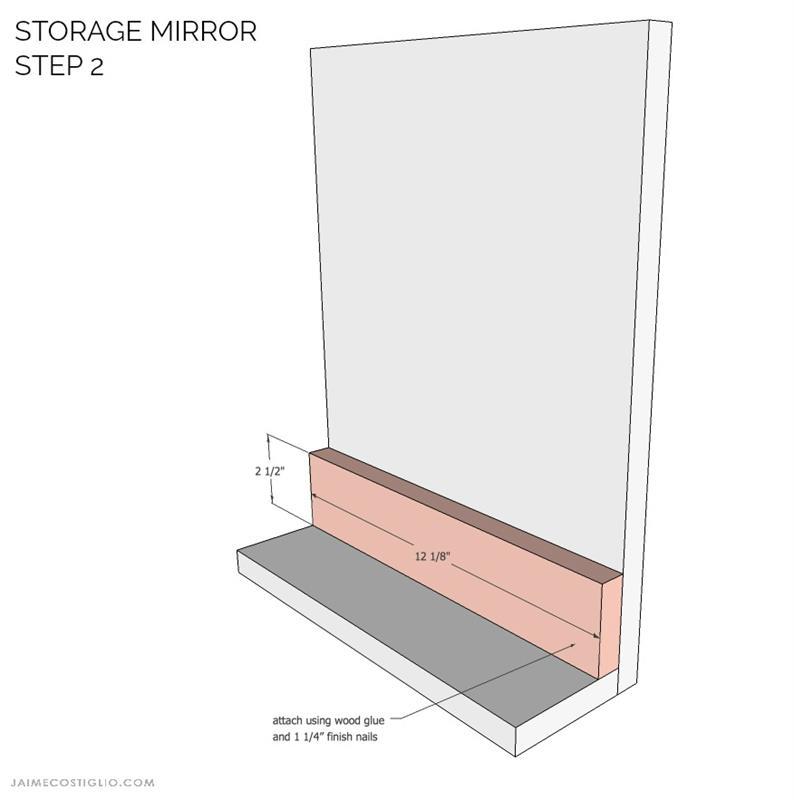

    Step 2: Attach the frame bottom to the backing using wood glue and 1 ¼” finish nails.

    Step 3

  • Step 3

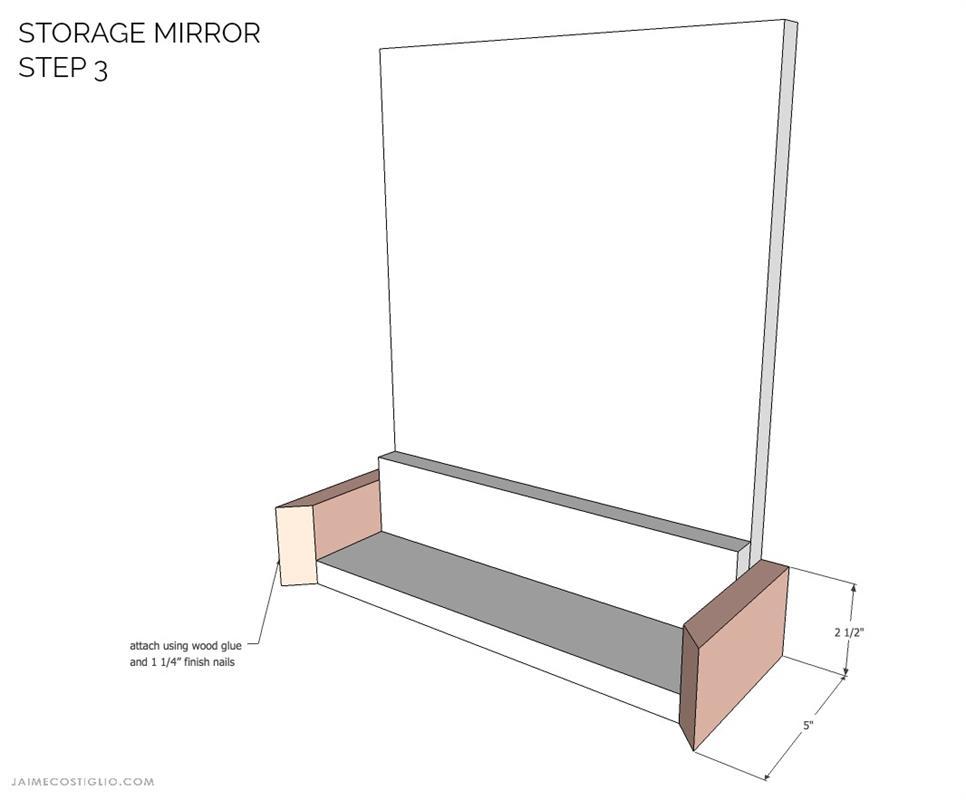

    Step 3: Attach the base sides to the base and backing using wood glue and 1 ¼” finish nails.

    Step 4

  • Step 4

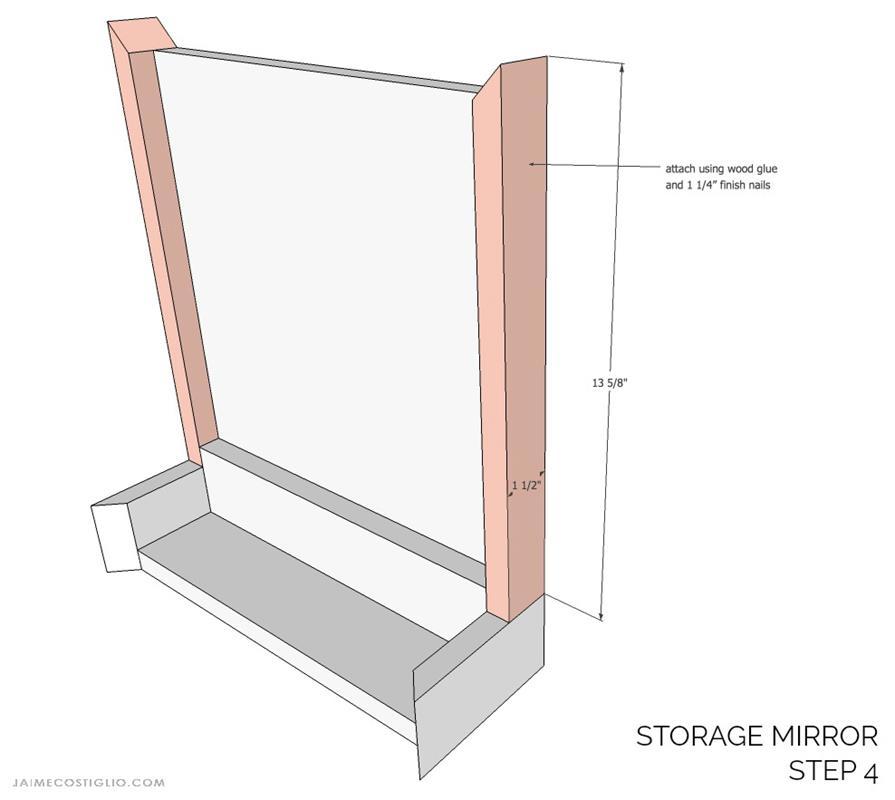

    Step 4: Attach the frame sides to the backing wood glue and 1 ¼” finish nails.

    Step 5

  • Step 5

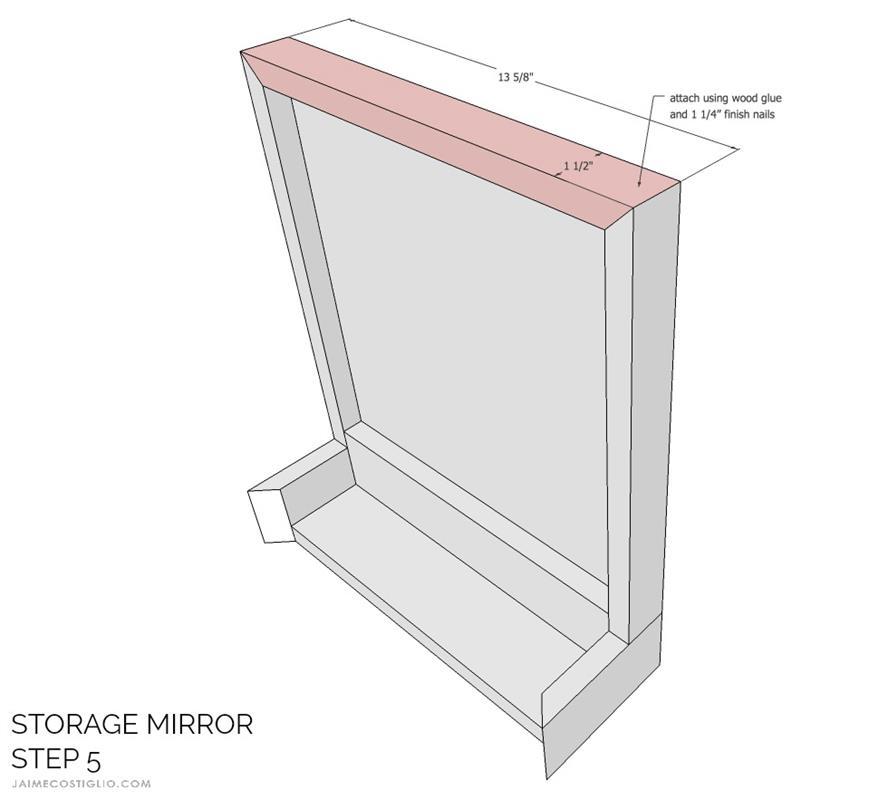

    Step 5: Attach the frame top to the backing using wood glue and 1 ¼” finish nails.

    Step 6

  • Step 6

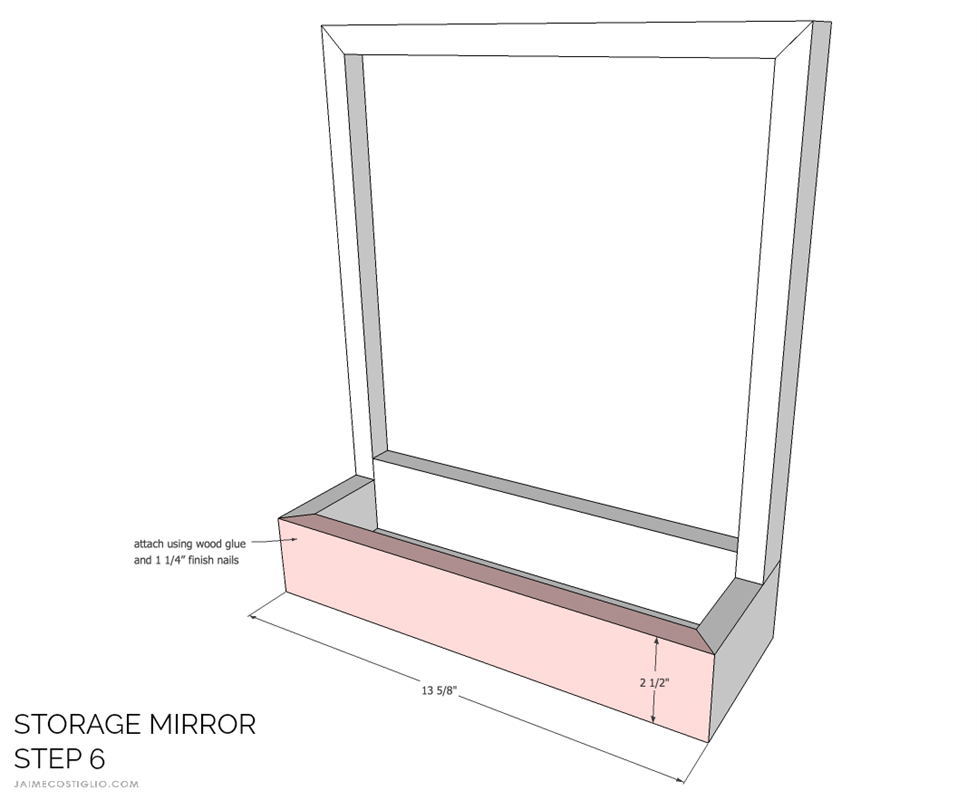

    Step 6: Attach the base front to the base and sides using wood glue and 1 ¼” finish nails.
