Single Sheet of Plywood Workbench

By Spencley Design Co
a-2
b-2
c-2
d
Kreg Academy Kreg Academy

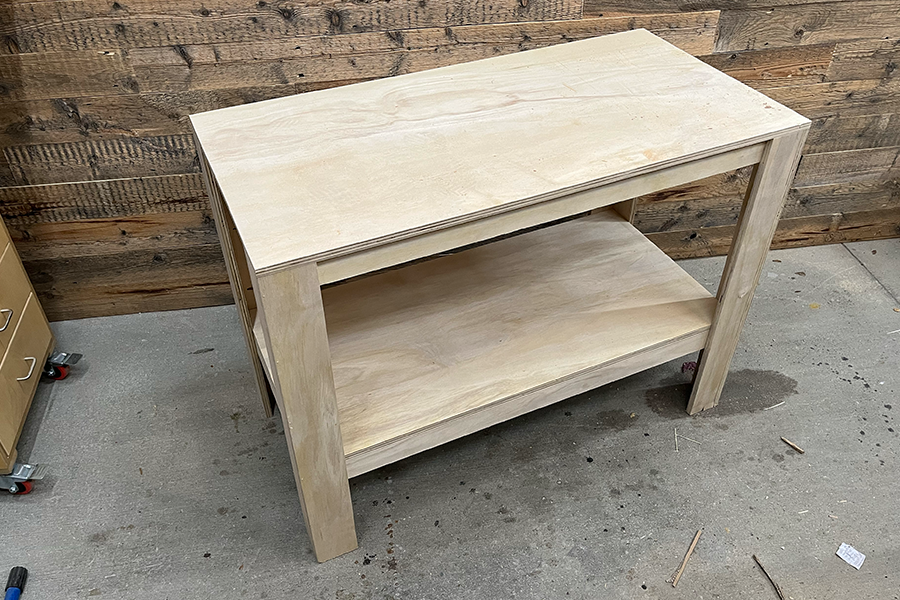

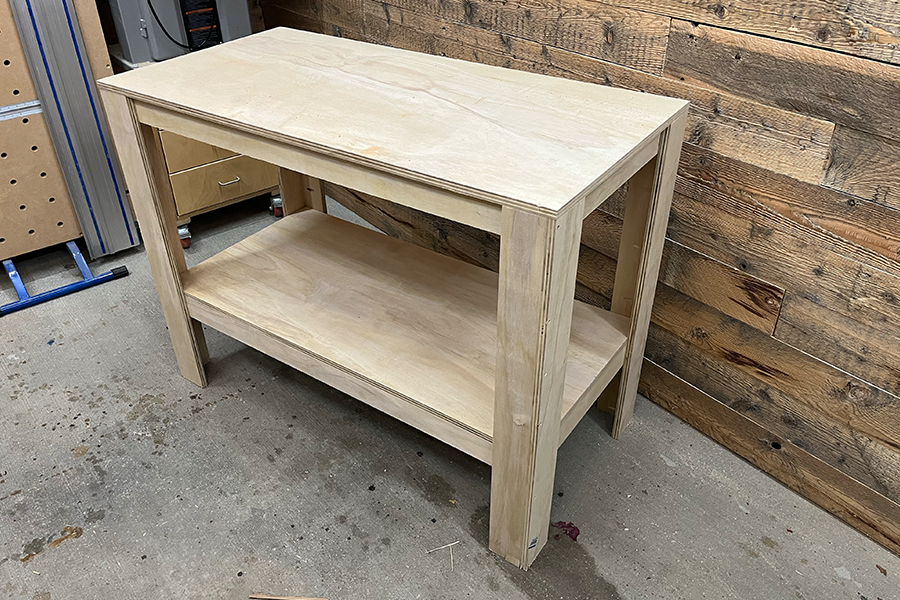

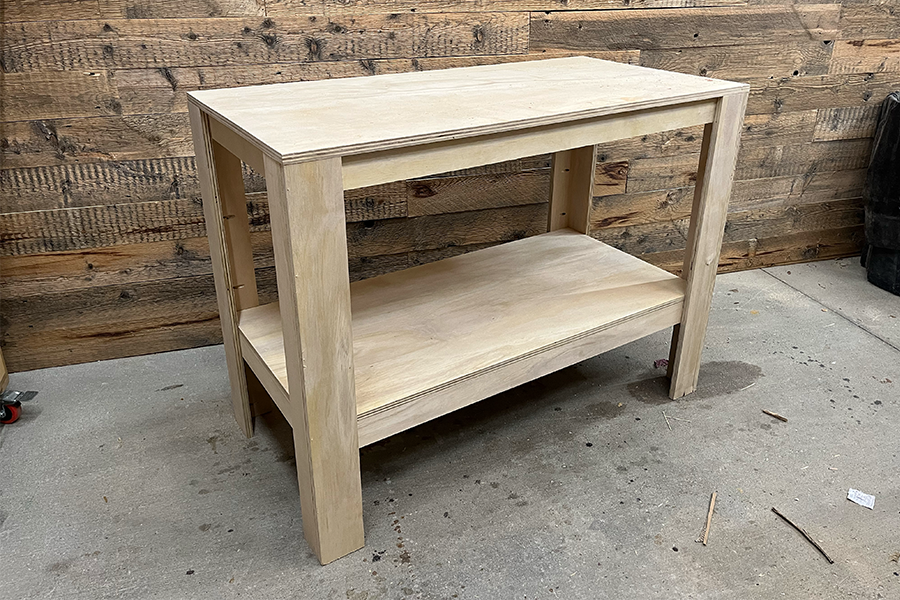

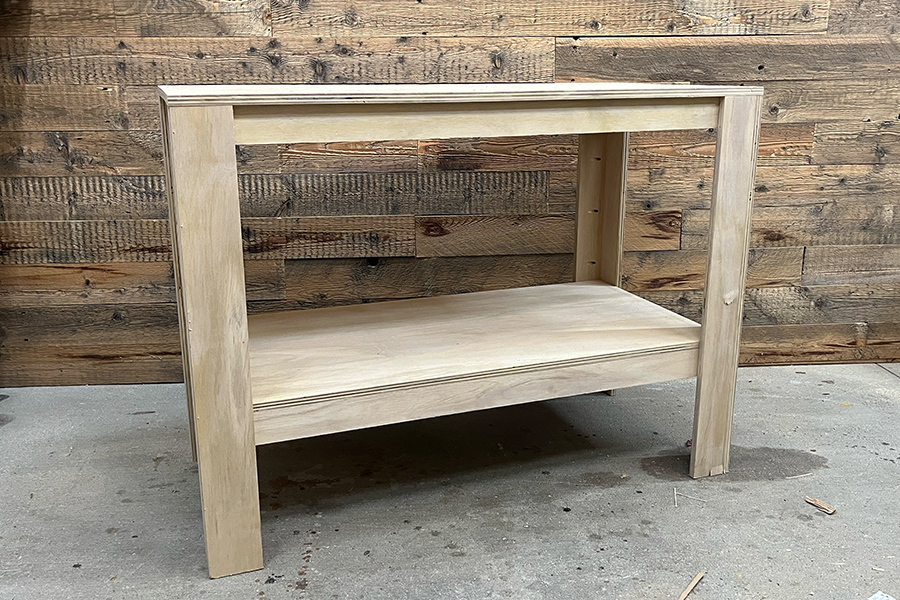

This is the perfect first workbench to build as it requires only two tools and can be made with only one sheet of plywood

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Circular saw
    Circular saw
  • Drill
    Drill

Materials

Wood Products

  • 1 Sheet plywood , 4 x 8 x ¾”

Hardware & Supplies

  • 1 Box of 1 1/4" Kreg pocket-hole screws (see tools list)
See All Tools & Materials

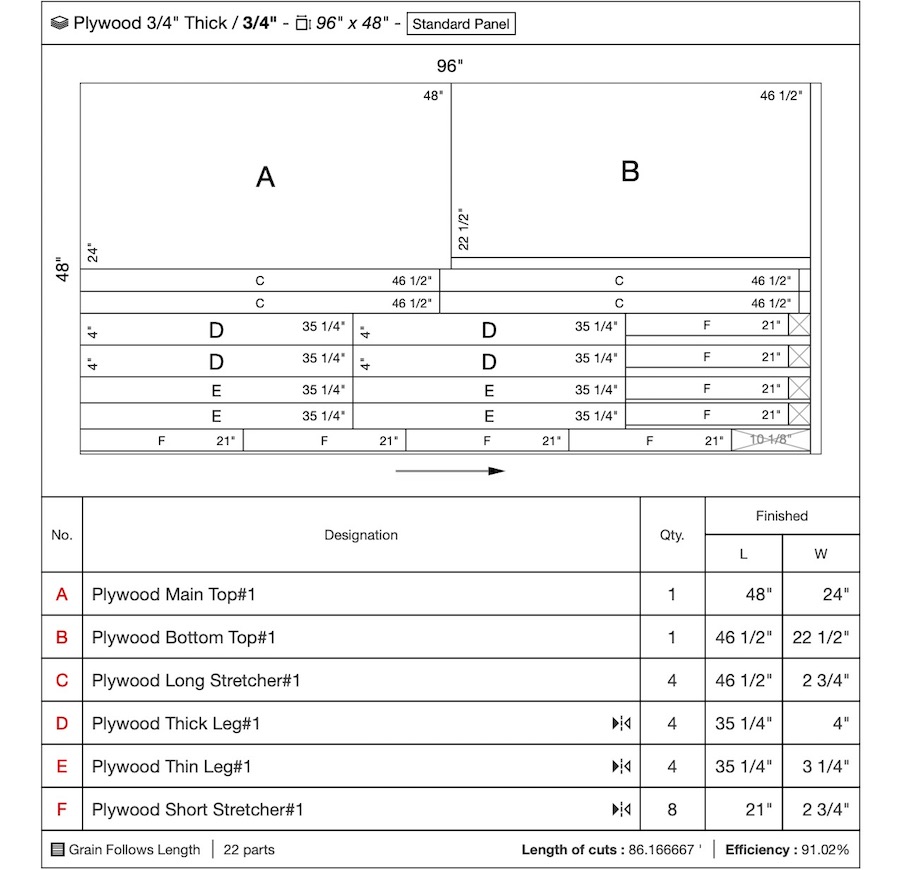

Cut List & Parts

  • 1 Top , 48” x 24”
  • 1 Bottom , 46 ½” x 22 ½”
  • 4 Long stretcher , 46 ½” x 2 ¾”
  • 8 Short stretcher , 21” x 2 ¾”
  • 4 Thick leg , 35 ¼” x 4”
  • 4 Thin leg , 35 ¼” x 3 ¼”
See Full Cut List & Parts

Directions

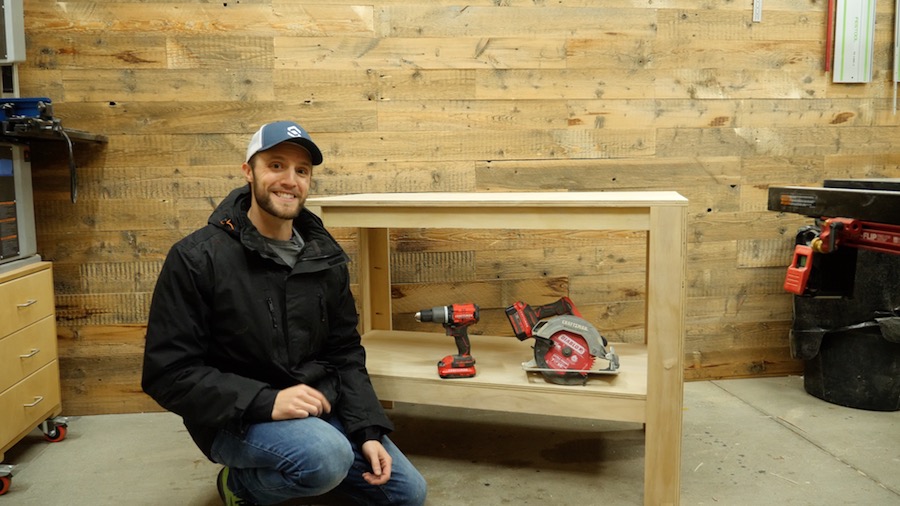

  • Watch the video

    Before attempting this project, watch the full youtube video to get a better understanding of how to complete the project.

    Step 1

  • Cut plywood pieces

    Cut pieces down according to the cutlist

    Step 2

  • Assemble Legs

    Using screws or pocket holes, join the two different leg pieces together to create 4 legs

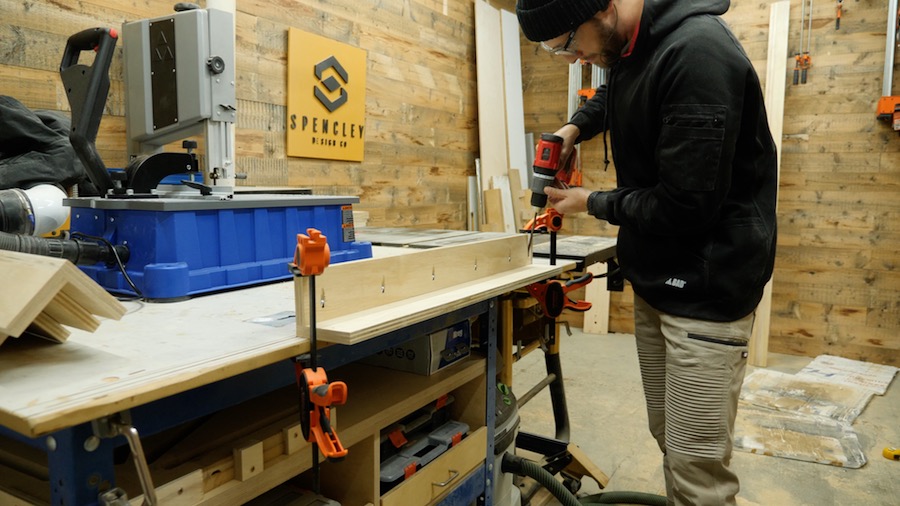

    Step 3

  • Assemble shelf brackets

    Using screws or pocket holes, assembled the two shelf brackets with the short and long stretchers

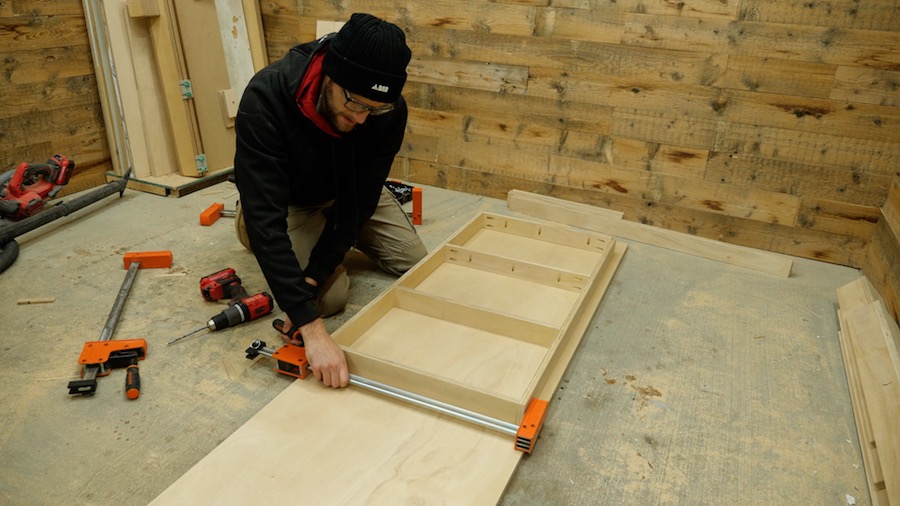

    Step 4

  • Attach top bracket

    Using screws, attach the top bracket to two of the legs

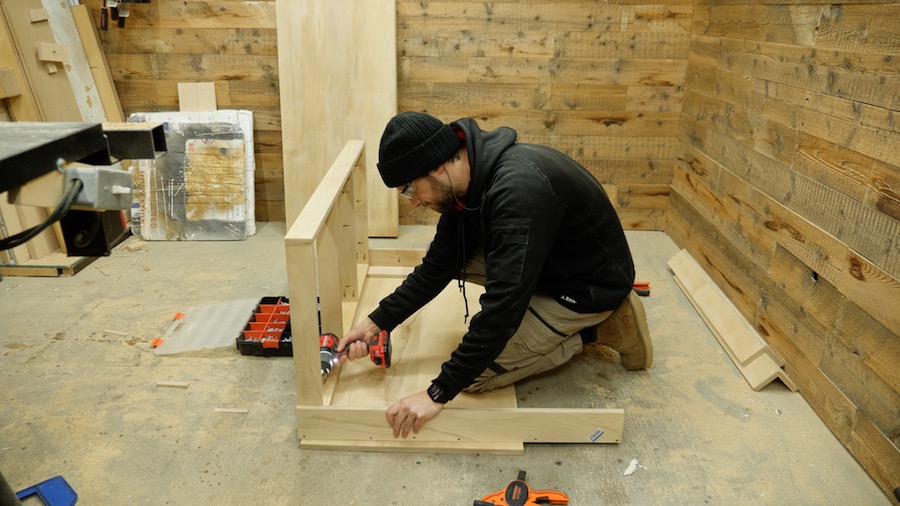

    Step 5

  • Attach bottom shelf

    Using screws, attach the bottom shelf bracket approximately 10” from the bottom of the legs

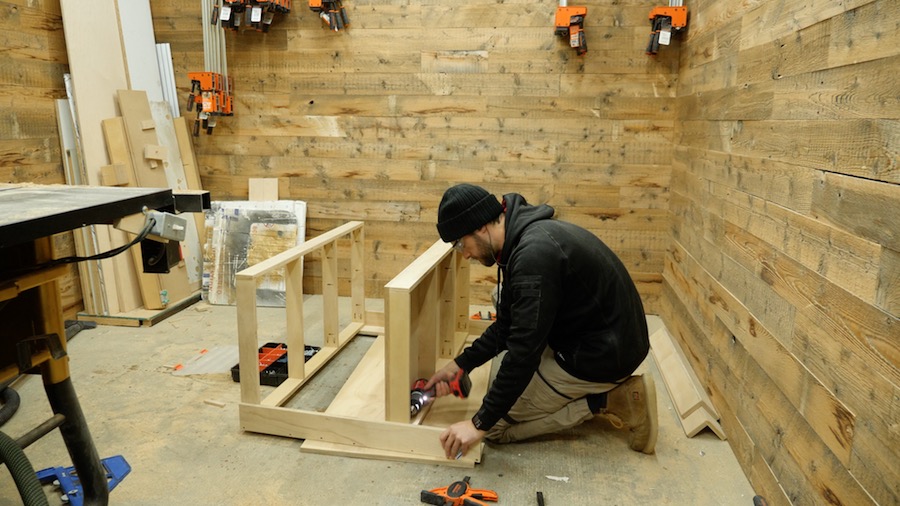

    Step 6

  • Attach other legs

    Using screws, attach the rest of the legs

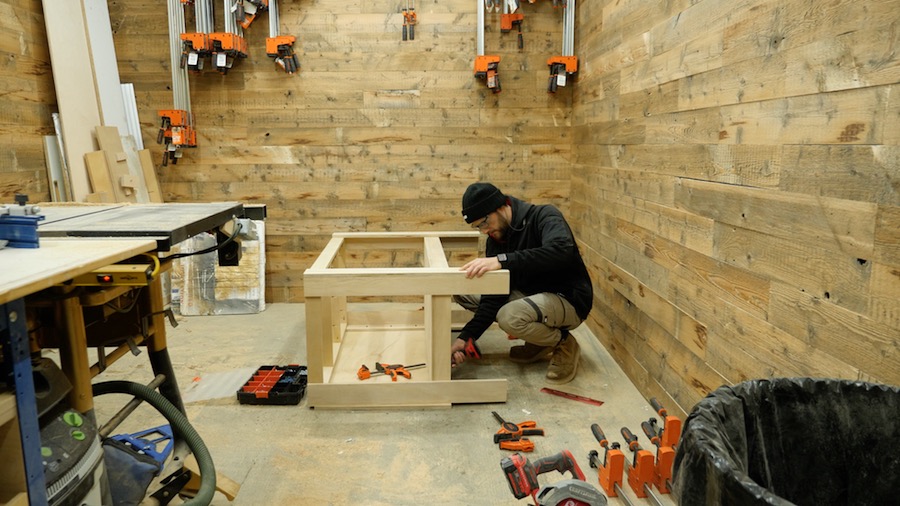

    Step 7

  • Attach bench top

    Using screws, attach the workbench top and you are done!

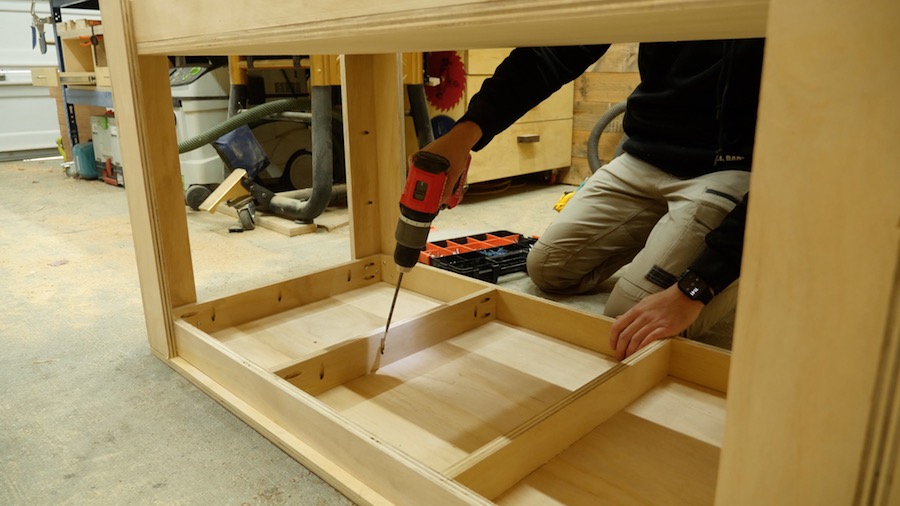

    Step 8
