Sander and Sandpaper Storage

By The Handyman's Daughter
sander-and-sandpaper-storage-square-compressed
Kreg Academy Kreg Academy

Keep all your sanders and sandpaper in one compact space! This storage unit is sized to fit perfectly on the bottom shelf of the Kreg workbench.

Difficulty moderate

Tools

Kreg Tools

Other Tools

  • Square
    Square
  • Table Saw
    Table Saw
  • Tape Measure
    Tape Measure
  • Drill (cordless)
    Drill (cordless)
  • Nail Gun
    Nail Gun
  • Sander
    Sander

Materials

Wood Products

  • 1 Plywood , 3/4" Thick , Half Sheet
  • 1 Plywood , 1/4" Thick , Half Sheet

Hardware & Supplies

  • 1 1 1/4" pocket hole screws
  • 1 Brad nails
See All Tools & Materials

Cut List & Parts

  • 2 Top and bottom , 3/4" x 21 3/4" x 13"
  • 4 Vertical supports , 3/4" x 13 3/4" x 13"
  • 1 Back , 1/4" x 21 3/4" x 15 1/4"
  • 15 Shelves , 1/4" x 6 5/8" x 13"
See Full Cut List & Parts

Directions

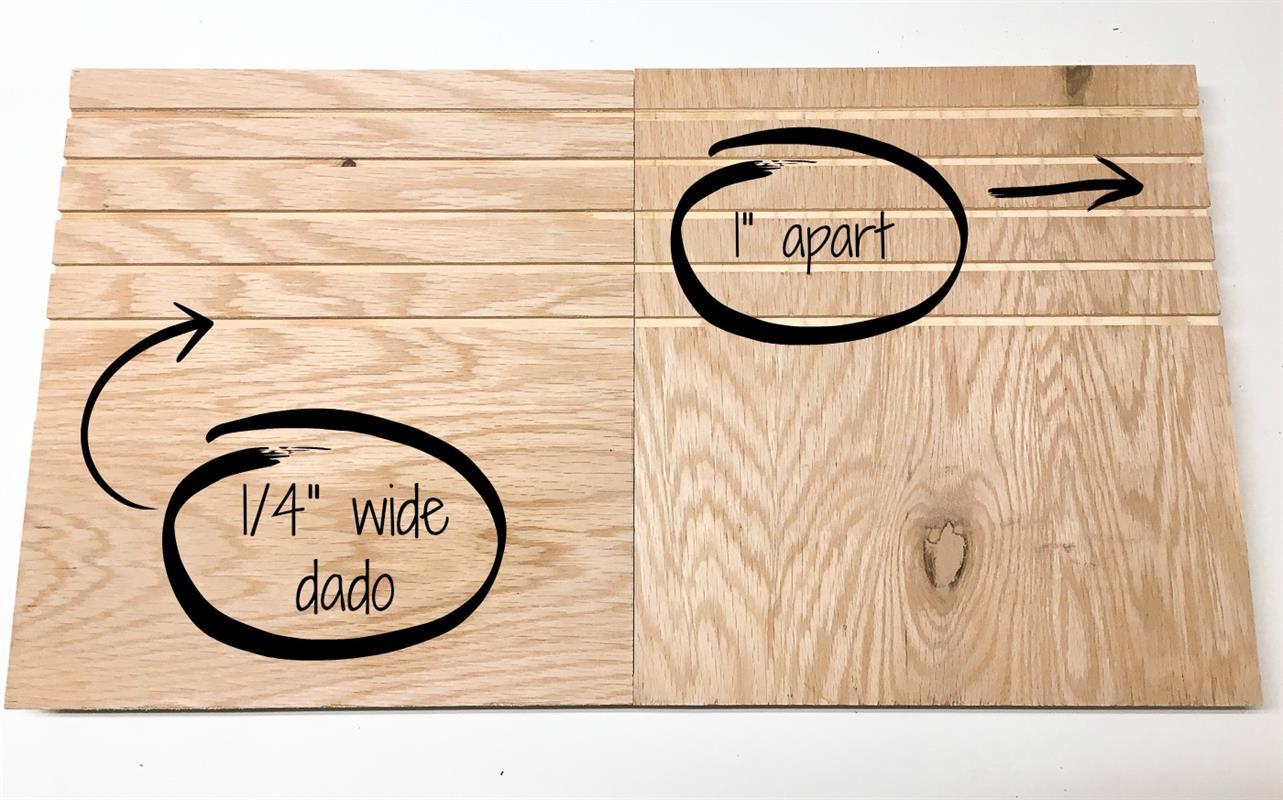

  • Cut dados for shelves

    Cut five 1/4" dados, 1" apart, on the top half of the vertical supports. Two of the vertical supports should have dados on both sides.

    Step 1

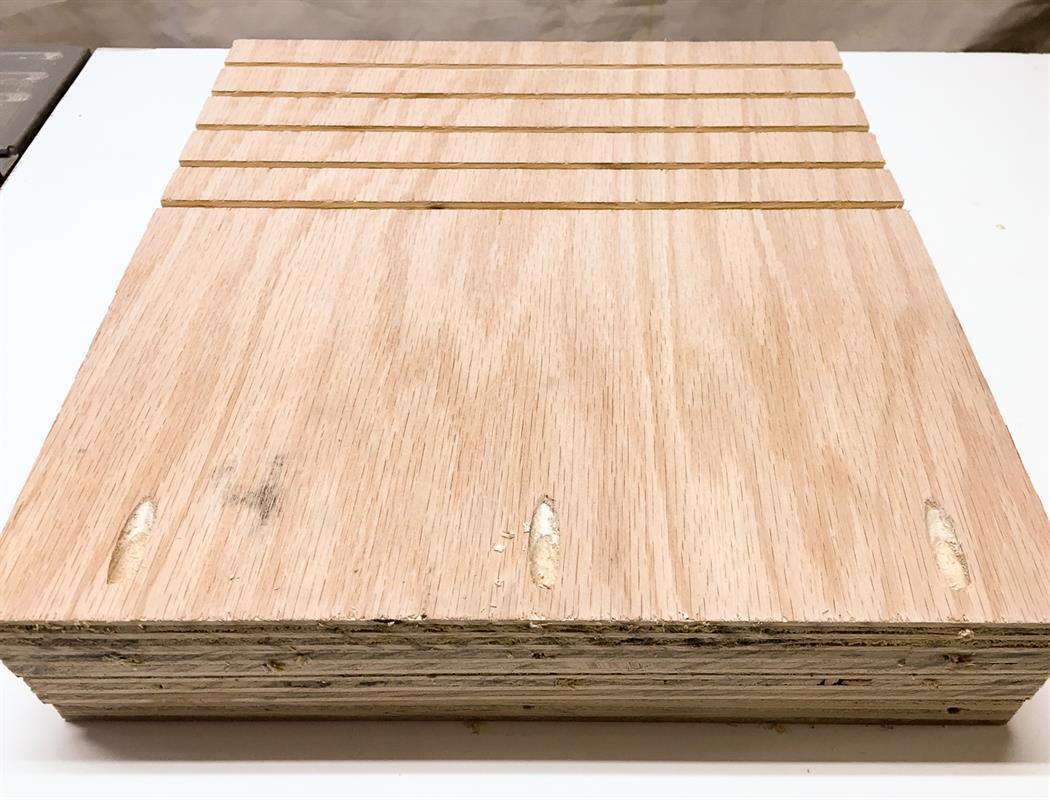

  • Drill pocket holes

    Drill pocket holes at the bottom of each vertical support on the same side as the dados.

    Step 2

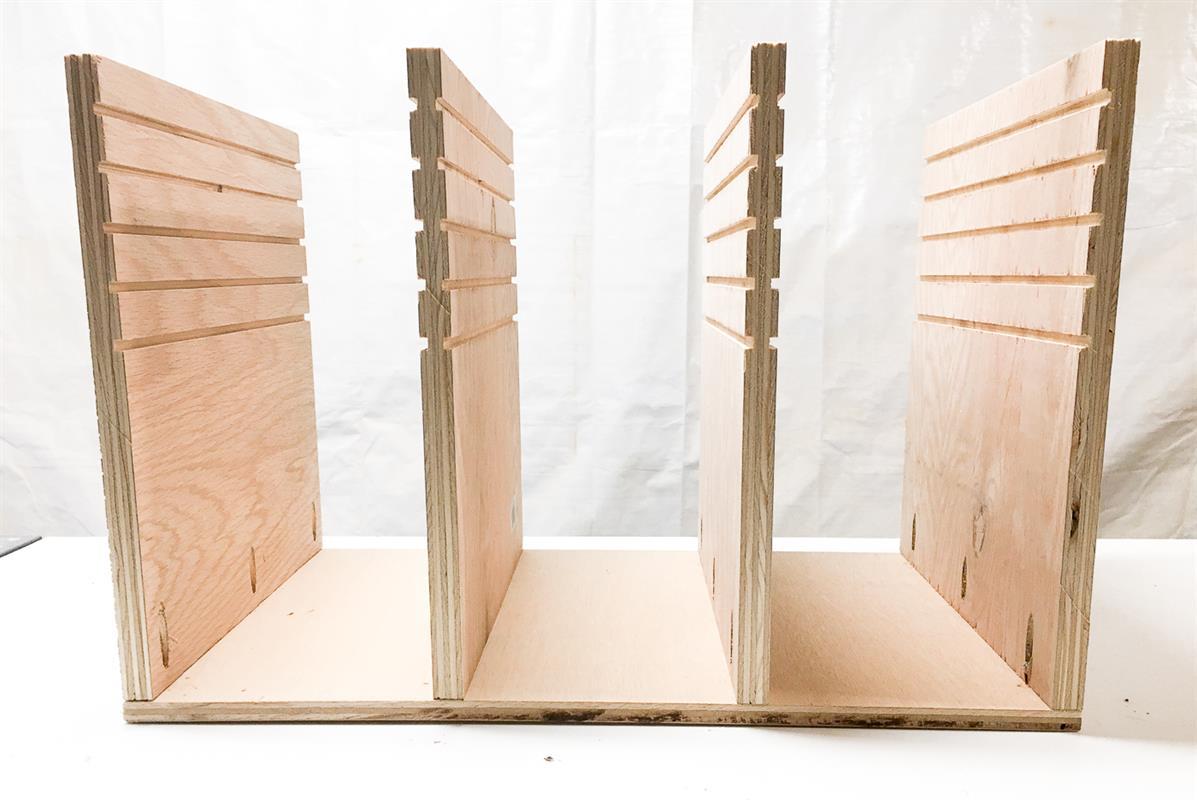

  • Attach vertical supports to bottom

    Attach the vertical supports to the bottom piece with 1 1/4" screws. The vertical supports should be spaced 6 1/4" apart.

    Step 3

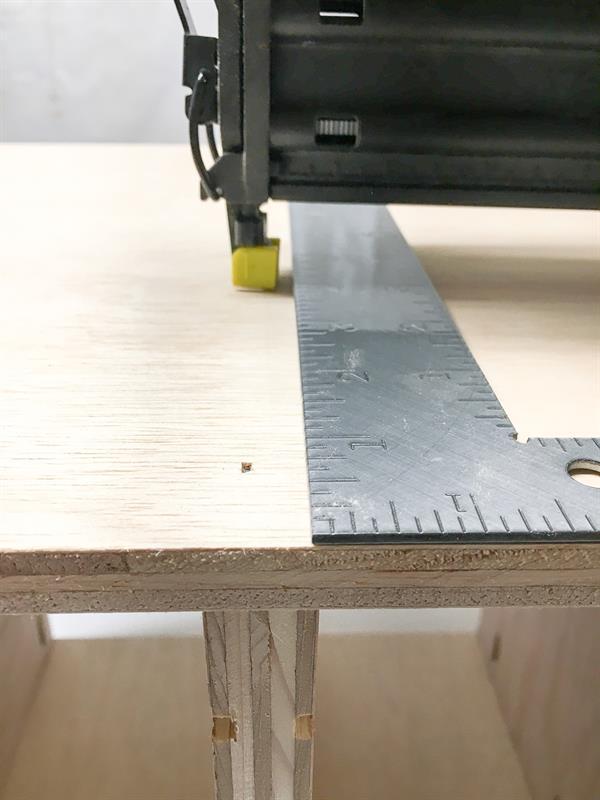

  • Nail top in place

    Nail the top of the box in place through the vertical supports.

    Step 4

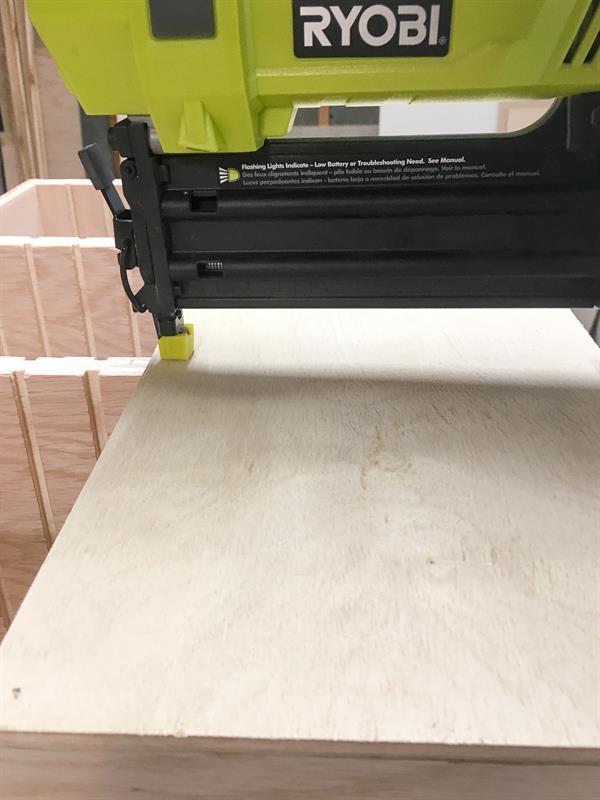

  • Nail back in place

    Nail the back of the box in place.

    Step 5

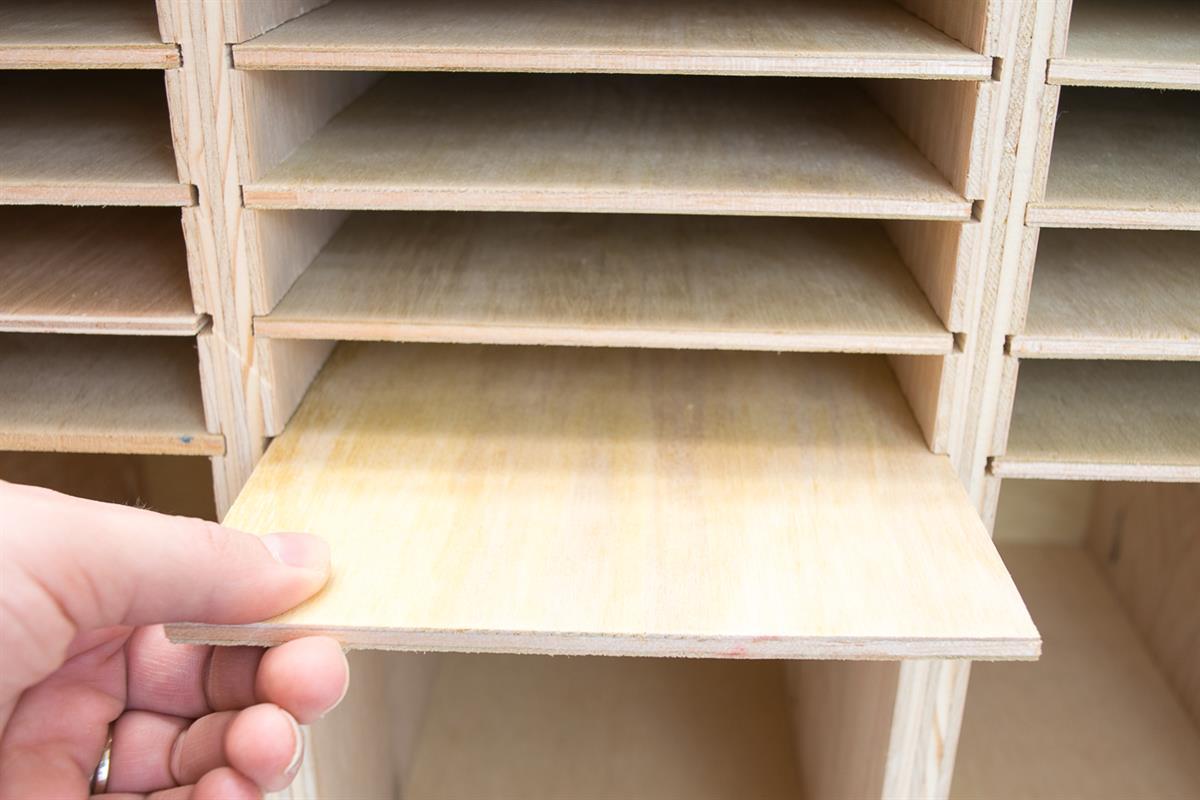

  • Slide shelves in place

    Slide each of the 1/4" plywood shelves in place. If they have trouble fitting, sand the top and bottom until it moves freely.

    Step 6

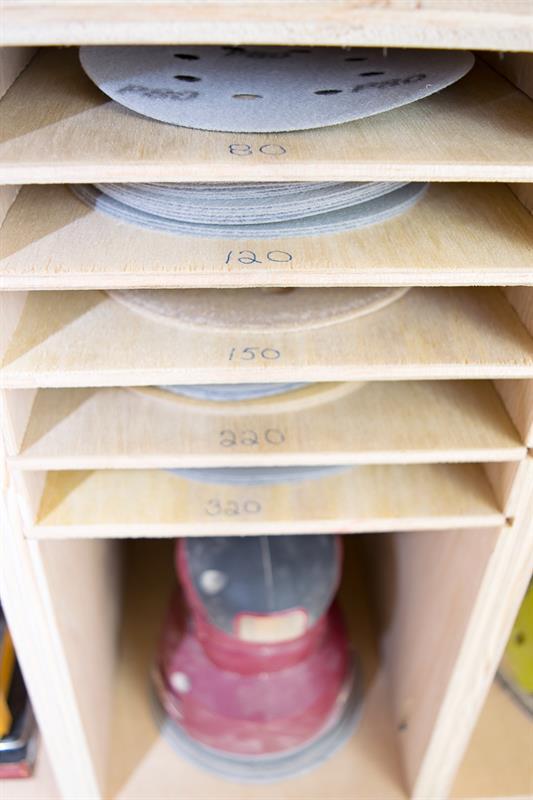

  • Label sandpaper grits

    Don't forget to label each shelf with the grit number. Now you can easily see when you're running low on your favorites!

    Step 7
