Outdoor Sofa

By HomeMadeModern

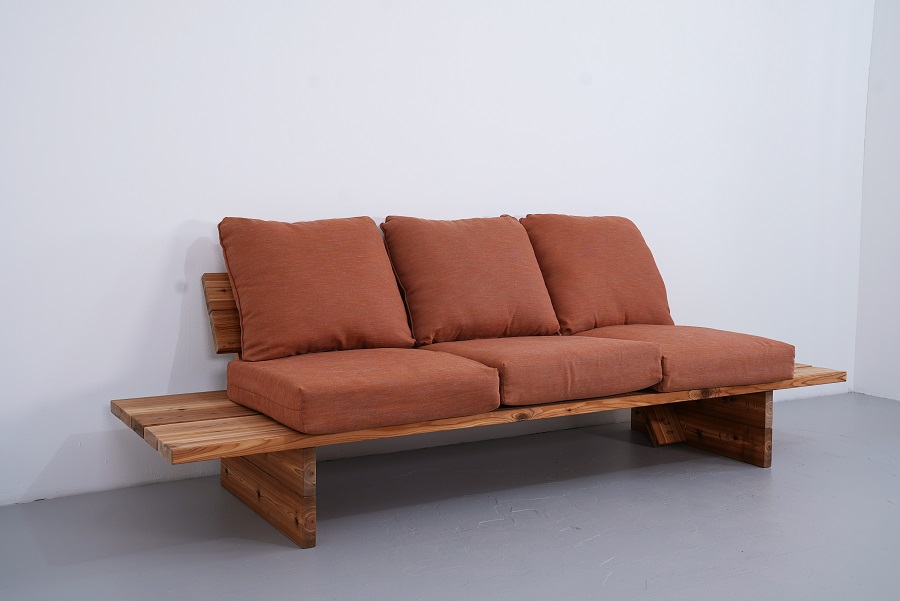

100kregsofa

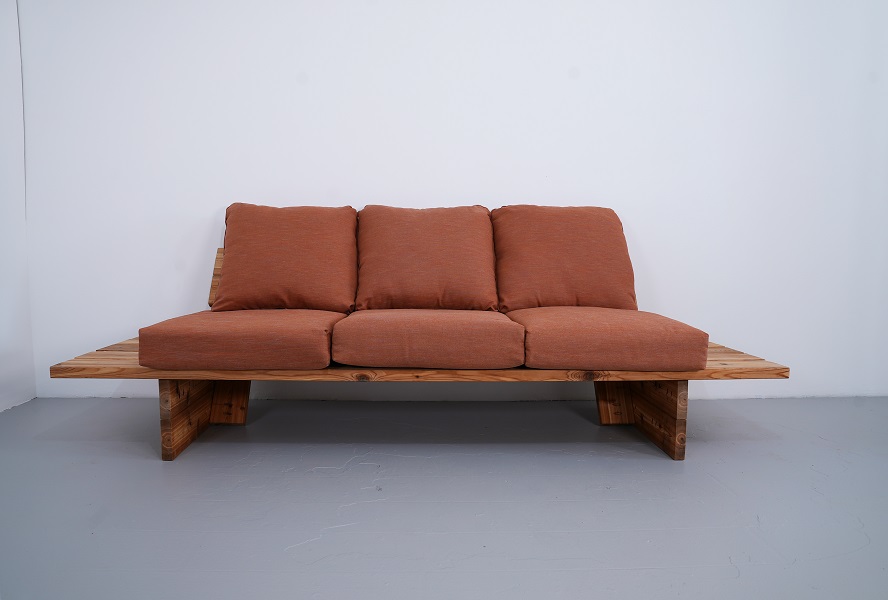

011kregsofa

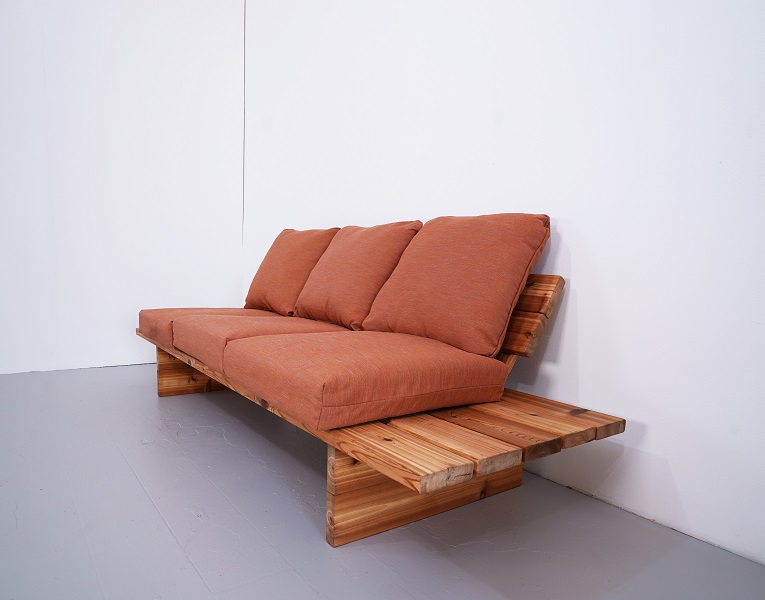

101kregsofa
Kreg Academy Kreg Academy

This DIY outdoor sofa is made out of pieces of 2x6 that are screwed together with pocket holes.

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Orbital Sander
    Orbital Sander
  • Drill
    Drill
  • Circular Saw
    Circular Saw
  • Jig Saw
    Jig Saw
  • Tape Measure
    Tape Measure
  • Spring Clamp
    Spring Clamp

Materials

Wood Products

  • 7 Boards , 2"x6"x10'
  • 1 Boards , 2"x6"x12'

Hardware & Supplies

  • 1 150 grit sandpaper for orbital sander
  • 1 Box of 2 1/2" Kreg Blue-Kote Screws (see tools list)
  • 1 Outdoor sealer of your choice
See All Tools & Materials

Cut List & Parts

  • 5 Seat boards , 2"x6"x96" (one will need to be notched, see steps)
  • 2 Back rest boards , 2"x6"x72"
  • 6 Legs and angle supports , 2"x6"x28"
See Full Cut List & Parts

Directions

  • Watch The Video

    Watch the full build on YouTube!

    YouTube Video

    Step 1

  • Cut the 2x6s.

    Cut 5 pieces of 2x6 at a length of 96".

    Cut 2 pieces of 2x6 at a length of 72".

    Cut 6 pieces of 2x6 at a length of 28".

    Step 2

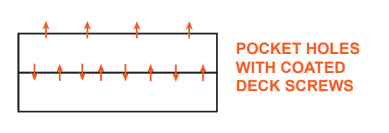

  • Assemble the leg panels.

    Use pocket holes to connect the pieces. I placed the holes on the inside or under side of the pieces so that they would be less visible.

    Step 3

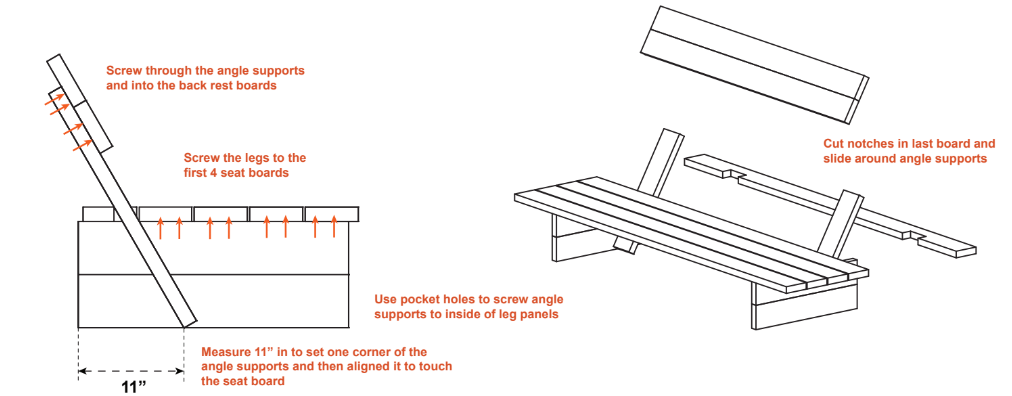

  • Assemble the sofa.

    Screw the leg panels to the first four seat boards leaving 1/4" gaps. (Used a ruler for spacing)

    Screw the angle supports to seat panels with pocket holes.

    Cut notches in the last seat boards to fit around angle supports.

    Screw on back rest boards.

    Step 4

  • Seal & add cushions

    Seal your sofa, add cushions, and enjoy!
