Complete plans to a medium sized outdoor firewood storage rack. The build is complete with materials list, tool list, cut list as well as assembly instructions.
Tools
Kreg Tools
Materials
Wood Products
- 1 Roofing Material
- 1 Outdoor Wood Glue
- 1 Pocket Hole Screws
- 1 Sandpaper (150 grit)
- 1 Outdoor Wood Stain (optional)
Hardware & Supplies
- 1 Wood Glue
- 50 Pocket Hole Screws
- 50 Roofing nails
Cut List & Parts
- 1 Bottom Shelf, 3/4" x 4'x 18" plywood , 4' x 18"
- 1 Roof, 3/4" x 4' x 22" plywood , 4' x 22"
- 4 Legs, 3" pieces of 2x4 , 3"
- 2 Rear Posts, 40" piece of 2x4- 7 degree angle , 40"
- 2 Front Posts, 38 1/4" of 2x4, 7 degree cut , 38 1/4"
- 4 Side Support, 11" piece of 2x4 , 11"
- 2 Rear supports, 45" piece of 2x4 , 45"
Directions
-
Cutting the Floor and the Roof

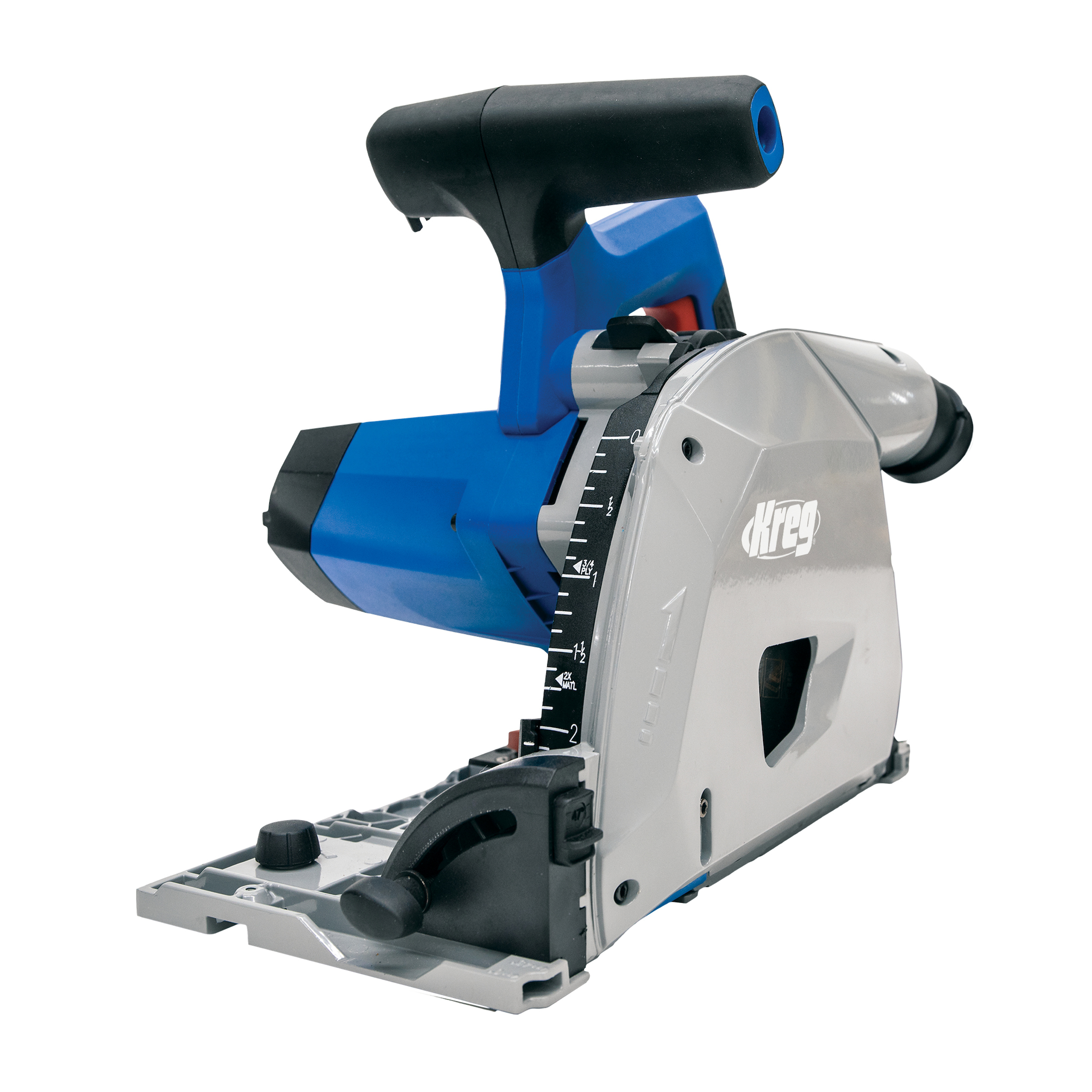

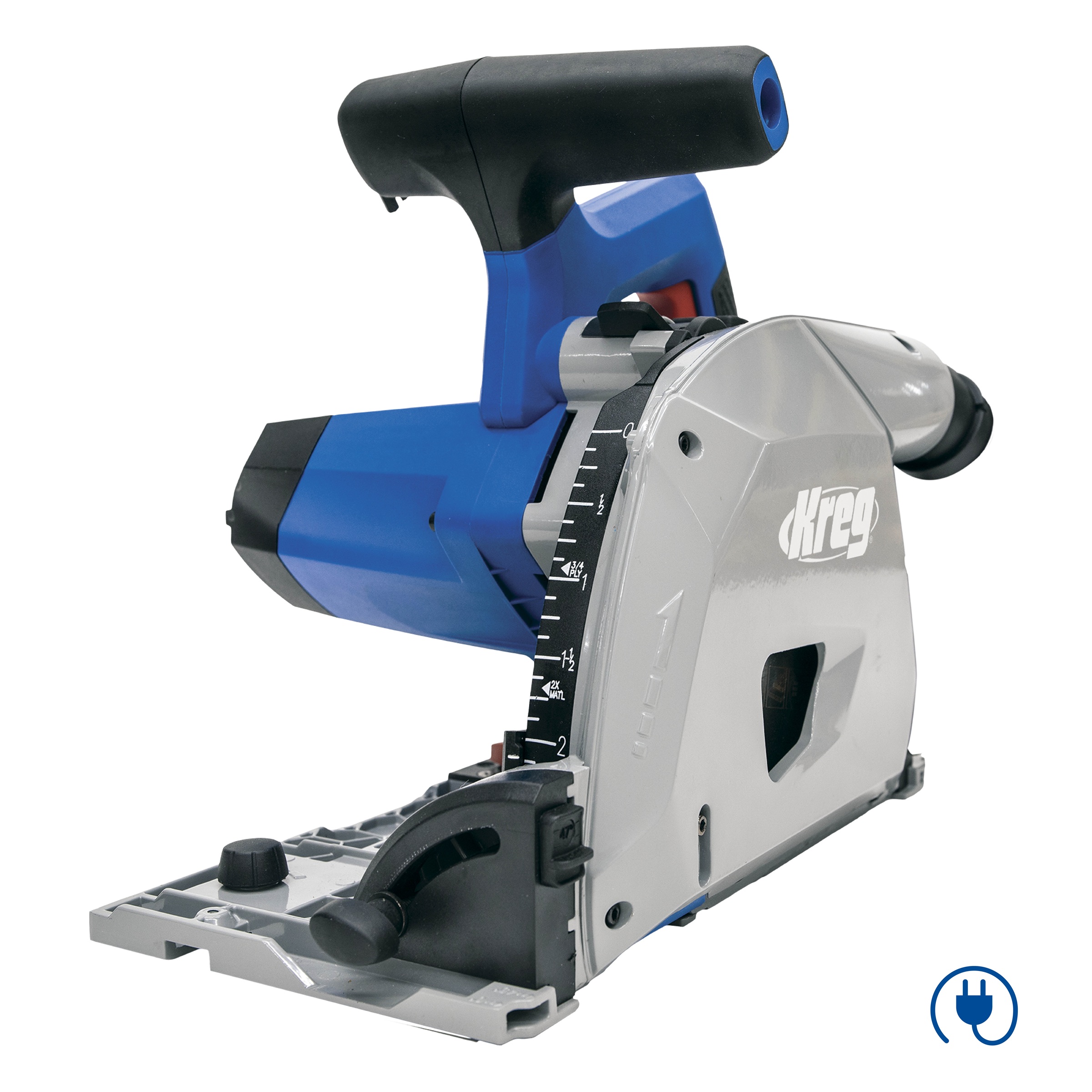

Using the Kreg AdapMve Cu[ng System Plunge-Cut Track Saw Cut your plywood into
One 4’ x 18’ piece and
One 4’ x 22” piece
-
Cutting the Posts
-Cut two 2x4’s into 40” pieces. One end must be cut at 7-degrees angle.
-Cut two 2x4’s into 38 ¼” pieces. One end must be cut at a 7-degrees angle.
-
Cutting and attaching the Feet
Cut five 2x4’s at 3” lengths for feet and attach to the four corners and one in the middle. Use wood glue and screws.
-
Attaching the posts
Following the direcMons on the Kreg Pocket-hole Jig 720PRO (Or other Kreg Pocket-hole jigs), drill pocket holes for screws on the ends of each 2x4 post.
Attach to base with the longer pieces as rear posts and the 7-degree angled pieces forward.
-
Inserting supports and attaching roof
Using pocket hole screws, a5ach the roof with the overhang to the front.
Using pocket hole screws, insert support
2x4’s in the sides and at the rear.
Install at 3” height and at 15” height
-
Attaching Roof
Opional prior to adding roof:
-Spray/stain or paint structure depending on outdoor climates in your area.
Attach roofing material of your choice according to the instructions. I used roofing shingles to
ensure that water drips away from the wood.
