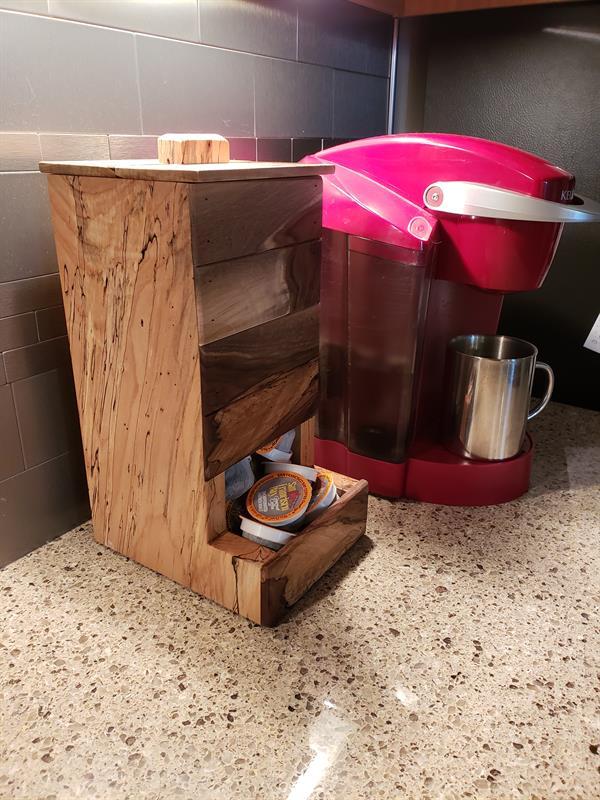

20180901_092522

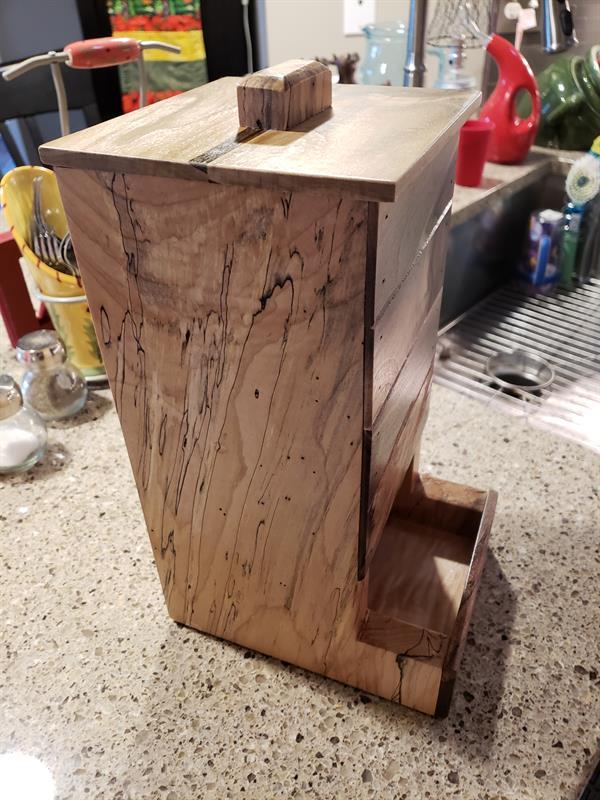

20180901_092333

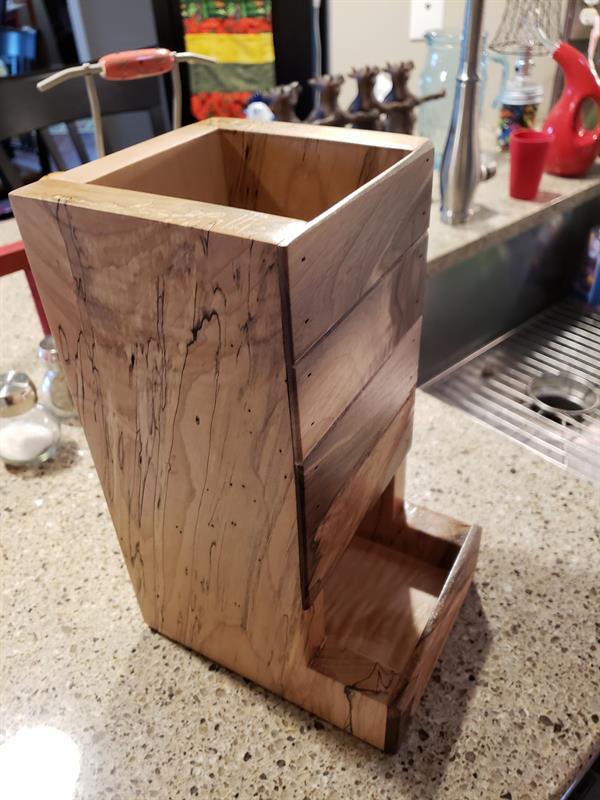

20180901_092343
20180901_092350
20180901_092506

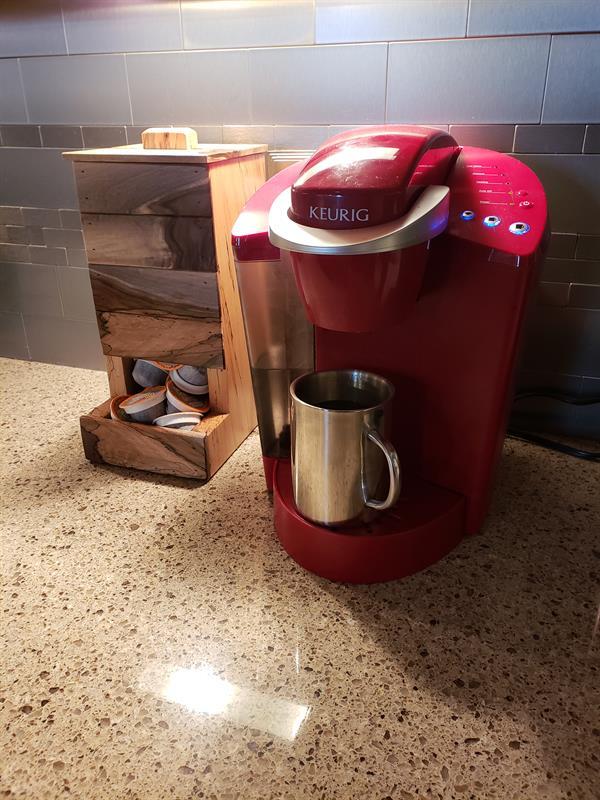

20180901_092513
12

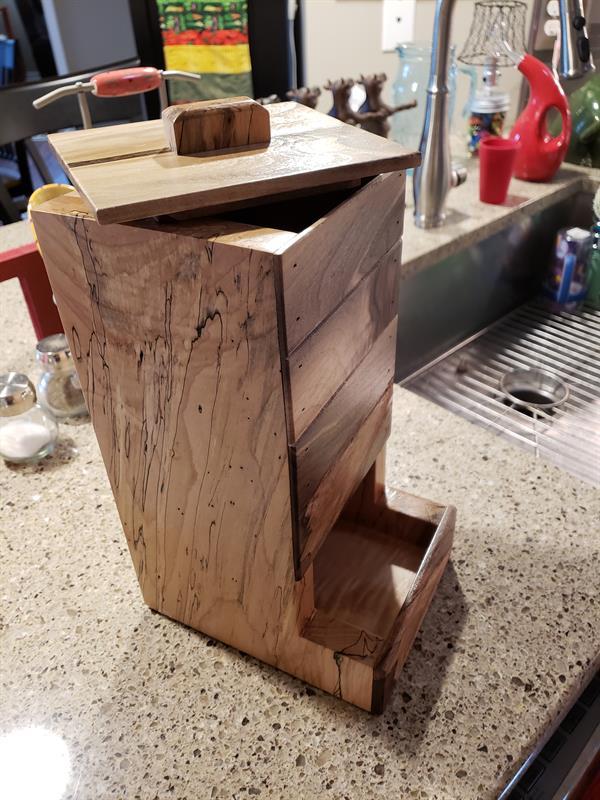

An easy K-cup dispenser to hold K-cups or coffee pods.

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Jigsaw
    Jigsaw
  • Miter Saw
    Miter Saw
  • Table Saw
    Table Saw
  • Tape Measure
    Tape Measure
  • Drill (cordless)
    Drill (cordless)
  • Nail Gun
    Nail Gun
  • Sander
    Sander

Materials

Wood Products

  • 1 Board , 1x8 , 36"
  • 1 Board , 1x6 , 24"
  • 1 Board , 3/8" , 48"

Hardware & Supplies

  • 1 Top pull
  • 10 1 1/4" Kreg pocket hole screws

Cut List & Parts

  • 1 Base , 3/4" x 4" x 7 1/4"
  • 2 Sides , 3/4" x 7 1/4" x 12"
  • 1 Back , 3/4" x 4" x 11 1/4"
  • 4 Front pieces , 3/16" x 5 1/2" x 2"
  • 1 Top , 3/8" x 5 1/2" x 5 5/8
  • 1 Sub-top , 3/8" x 4" x 4 1/2"
  • 1 Bottom front piece , 3/8" x 5 1/2" x 2"

Directions

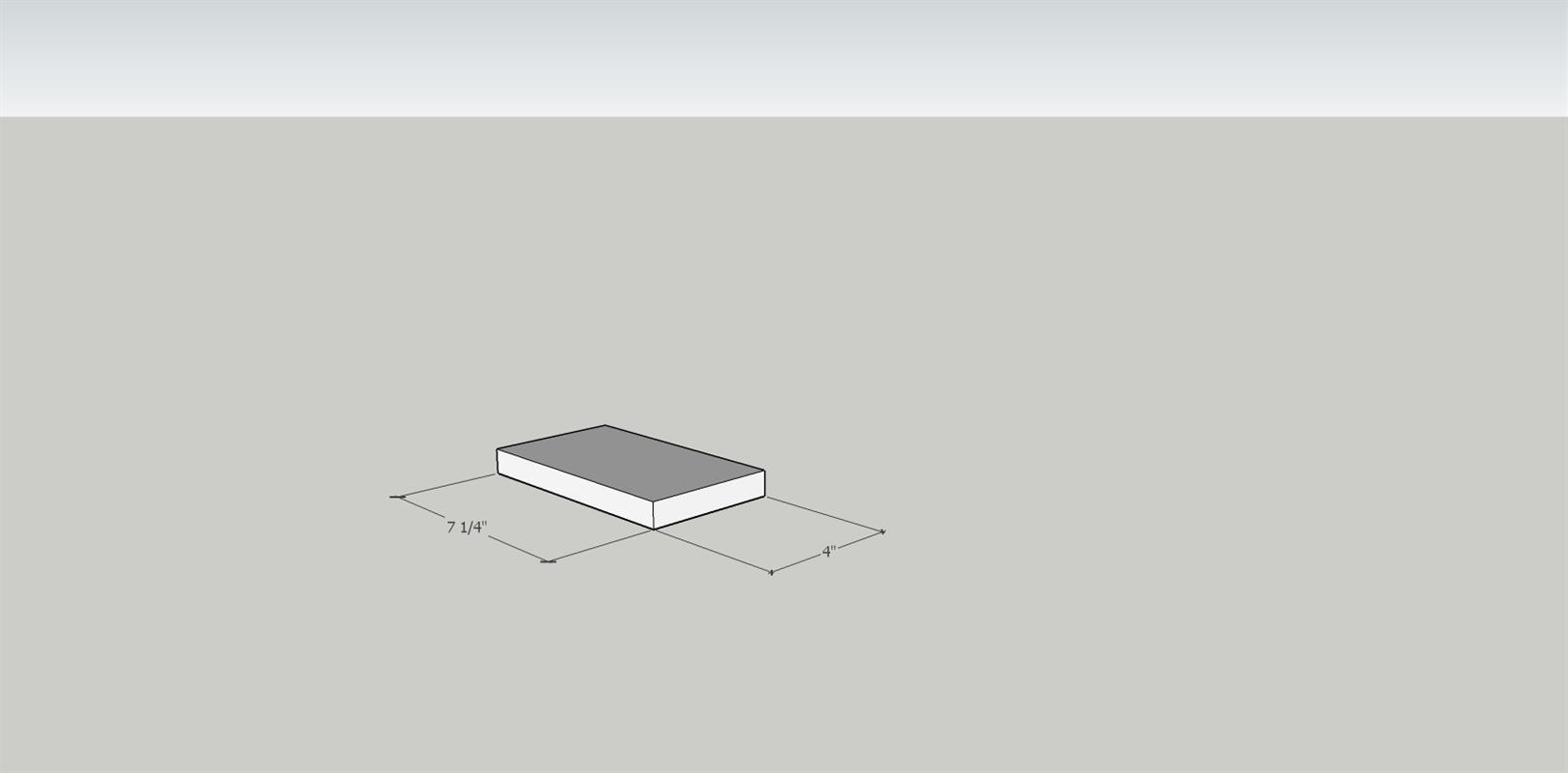

  • Cut the base

    Cut the base per the dimensions indicated.

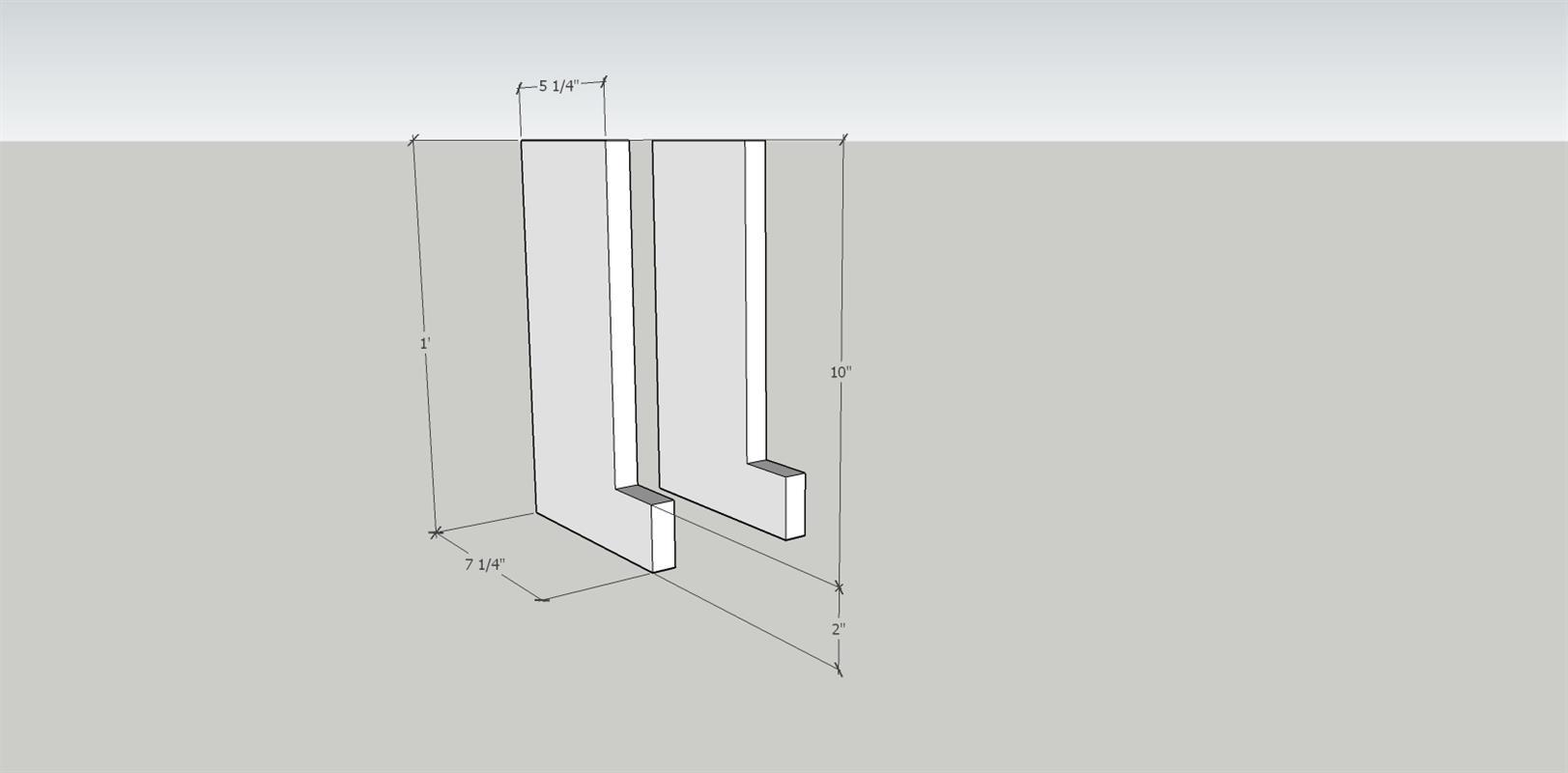

  • Cut the sides

    Cut two side panels per the dimensions indicated

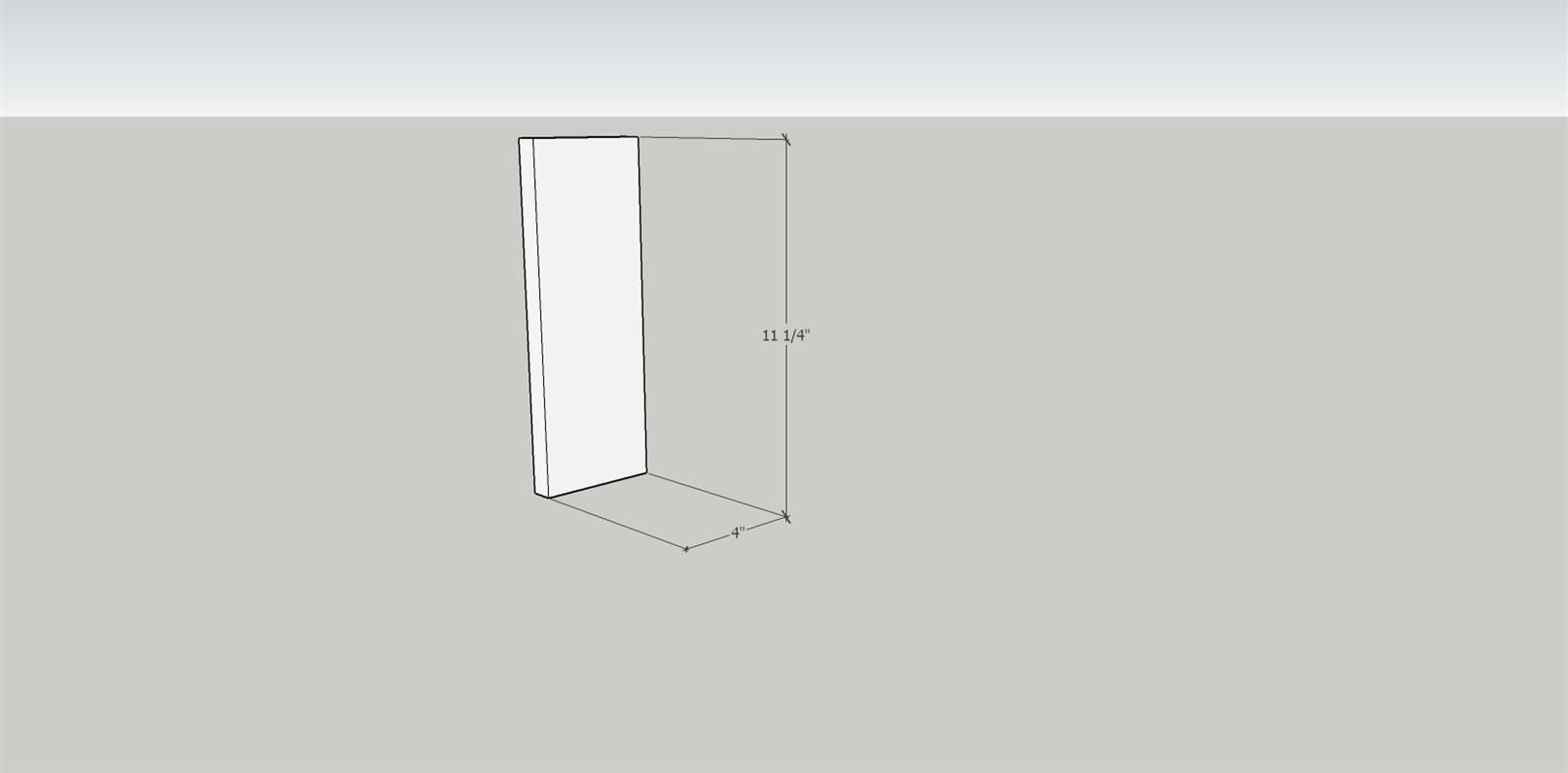

  • Cut the back

    Cut the back panel per the dimensions indicated

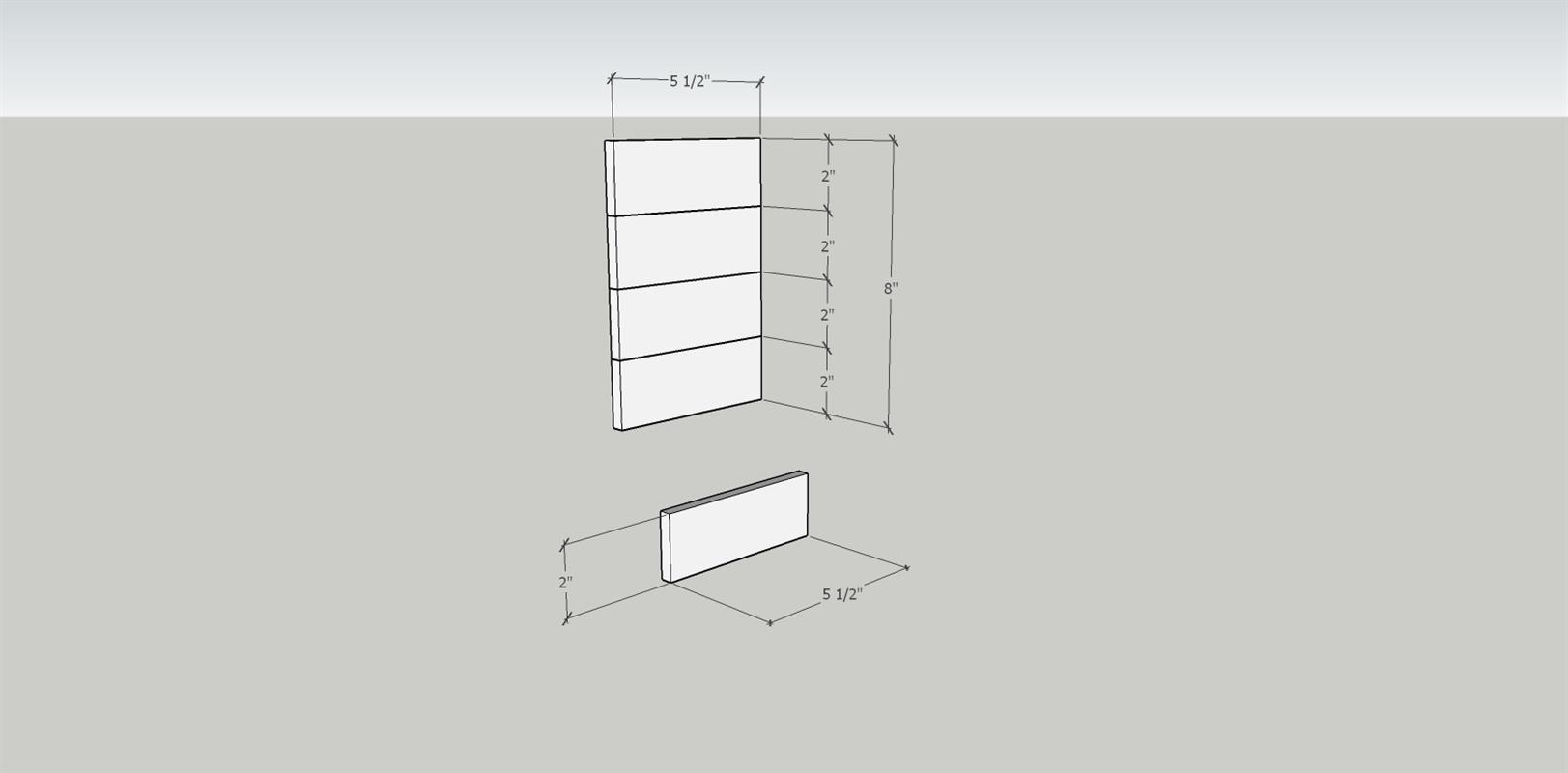

  • Cut the front pieces

    Cut 5 front pieces per dimensions indicated

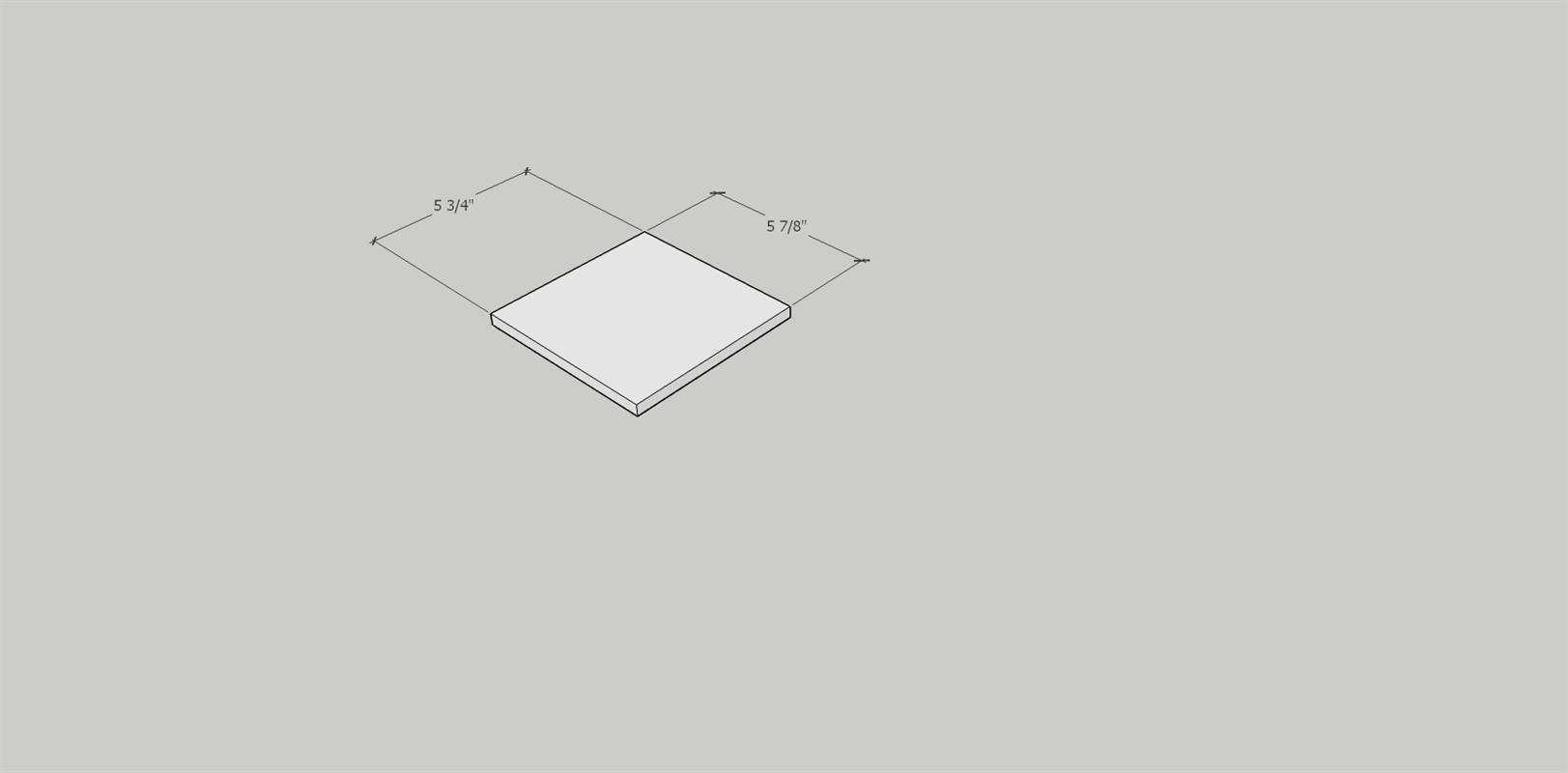

  • Cut the top

    Cut the top per dimensions indicated

  • Cut the sub-top

    Cut the sub-top per dimensions indicated

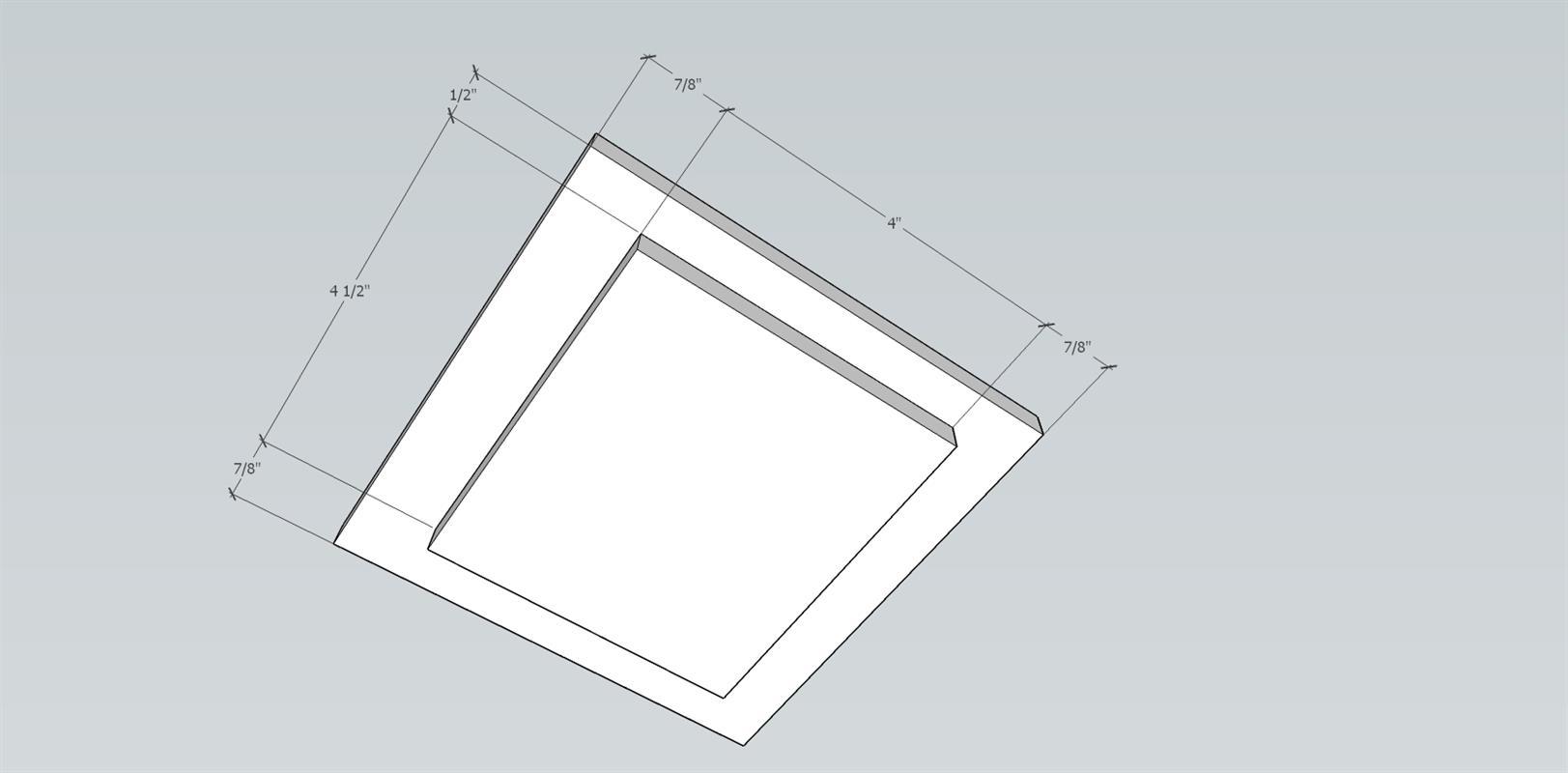

  • Join the two top pieces

    Join the two top pieces by gluing and clamping

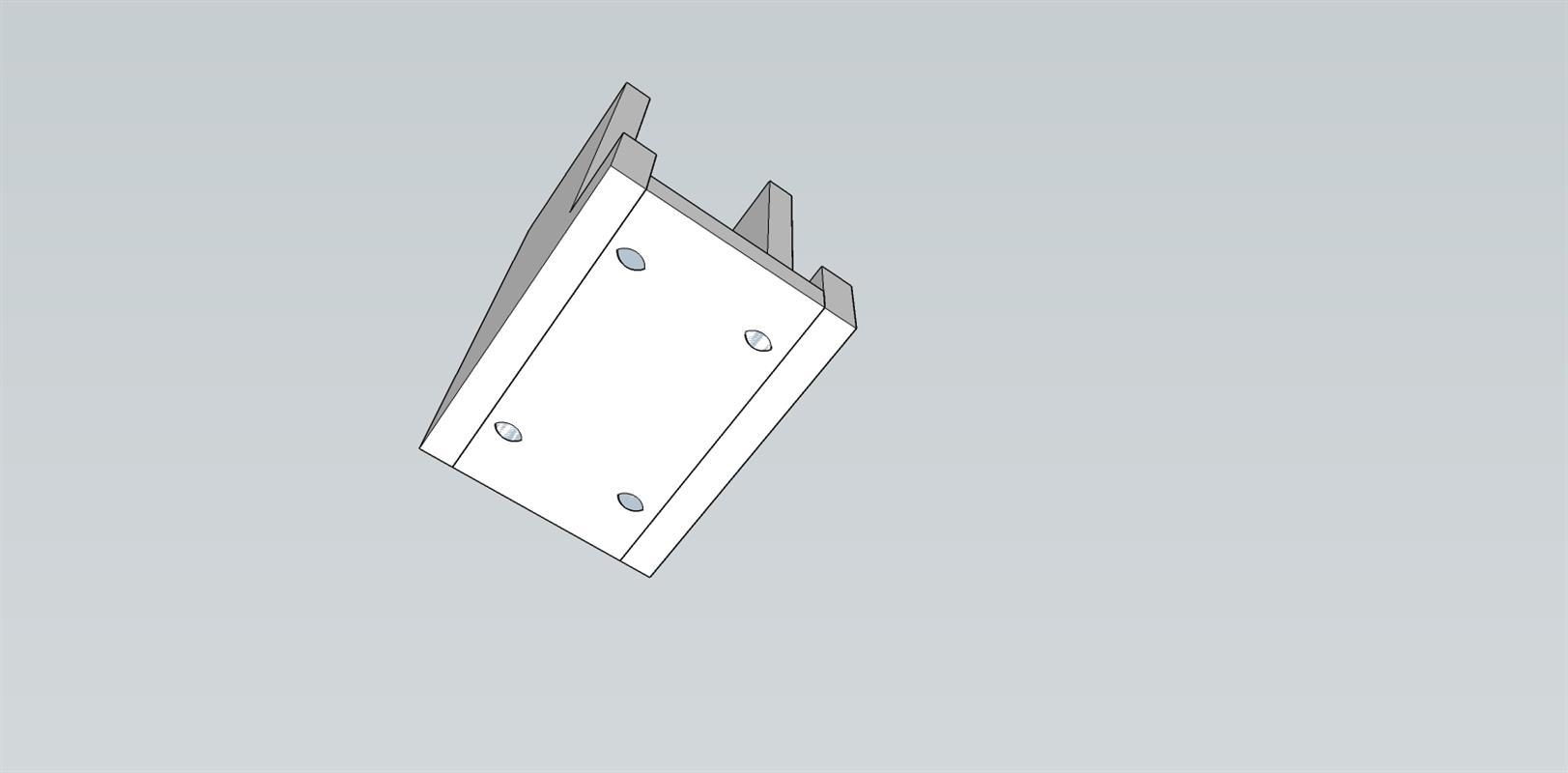

  • Join the sides to the base

    Join the sides to the base by drilling pocket holes as shown in the base and attaching with 1 1/4" pocket hole screws.

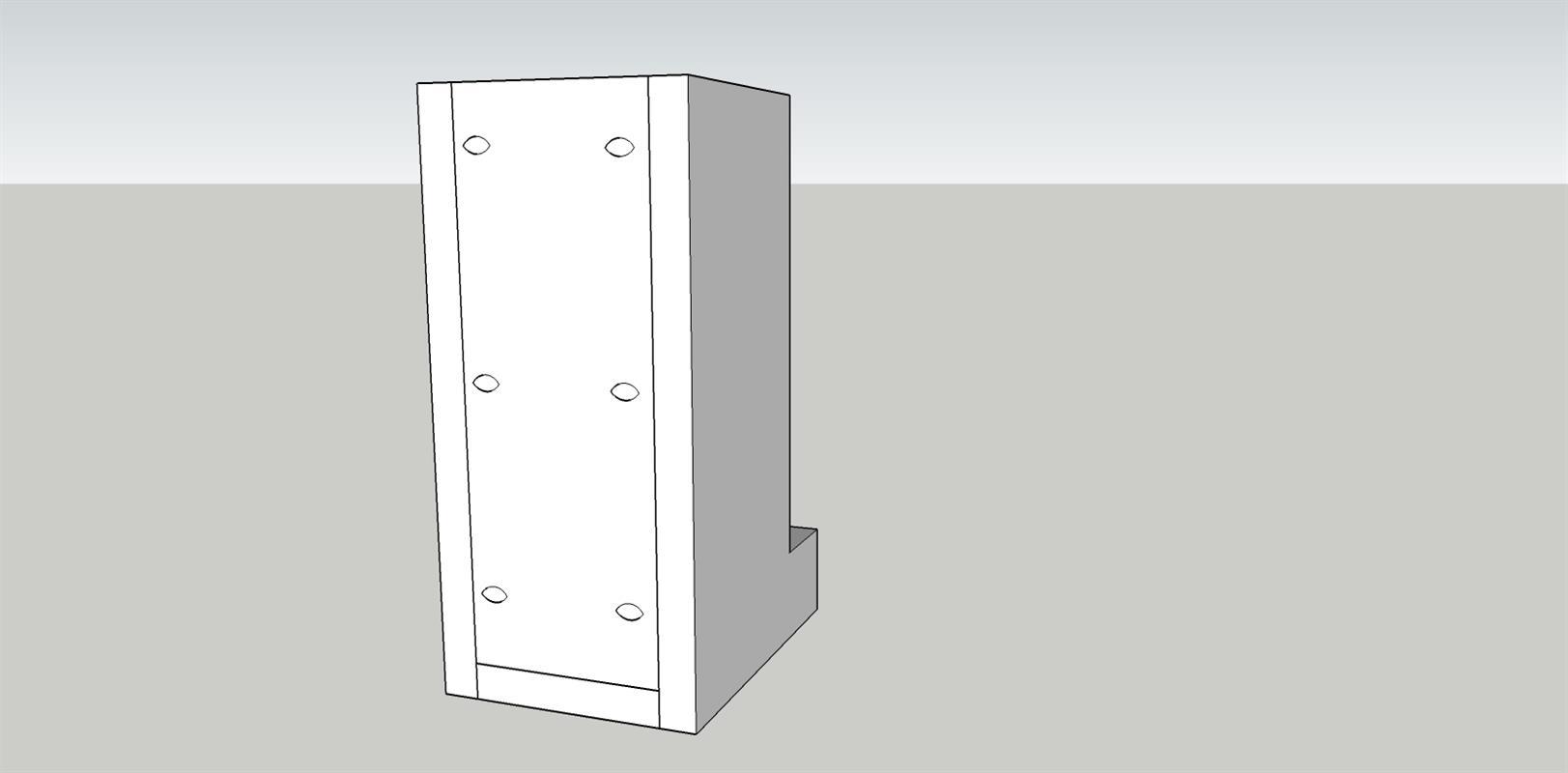

  • Join the back to the sides

    Join the back to the sides by drilling pocket holes as shown and attaching with 1 1/4" pocket hole screws.

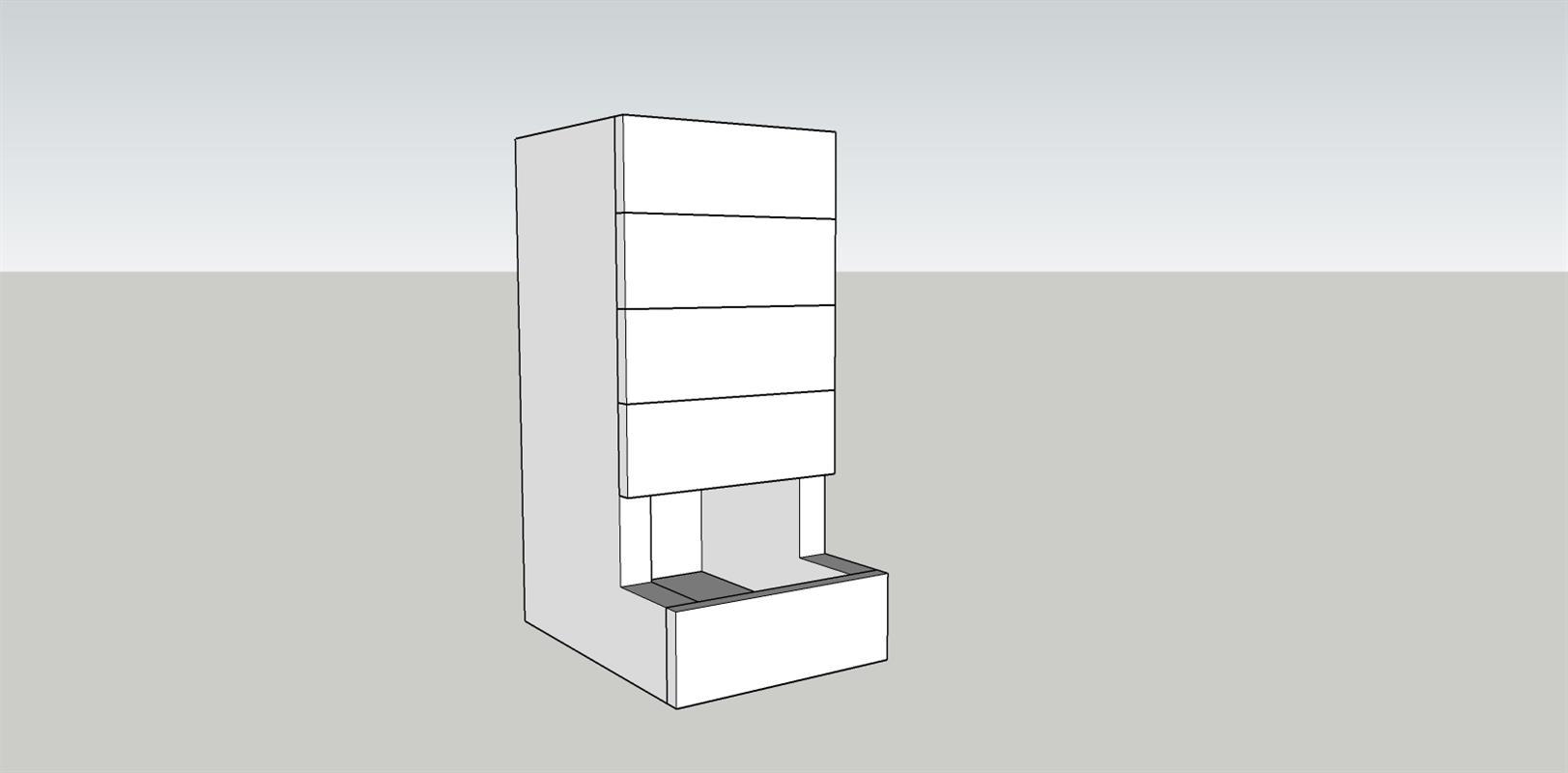

  • Install the front pieces

    Install the front pieces as shown by gluing and clamping

  • Install the top

    Verify that the top fits. Sand as required.

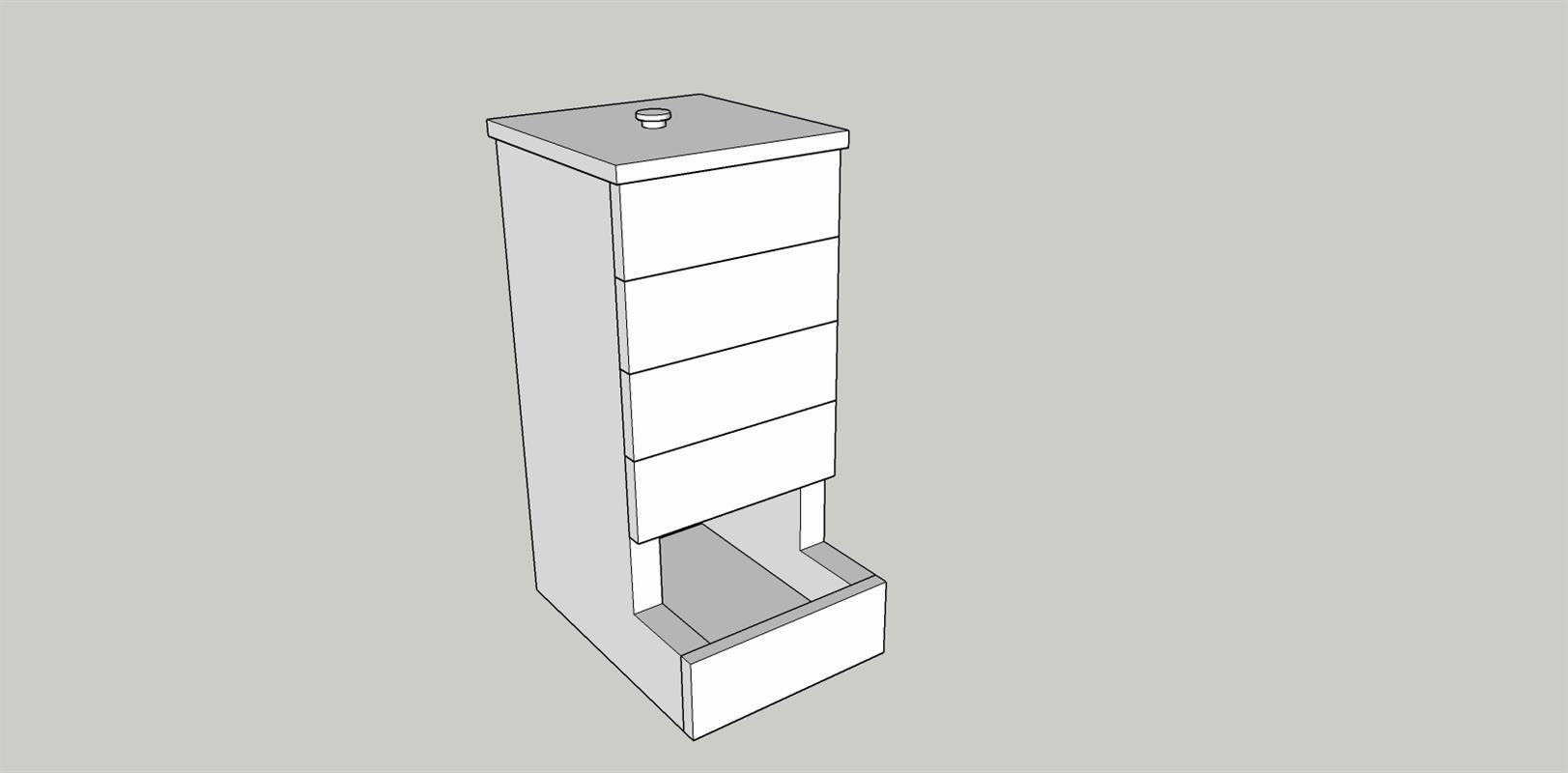

  • Add top pull

    Add a pull of your choice to the top and finish the dispenser.
