Step by step instructions on how to build a simple, fun puck shot carnival game.

Difficulty easy

Tools

Other Tools

  • Circular Saw (corded)
    Circular Saw (corded)
  • Jigsaw
    Jigsaw
  • Clamps
    Clamps
  • Drill (corded)
    Drill (corded)
  • Nail Gun
    Nail Gun
  • Router
    Router
  • Sander
    Sander

Materials

Wood Products

  • 2 Board , 1x4 , 96"
  • 1 Board , 1x3 , 24"
  • 1 Plywood , 1/2" Thick , Quarter Sheet

Hardware & Supplies

  • 1 Spray paint
  • 1 Spray sealer
  • 1 Wood glue

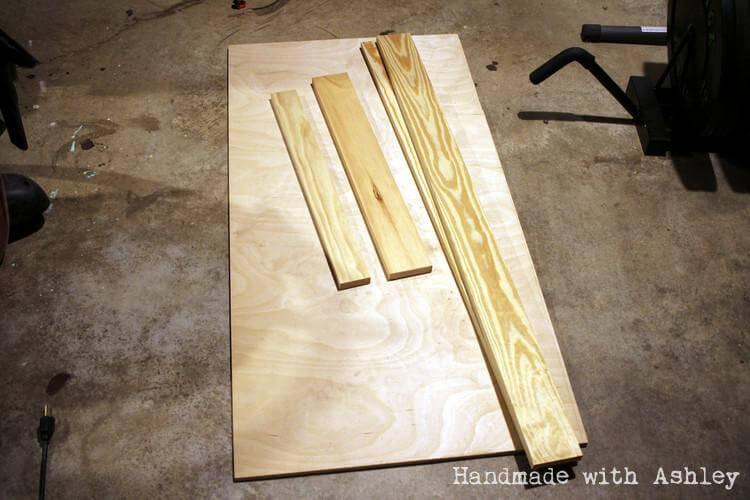

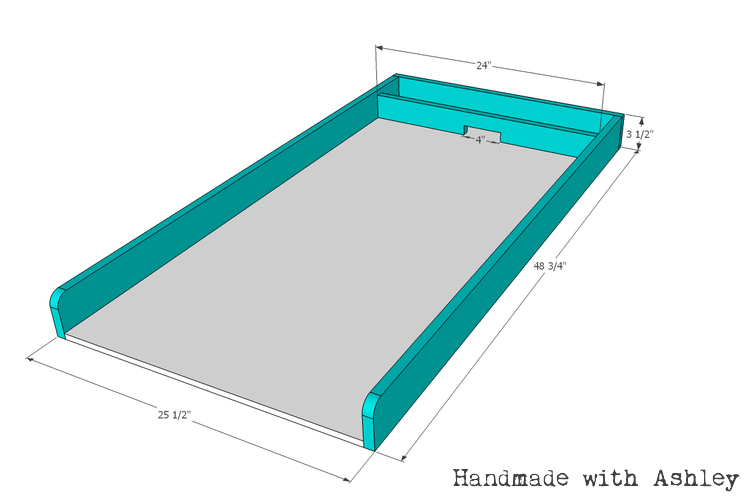

Cut List & Parts

  • 2 Side frame , 1x4 x 48"
  • 1 Goal , 1x3 - 24"
  • 1 Back frame , 1x4 - 25.5"

Directions

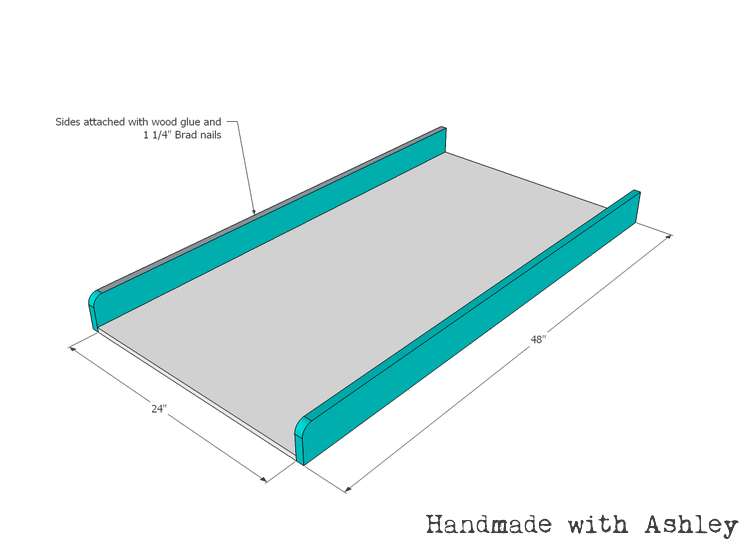

  • Attach the side frame

    Attach the side frames to the plywood base with wood glue and 1 1/4" Brad nails.

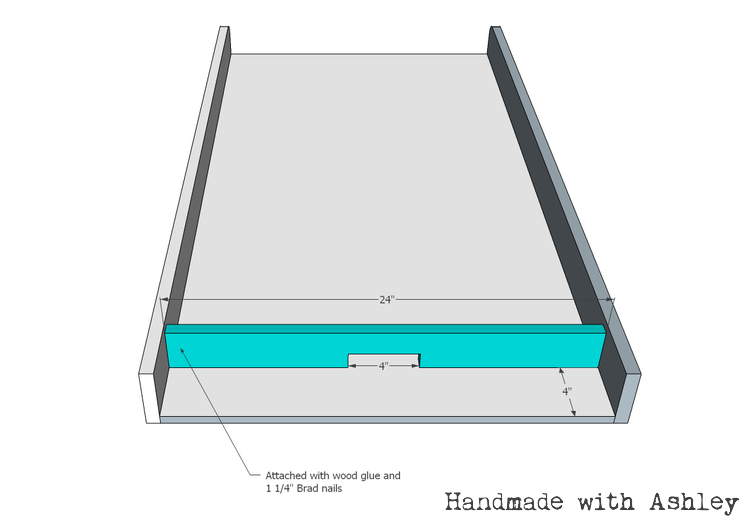

  • Attach the puck goal

    Attach the puck goal 4" from the edge of the plywood base with wood glue and 1 1/4" Brad nails.

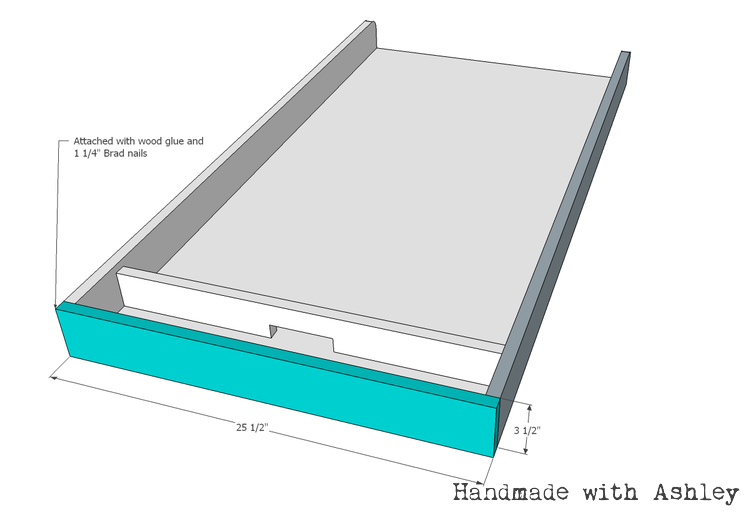

  • Attach the back frame

    Attach the back frame to the plywood base and frame sides with wood glue and 1 1/4" Brad nails.

  • Prep the surface for painting

    Sand all the boards and the surface of the plywood. Take your time and cycle through 80, 100, 150, 220 grits of sand paper. (Avoid using some of the lower grits of sandpaper on the plywood. For the plywood, start with 150 grit.)

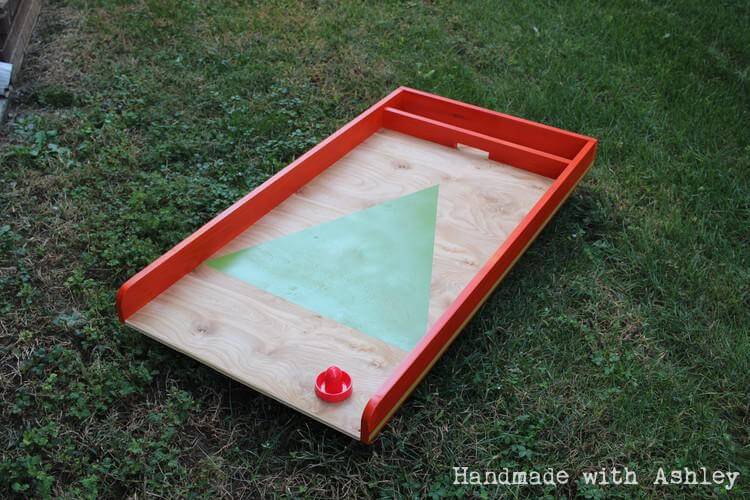

  • Paint and Seal

    Paint the boards to your heart’s content and seal the surface with your favorite top coat. Check out the link in the "Extras" tab for more photos and happy building!
