Circular Saw (cordless)
- 1 Plywood , 1/2" Thick , Full Sheet
- 2 Poplar , 2x2 , 36"
- 6 Poplar , 1/4 x 4" , 36"
- 3 Poplar , 1/4 x 2" , 36"
Hardware & Supplies
- 30 1" Pocket Hole Screws
- 1 Pint Satin Polyurethane
- 1 Euro Pillow (For Sleeping Pad)
- 25 1" Brad Nails
- 1 Bottle of Wood Adhesive
Cut List & Parts
- 4 Legs , 2 x 2 x 9 1/4"
- 4 Trim , 1/4 x 2 x 19"
- 2 Side Panels , 1/2 x 8 x 19"
- 1 Back Panel , 1/2 x 8 x 19"
- 1 Front Panel , 1/2 x 3 x 19"
- 30 1/4 x 4" Decorative Pieces , *see plans & DIY Huntress' website for details as each piece is custom cut

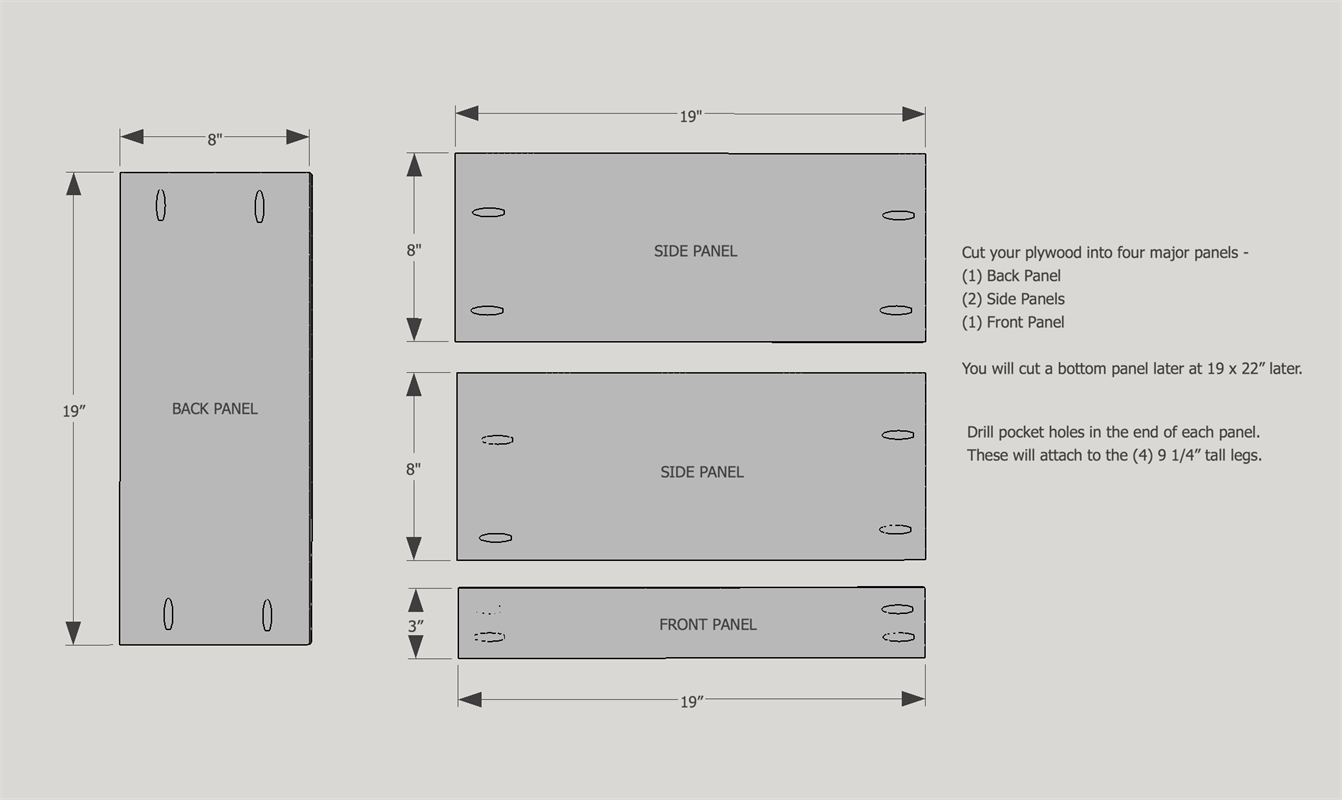

Cut & Prep Panels
DISCLAIMER: This dog bed was built for a 16 pound Alaskan Klee Kai (medium sized dog). Please moderate these plans as necessary to fit your best friend.
Cut and prep your 2 side panels, 1 back panel, and 1 front panel. Each one will need pocket holes to attach to the legs later on.
You can also take time here to cut and prep your 2 x 2 x 9 1/4" legs as well (not shown).

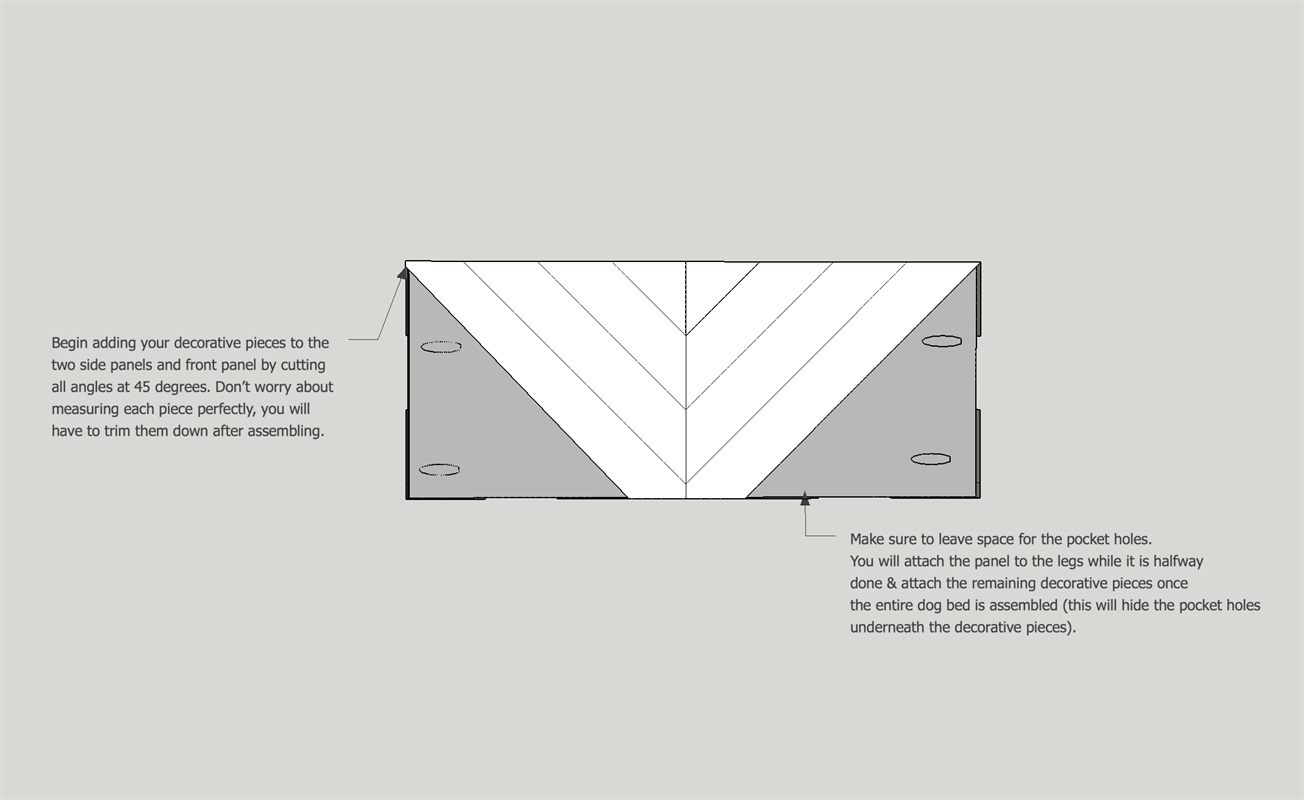

Begin Adding Decorative Pieces
Your two side panels and front panel will receive decorative poplar pieces. These will each be custom cut at a 45 degree angle and attached with wood glue (and optional, brad nails). Do not cover the pocket holes in this step, as we will be attaching the panels before filling in the blanks.
Please visit diyhuntress.com and search for "Dog Bed" for the photographed tutorial of this step to help you customize your piece.

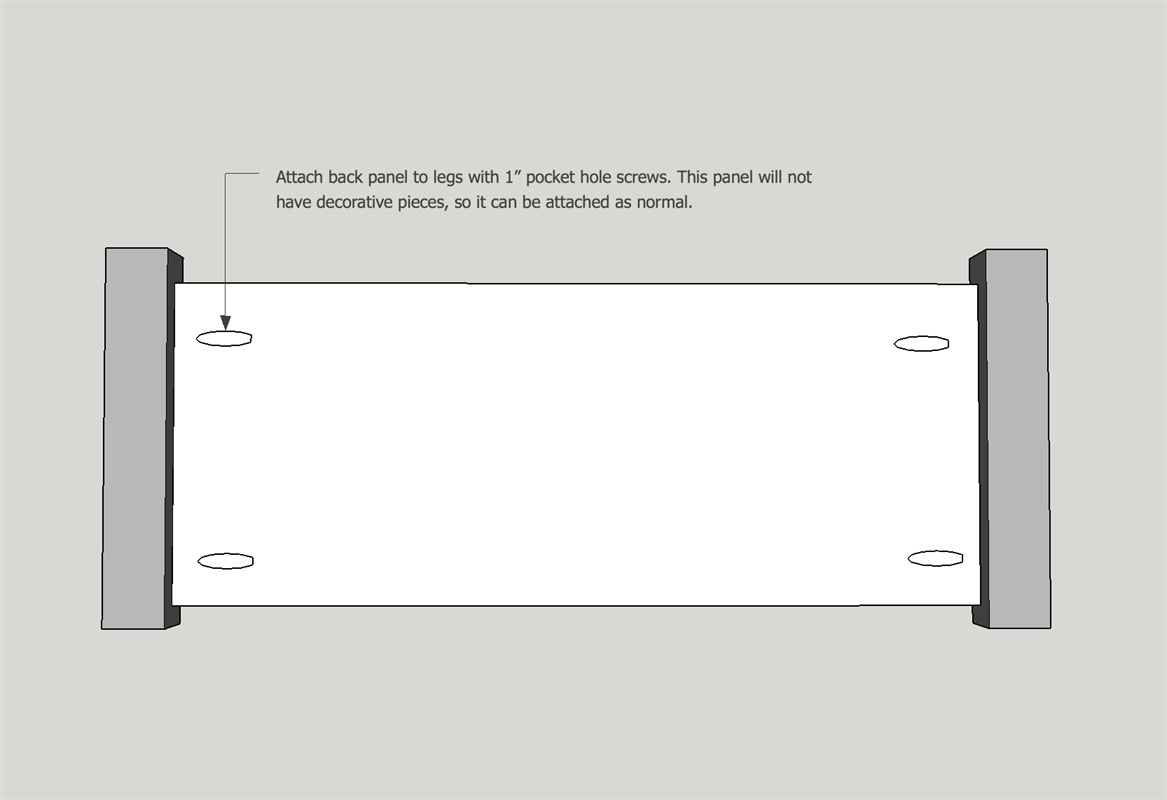

Attach Panels to Legs
Attach the back panel first, as this piece will not be getting a decorative design. Make sure to center the panel on the legs as it is shorter than the legs.

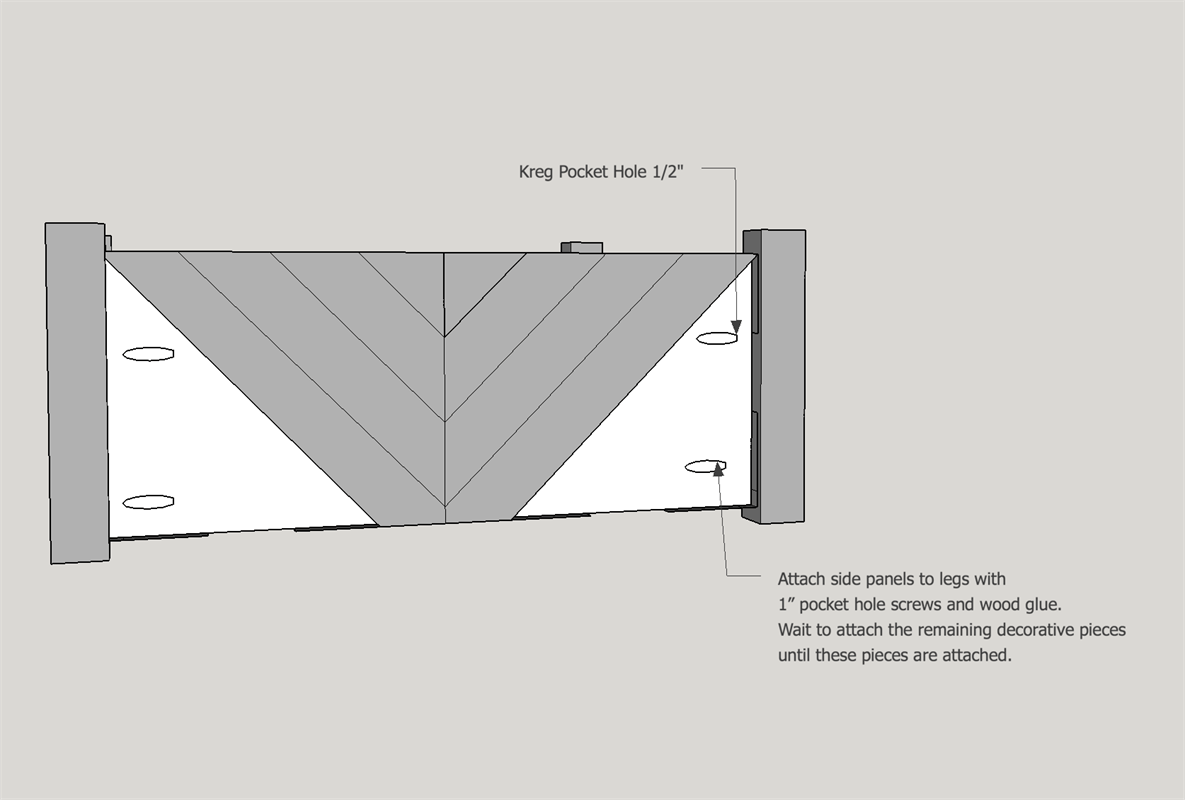

Attach Side and Front Panels to Leg
Attach the side and front panels to the legs with 1" pocket hole screws and wood glue.

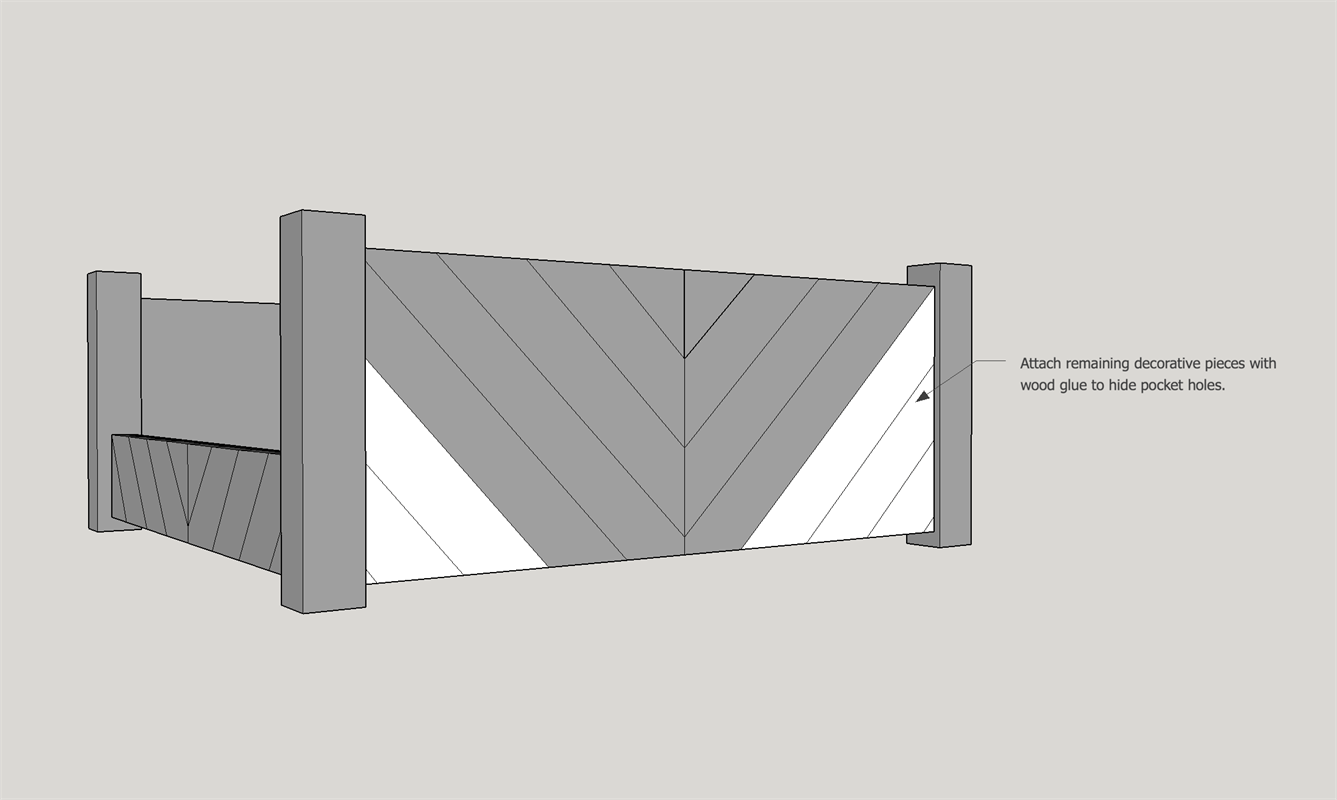

Fill In The Blanks
Once your panels are all screwed in and centered, begin to add the missing decorative pieces to your panels with wood glue (and optional, brad nails).

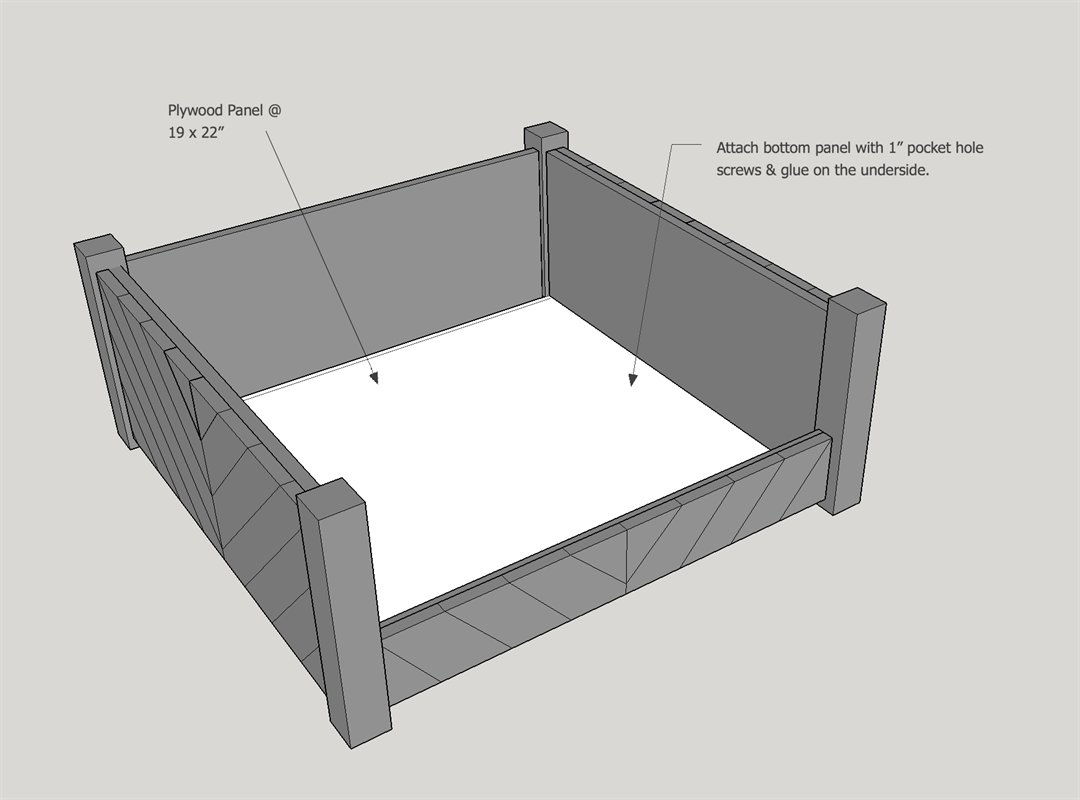

Attach Bottom Panel
Next, attach your 19 x 22" plywood bottom panel to the dog bed with 1" pocket hole screws and wood glue.

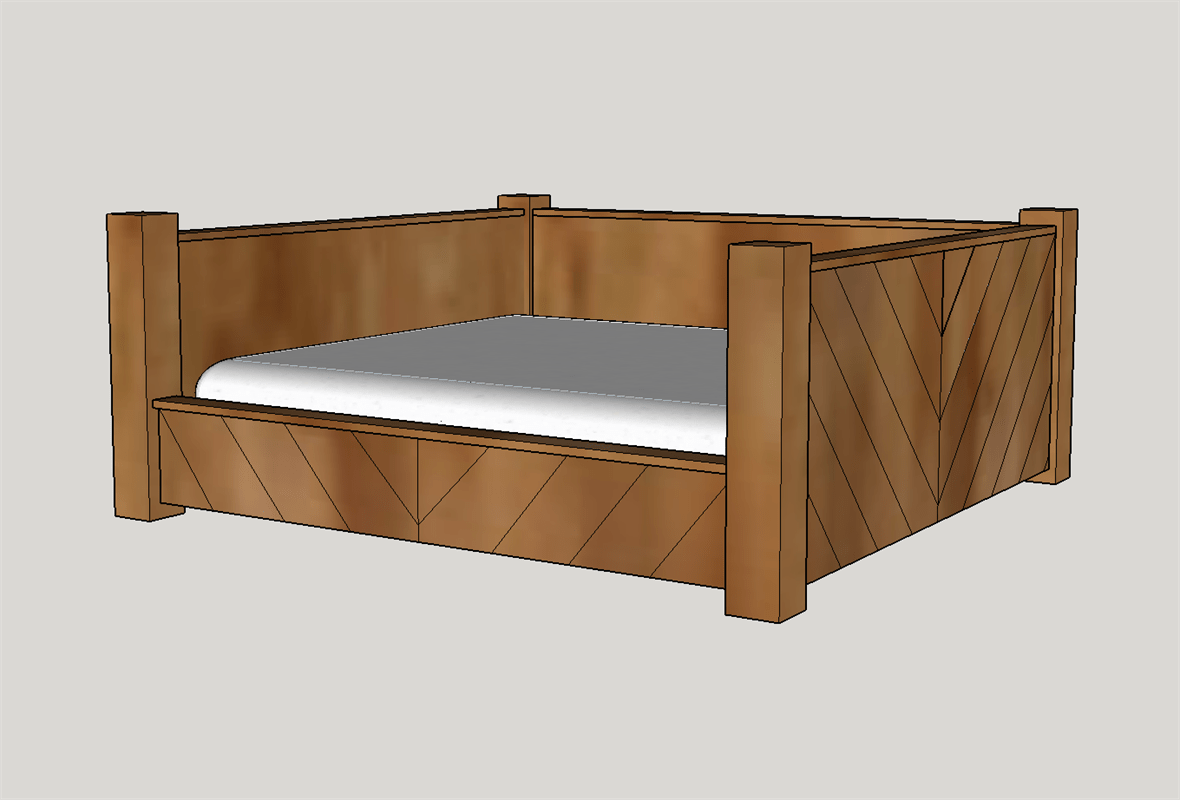

Add Final Touches
Following assembly, sand and stain your piece. I decided to go au natural and just use a satin polyurethane to finish the piece.
Once dry, add a 26 x 26" euro pillow to the bed for a nice fluffy pad.

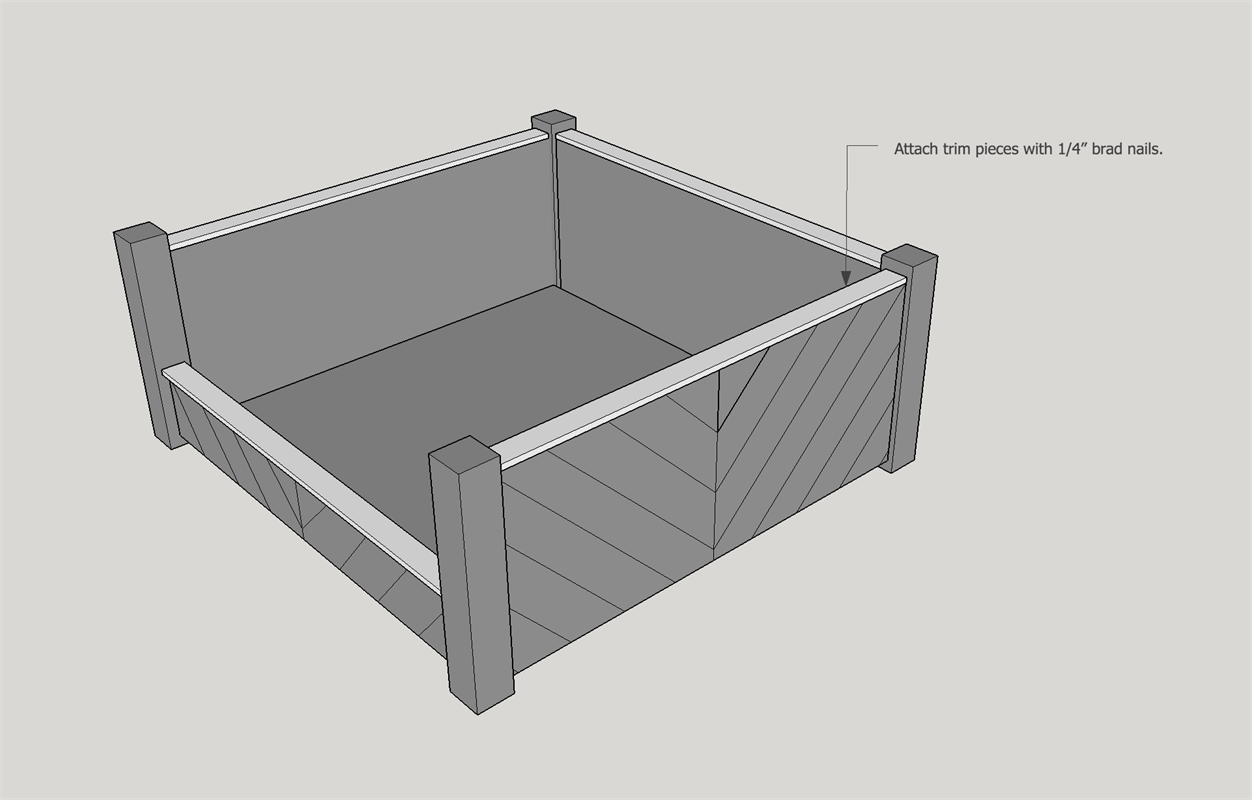

Hide your rough edges by attaching 3/4 x 2" poplar trim to the top of your dog bed panels.
