Display Shelf

By Kreg Tool
photo-shelf-pic-2

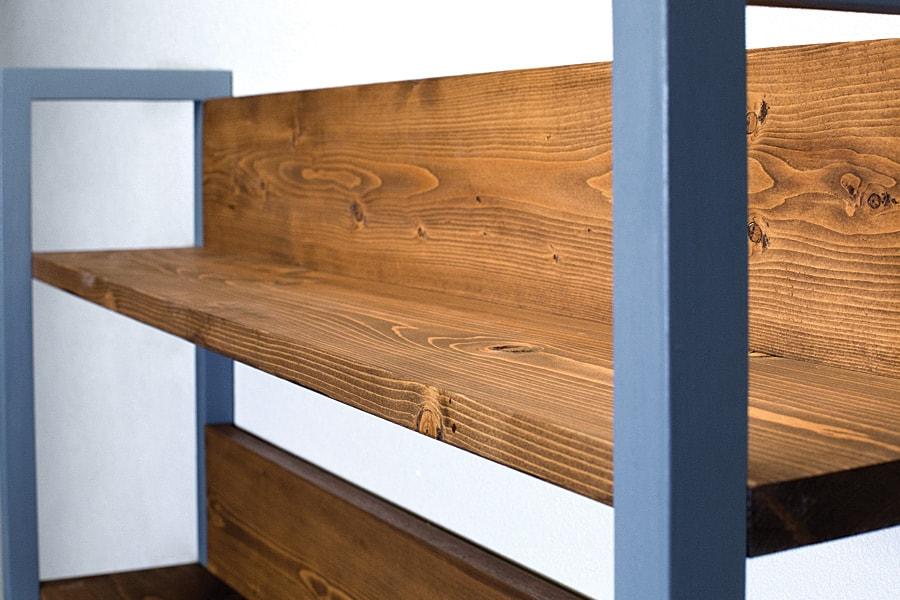

photo-shelf-pic-3

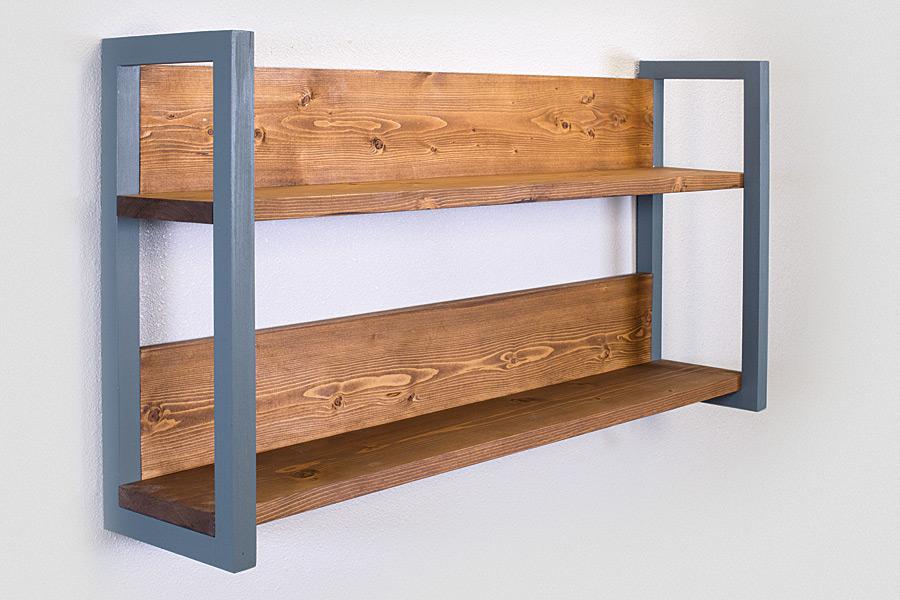

photo-shelf-pic-4

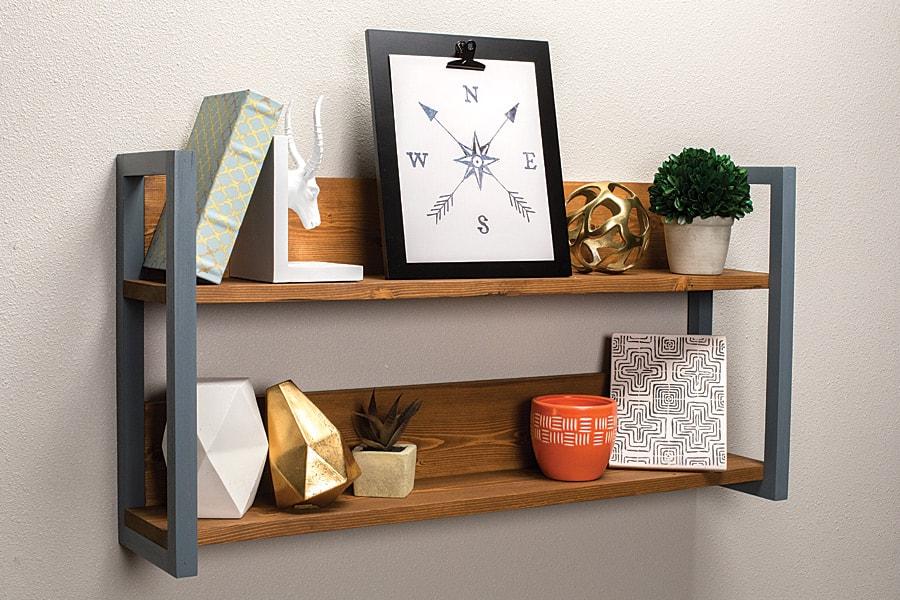

photo-shelf-pic-1

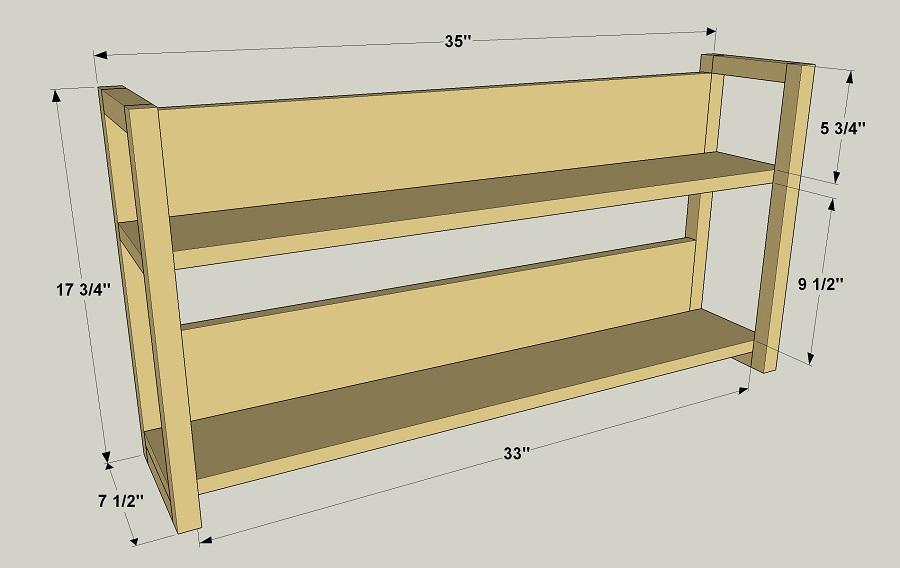

overall-with-dimensions-29
Kreg Academy Kreg Academy

Create an attractive display area on any wall with this small double shelf unit that holds photos and other favorite items. It’s super easy to build, and can easily be customized by changing up the stain or finish that you use.

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Miter Saw
    Miter Saw
  • Drill (cordless)
    Drill (cordless)
  • Brad Nailer
    Brad Nailer
  • Sander
    Sander

Materials

Wood Products

  • 2 Board , 1x6 , 72"
  • 3 Square Dowel , 1" x 1" (actual size) , 36"

Hardware & Supplies

  • 18 1 1/4" coarse-thread pocket hole screws
  • 16 2" 18-gauge brad nails
  • 1 18" Mirror and Picture Hanger
  • 1 Wood glue
See All Tools & Materials

Cut List & Parts

  • 1 Lower Shelf , 3/4" x 5 1/2" x 35" pine
  • 1 Upper Shelf , 3/4" x 5 1/2" x 35" pine
  • 2 Shelf Back , 3/4" x 5 1/2" x 33" pine
  • 4 Support Stile , 1" x 1" x 17 3/4" poplar square dowel
  • 4 Support Rail , 1" x 1" x 5 1/2" poplar square dowel

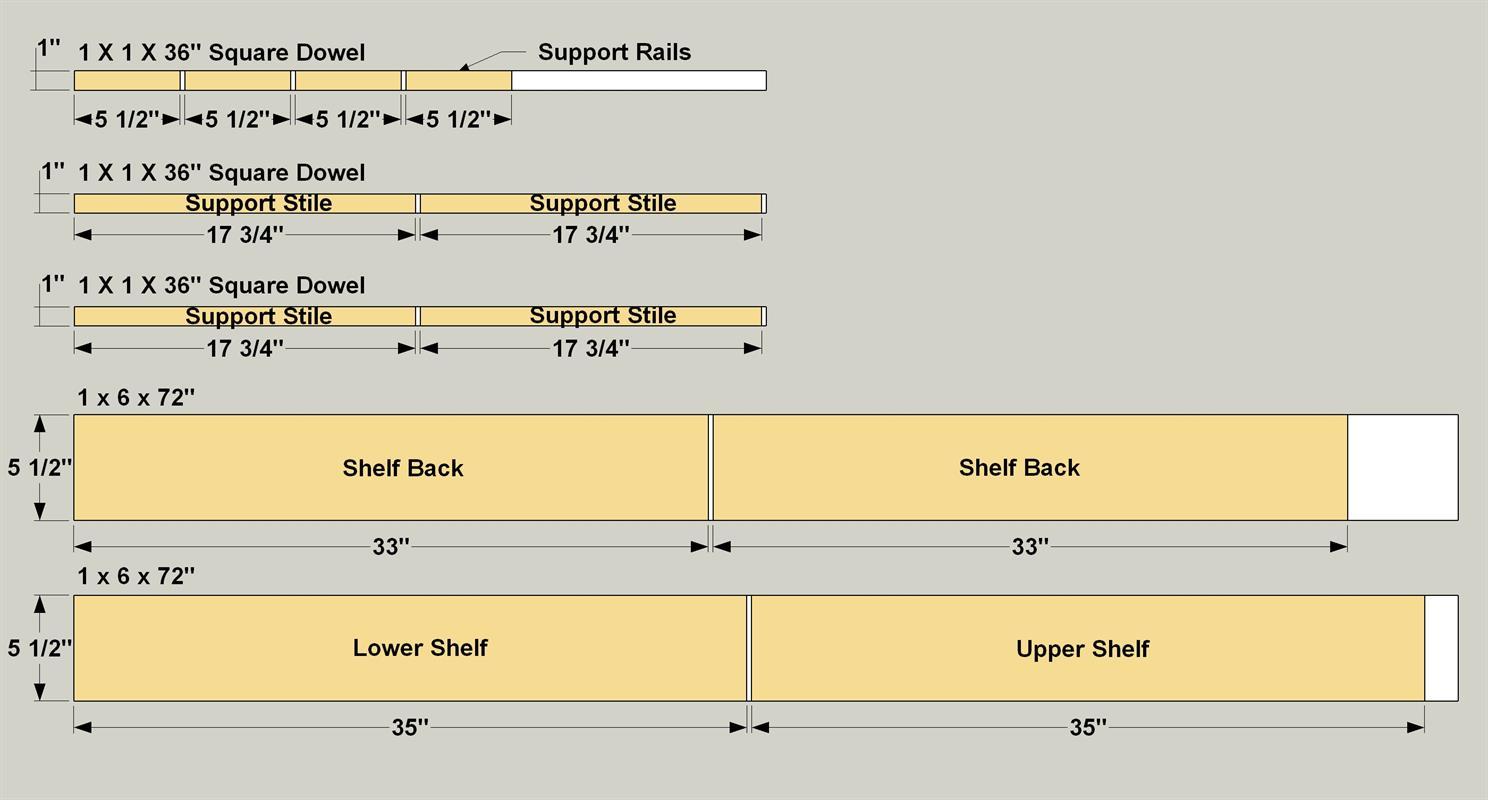

cuts-9
See Full Cut List & Parts

Directions

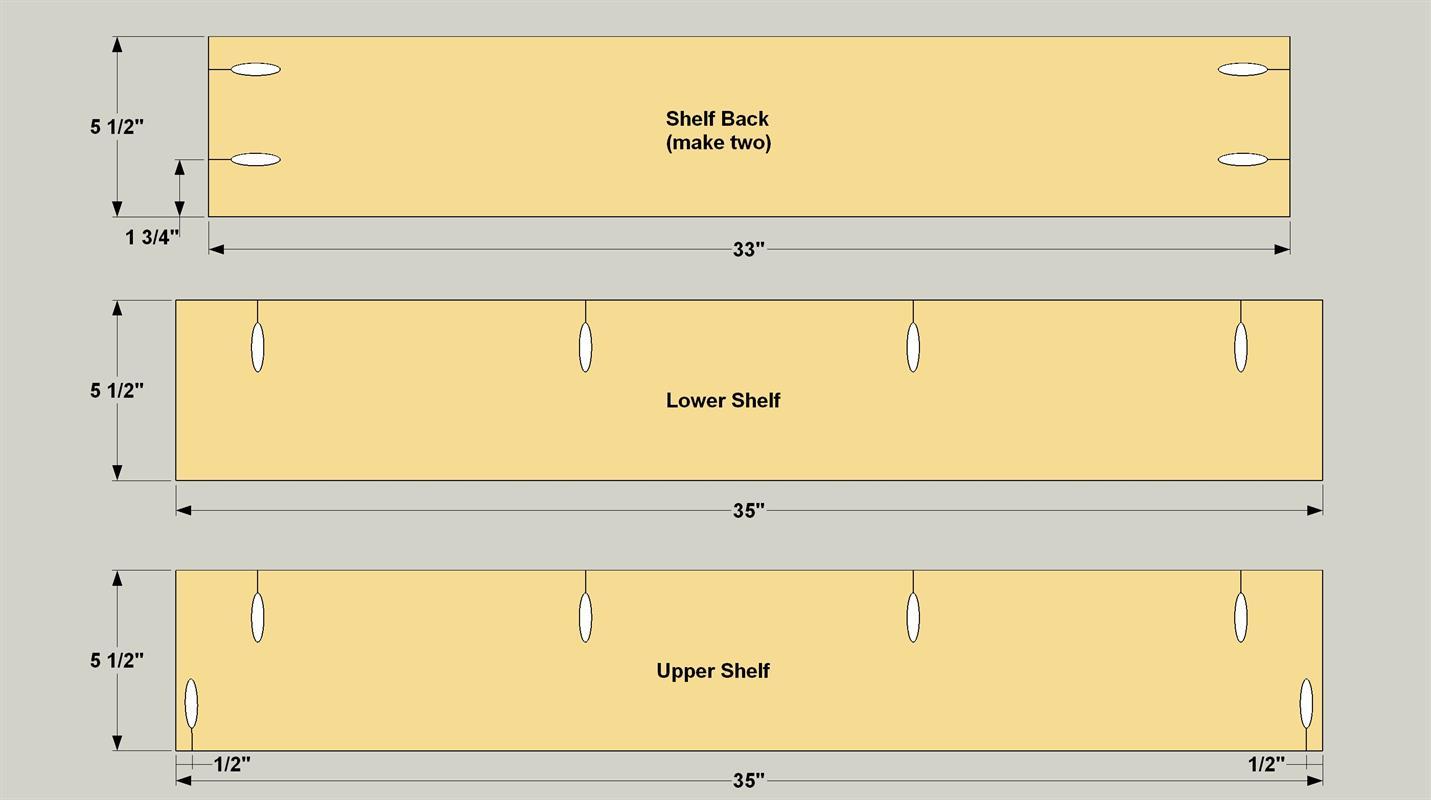

  • Make the Shelf Parts

    Cut one Lower Shelf, one Upper Shelf, and two Shelf Backs from 1x6 pine boards, as shown in the cutting diagram. Set your pocket hole jig for 3/4" thick material, and then drill pocket holes where shown. Note the Upper Shelf has two additional pocket holes that connect it to the front Support Stiles.

    Step 1

  • Assemble the Shelves

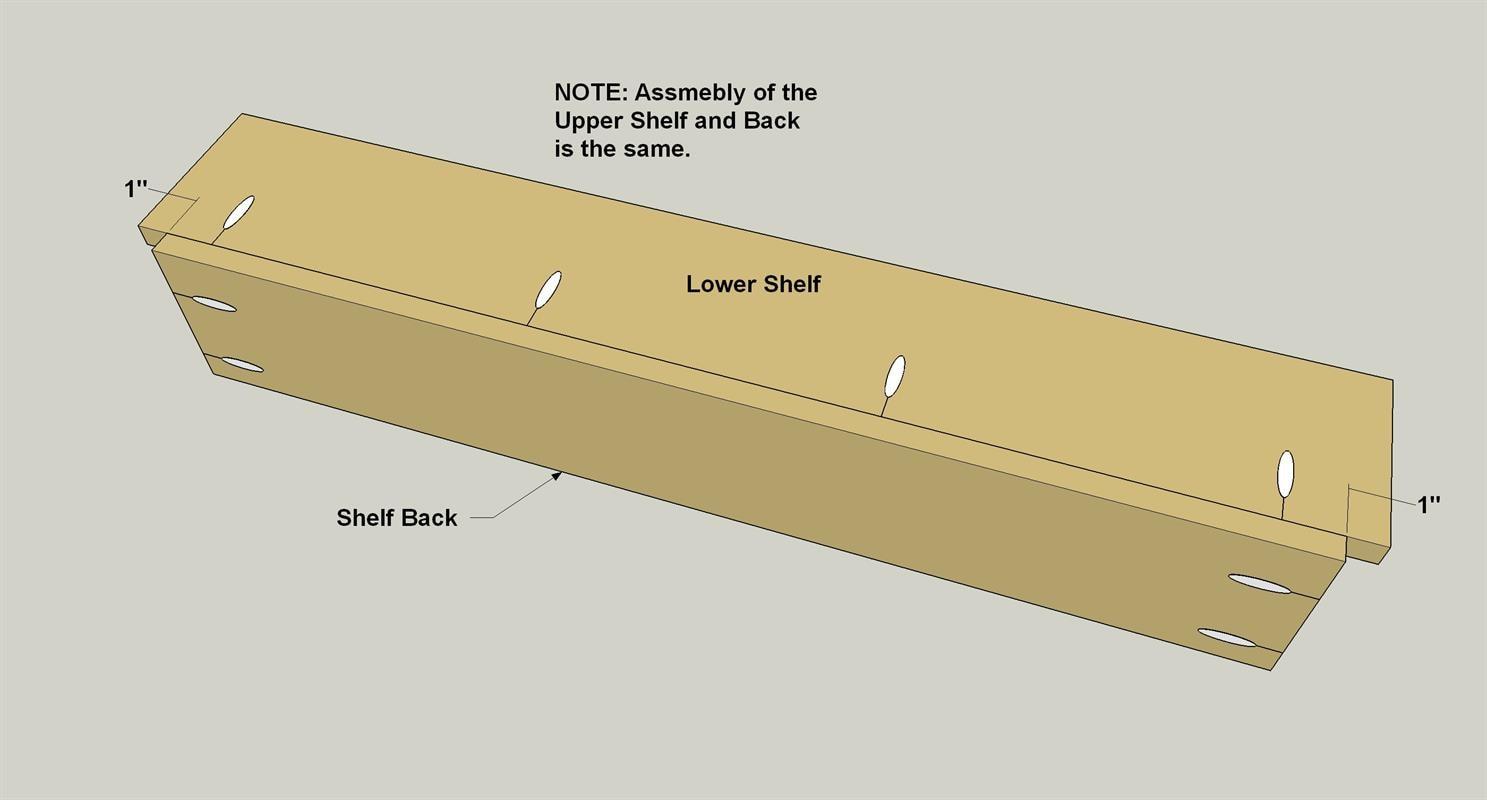

    Attach each Shelf to a Shelf Back, as shown, using 1 1/4" coarse-thread pocket hole screws. If you plan to stain or finish the shelves differently from the support frames, as we did, go ahead and apply the finish to the shelf assemblies now.

    Step 2

  • Cut the Support Frame Parts

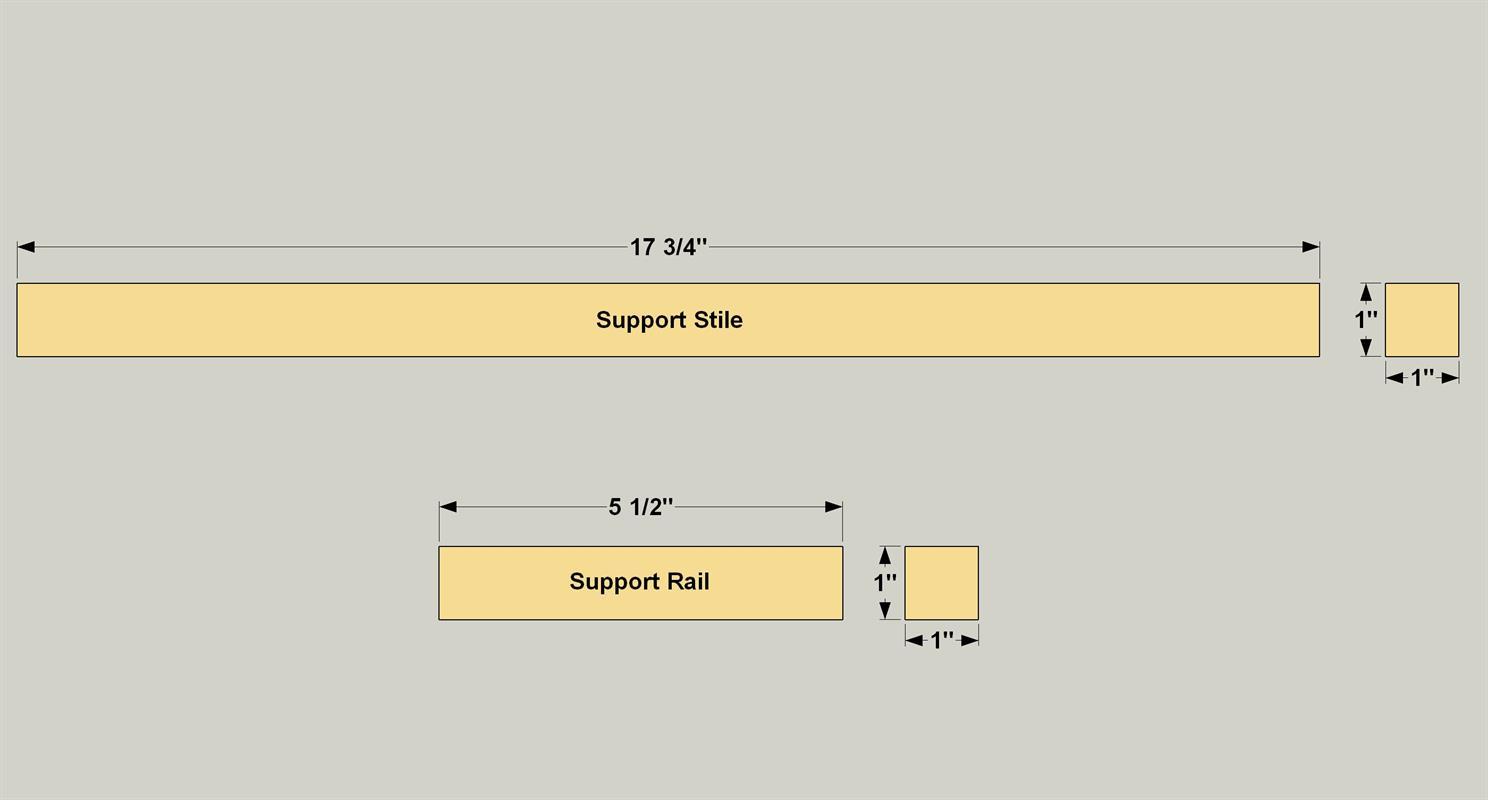

    Cut four Support Stiles and four Support Rails from 1" square dowels, as shown in the cutting diagram.

    Step 3

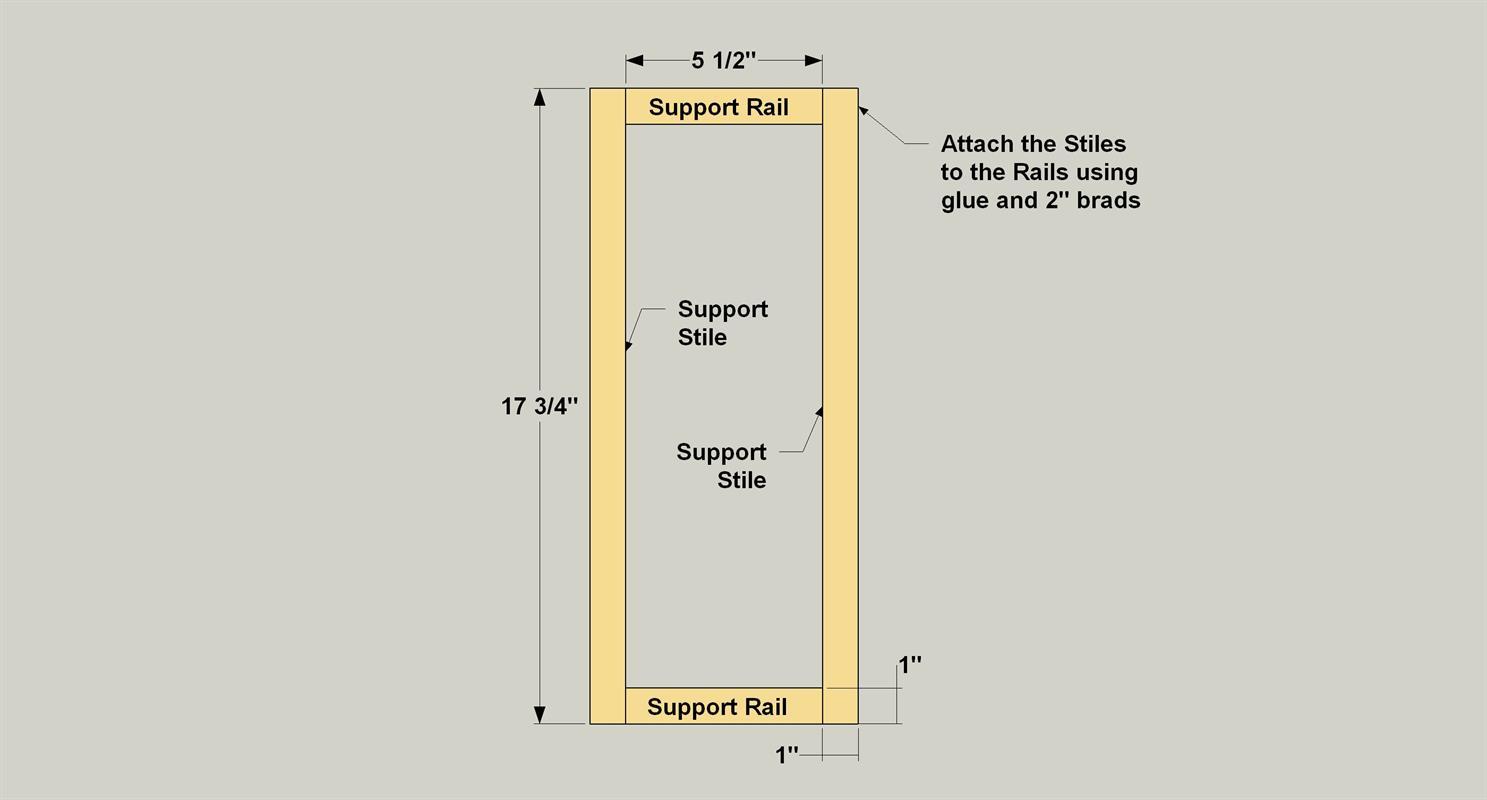

  • Assemble the Support Frame

    Assemble the support frame using glue and 2" brad nails. The nails will help hold the pieces together while the glue sets. Adding the shelf assemblies later will also strengthen the frame assemblies. Be sure to check that the frame supports are square as you assemble them. If you have access to a brad nailer, that’s the best way to nail the assemblies. If you’re using a hammer and nails, predrill holes to prevent splitting the wood. After the glue dries, you’ll want to finish the frame assemblies now if you’re using a finish different from the shelves.

    Step 4

  • Install the Lower Shelf

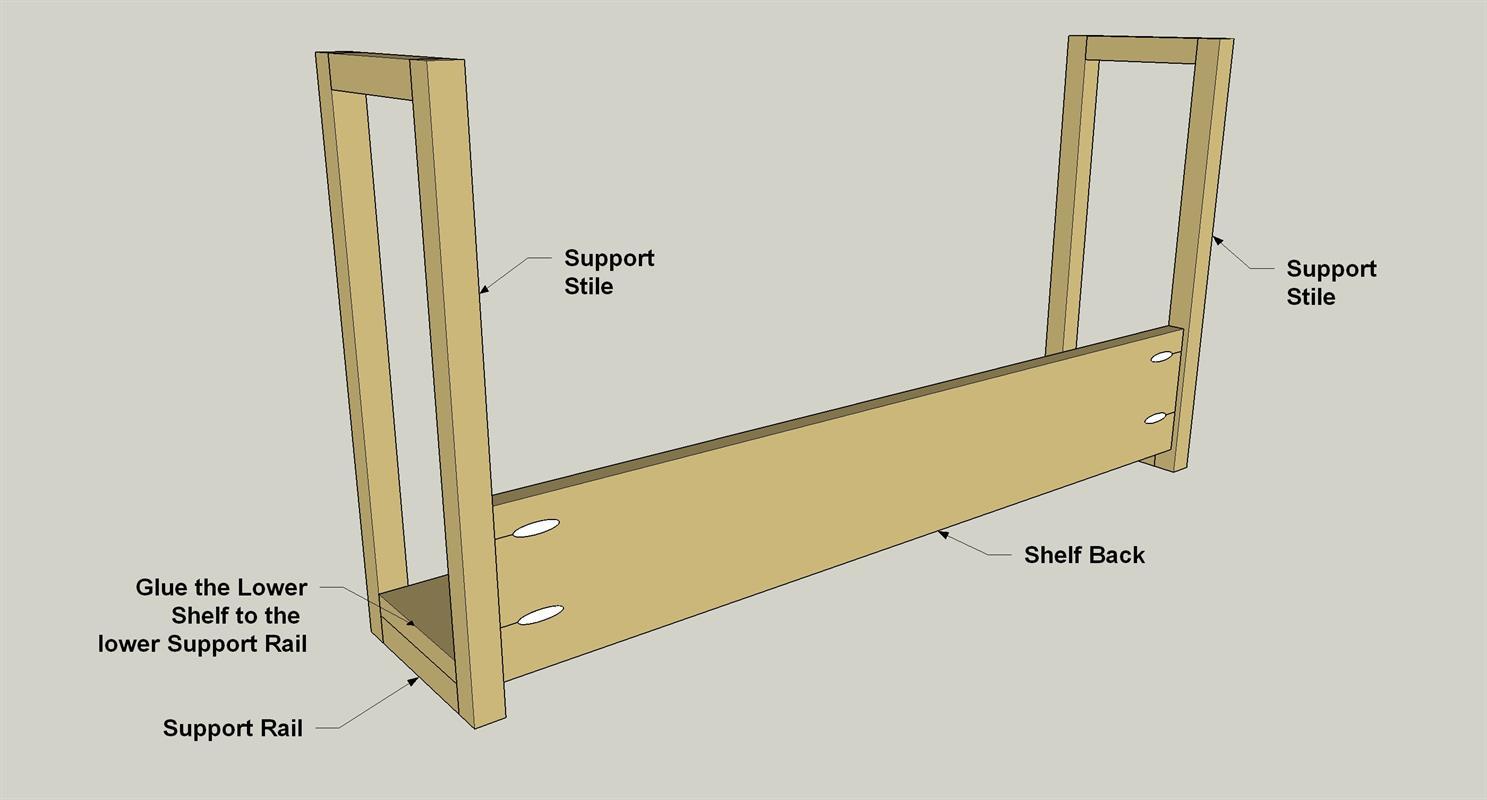

    Attach the lower shelf assembly to the support frames using 1 1/4" coarse-threaded pocket hole screws, as shown. Also dab a bit of glue onto each of the lower Support Rails before you position the lower shelf assembly. Make sure the front of the Shelf Back is flush with the front edge of the Support Stiles and the Shelf Assembly is resting on the bottom Support Rail. Clamp the Lower Shelf to each Support Rail, if needed. Note: The Shelf Backs sit inset 1/4" from the back of the Support Stiles. This allows for space for the hanging hardware that gets added later.

    Step 5

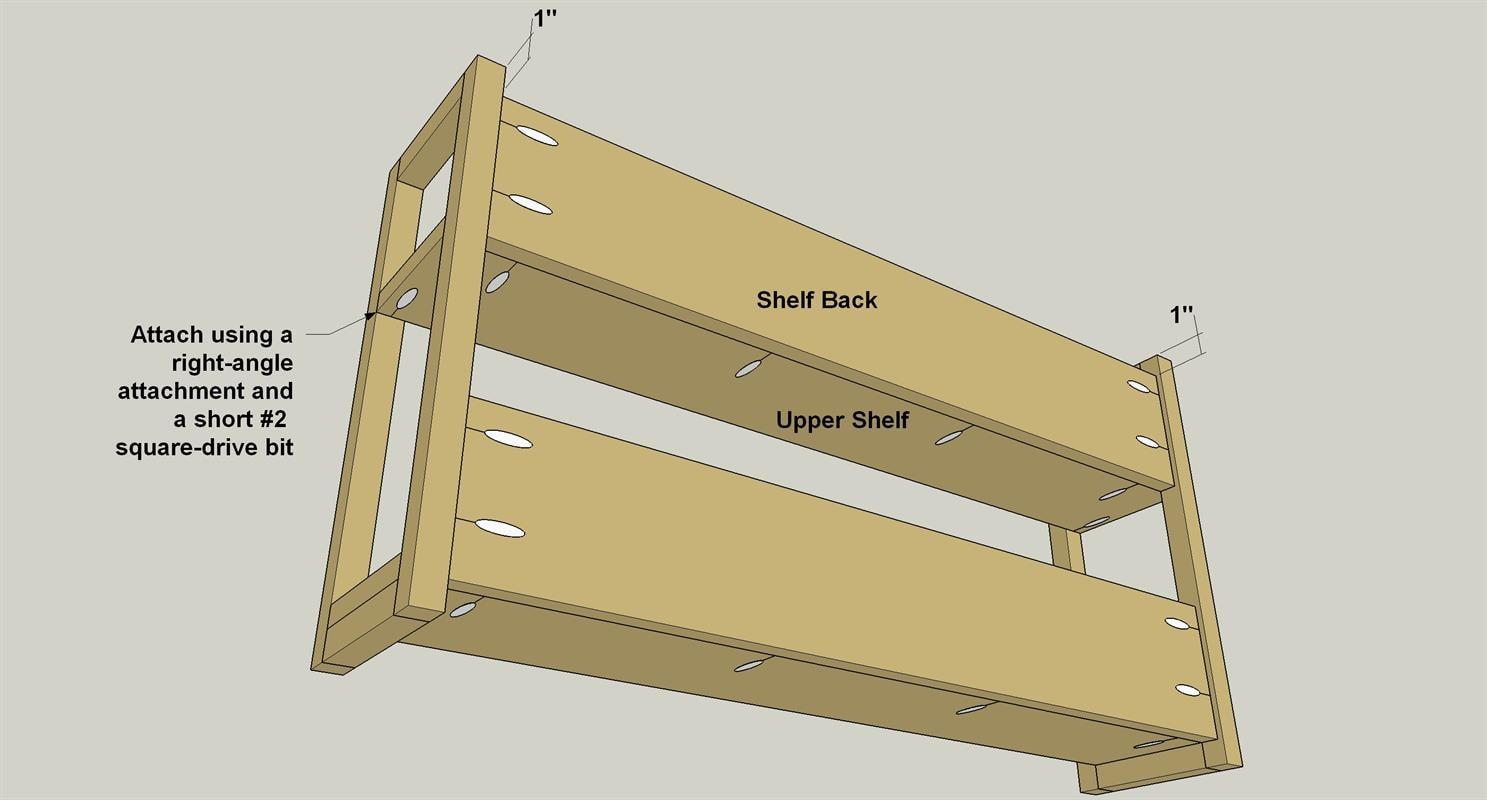

  • Install the Upper Shelf

    Attach the upper shelf assembly to the support frame assembly using 1 1/4" coarse-threaded pocket screws. Make sure the front of the Shelf Back is flush with the front edge of the Support Stiles. A right-angle attachment, such as the Kreg 90° Pocket-Hole Driver, will be needed to attach the Upper Shelf to the front Support Stile.

    Step 6

  • Add Hardware and Hang

    With assembly complete, you can hang it on the wall. We used a two-part “Hangman” cleat system. One half attaches to the wall, and the other half attaches to the upper Shelf Back.
