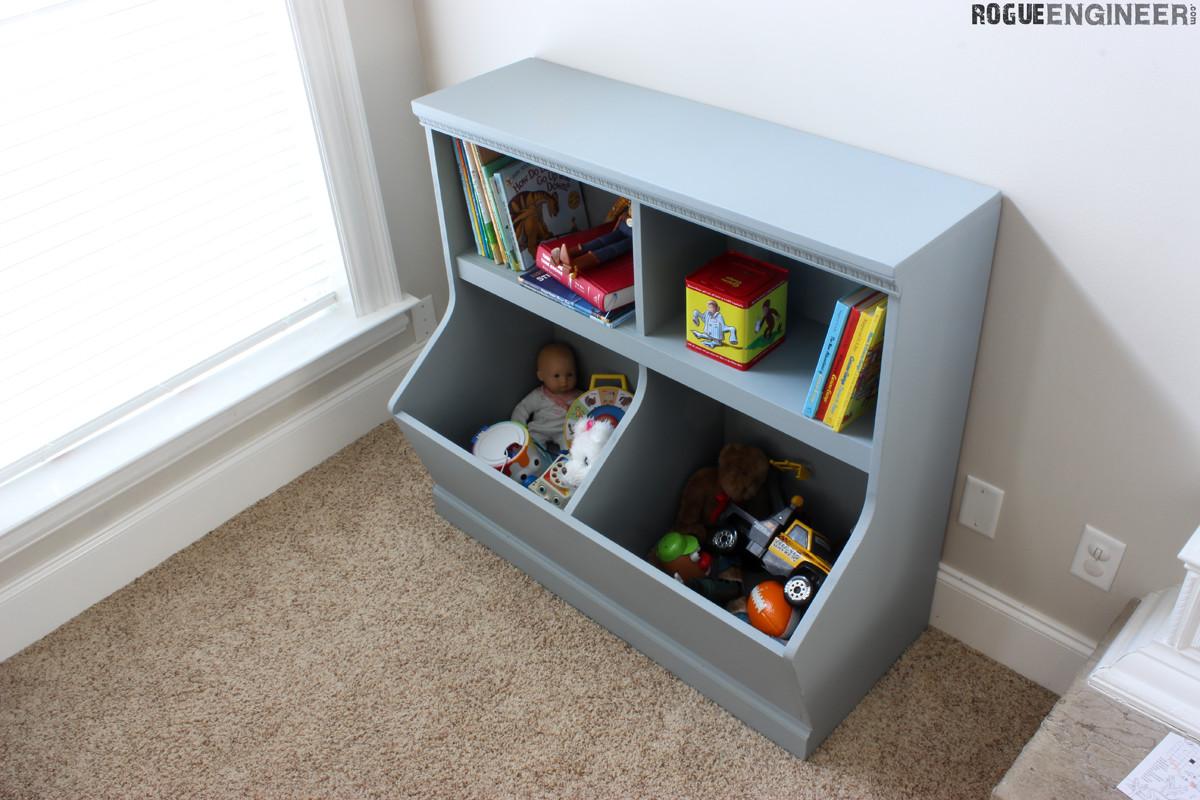

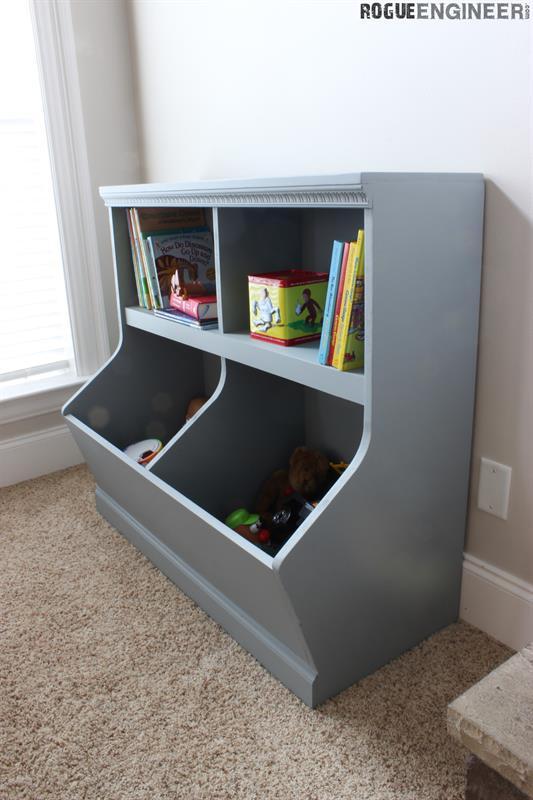

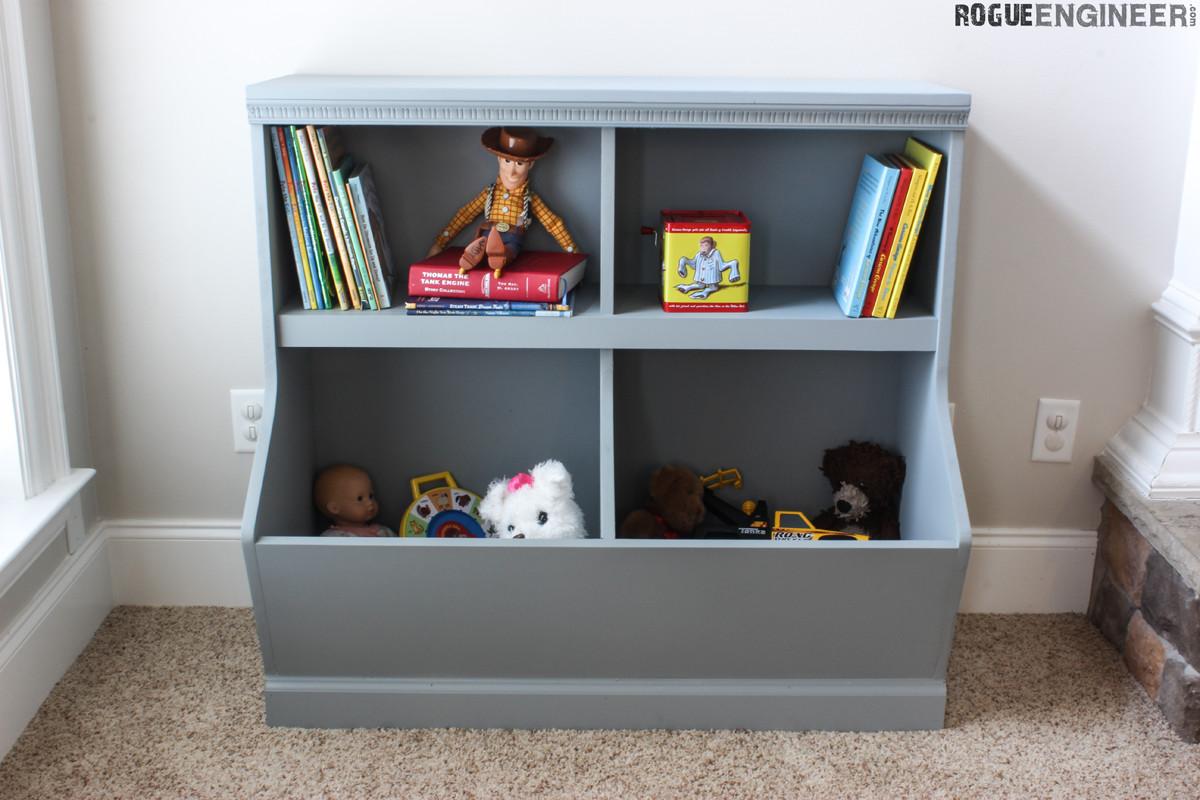

If you have kids then you know how important toy storage is. This wall unit now only gives you a ton of toy storage but it incorporates a book shelf for all those nighttime stories.
Check the extras tab for a PDF download of these plans and cut list.
Tools
Kreg Tools
Other Tools
-
Circular Saw (cordless)
-
Jigsaw
-
Square
-
Table Saw
-
Tape Measure
-
Drill (cordless)
-
Nail Gun
-
Sander
Materials
Wood Products
- 2 Plywood , 3/4" Thick , Full Sheet
- 1 Baseboard Trim , 3-1/4" , 48"
- 1 Decorative Moulding , 3/4" Thick , 48"
Hardware & Supplies
- 100 1-1/4" Pocket Screws
- 100 1-1/4" Brad Nails

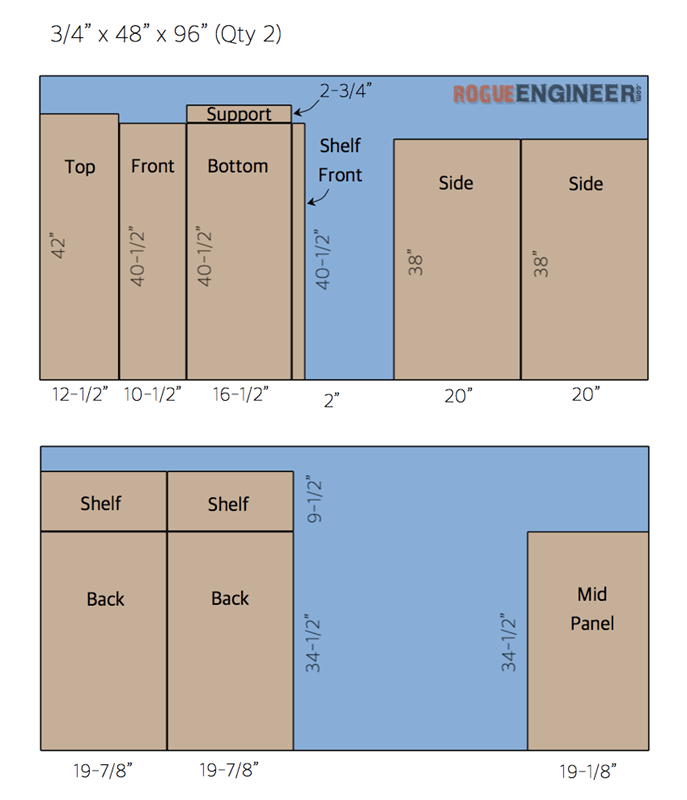

Cut List & Parts
- 2 Sides , 3/4" x 20" x 38"
- 1 Mid Panel , 3/4" x 19-1/8" x 34-1/2"
- 1 Top , 3/4" x 12-1/2" x 42"
- 1 Front , 3/4" x 10-1/2" x 40-1/2"
- 1 Bottom , 3/4" x 16-1/2" x 40-1/2"
- 1 Support , 3/4" x 2-3/4" x 16-1/2"
- 2 Shelf , 3/4" x 9-1/2" x 19-7/8"
- 1 Shelf Front , 3/4" x 2" x 40-1/2"
- 2 Back , 3/4" x 19-7/8" x 34-1/2"
Directions
-

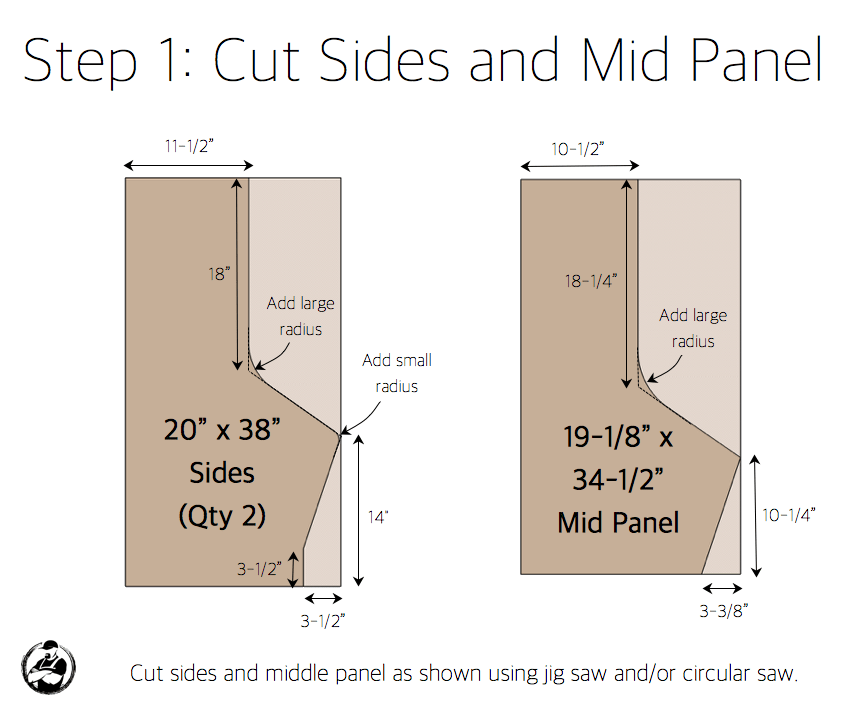

Cut Sides and Mid Panel
Use the diagrams shown to draw two sides and one middle panel. Then cut out using a circular saw and jig saw.
-

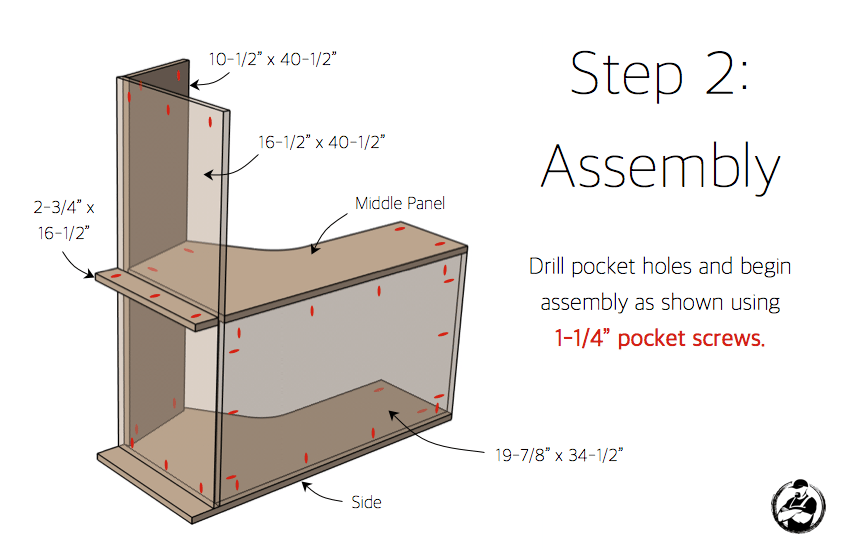

Assembly
Drill pocket holes and begin assembly as shown using 1-1/4" pocket screws.
-

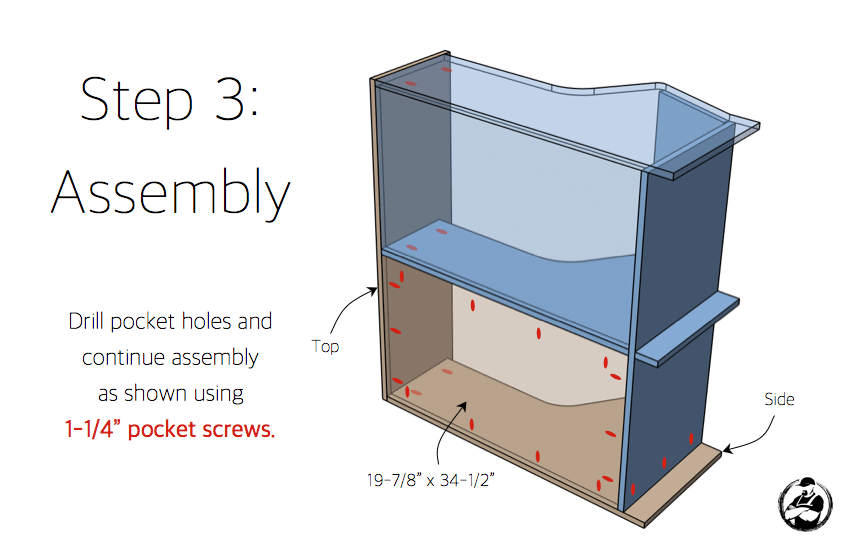

Assembly
Drill pocket holes and continue assembly as shown using 1-1/4” pocket screws.
-

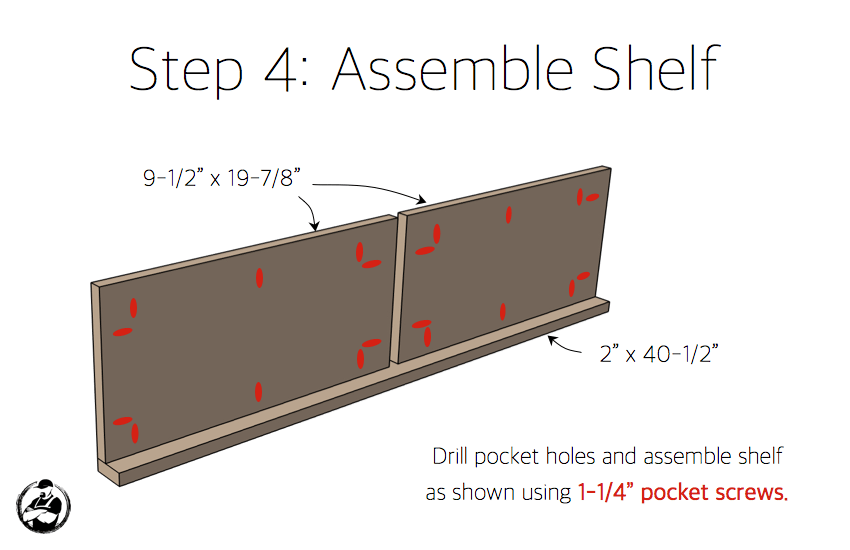

Assemble Shelf
Drill pocket holes and assemble shelf as shown using 1-1/4” pocket screws.
-

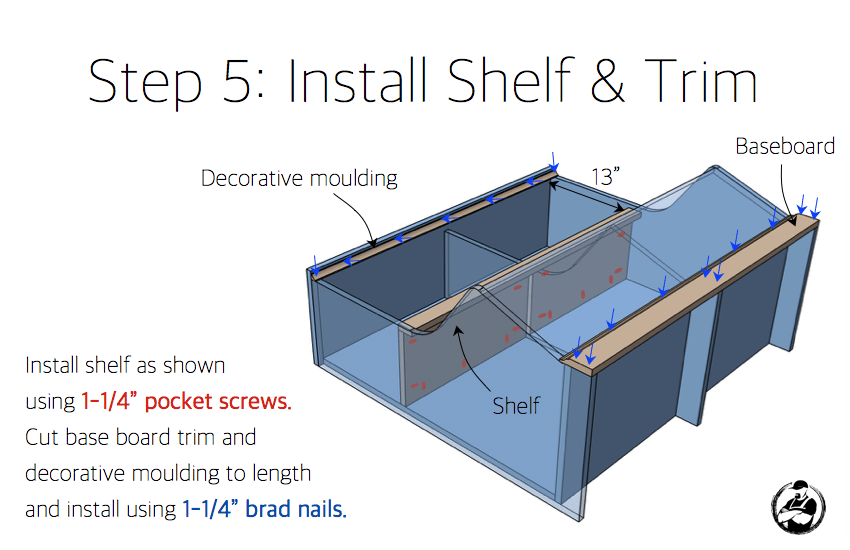

Install Shelf and Trim
Install shelf as shown using 1-1/4” pocket screws.
Cut base board trim and decorative moulding to length and install using 1-1/4” brad nails.For more plans like this be sure to visit RogueEngineer.com
