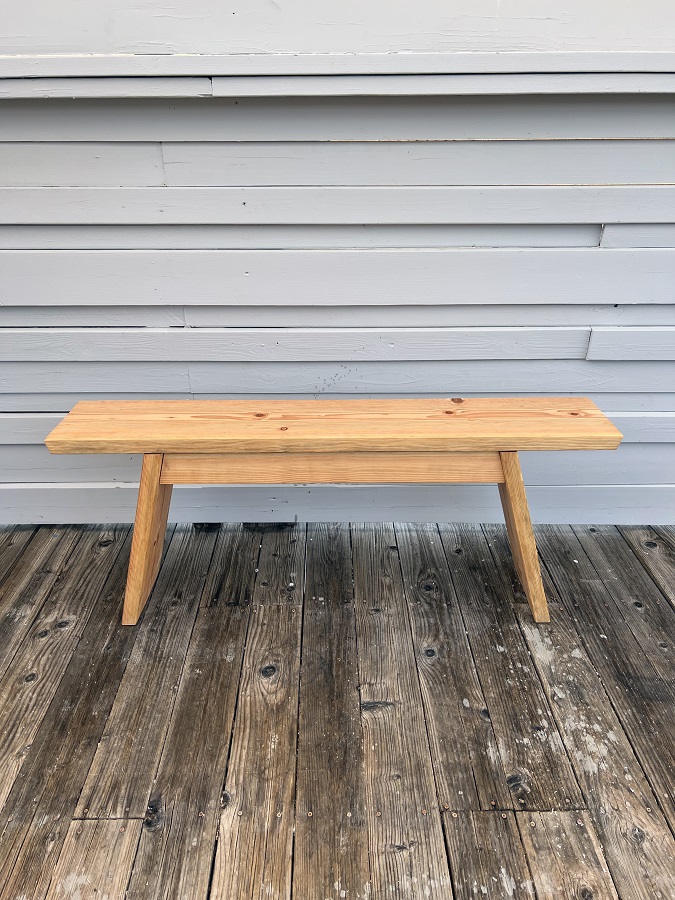

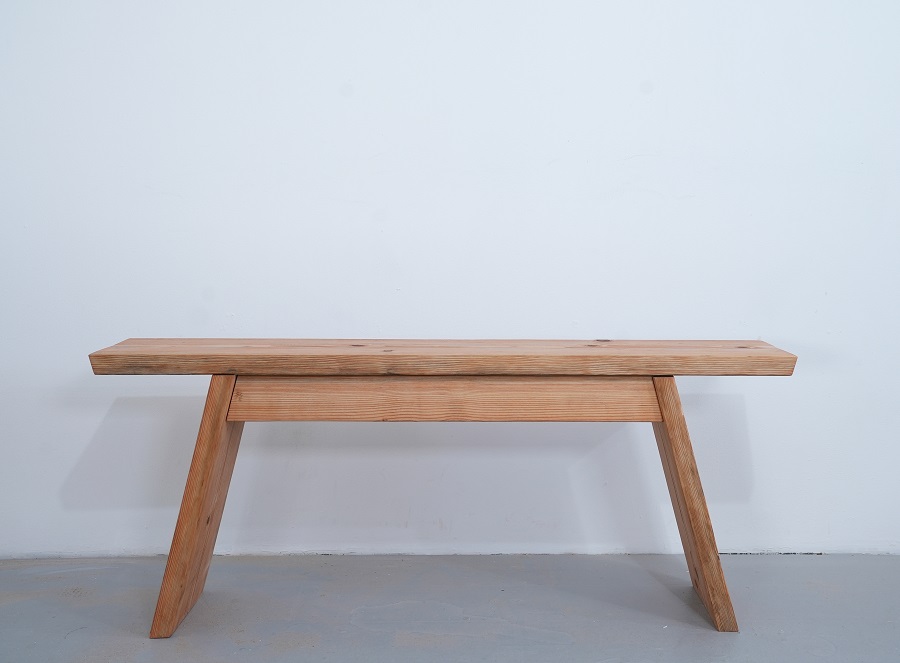

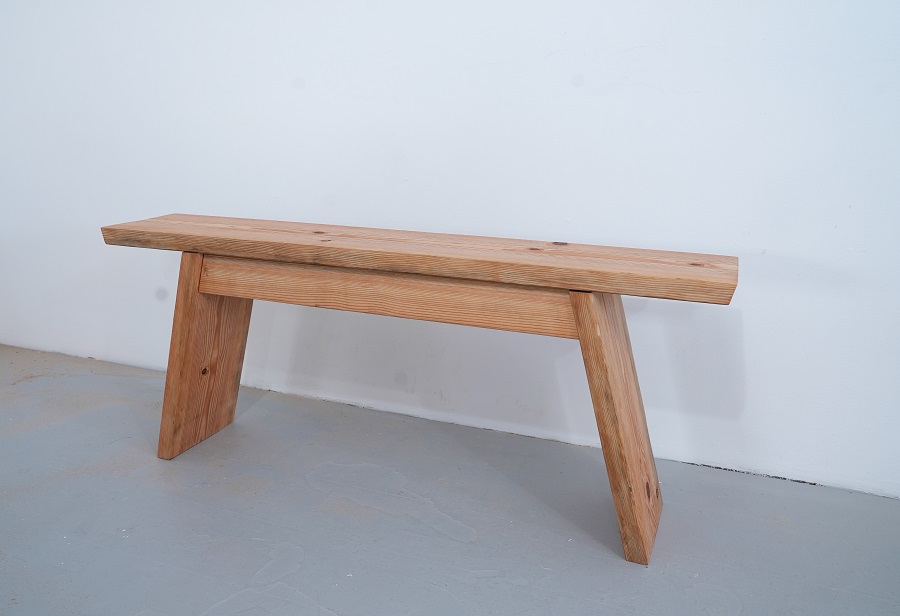

This DIY outdoor bench is made out of pieces of a 2x10 and a 2x4 that are cut at 15 degree angles and screwed together with pocket holes.
Difficulty
easy
Tools
Kreg Tools
Other Tools
-
Circular saw
-
Drill
-
Orbital sander
Materials
Wood Products
- 1 Board , 2"x10"x8'
- 1 Board , 2"x4"x8'
Hardware & Supplies
- 1 Box of 2 1/2" blue-kote pocket-hole screws (see tools list)
- 1 80 grit sandpaper
- 1 Penetrating oil with UV protection

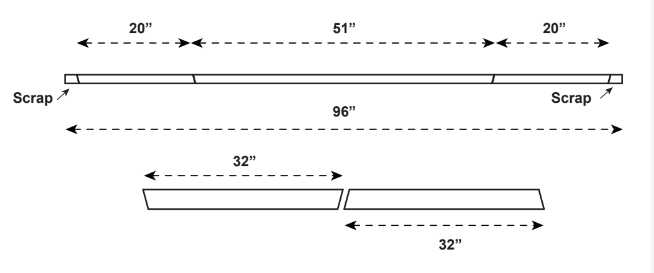

Cut List & Parts
- 1 Bench top , 51"x2"x10"
- 2 Legs , 20"x2"x10"
- 2 Supports , 32"x2"x4"
Directions
-

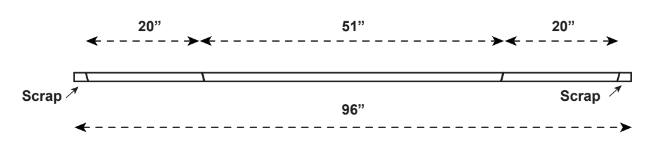

Cut the 2x10s
Cut a 2x10 with the blade set at 15 degree angle.
-
Cut the 2x4s
Set the blade on the circular saw back to 90 degrees and cut a 2x4 at a 15 degree angle.
-

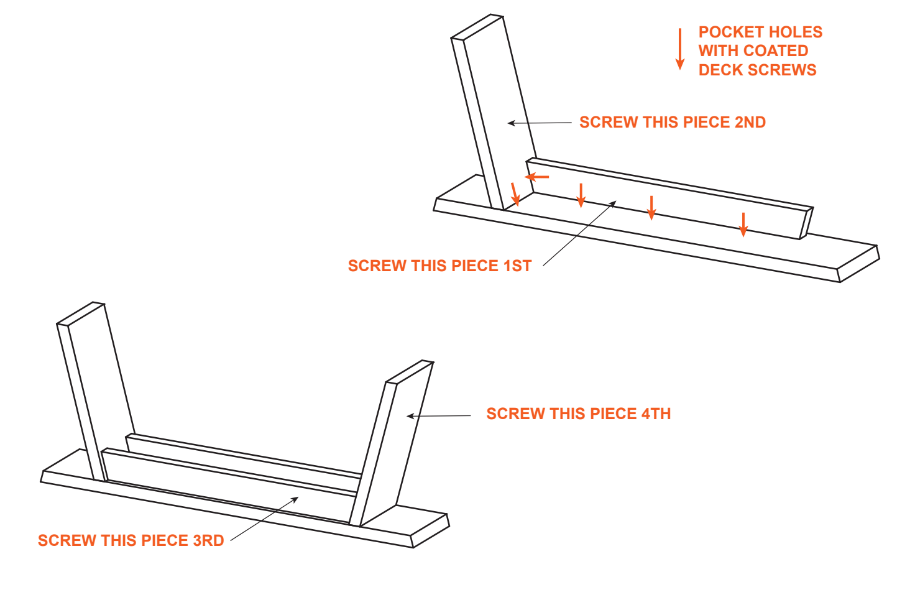

Assemble the bench
Use pocket holes to connect the pieces. I placed on the holes on the inside of the pieces so that they would be less visible. I screwed one of the 2x4 pieces first before adding a single leg. I then added another 2x4 piece and then the last leg. I used pocket holes to screw the 2x4s to both the legs and to the top of the bench. Use sealer to protect your bench.
