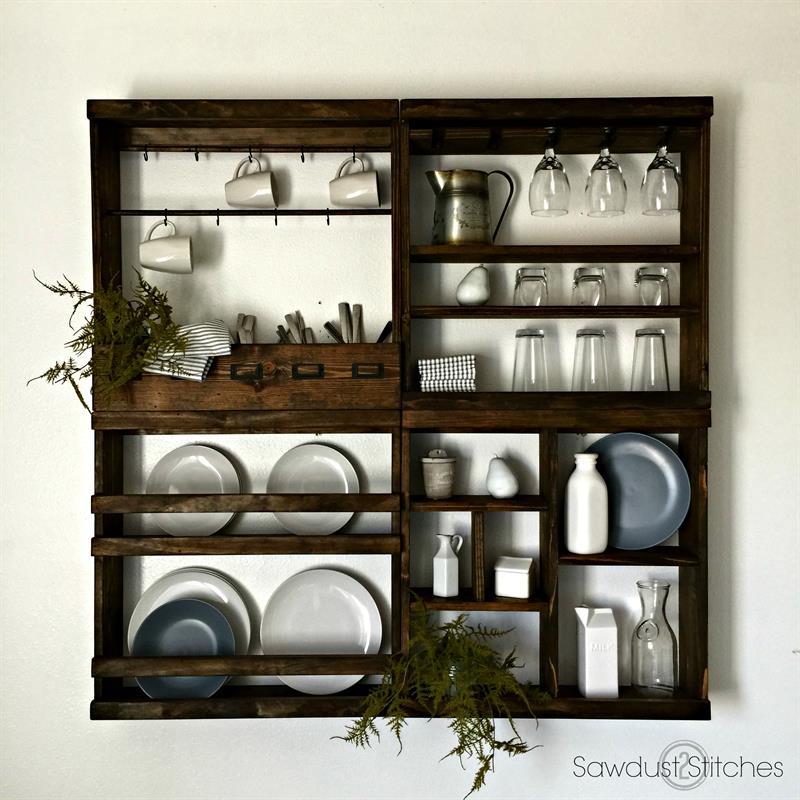

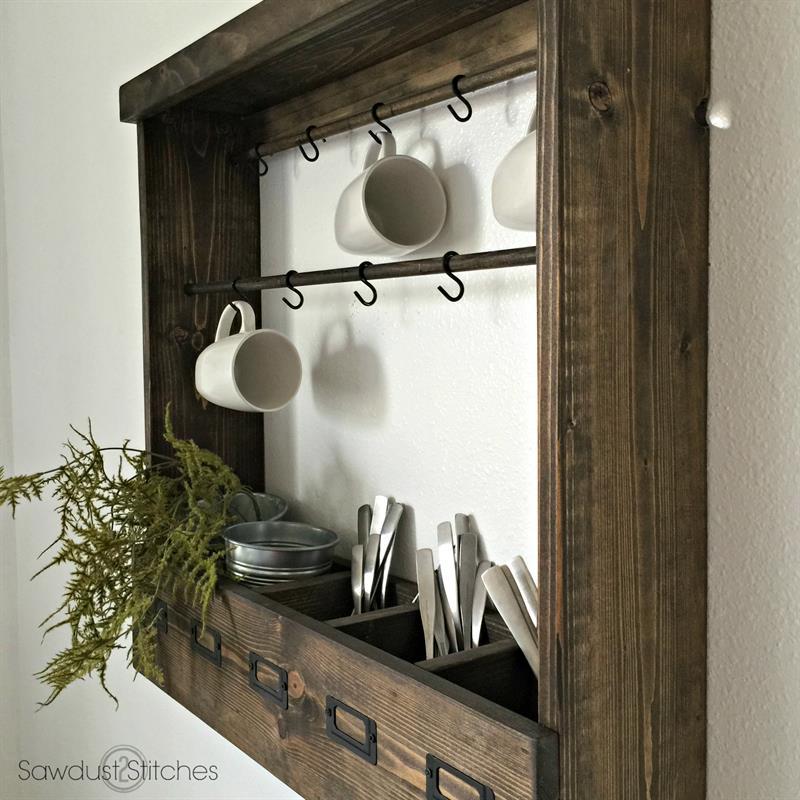

A great compromise of form and function. This Pottery Barn inspired hanging mug rack is part of a modular set that can be used in combination with other modular pieces (see image 2), or it can be used alone!

Difficulty easy

Tools

Other Tools

  • Miter Saw
    Miter Saw
  • Table Saw
    Table Saw
  • Drill (cordless)
    Drill (cordless)
  • Nail Gun
    Nail Gun
  • Sander
    Sander

Materials

Wood Products

  • 2 Board , 1x6 , 96"
  • 1 Board , 1x2 , 96"
  • 2 Dowel Rod , 1/2" Thick , 36"

Hardware & Supplies

  • 9 "s" hooks
  • 5 Label Holders (if desired)
  • 1 18 gauge finish nails
  • 1 Wood glue

Cut List & Parts

  • 2 Top & Bottom Frame , 3/4" x 6"x 24"
  • 2 Side Frame , 3/4" x 6" x 25 1/2"
  • 2 Dowel Rod , 1/2" x 24 3/4"
  • 1 Bottom Back Support , 3/4" x 4 3/4" x 24"
  • 4 Dividers , 3/4" x 4 3/4" x 4 3/4'
  • 1 Top Back Support , 3/4" x 1 1/2" x 24"
  • 2 Front Rails , 3/4" x 1 1/2" x 25 1/12"

Directions

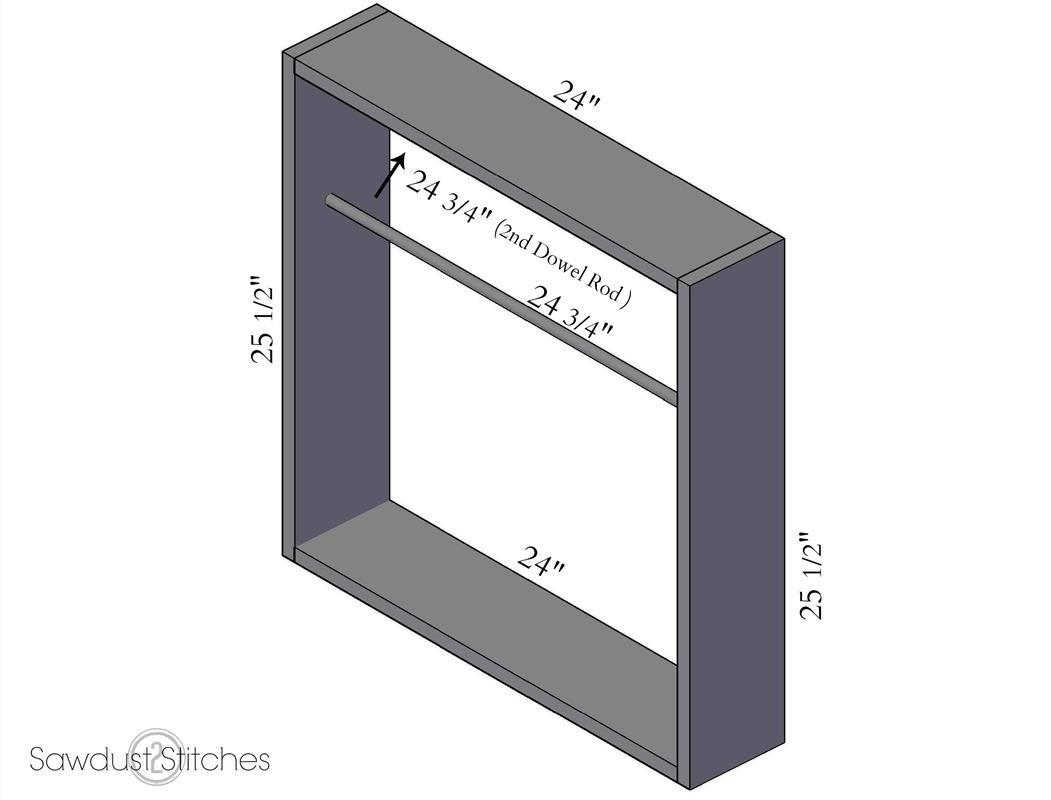

  • Frame

    Apply a small amount of wood glue into the pre-drilled holes for the dowel rods. Fit both dowel rods into their corresponding 1/2" holes. Join both 25 1/2" and 24" 1x6" boards using wood glue and 2 inch, 16 gauge finishing nails. This will form a 25 1/2" square.

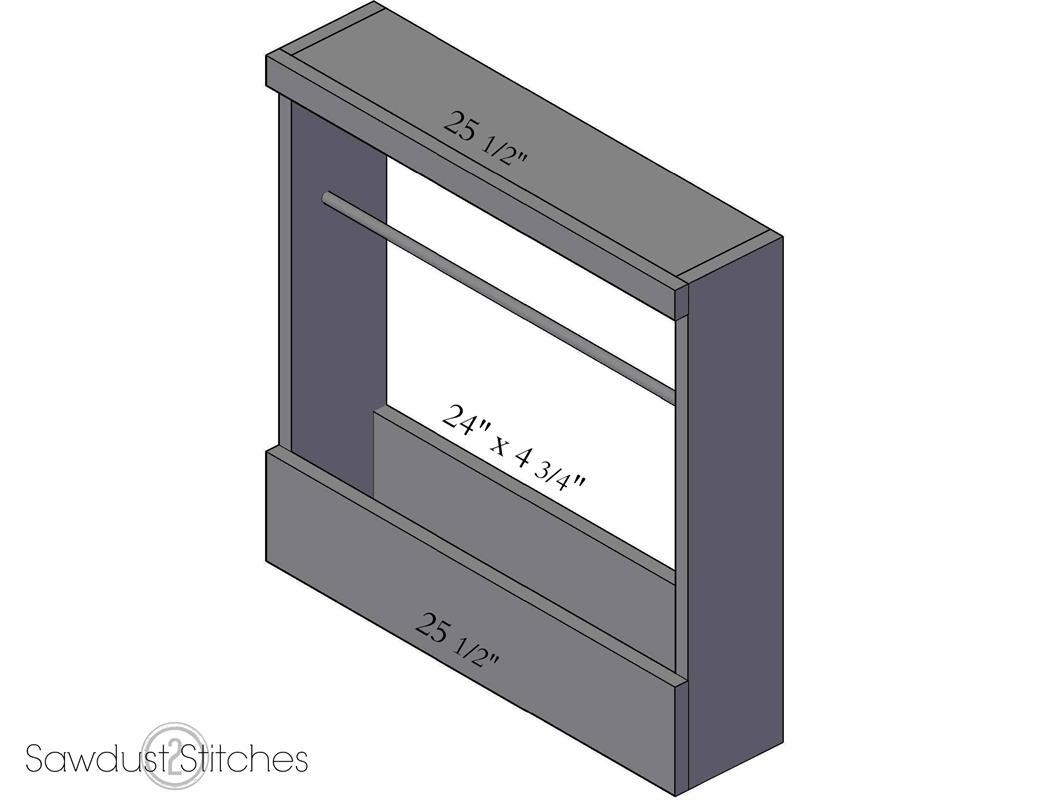

  • Front Rails

    Attach the 25 1/2" 1x2" board(s) to the face of the unit using wood glue and 2 inch 16 gauge finishing nails.

    Secure your 1x6x24" that has been ripped down to 4 3/4" wide, using wood glue and 2" 16 gauge finish nails.

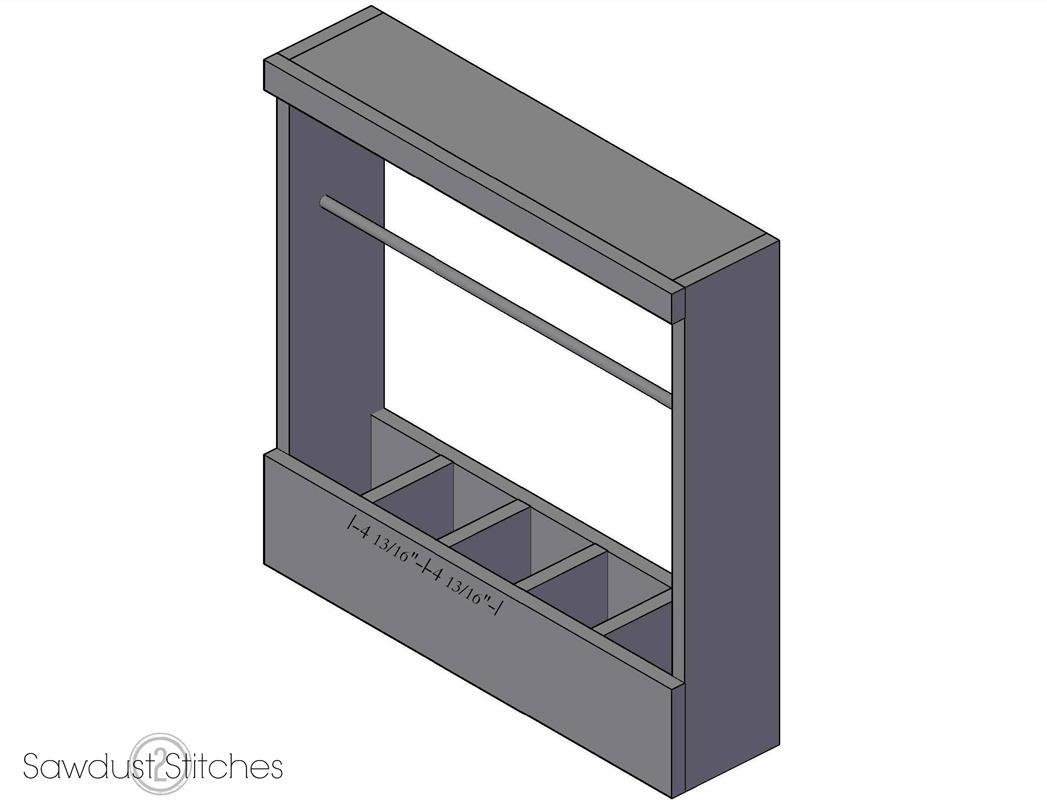

  • Dividers

    Place the (4) dividers (1x6" board ripped down to 4 3/4" wide, and then cut into 4 3/4" boards). Secure using wood glue, and 2" 16 gauge finish nails.

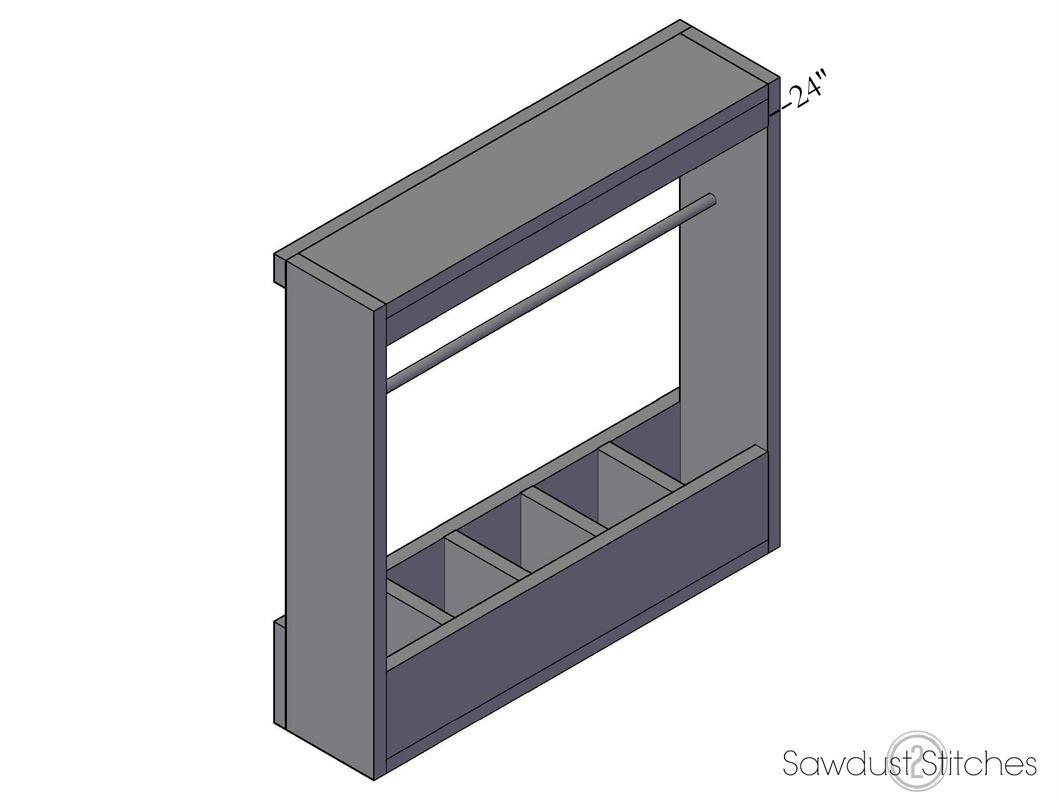

  • Back Support

    Attach the remaining 24" 1x2"board using wood glue and 2 inch 16 gauge finishing nails. This is an ideal place to attach the unit to the wall, or you can attach hanging hardware to the back.

  • Finish

    Fill all nail holes with wood filler. Sand smooth, then apply desire stain and/or paint.
    If desired add "label hardware" and "s" hooks to the dowel rod.

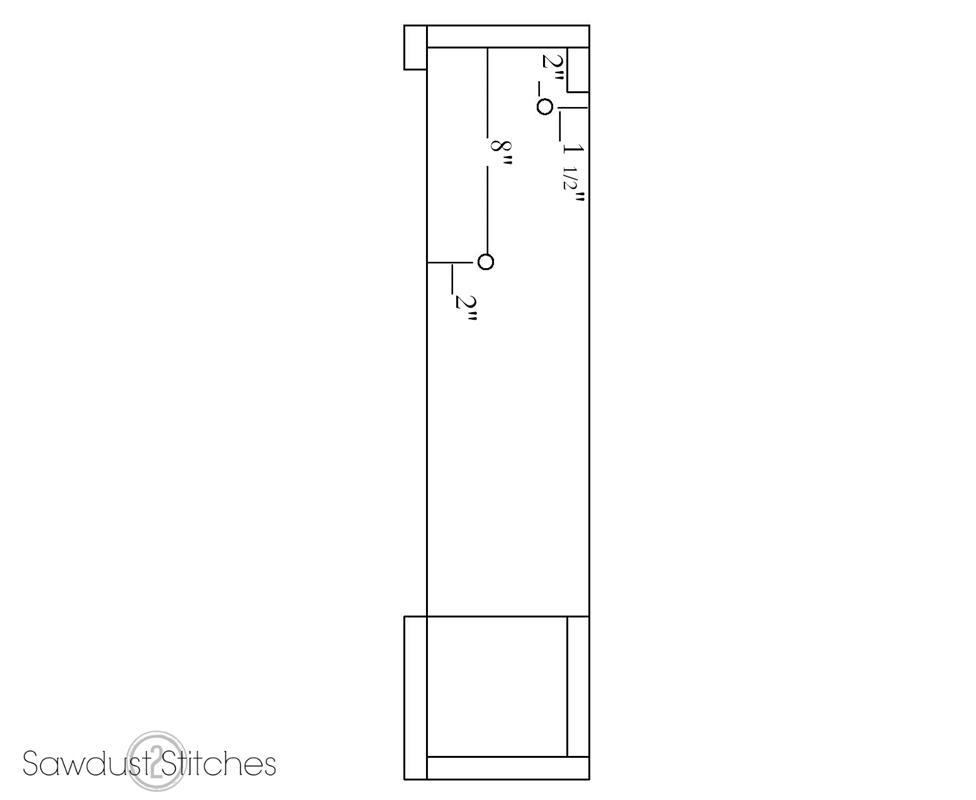

  • Drill Dowel Holes

    Before assembling frame pre-drill holes for dowel rods in the
    1"x 6"x 25 1/2" boards. Use a 1/2" bit and drill 3/8" deep. You will need to make a mirror copy on to the remaining 1"x 6"x 25 1/2" board.
