Mobile Power Tool Storage Unit

By Create and Babble
mobile-tool-shelf-1
right-side-of-mobile-tool-shelf
Kreg Academy Kreg Academy

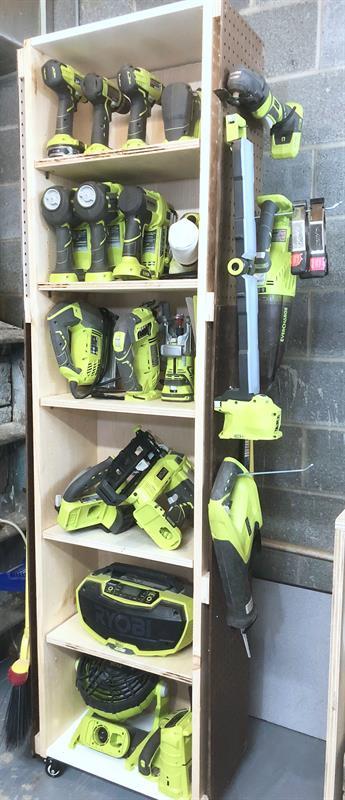

Free plans to build a customizable mobile storage unit that will keep your handheld power tools organized and easily accessible. This unit also has optional pegboards on each side for even more storage capacity.

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Miter Saw
    Miter Saw
  • Square
    Square
  • Tape Measure
    Tape Measure
  • Drill (cordless)
    Drill (cordless)
  • Nail Gun
    Nail Gun

Materials

Wood Products

  • 2 Board , 1x12 , 72"
  • 1 Plywood , 3/4" Thick , Quarter Sheet
  • 1 Plywood , 1/4" Thick , Quarter Sheet
  • 1 Pegboard , 1/4" Thick , Half Sheet
  • 1 Board , 1x2 , Scrap

Hardware & Supplies

  • 1 Box of shelf pins
  • 1 Box of 1-1/4" pocket screws
  • 1 Box of 1-1/4" brad nails
  • 12 1-1/4" wood screws
  • 4 Locking 2" casters
  • 16 1-1-1/2" drawer front screws
See All Tools & Materials

Cut List & Parts

  • 10 Shelves, top and bottom , 3/4" x 11-1/4" x 17"
  • 2 Sides , 3/4" x 11-1/4" x 72"
screen-shot-2018-02-08-at-7-32
See Full Cut List & Parts

Directions

  • Cut shelves

    You can either use additional 1 x 12's to make the 17" long shelves or 3/4" plywood. I used up some leftover 3/4" plywood and shelving that I had in my woodpile to make mine.

  • Drill pocket holes

    Drill three pocket holes on both short ends of two of the shelf pieces.

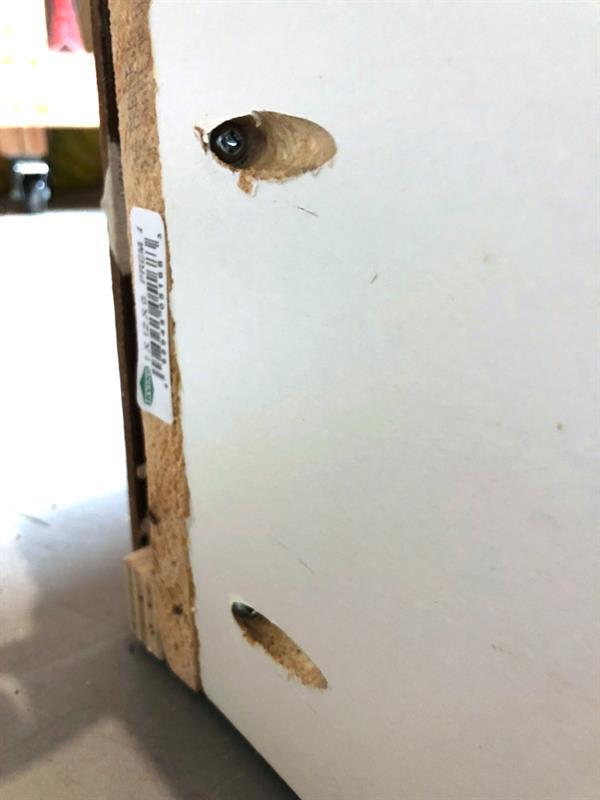

  • Attach top and bottom

    Using glue and pocket screws, attach a shelf to the ends of the 1 x 12" to make the top and bottom of the shelving unit.

    Step 3

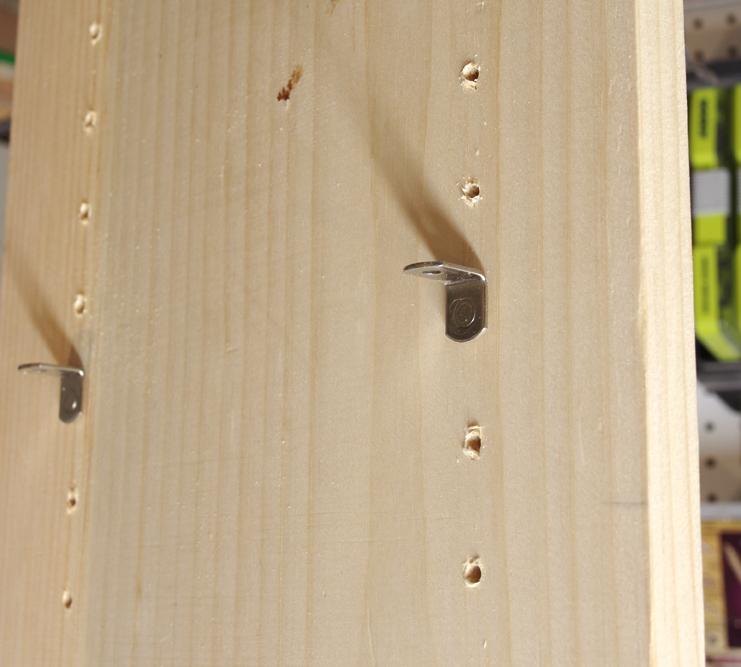

  • Drill shelf pin holes

    Using the Kreg Shelf Pin Jig, drill shelf pin holes along the inside of the shelf sides.

    Step 4

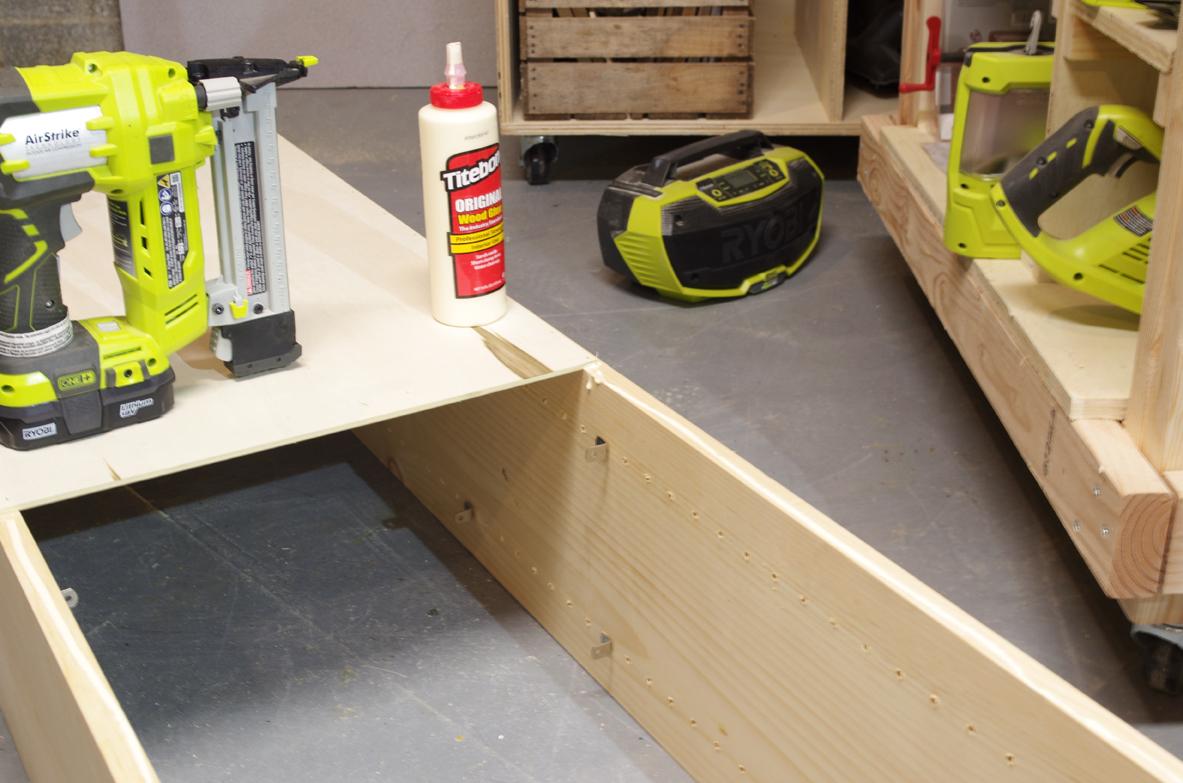

  • Attach back of shelving unit

    Cut a piece of the 1/4" plywood to fit the back of the shelving unit. Attach with glue and brad nails.

    Step 5

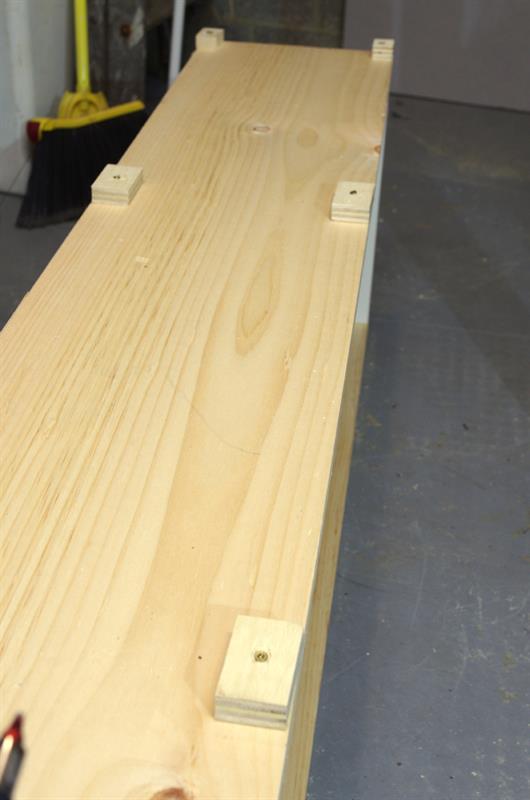

  • Optional pegboard sides

    First, screw in small blocks of wood into the four corners of each side and also to the middle along the edges. (see photo)

    Step 6

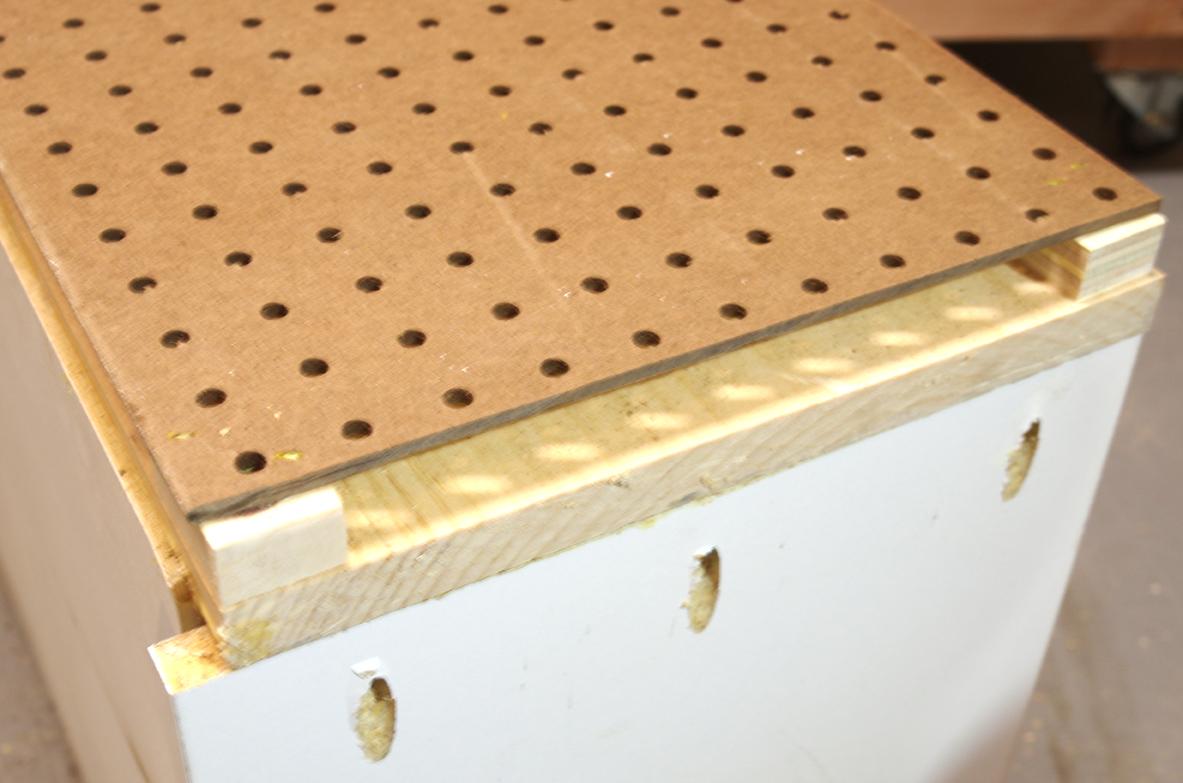

  • Pegboard sides part 2

    Cut and piece pegboard to fit each side of the shelving unit. Attach with staples or brad nails to blocks that were screwed in during the previous step.

    Step 7

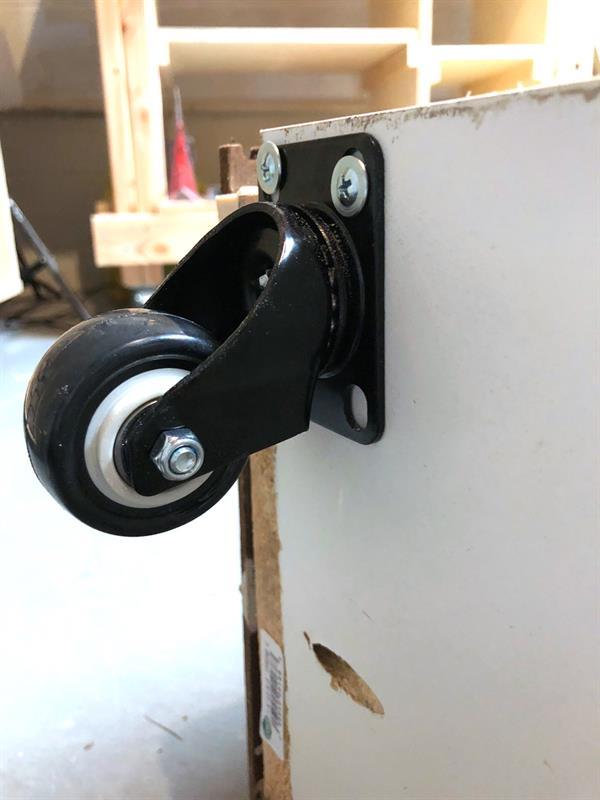

  • Wheels

    Add the wheels using 1-1/4" drawer front screws. I use this type of screw with the wide head because of the size of the holes on the wheels.

    Step 8

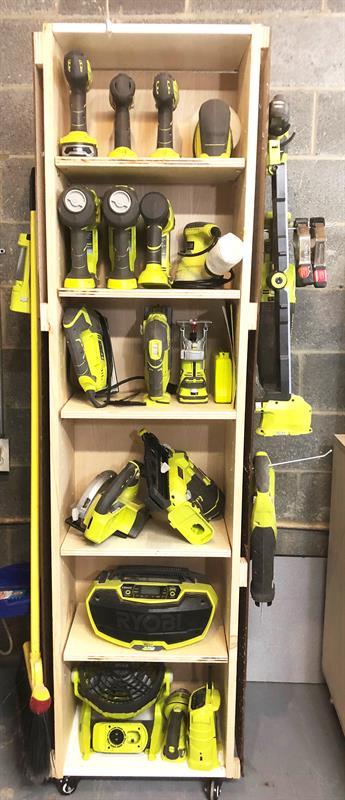

  • Shelves

    Add the shelves and customize the placement of the shelves for your tools and storage needs.

    Step 9
