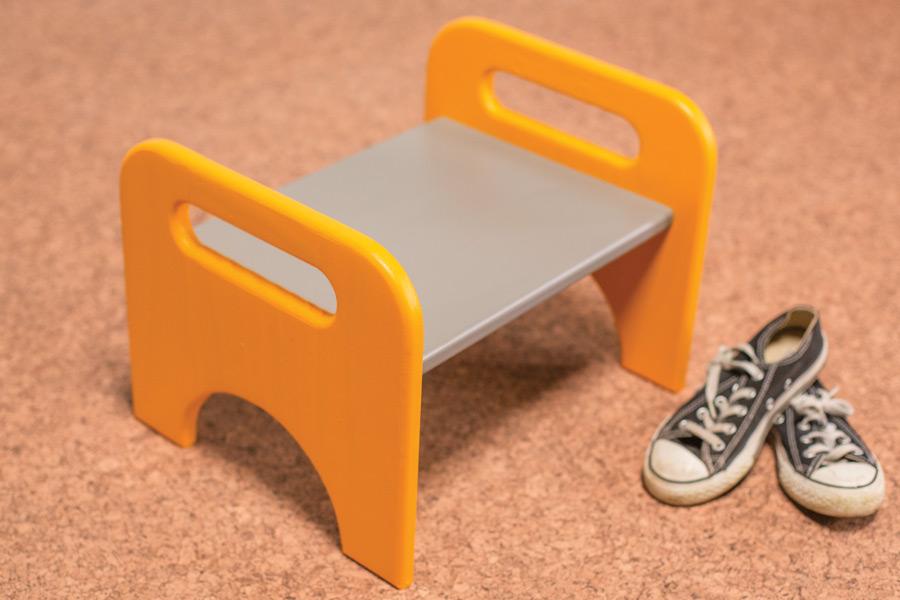

kids-stool-pic-3-2
kids-stool-pic-4-2

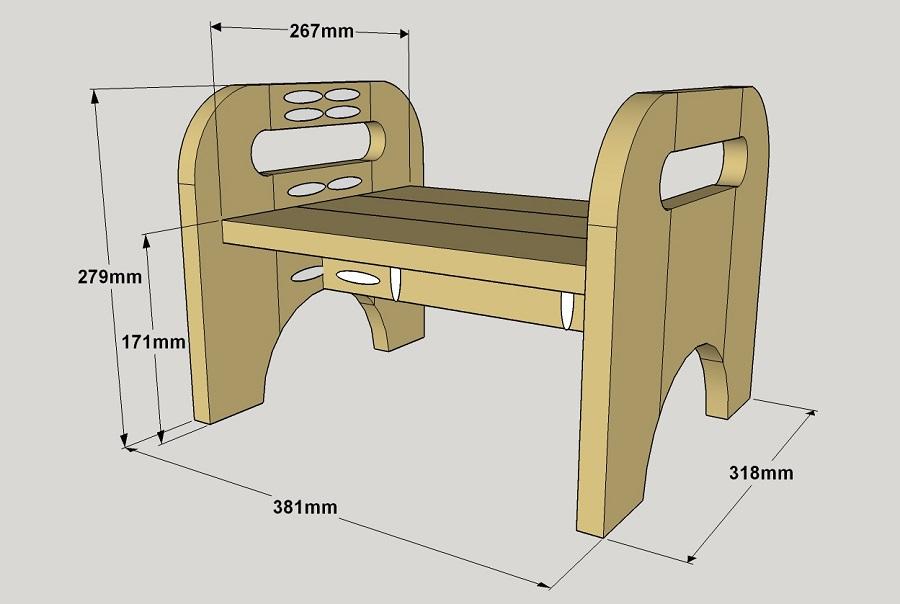

overall-w-dims-12
Kreg Academy Kreg Academy

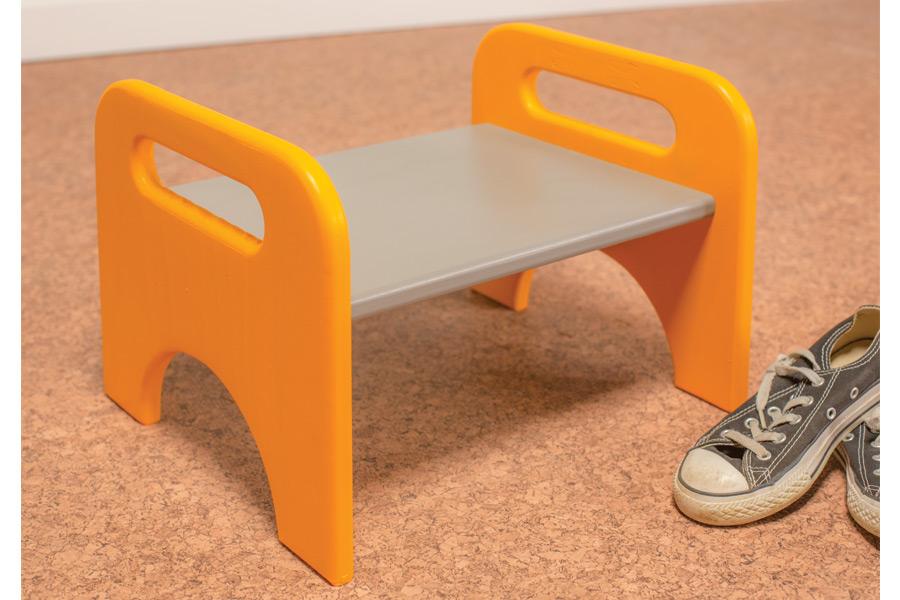

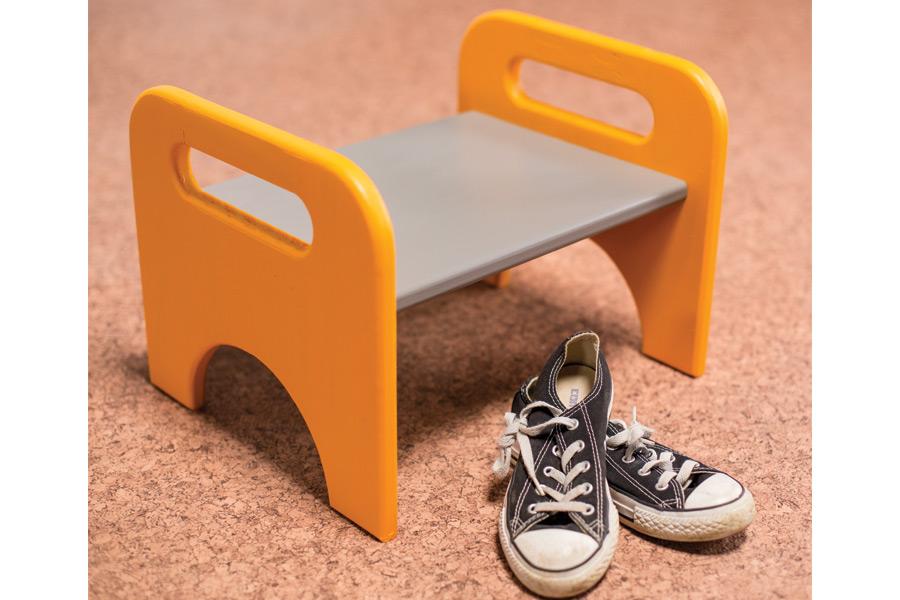

This step stool is a great way to help kids get a little extra height for those times when they want to help out in the kitchen, or when they need to reach a shelf. It’s also a great place to perch while putting on shoes. You’ll have fun building the step stool, and kids will have fun using it.

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Jigsaw
    Jigsaw
  • Miter Saw
    Miter Saw
  • Tape Measure
    Tape Measure
  • Compass
    Compass
  • Drill (cordless)
    Drill (cordless)
  • Sander
    Sander

Materials

Wood Products

  • 1 Board , 19mm x 38mm , 1800mm
  • 1 Board , 19mm x 64mm , 1800mm
  • 2 Board , 19mm x 89mm , 1800mm
  • 1 Board , 19mm x 140mm , 1800mm

Hardware & Supplies

  • 32 Kreg 32mm coarse-thread pocket-hole screws
  • 1 38mm drill bit
  • 16 Kreg paint-grade pocket hole plugs
See All Tools & Materials

Cut List & Parts

  • 4 Outer Side , 19 x 89 x 279mm
  • 2 Center Side , 19 x 140 x 203mm
  • 2 Side Handles , 19 x 38 x 140mm
  • 2 Outer Seat , 19 x 89 x 343mm
  • 1 Center Seat , 19 x 89 x 343mm
  • 1 Seat Support , 19 x 64 x 343mm

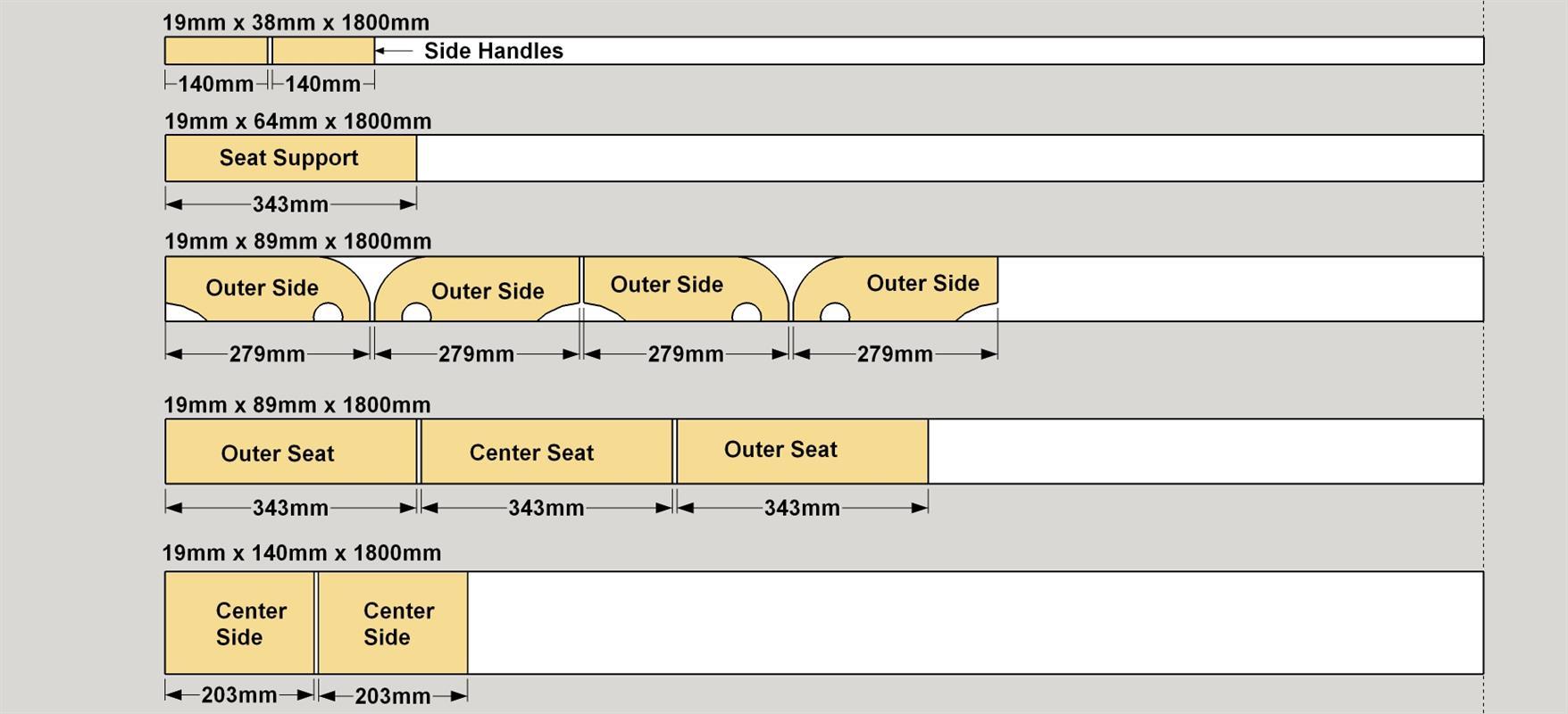

cut-diagram-34
See Full Cut List & Parts

Directions

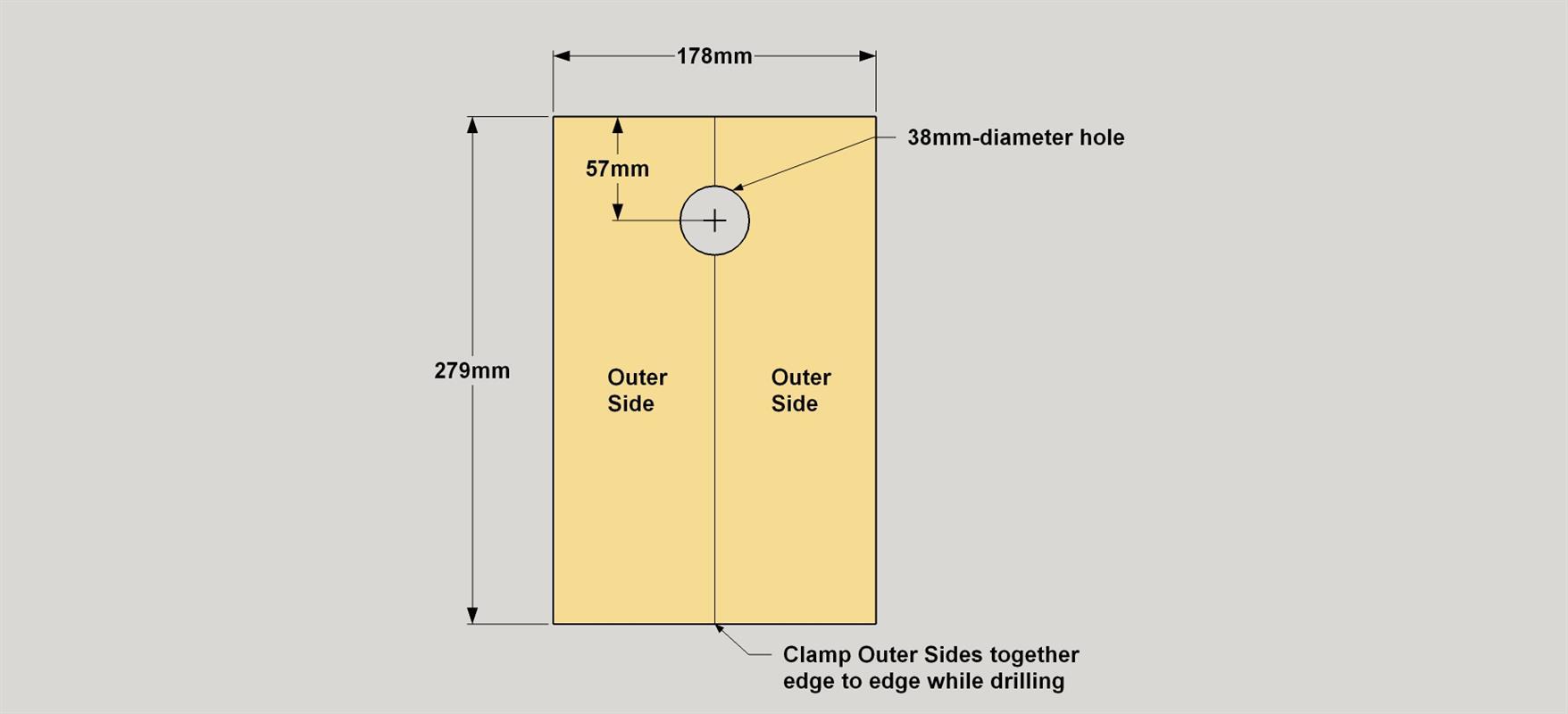

  • Start with the Outer Sides

    Cut four Outer Sides to length from a 19x89mm board, as shown in the cutting diagram. Then, clamp two Outer Sides together and drill a 38mm hole where shown. Do the same with the other Outer Sides. When the step stool sides are fully assembled, these holes will become the outer ends of the handle holes.

    Step 1

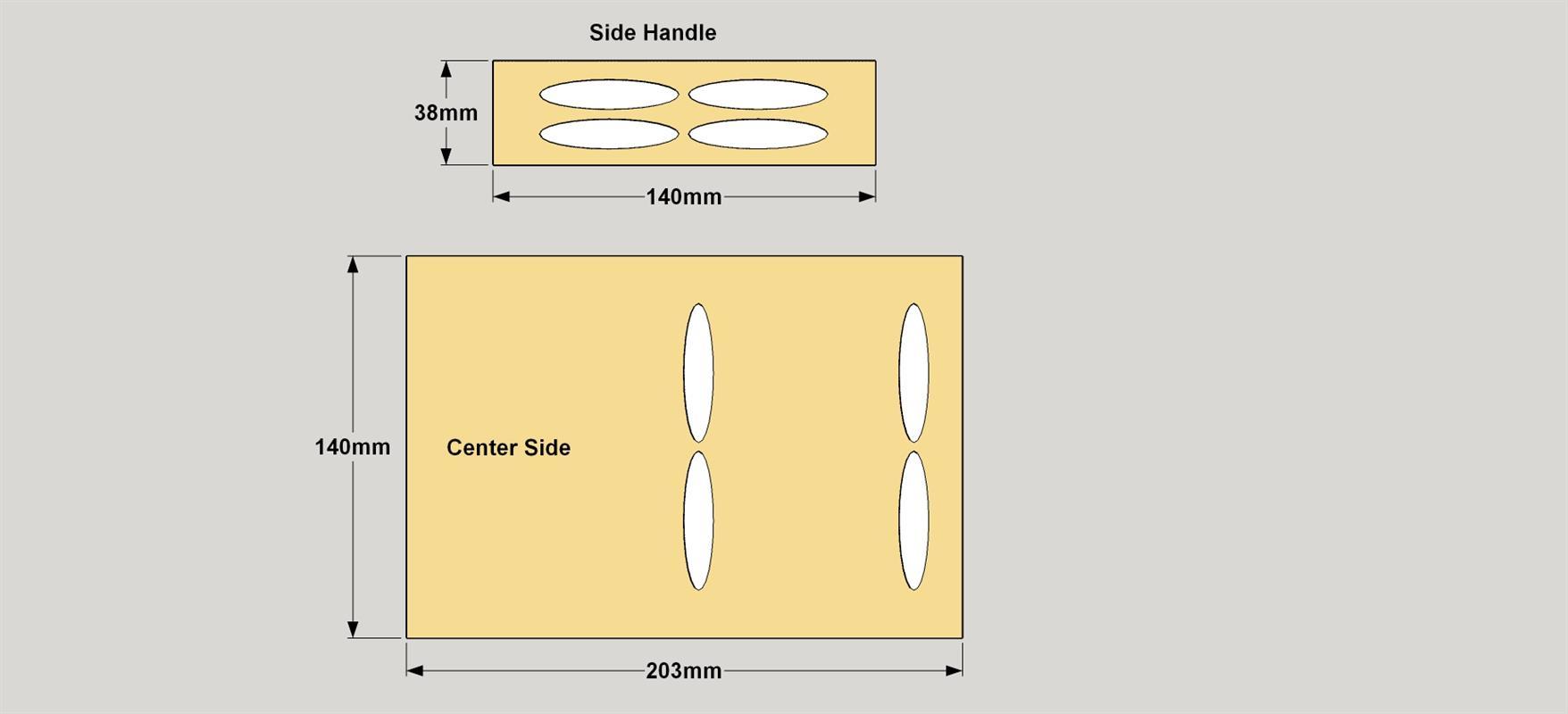

  • Make the Other Side Parts

    Cut two Side Handles from a 19x38mm board, then cut and two Center Sides from a 19x140mm board, as shown in the cutting diagram. With your pocket hole jig set up for 19mm material, drill pocket holes in the Side Handles and the Center Sides where shown.

    Step 2

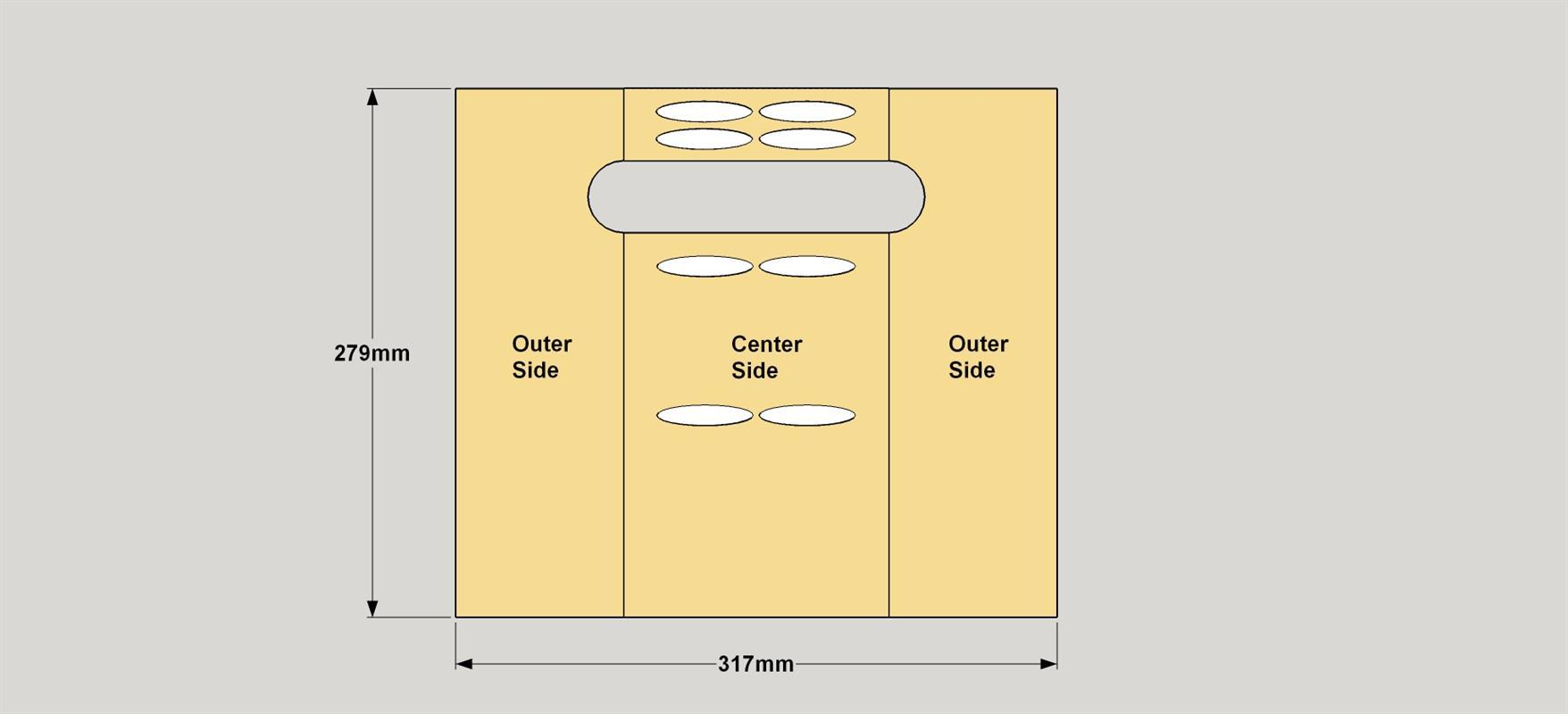

  • Assemble the Sides

    Now you can create the side assemblies. Start by attaching the Outer Sides to the Side Handle and Center Side, as shown. Secure the pieces using 32mm coarse-thread pocket-hole screws. Glue pocket-hole plugs in, and then sand the plugs flush.

    Step 3

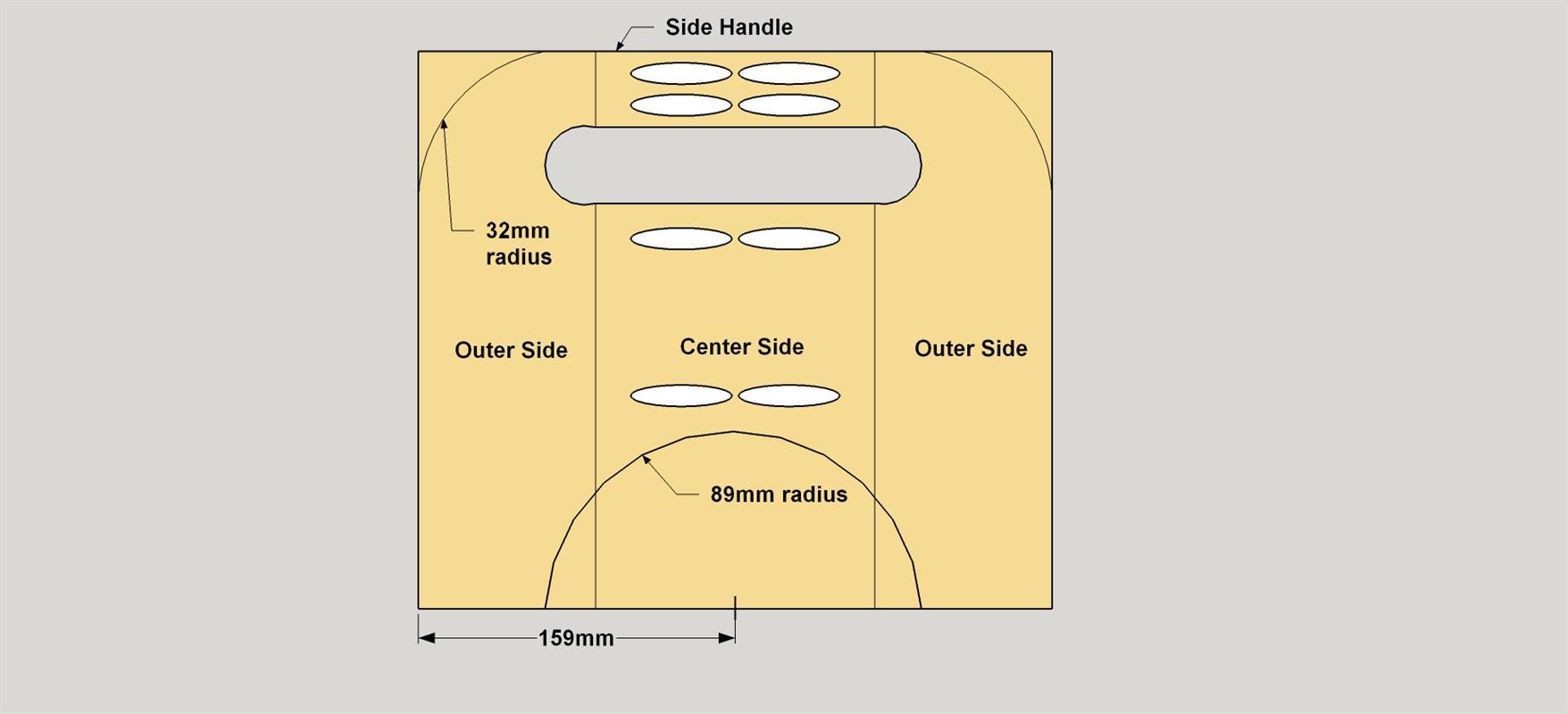

  • Shape the Sides

    Now you can lay out the curves on the side assemblies. Using a compass, mark the upper corners as shown. Then mark the lower arch. Cut these curves with a jigsaw, and then sand the cut edges smooth. This is also a good time to round over all of the sharp edges by sanding them. You’ll want to start with coarse sandpaper, such as 80-grit, to remove material. Then use finer grits (100 or 120) to smooth the surfaces.

    Step 4

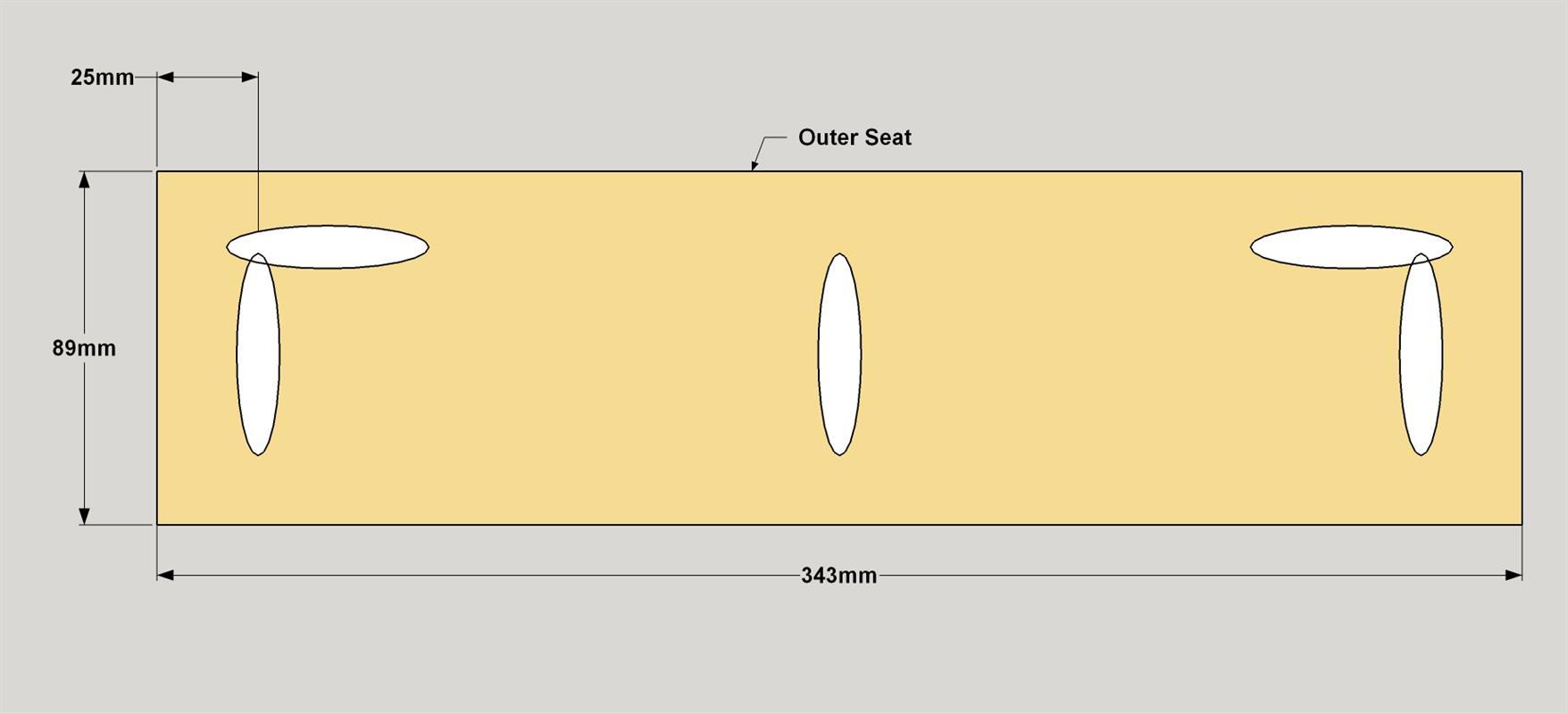

  • Make the Seat Parts

    Cut two Outer Seats and one Center Seat from a 19x89mm board, as shown in the cutting diagram. Drill Pocket holes in the Outer Seats where shown.

    Step 5

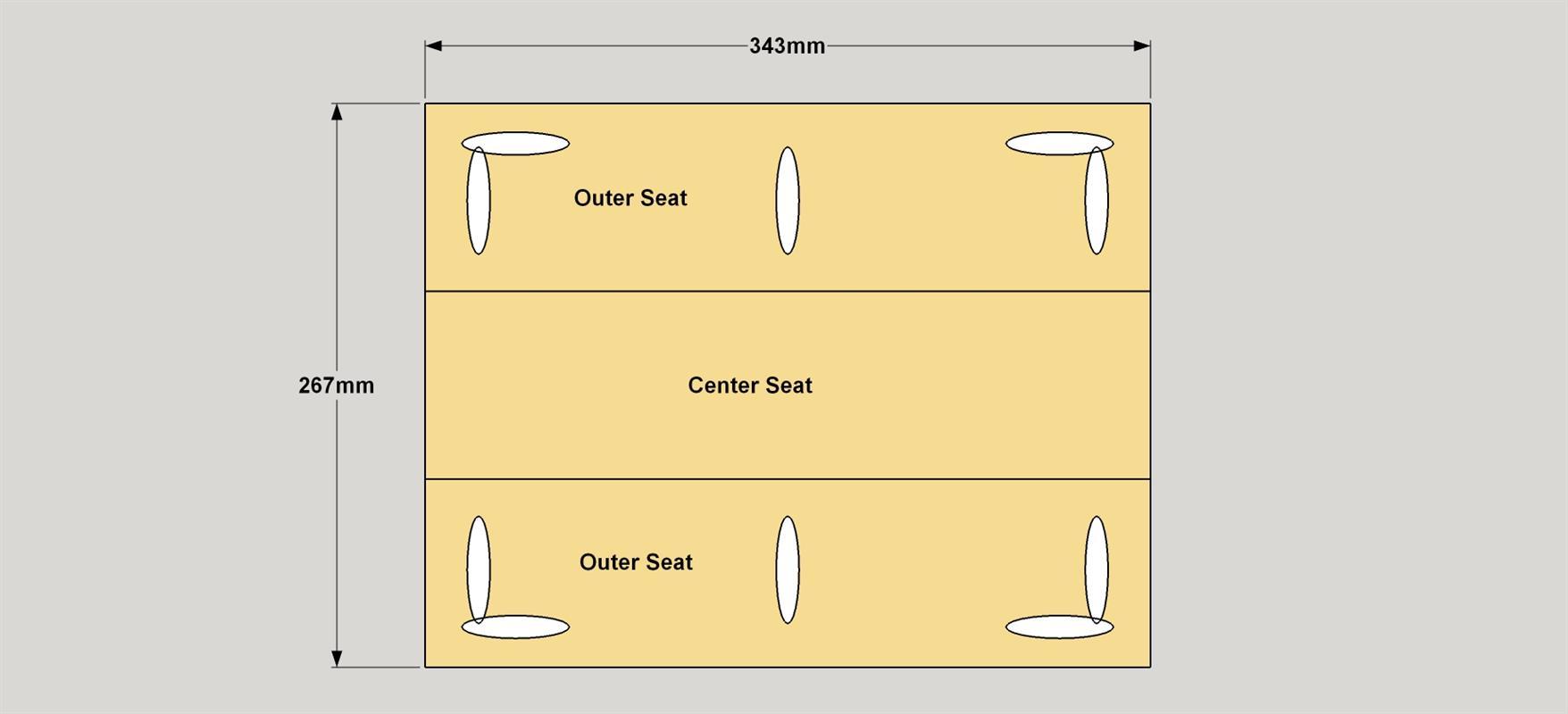

  • Assemble the Seat

    Attach the Outer Seats to the Center Seat using 32mm coarse-thread pocket-hole screws, as shown. Then round over the edges of the seat assembly—but not the ends.

    Step 6

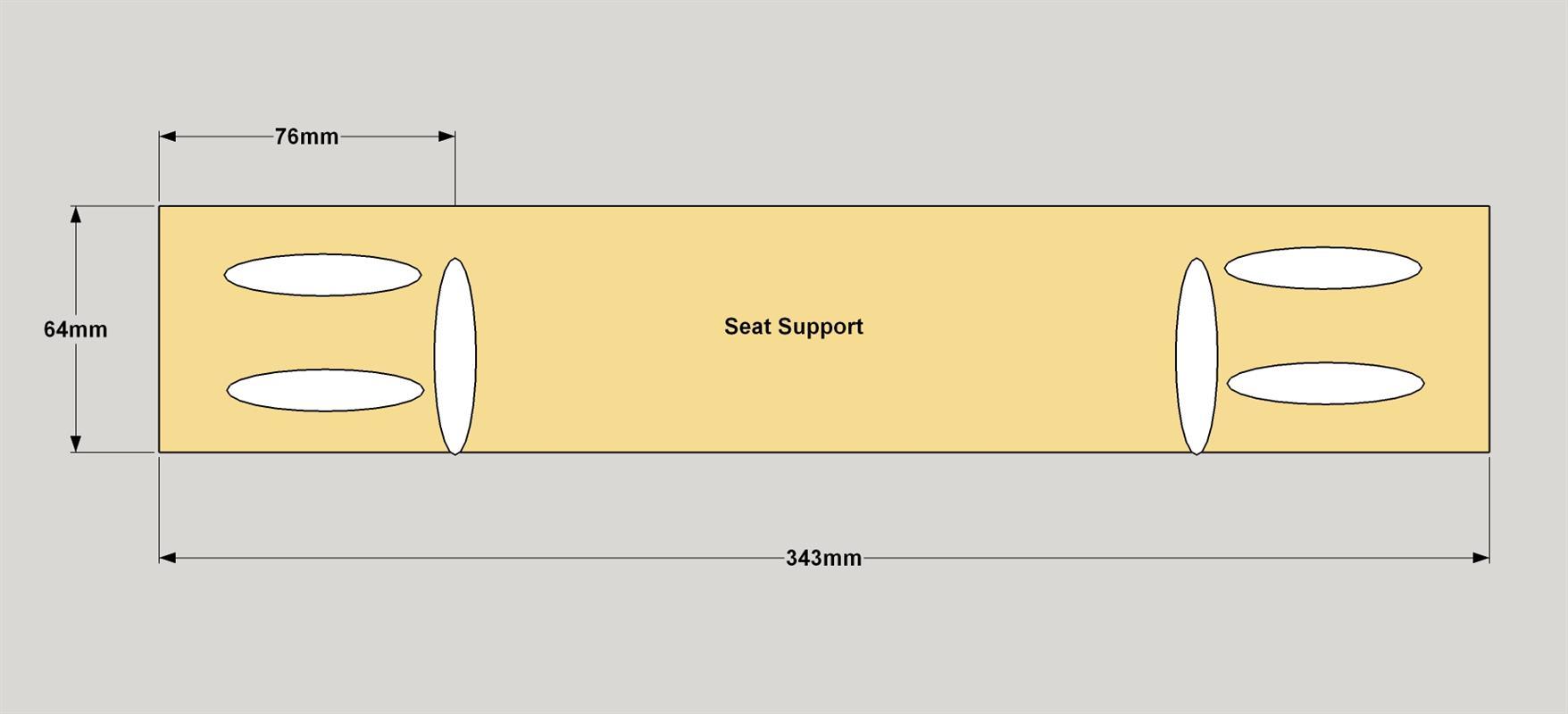

  • Make a Seat Support

    Cut the Seat Support to length, as shown in the cutting diagram. Then drill pocket holes where shown.

    Step 7

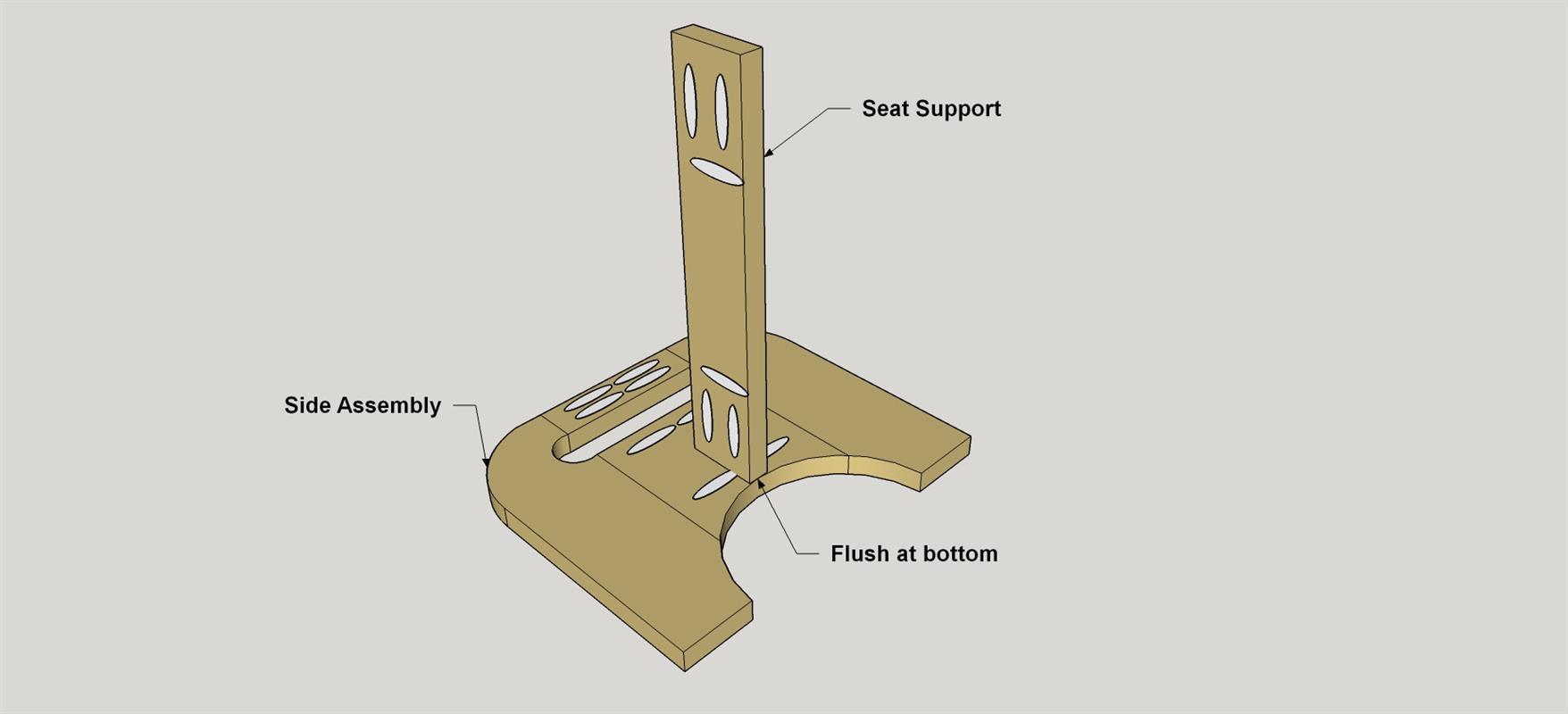

  • Attach the Seat Support

    Secure the Seat Support to one side assembly where shown using 32mm coarse-thread pocket hole screws.

    Step 8

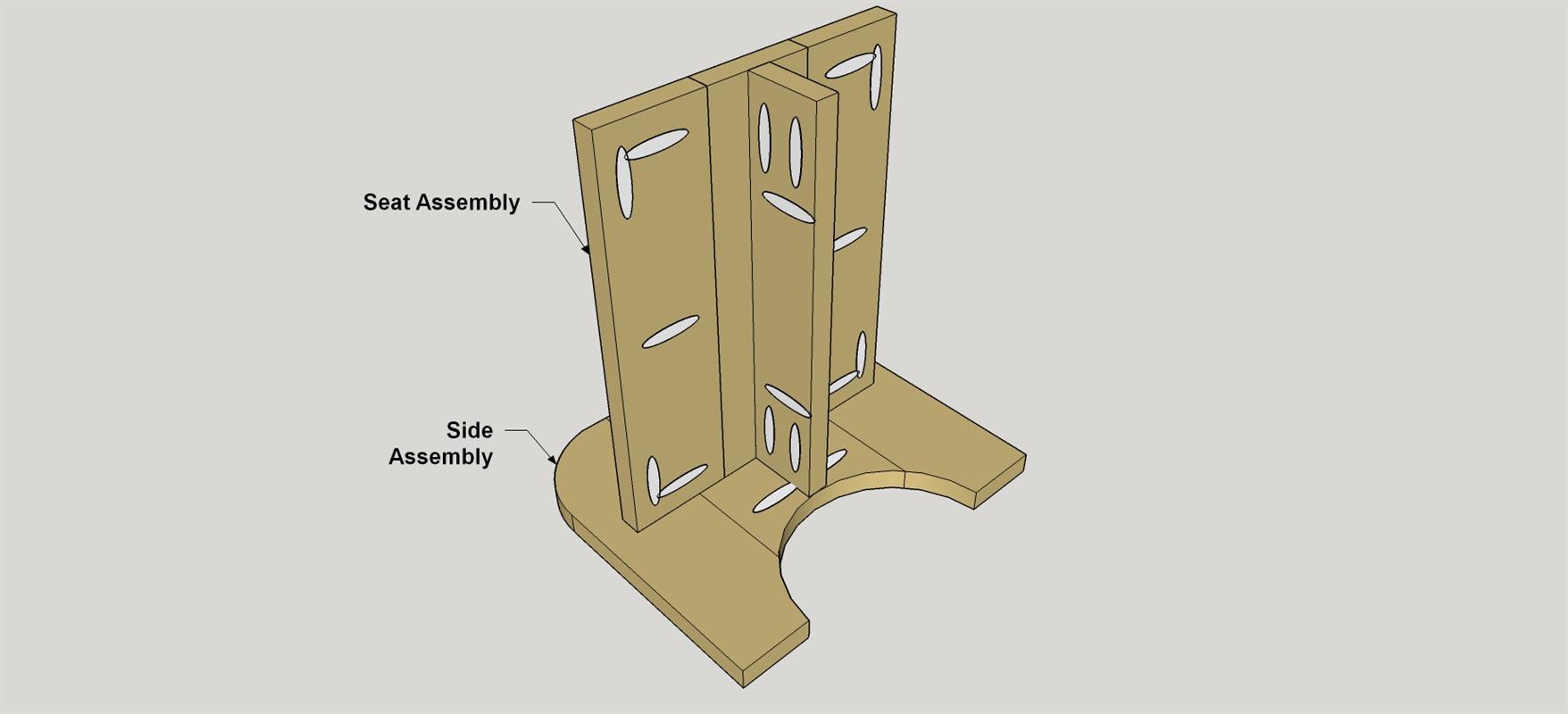

  • Add the Seat

    Attach the seat assembly to the side assembly and to the Seat Support with 32mm coarse-thread pocket-hole screws.

    Step 9

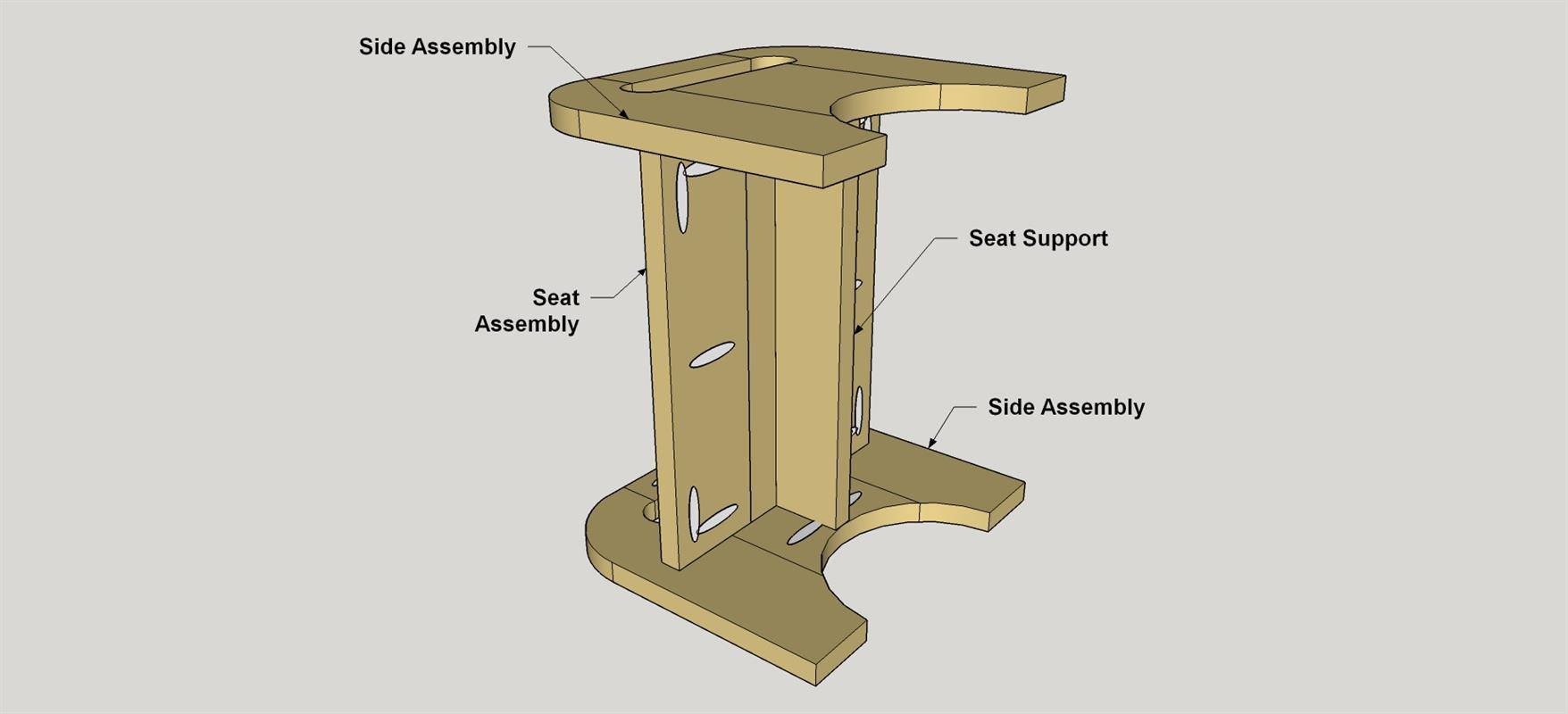

  • Add the Final Side

    Secure the other side assembly with 32mm coarse pocket-hole screws as shown.

    Step 10

  • Paint or Stain the Step Stool

    With assembly complete, you can paint or stain the step stool. Before that, if you want, you could plug the remaining pocket holes. They really don’t show, so this is up to you. If you choose to fill them, you’ll need 16 more plugs.
