Add style and function to your home with a DIY industrial style shoe rack.
Tools
Kreg Tools
Other Tools
-
Miter Saw
-
Drill (cordless)
-
Sander
-
Shop Vacuum
-
Workbench
Materials
Wood Products
- 2 Board , 1x2 , 72"
- 2 Board , 1x4 , 72"
- 4 Square Dowel , 3/4 x 3/4 , 36"
Hardware & Supplies
- 1 Can Rustoleum Hammered - Silver
- 1 Pint Minwax Stain - Honey
- 1 Bottle Wood Glue
- 50 1 1/4" Pocket Hole Screws
Directions
-

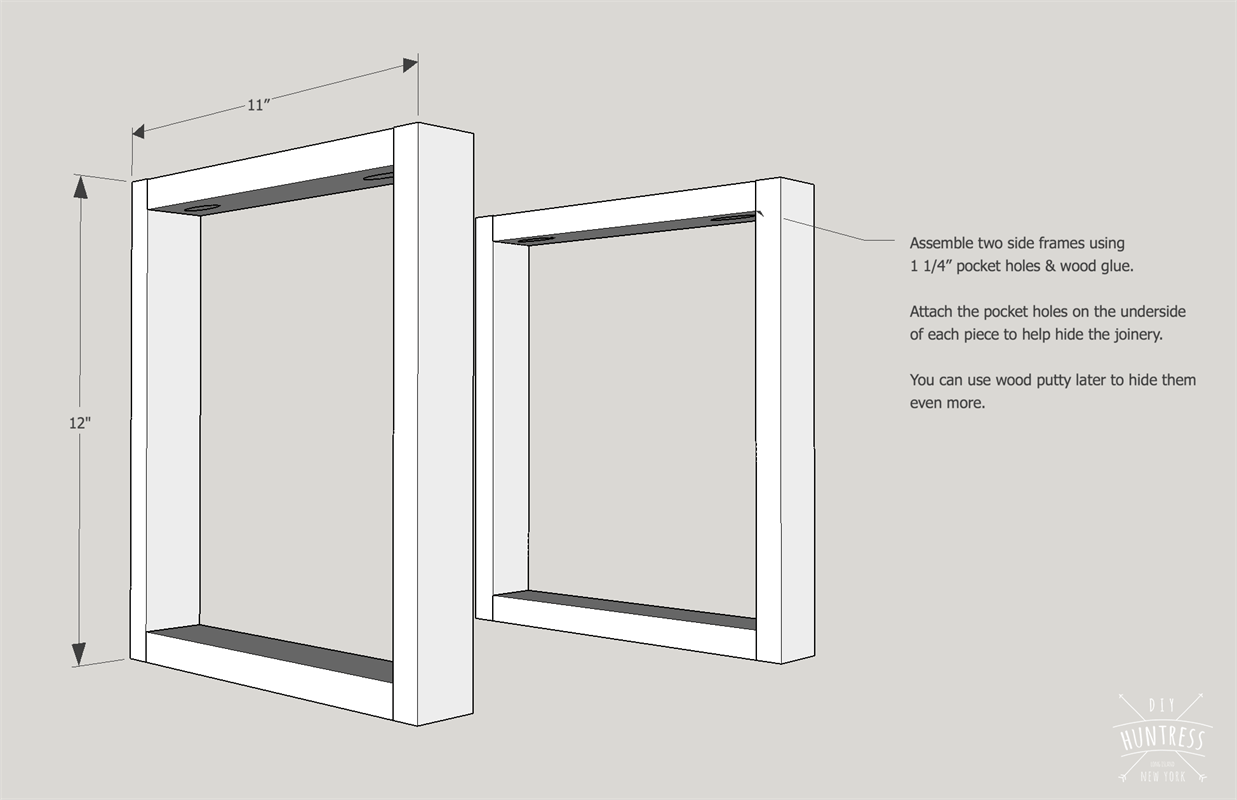

Build The Side Frames
Build two sets of side frames by attaching the tall leg pieces and small frame pieces with 1 1/4" pocket hole screws and wood glue. You may want to fill in pocket holes, sand, and paint these frames before attaching them to the long frames in the next step.
-

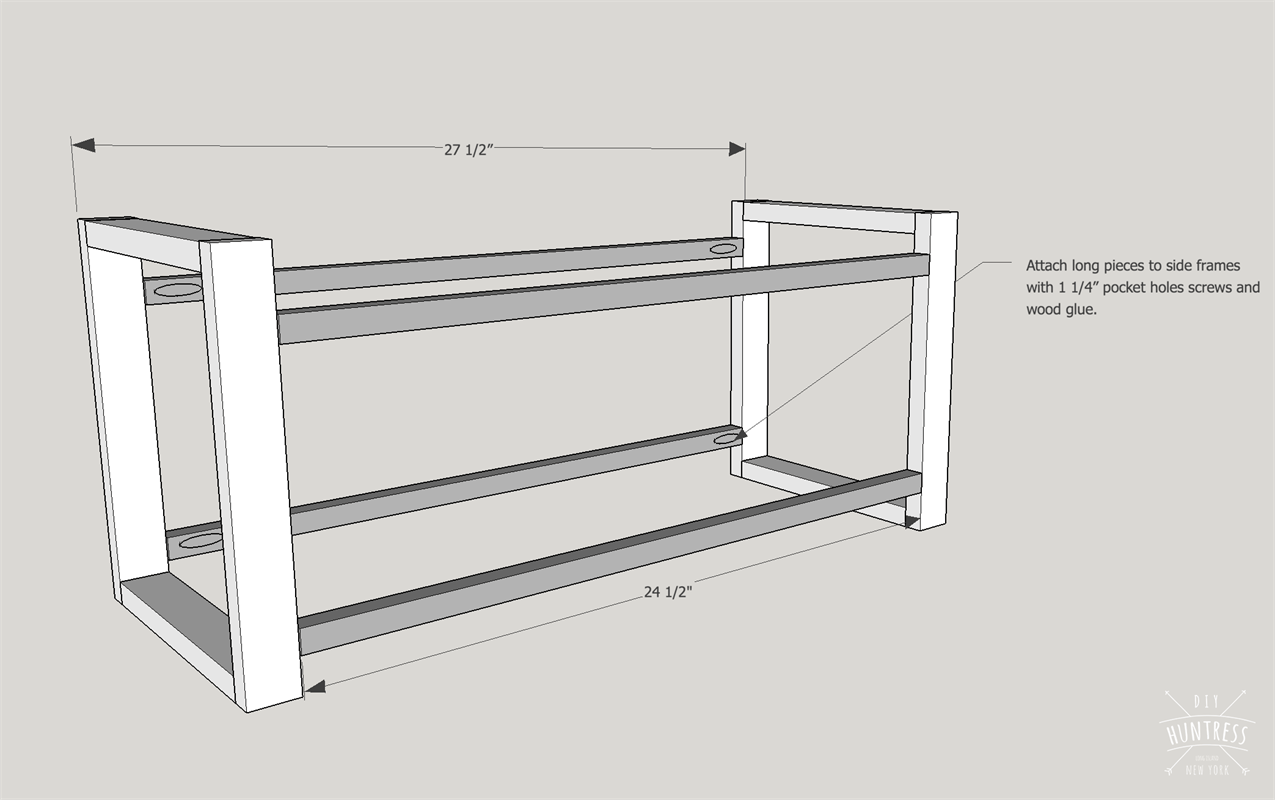

Add The Long Frames
Cut and add the long frames to the side frames with 1 1/4" pocket hole screws and wood glue. You can paint these after they are assembled, or before.
Use a spacer to help get even spacing on the bottom and top of the unit. I placed my shelves 2" away from the top and the bottom of the shoe rack.
-

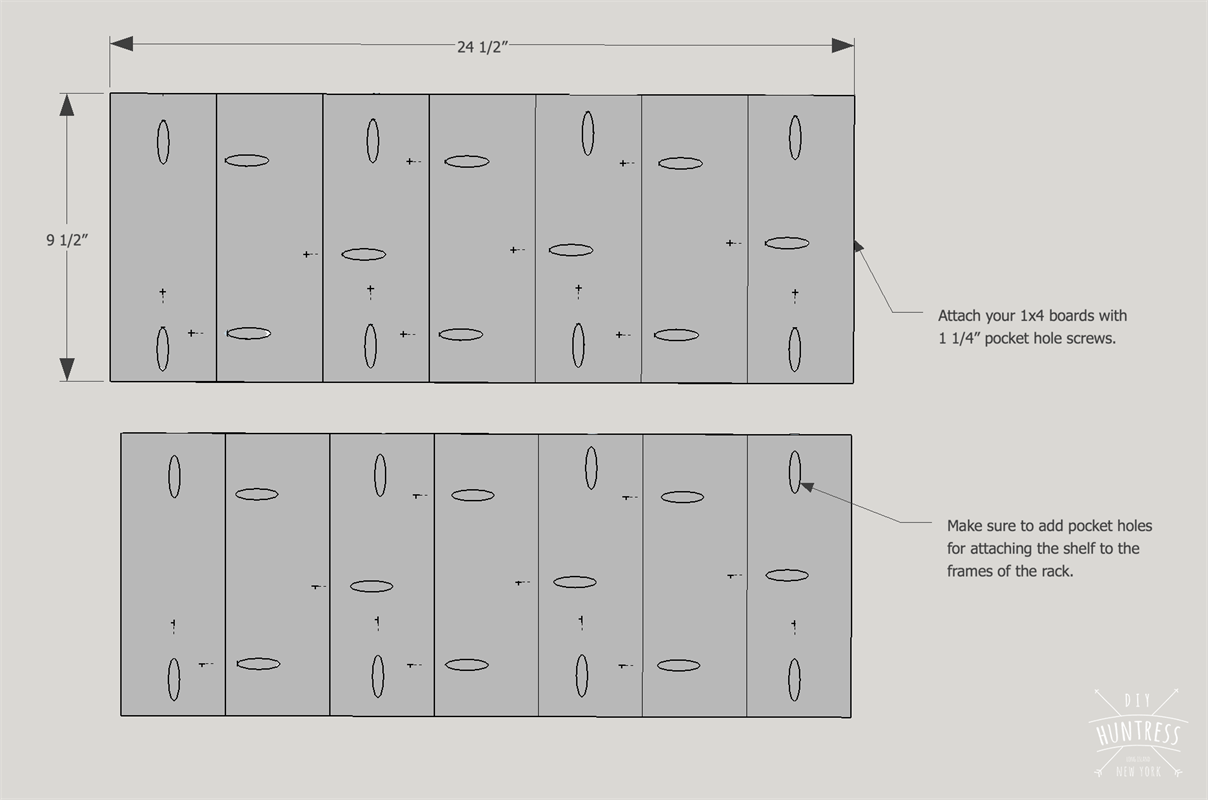

Build The Shelves
Build two sets of shelves by attaching 7 1x4 pieces with 1 1/4" pocket hole screws. I did not use wood glue here, as it will allow for expansion of the wood.
Be sure to follow the diagram to find the correct pocket hole pattern. You will also need to add pocket holes for attaching the shelves to the frame of the shoe rack.
-

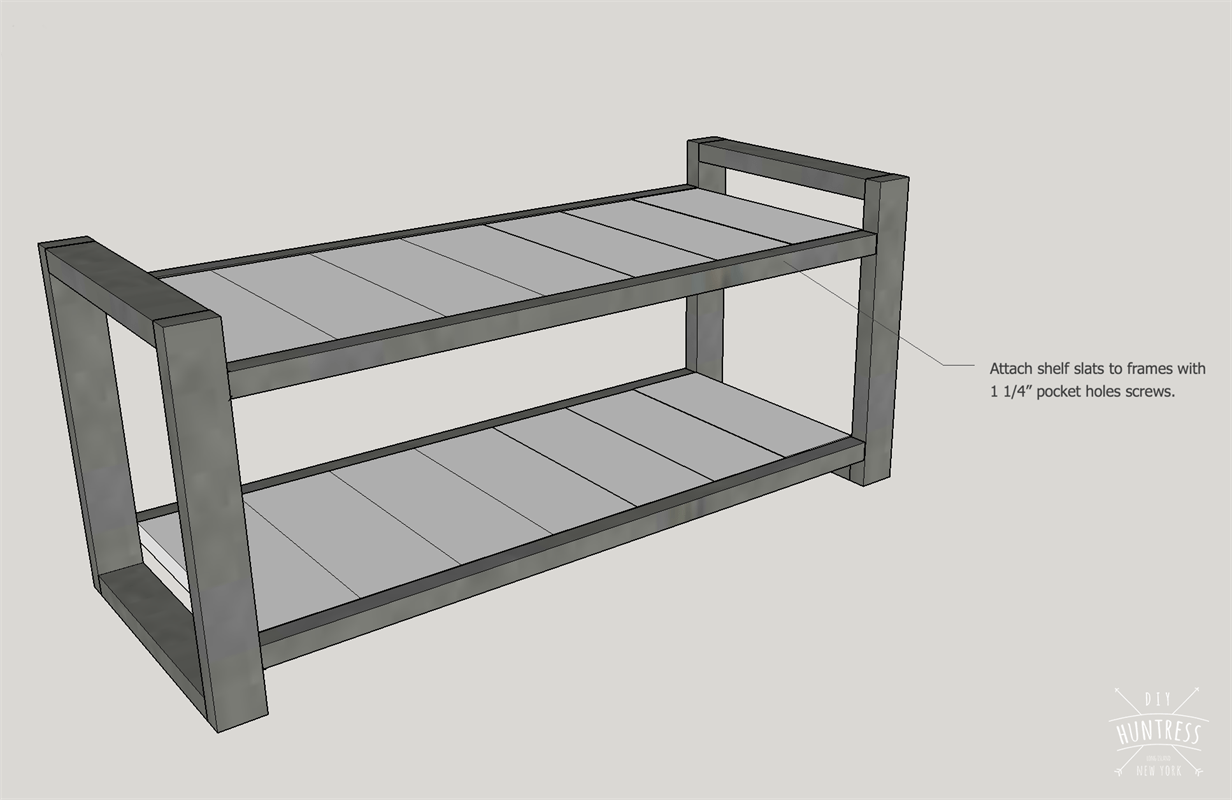

Attach Shelving
After staining the shelves, attach them to the finished shoe rack frame with 1 1/4" pocket hole screws.
-

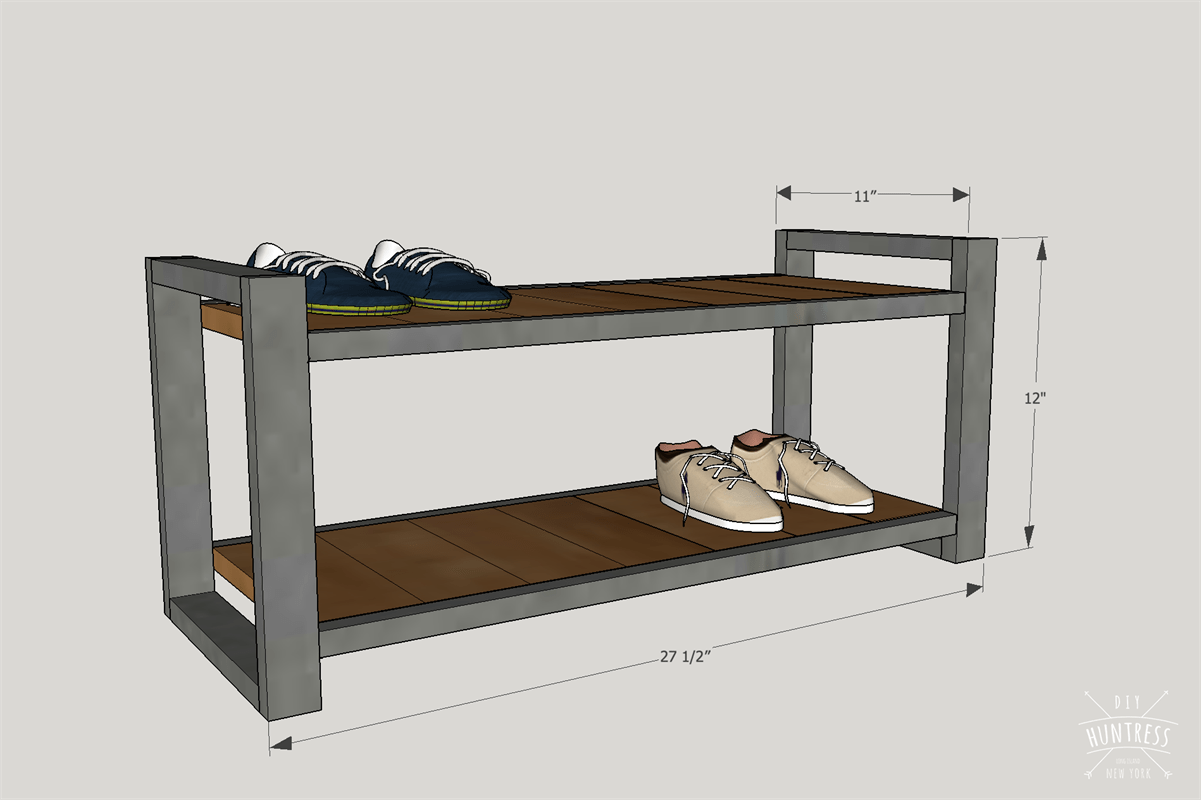

Finish

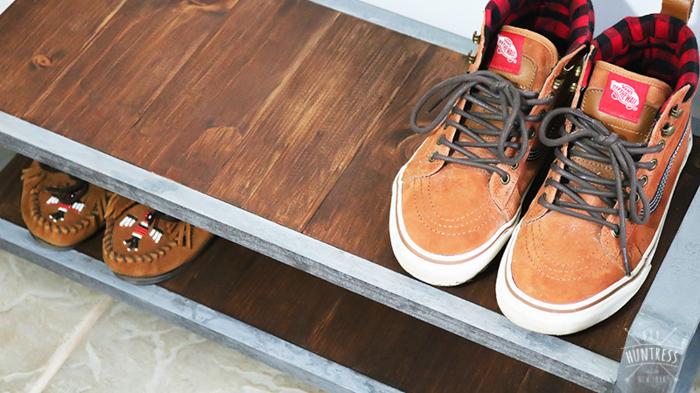

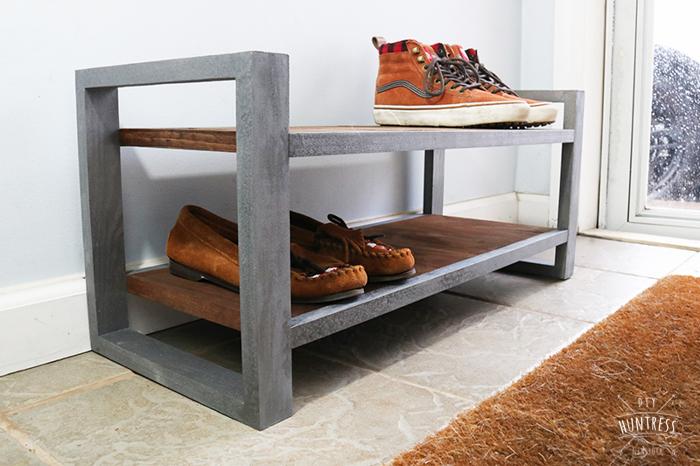

Display the unit with your favorite shoes!
