Cut List & Parts
- 1 Bottom of Cart , 14x28
- 2 Front Trim- Bottom Cart , 28"
- 2 Side Trim -Bottom Cart , 14"
- 7 Vertical Slates , 12 1/4"
- 3 Horizontal Slates , 28"
- 6 Side Horizontal Slates , 14.5"

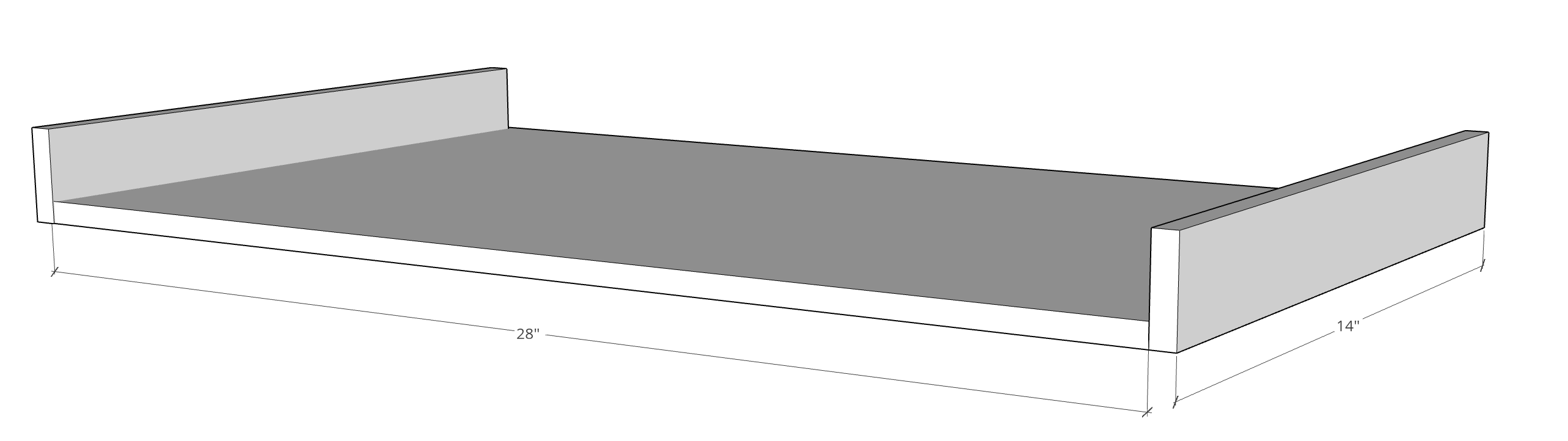

Assemble Toy Cart Bottom
Begin assembling the bottom of the toy cart by attaching the two side 1x4s to the bottom plywood piece using a kreg jig on a 3/4" setting and 1 1/4" pocket hole screws and wood glue.

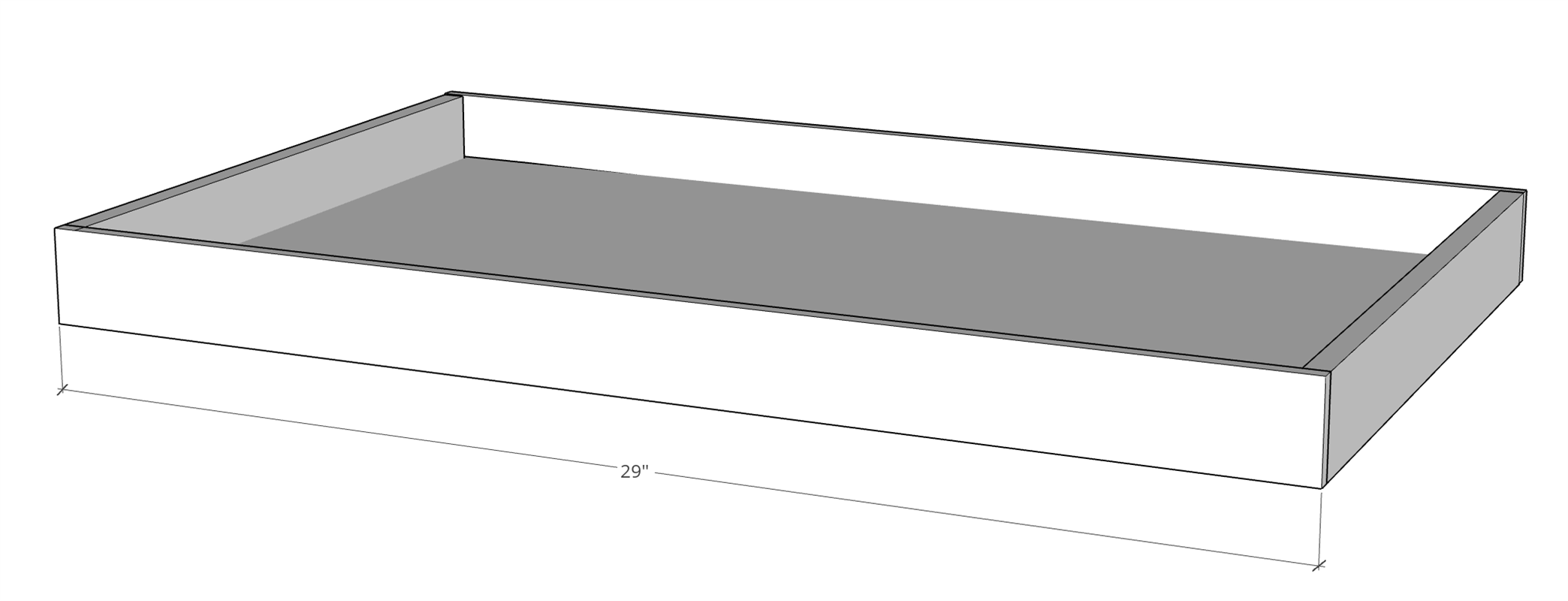

Finish Toy Cart Bottom Assembly
Attach the front and end 1x4 trim pieces to the asembled toy cart bottom using a kreg jig on a 3/4" using 1 1/4" pocket hole screws and wood glue.

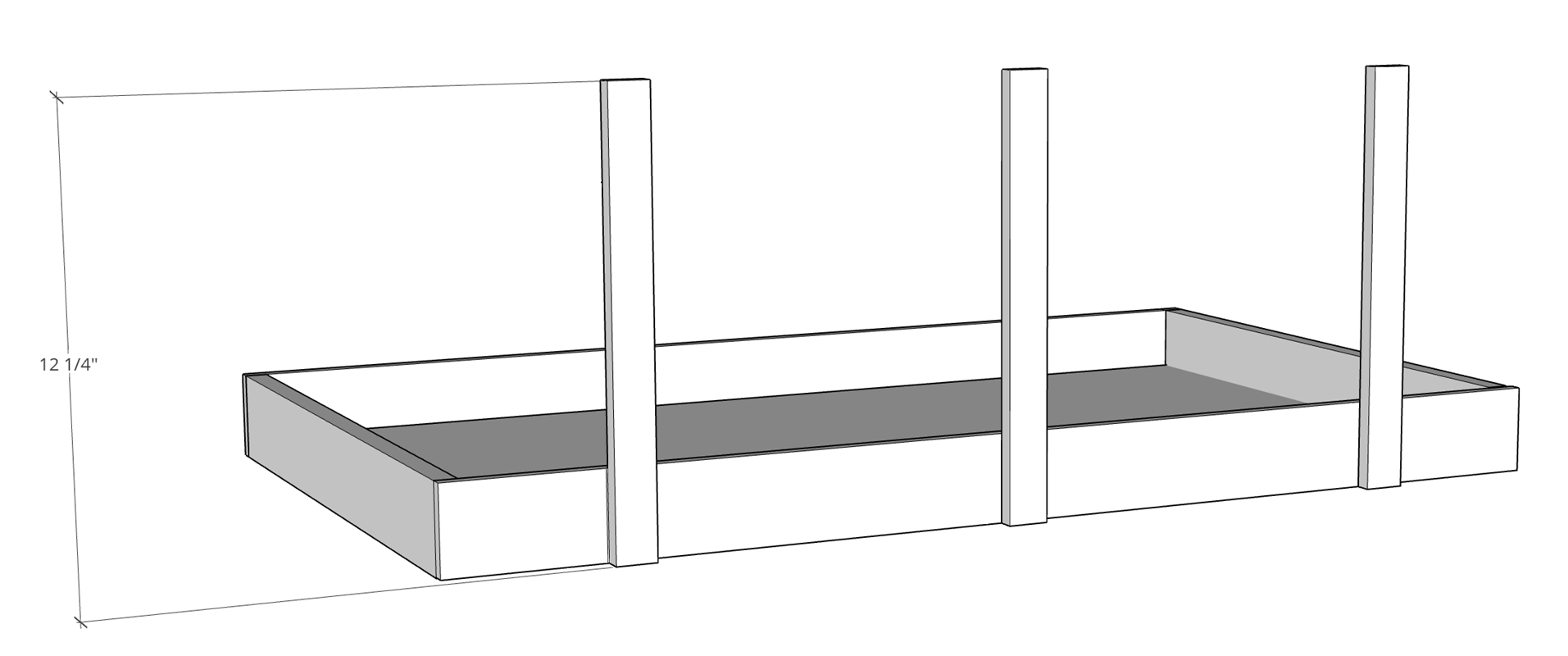

Attach Back Slats
Using a brad nailer and wood glue, attach three slates to the back of the assembled toy cart bottom. Outside slates should be inset by a 1/2"

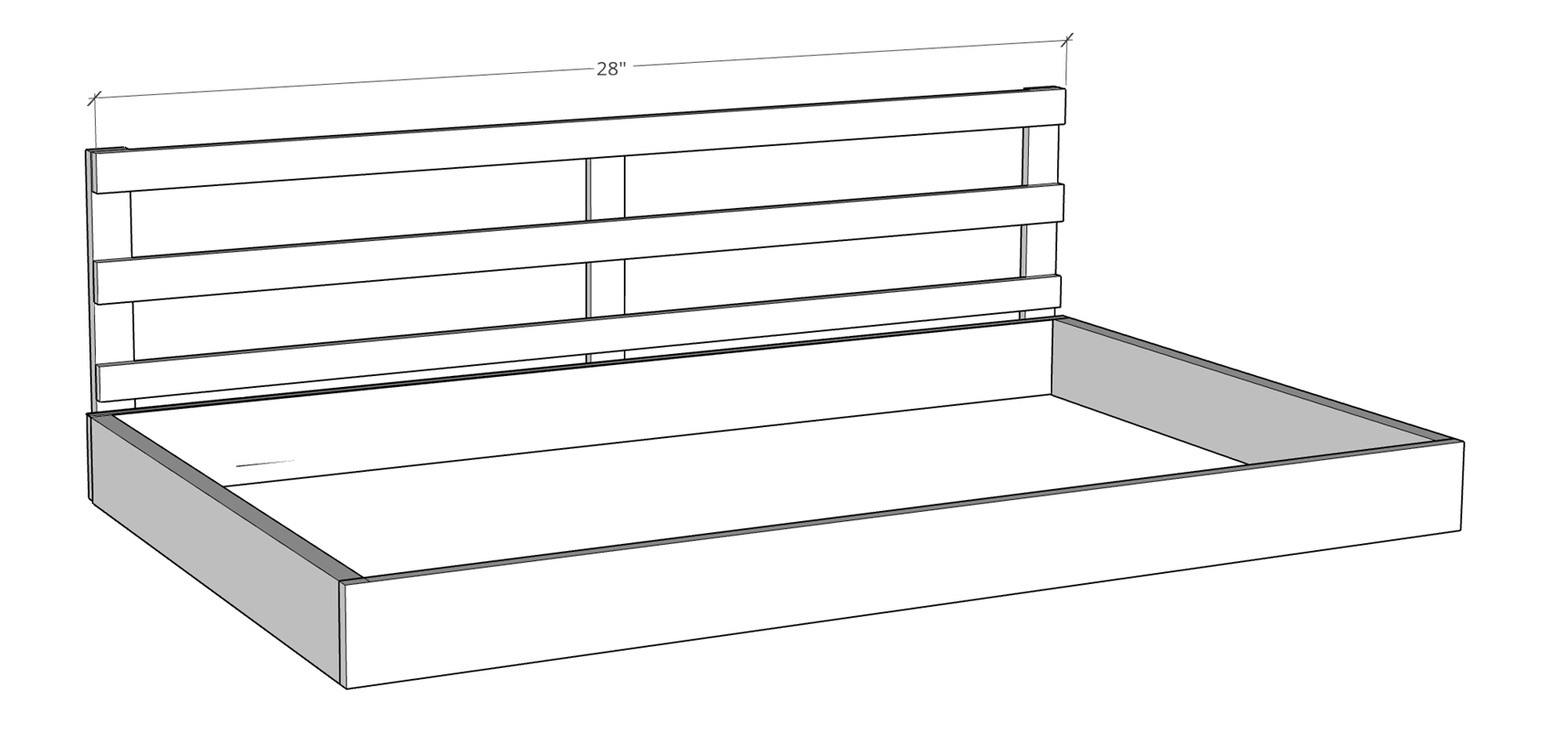

Attach Horizontal Slates
Attach the back horizontal slates to the back vertical slates using a brad nailer and wood glue

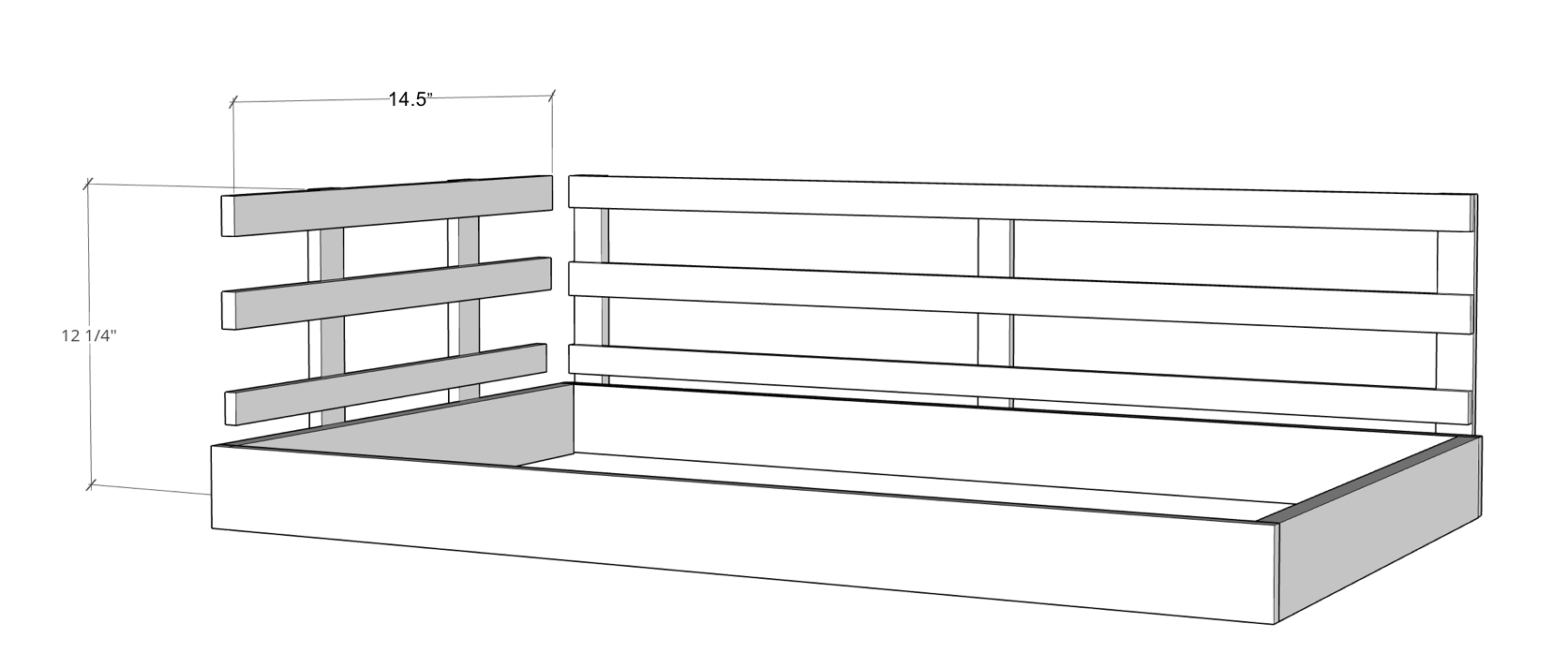

Attach Side Slates
Attach the two vertical slates to boths side of the assembled toy cart bottom using brad nailers and wood glue and then add on the horizontal slates. The two vertical slates should be inset 2"

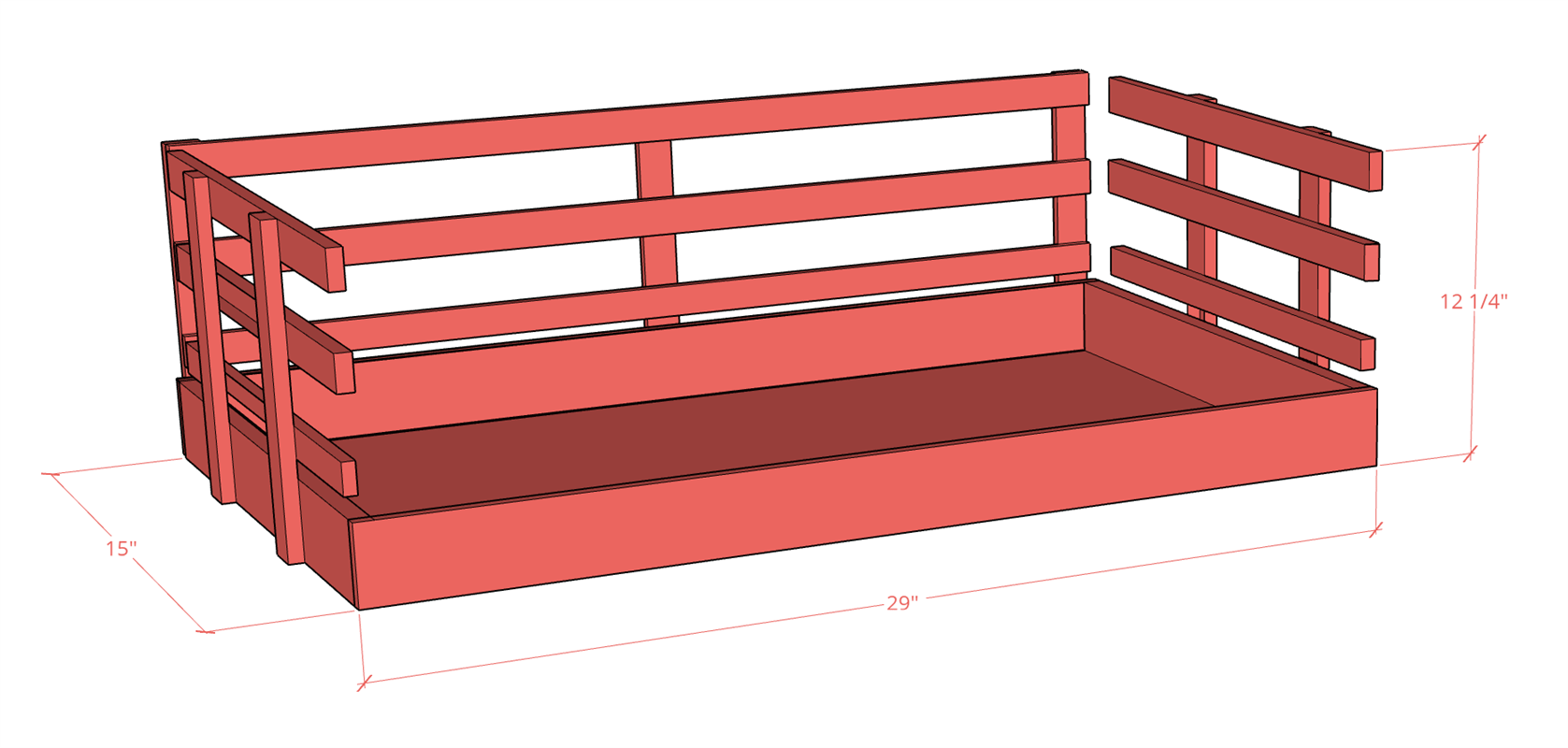

Attach casters to toy cart and add hardware as needed.
Visit https://www.handmade-haven.com/blogs/news/diy-toy-cart for finish details.
