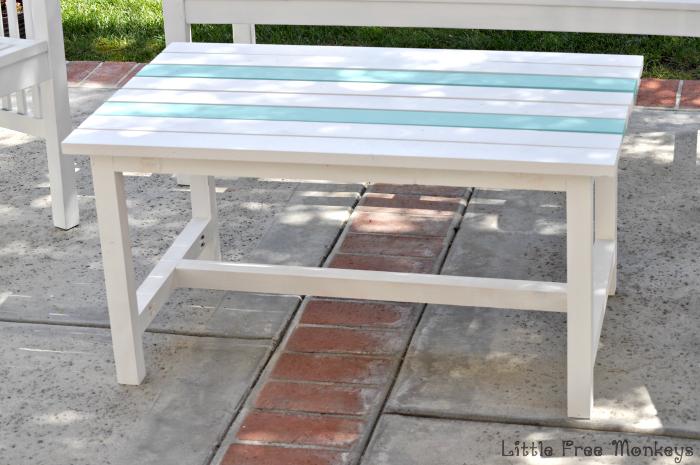

A simple outdoor coffee table to match any patio set for under $15. Overall dimensions – 35″ x 22″ and 17 3/4″ high.
Difficulty
easy
Tools
Kreg Tools
Other Tools
-
Miter Saw
-
Drill (cordless)
-
Sander
Materials
Wood Products
- 3 Board , 2x2 , 96"
- 4 Board , 1x3 , 96"
Hardware & Supplies
- 50 2 1/2" Blue kreg screws coarse
- 25 2" wood screws
- 1 Outdoor primer
- 1 Outdoor paint
- 1 Wood putty

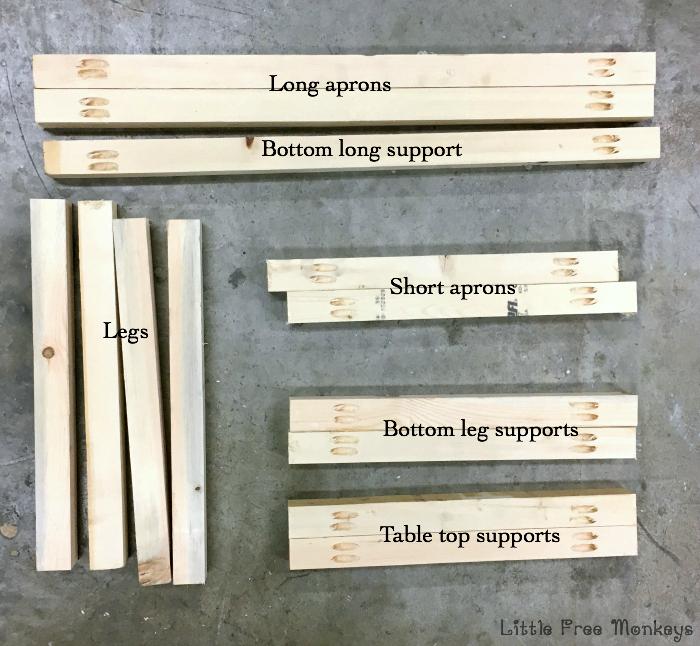

Cut List & Parts
- 4 Legs , 17" x 2" x 2"
- 4 Short Aprons and Leg Supports , 17" x 2" x2"
- 2 Top Supports , 17" x 2" x 2"
- 2 Long Aprons , 29" x 2" x 2"
- 1 Bottom Long support , 29" x 2" x 2"
- 8 Top Slats , 35" x 1" x 3"
Directions
-

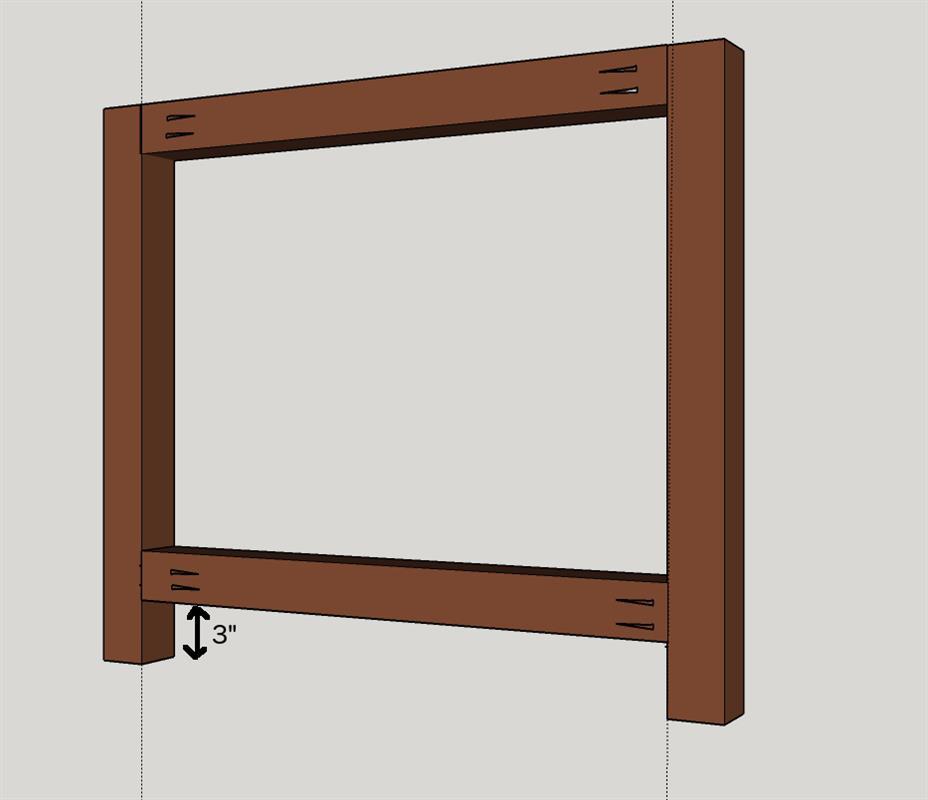

Make side frames
Create the 2 side frames using the Legs, short apron and the bottom leg supports. The bottom leg support are 3" from the edge of the leg.
-

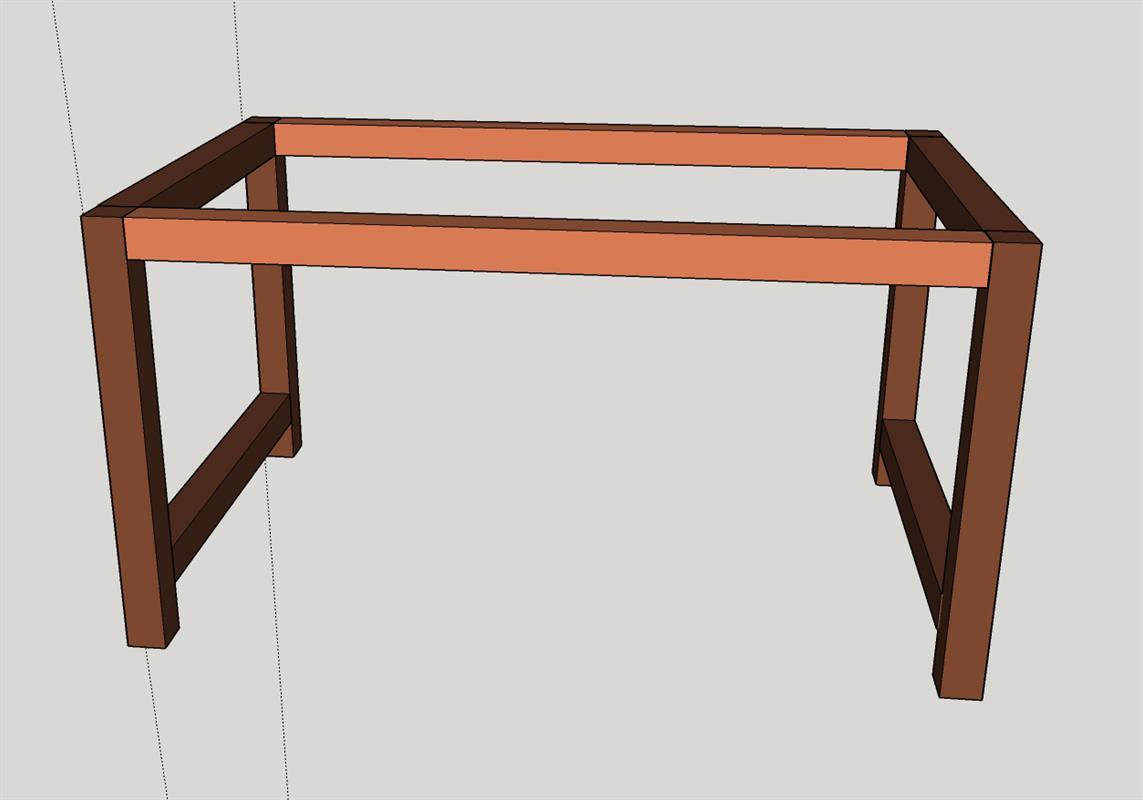

attach long aprons
Attach the long aprons and create the table frame.
-

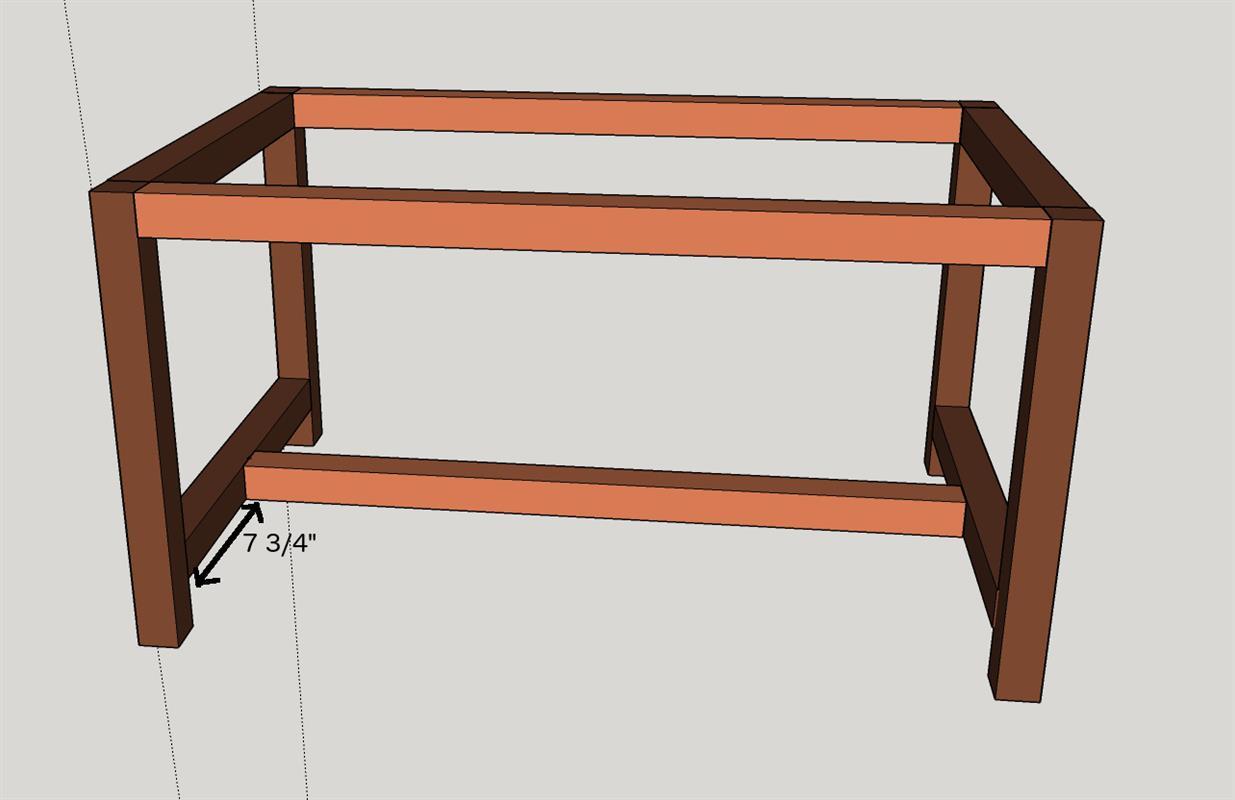

Attach bottom support
Attach the bottom long support. This is 7.75" from the side of the leg.
-

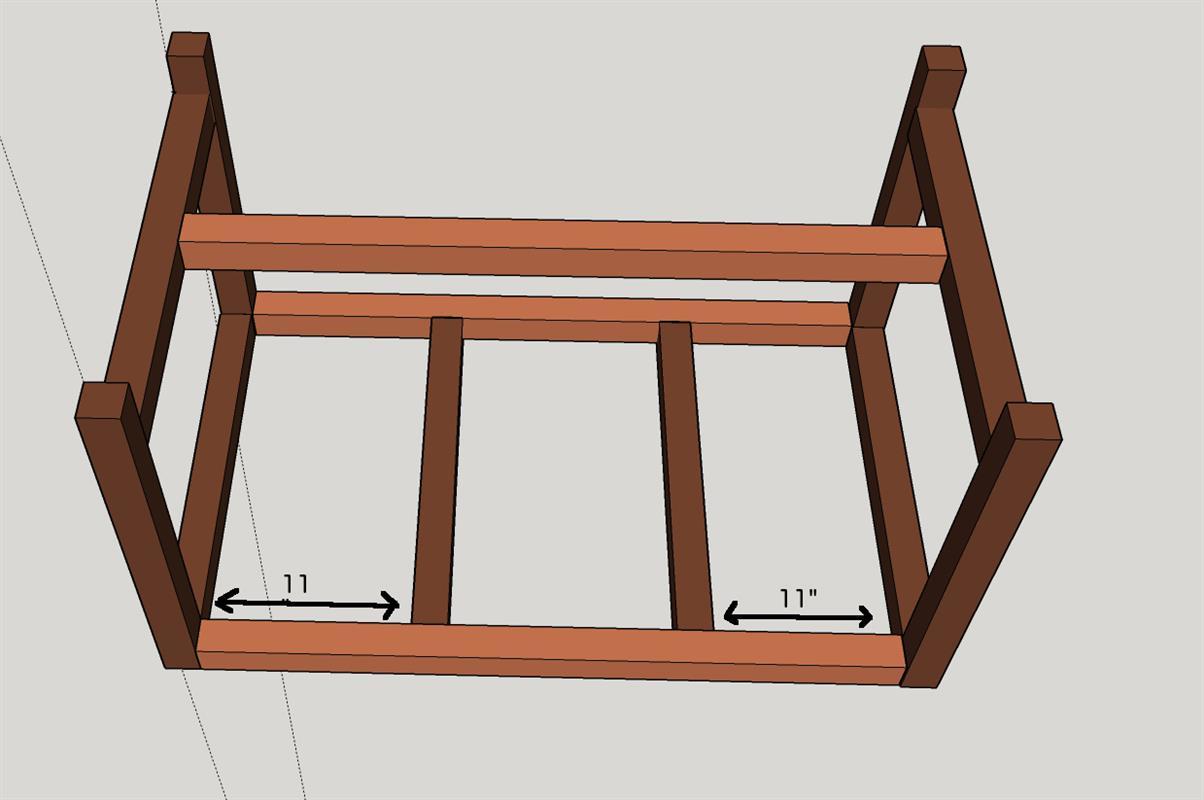

Attach table supports
Attach the table top supports. I attached these 11" from each end.
-

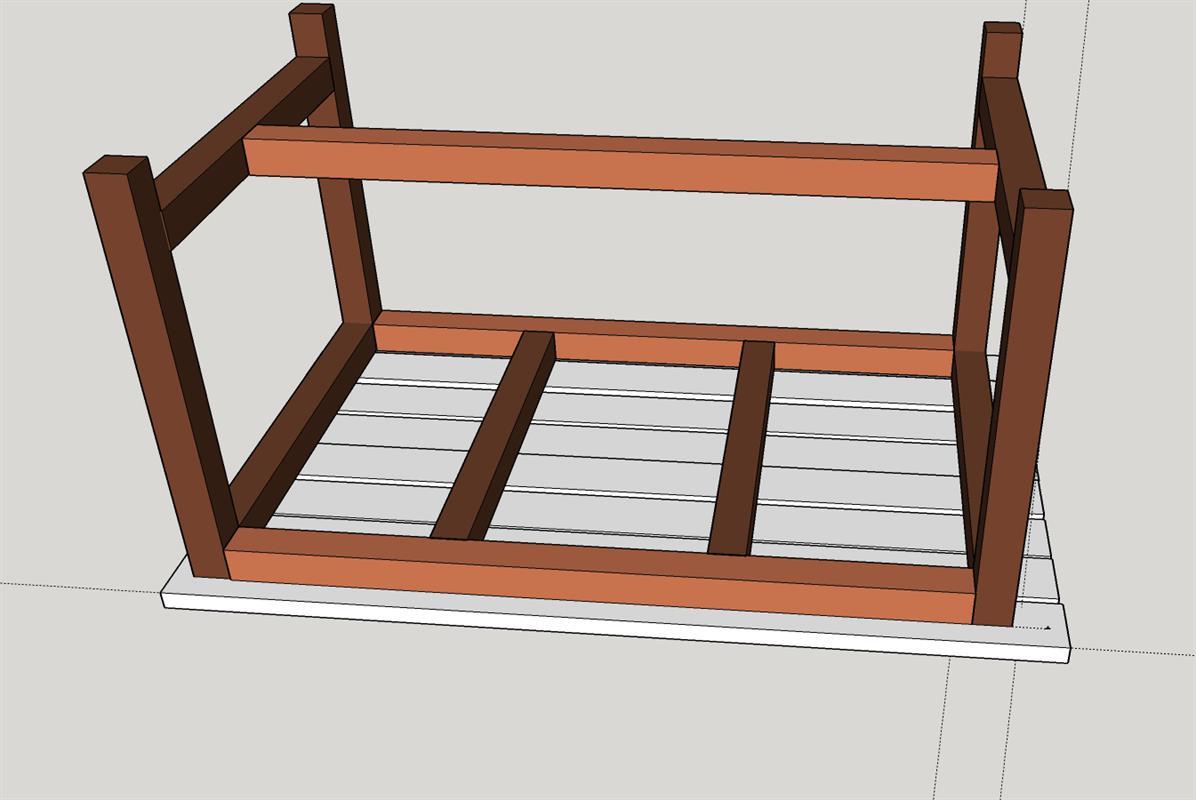

Assemble table top slats
Assemble the table top slats onto the frame. I used 1.5" overhang on both sides of the slats. The first slat was attached flush on the inside edge of the long apron giving a 1" overhang in the front of the table. I used a yard stick which was about 1/4" thick as a spacer between the slats.
