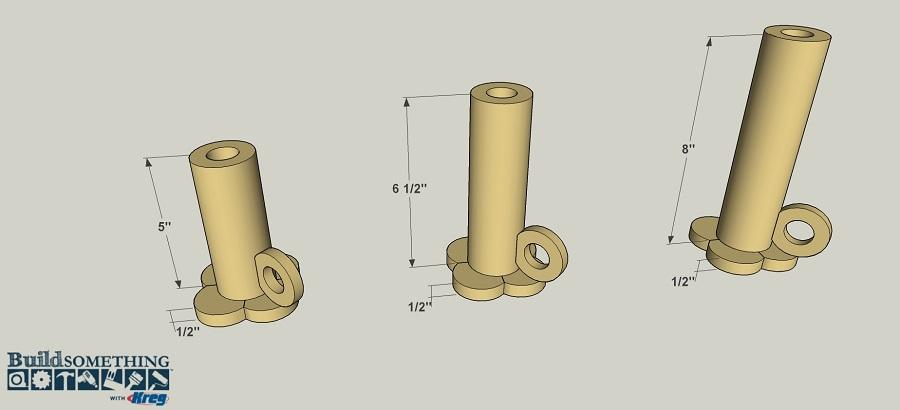

overall-w-dims-8

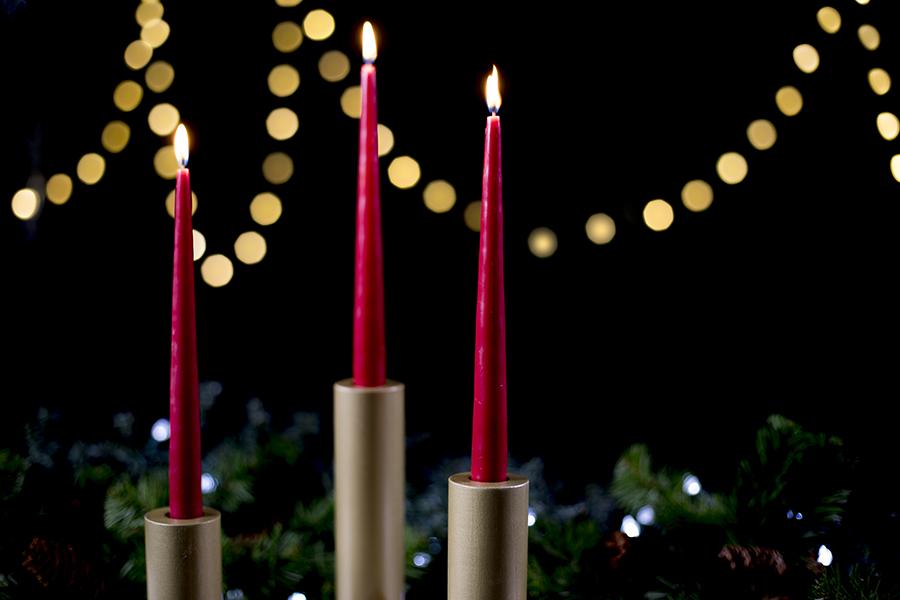

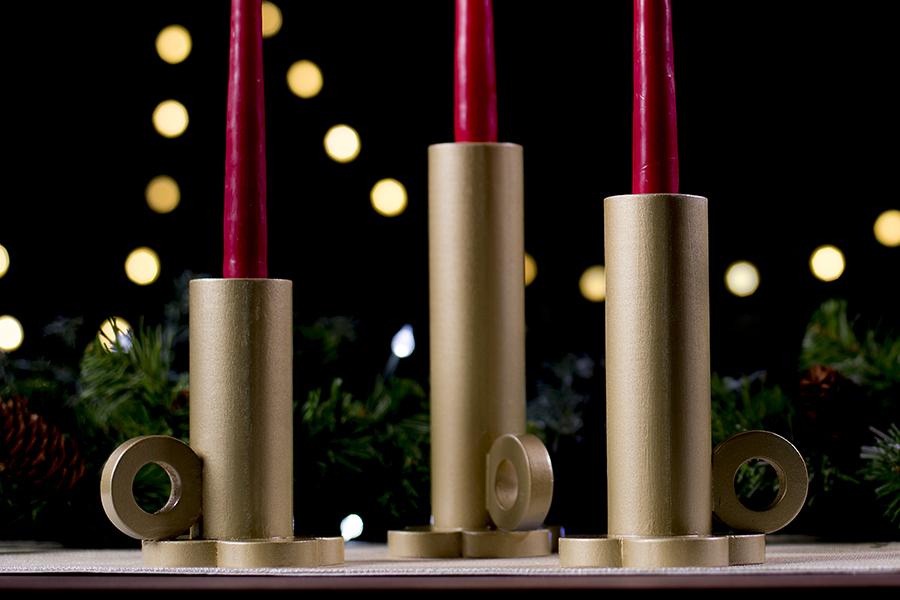

Whether you’re decorating for the holidays, making gifts, or just looking for a fun decor idea, this trio of candle holders fills the bill. You can create all three quickly and easily by cutting apart a single 2″-diameter dowel from the home center. Then spray on a paint color that suits your style.

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Square
    Square
  • Tape Measure
    Tape Measure
  • Miter Box
    Miter Box
  • Drill (cordless)
    Drill (cordless)

Materials

Wood Products

  • 1 Wood dowel , 2"-diameter , 48"

Hardware & Supplies

  • 1 1" Forstner bit
  • 1 Wood glue

Cut List & Parts

  • 1 Short Stem , 2" x 5" poplar dowel
  • 1 Medium Stem , 2" x 6 1/2" poplar dowel
  • 1 Tall Stem , 2" x 8" poplar dowel
  • 3 Handle , 2" x 1/2" poplar dowel
  • 12 Base , 2" x 1/2" poplar dowel

Directions

  • Select Your Sizes (and Saw)

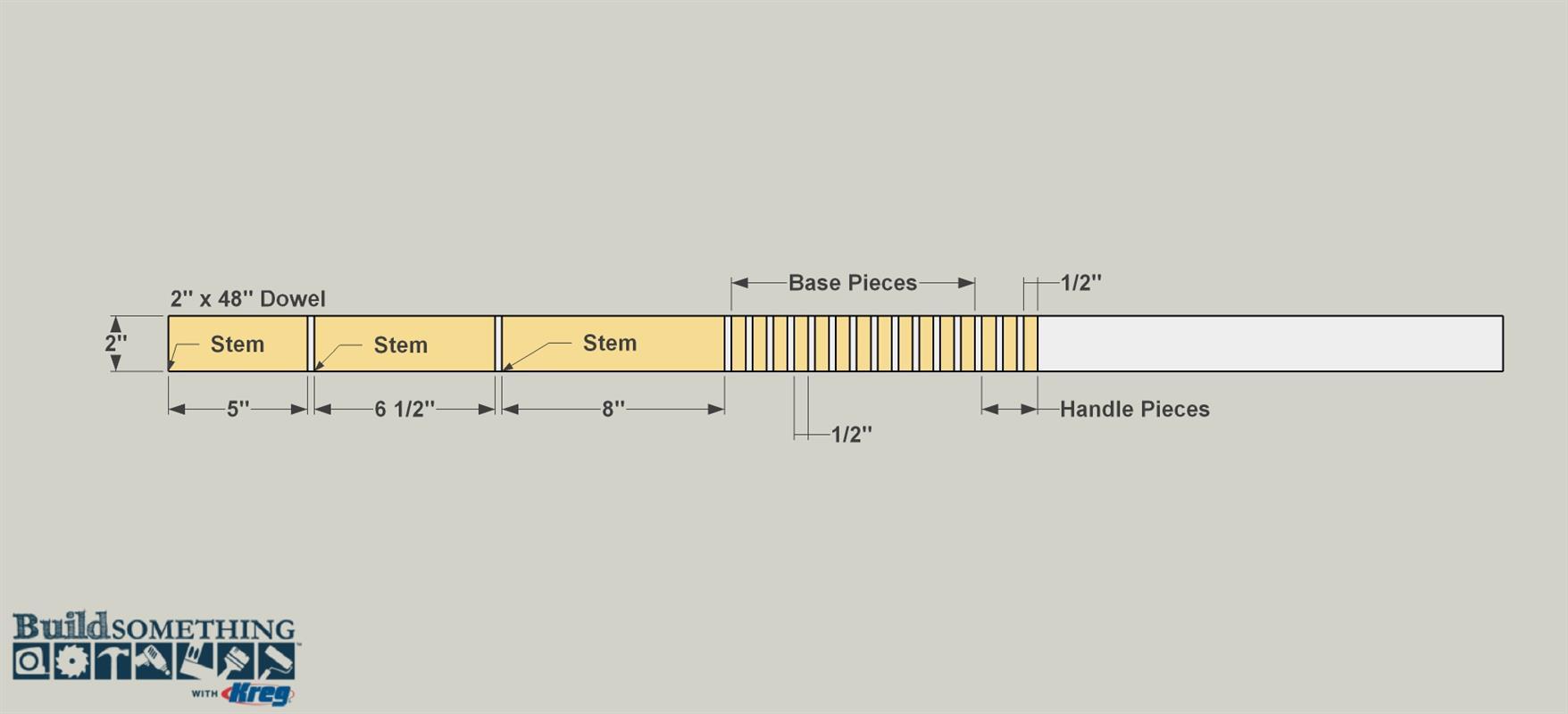

    Before you begin, decide what size candle holders you want to create. The cutting diagram and plan show how to get all three sizes from one 48" dowel. The parts are the same for each size, except for the length of the stems. Also, you may want to consider an inexpensive miter box as the cutting tool of choice for this project. A miter box works like a miter saw, but uses a hand saw and a simple guide box to cut 90°, 45° and some other angles. By using a miter box, you can make cut these small pieces safely and with control. Plus, you can pick up a miter box for $15 or less in any home center

  • Cut the Stems and Drill Holes

    Start by cutting the three Stems to length form a 2" poplar dowel, as shown in the cutting diagram. Now, secure a clamp at the base of the first Stem, and then use another clamp to hold the Stem securely on a work surface (see the Tip below). Mark the center of the end on the Stem, and then drill a 1"-diameter hole 1" deep. A spade bit can work for this, but a Forstner bit offers more control and cleaner results. Repeat this process for the other two stems and then set them aside for the moment.

    Tip: Use Clamps for Workpiece Control

    Some pieces aren’t easy to clamp in place. That’s the case with the large-diameter dowels used to create these candle holders. But you definitely don’t want to hold the pieces by hand as you drill holes. Just use a couple of clamps to hold the piece in place. First clamp to the Stem, and then use another clamp to secure the Stem to your work surface. Now you’ll keep both hands safely away from the drill bit. As you drill the hole, be sure to keep the bit straight so that the hole is centered and straight.

  • Cut Thin Slices from the Dowel

    Cut twelve 1/2"-thick Base pieces from the remaining dowel using your miter box, as shown in the cutting diagram. Make sure as you cut that all of these pieces are the same thickness.

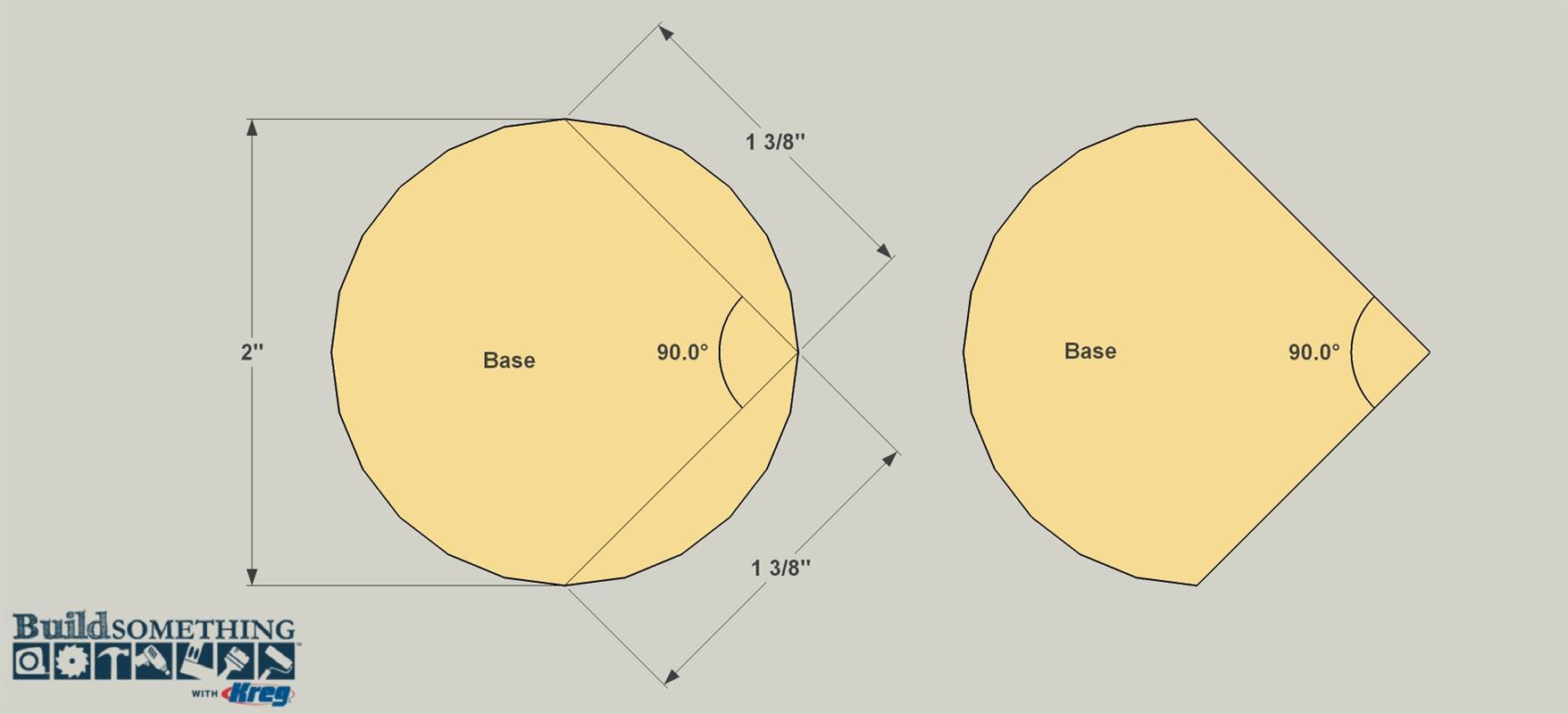

  • Shape the Base Parts

    On one Base piece, lay out two lines, as shown, to create a 90-degree corner. Cut on these two lines, once again using the miter box. Sand the flat edges as needed. Using this piece as a pattern, mark and cut the balance of the Base pieces.

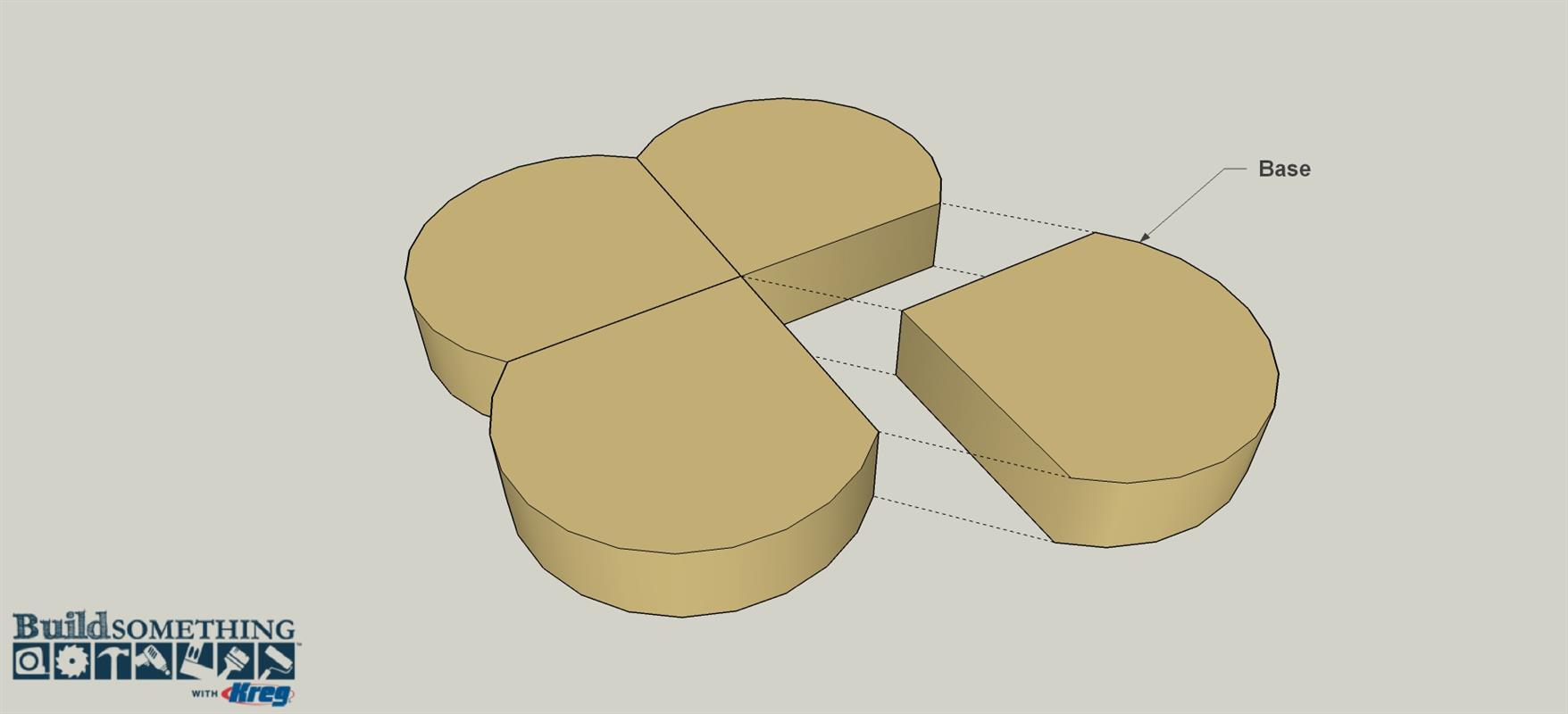

  • Assemble the Bases

    Group four Base pieces together as shown. Sand the flat edges as needed to create a tight fit to the mating pieces. Glue the Base pieces together and secure them using a rubber band as a clamp. Repeat this for the other two Bases. When the glue is dry, sand the Bases to flatten them.

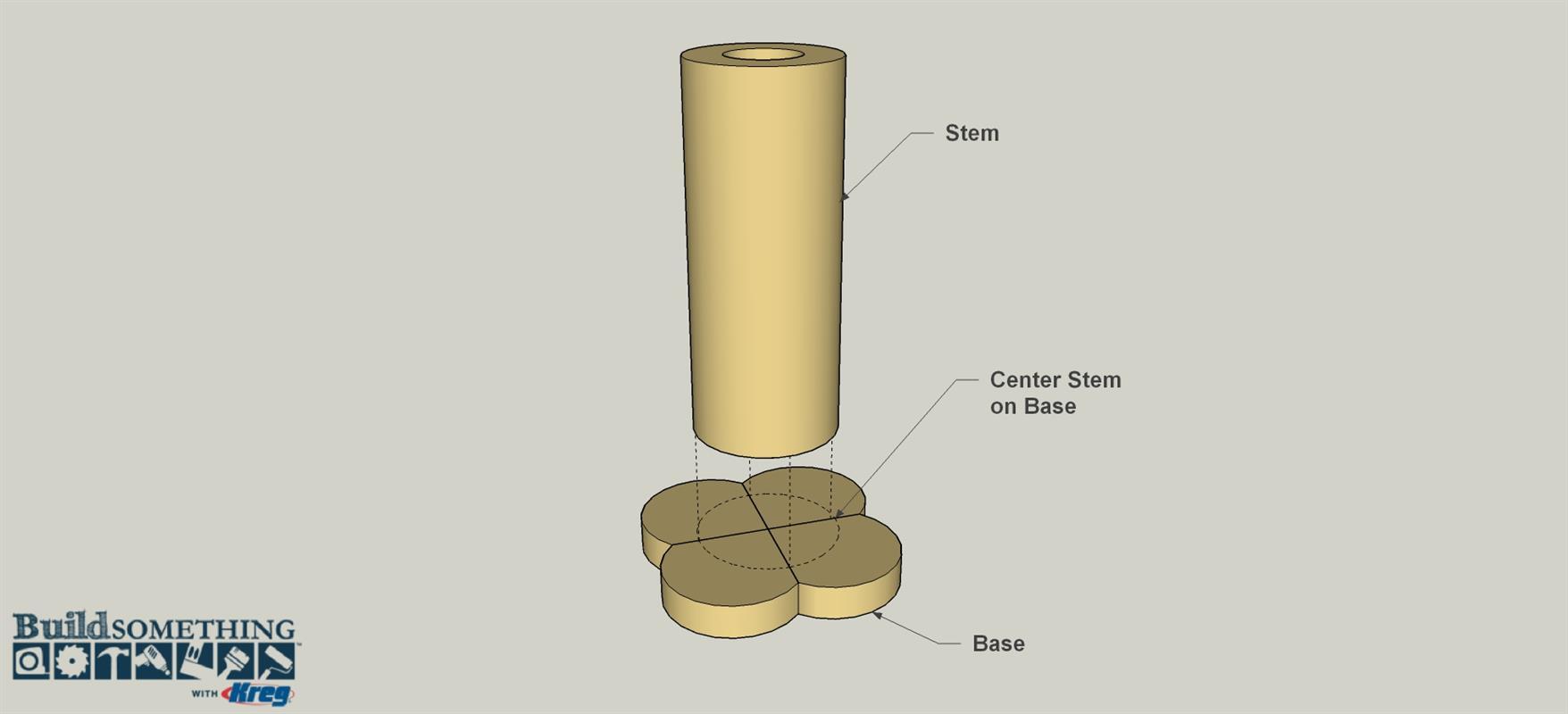

  • Attach the Stem to the Base

    Now you can attach the Stem to the base assemblies you created in Step 4. Position the Stem so it’s centered on the Base assemblies, as shown, and then glue it in position. Use a clamp, or rubber bands once again, to hold the pieces while the glue dries.

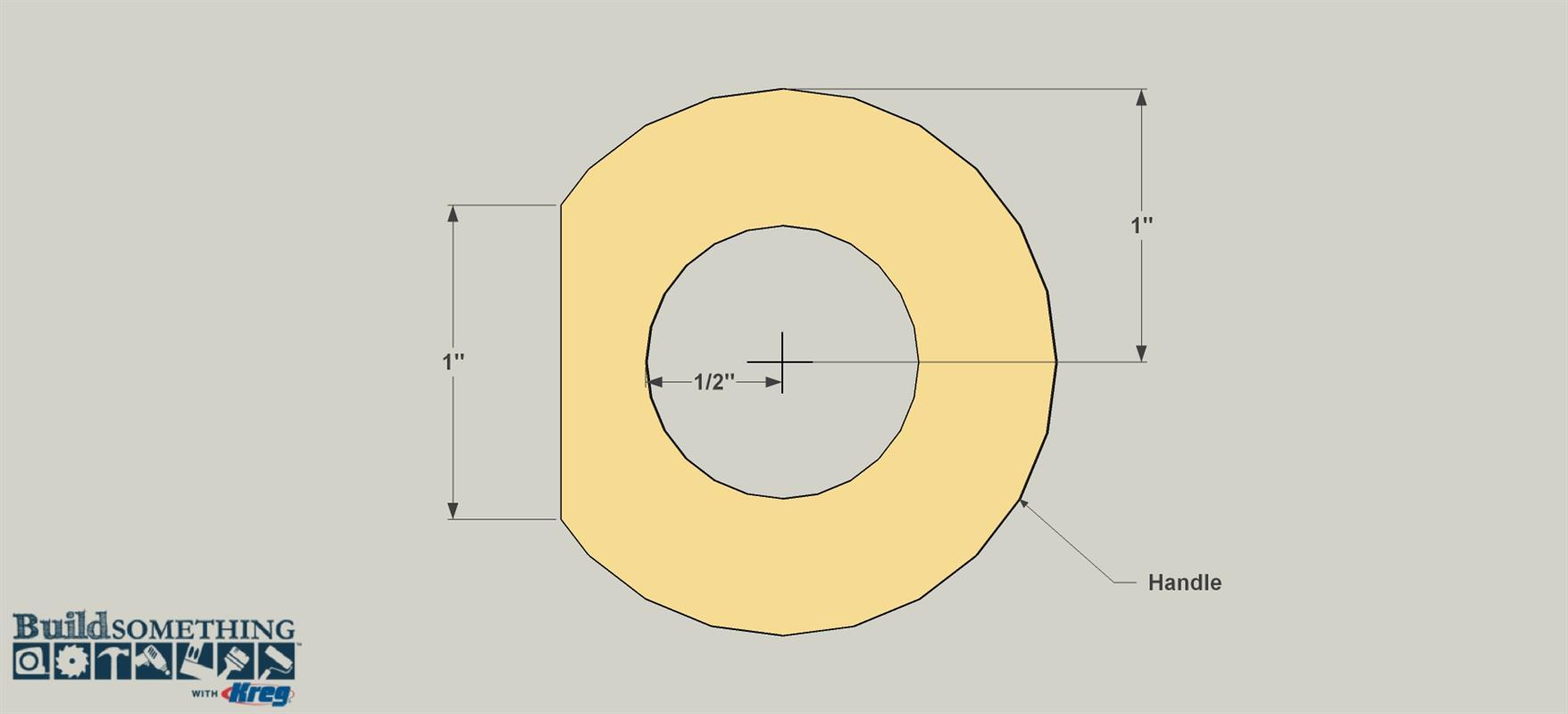

  • Make the Handles

    From the remaining dowel, cut a piece about 6" long. Using the same clamping technique as in Step 2, drill a centered 1"-diameter hole in this piece. Make the hole about 2" deep. Then cut three 1/2"-thick pieces off the end of the dowel to create the Handles, as shown in the cutting diagram. Sand the surfaces and inner edges of the hole as needed. Next, you need to sand a 1"-long concave surface on each Handle so you can attach it to the Stem. An easy way to do that is shown in the Tip below.

    Tip: Make a Simple Sanding Template

    Sometimes, you need to sand part of a project to match up with the shape or profile of another part. That’s the case when adding the Handles to the Stems on these candle holders. You don’t just sand a flat. The mating surface on the handle has to be slightly concave to match the cylindrical shape of the Stem. The easiest way to match that shape exactly is to use the same material as a sanding guide. Just stick a piece of sandpaper—grit side out—to a leftover piece of the Stem material, and then move the Handle back and forth over it until you’ve sanded the mating shape just right.

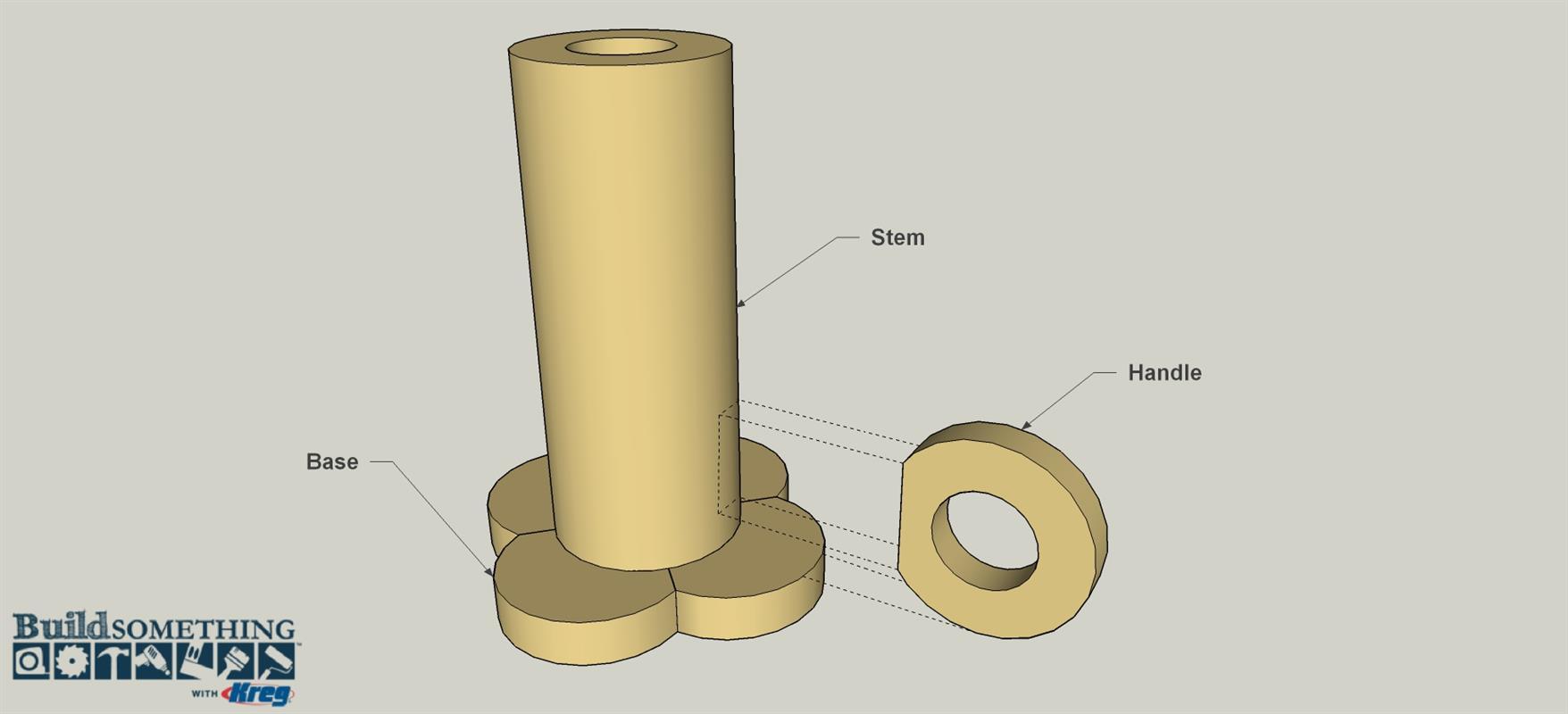

  • Attach the Handle to the Stem

    Position the Handle on the Stem as shown. Apply glue to the edges of the Handle that contact both the Stem and Base, and gently secure it with a clamp or rubber band until the glue dries.

  • Apply Paint to Finish Up

    To finish off the piece, sand all of the surfaces and edges smooth, as needed. Then you can paint the candle holders. We used a couple a couple of coats of gold metallic spray paint for a traditional look.
