Craft Paint Wall Storage

By The Reformation Woodshop
15-2
16
unnamed
Kreg Academy Kreg Academy

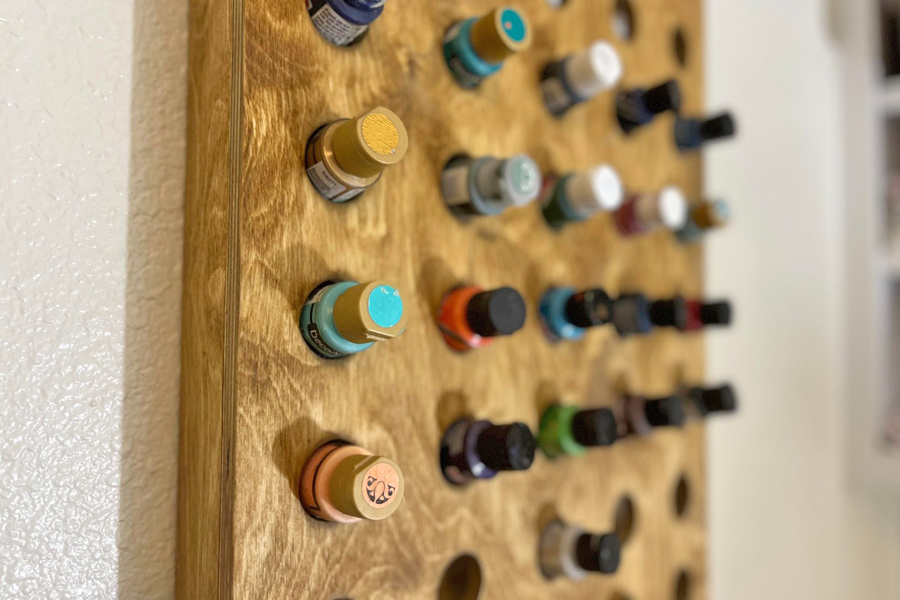

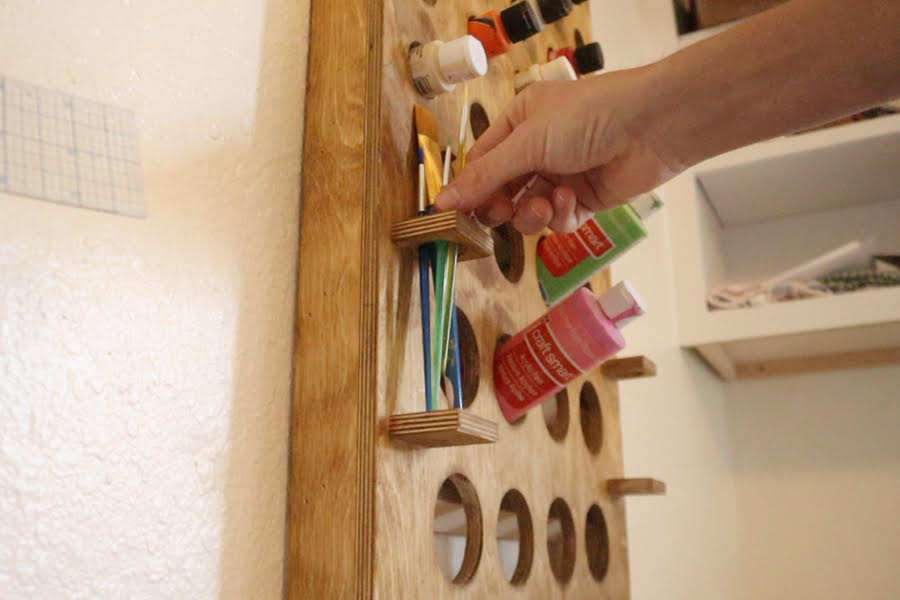

Clean up your ever growing paint collection with this vertical wall hanger. Store your paint brushes & 2 ounce, and 8 ounce paint bottles.

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Circular saw
    Circular saw
  • Miter saw
    Miter saw
  • Drill
    Drill
  • Paddle bit
    Paddle bit
  • Sander
    Sander

Materials

Wood Products

  • 1 Plywood , 5'x5'x1/2"

Hardware & Supplies

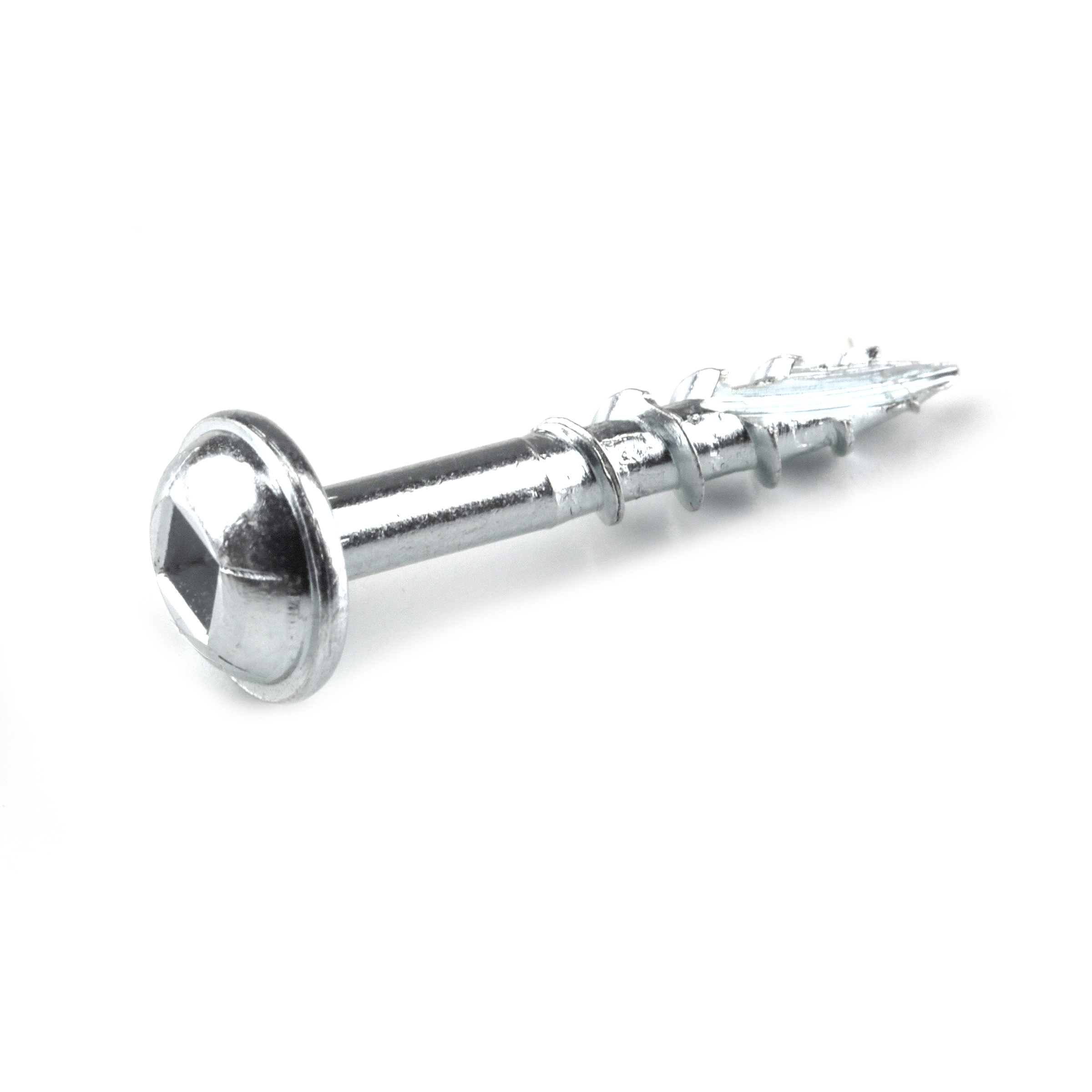

  • 1 Box of Kreg Pocket hole screws (see tools list)
  • 1 Golden oak stain
See All Tools & Materials

Cut List & Parts

  • 1 Plywood , 18”X40”x1/2"
  • 2 Plywood , 2”X40”x1/2"
  • 13 Plywood , 17”X2”x1/2"
See Full Cut List & Parts

Directions

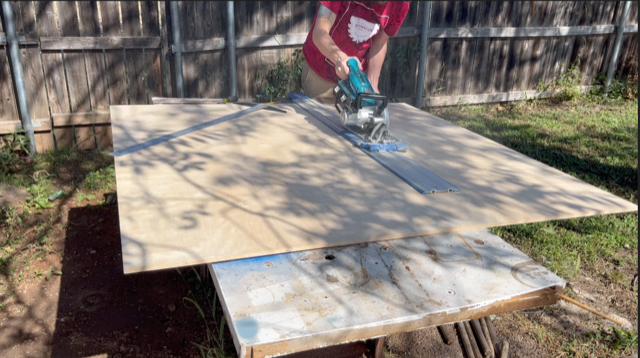

  • Step one

    Cut your 1/2” material down to 18X40 inches.

    Step 1

  • Step two

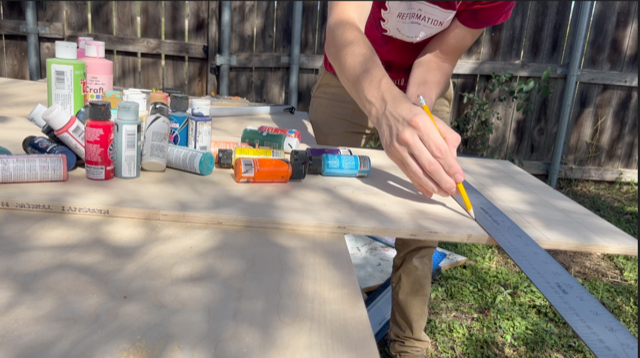

    Make horizontal lines every 3”s starting 2”s from the top until you’ve made 12 lines. Then make vertical intersecting lines every 2”s.

    Step 2

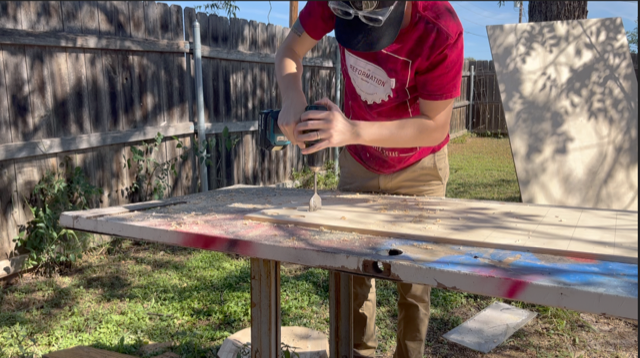

  • Step three

    Drill 1 3/8” holes where your vertical and horizontal lines intersect.

    Step 3

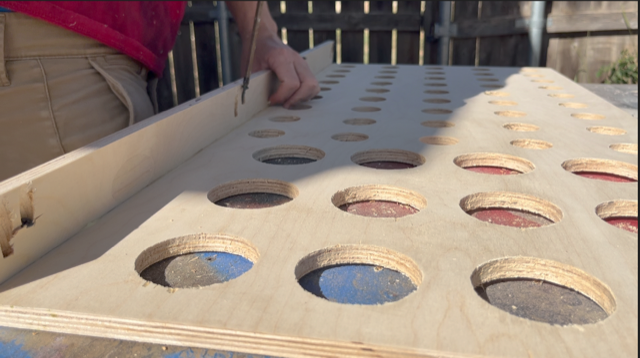

  • Step four

    Cutout and then pocket hole 2”X40” body pieces to the back of your storage.

    Step 4

  • Step five

    Cutout and then pocket hole 2”x17” shelf pieces to the back of your storage.

  • Step six

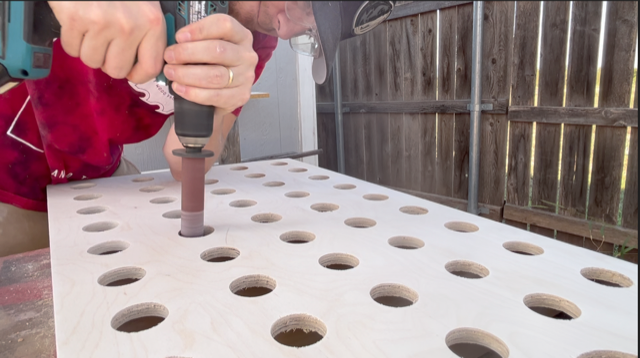

    Sand holes and face of storage thoroughly.

    Step 6

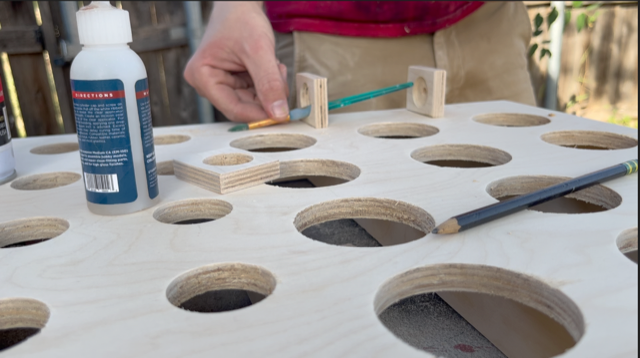

  • Step seven

    Cutout and attach 2”X2” pieces to the face of your storage. One with an 1 1/5” hole in it.

    Step 7

  • Step eight

    Cut a 2” piece of 3/4” material in half at a 45 degree angle. Mount one piece into your storage and one piece onto the wall so that they match fit each other and the one on the wall holds the storage up.

    Step 8

  • Step nine

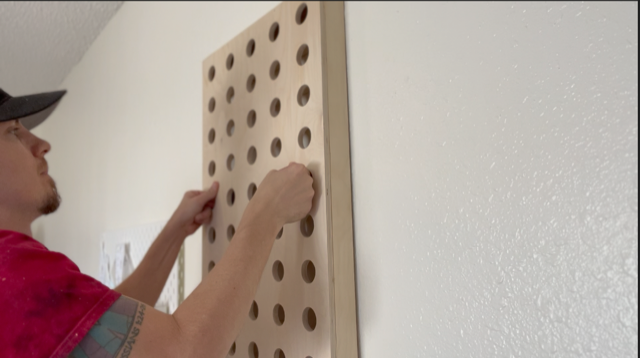

    Hang your storage on the French cleat you made.

    Step 9

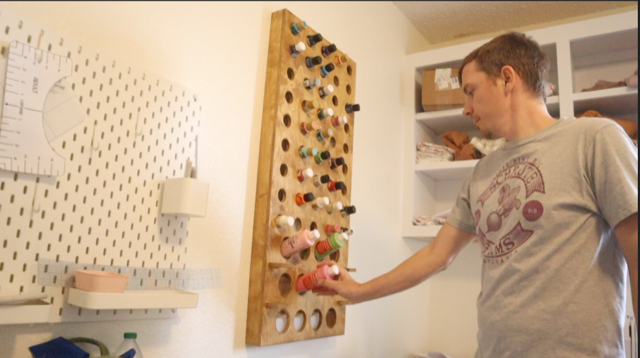

  • Step ten

    Fill your storage up with all of your paints and enjoy!

    Step 10
