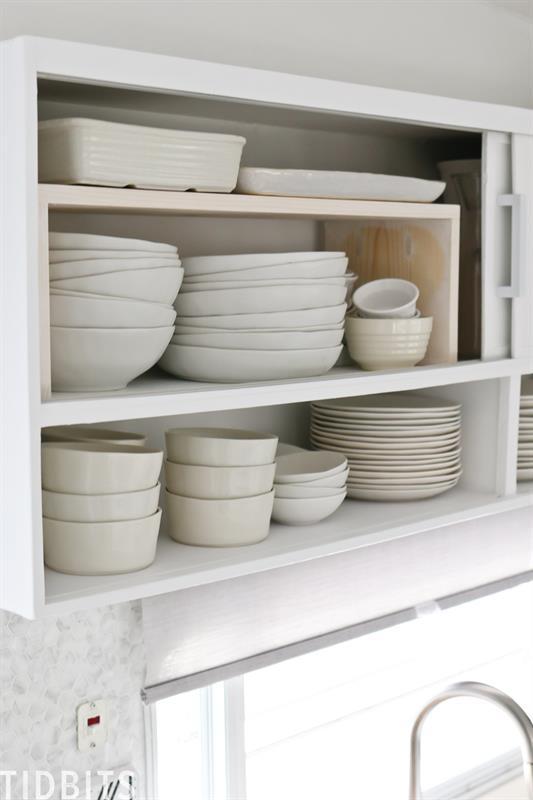

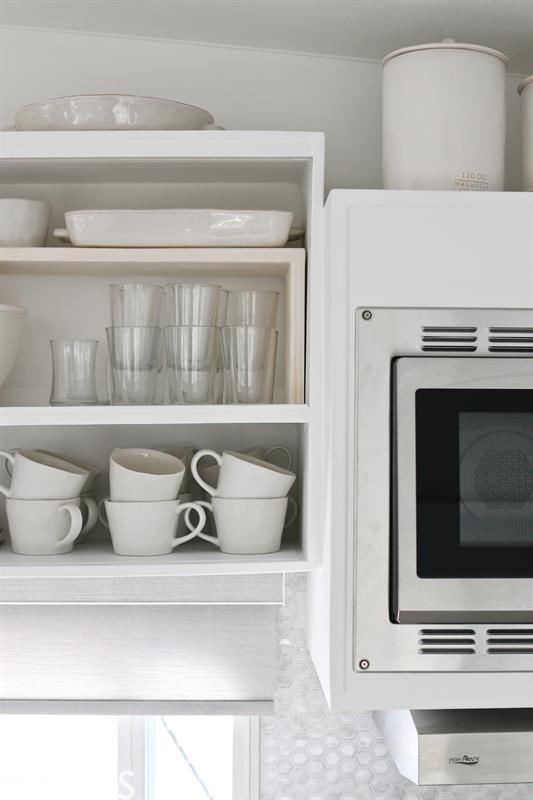

Make the most of your cabinet storage space with these cabinet shelf risers! Gain on vertical space and maximize organization for your kitchen or other home cupboards and cabinets. Bonus – these shelf risers are incredibly easy to build!
Tools
Kreg Tools
Other Tools
-
Miter Saw
-
Tape Measure
-
Impact Driver
-
Sander
Materials
Wood Products
- 1 Board , 1x8 , 96"
Hardware & Supplies
- 4 Kreg jig screws
- 4 Kreg jig plugs
- 1 Wood glue
Cut List & Parts
- 1 Top Plate , 3/4"x7 3/4"x28"d
- 2 Legs , 3/4"x7 3/4"x8"
Directions
-

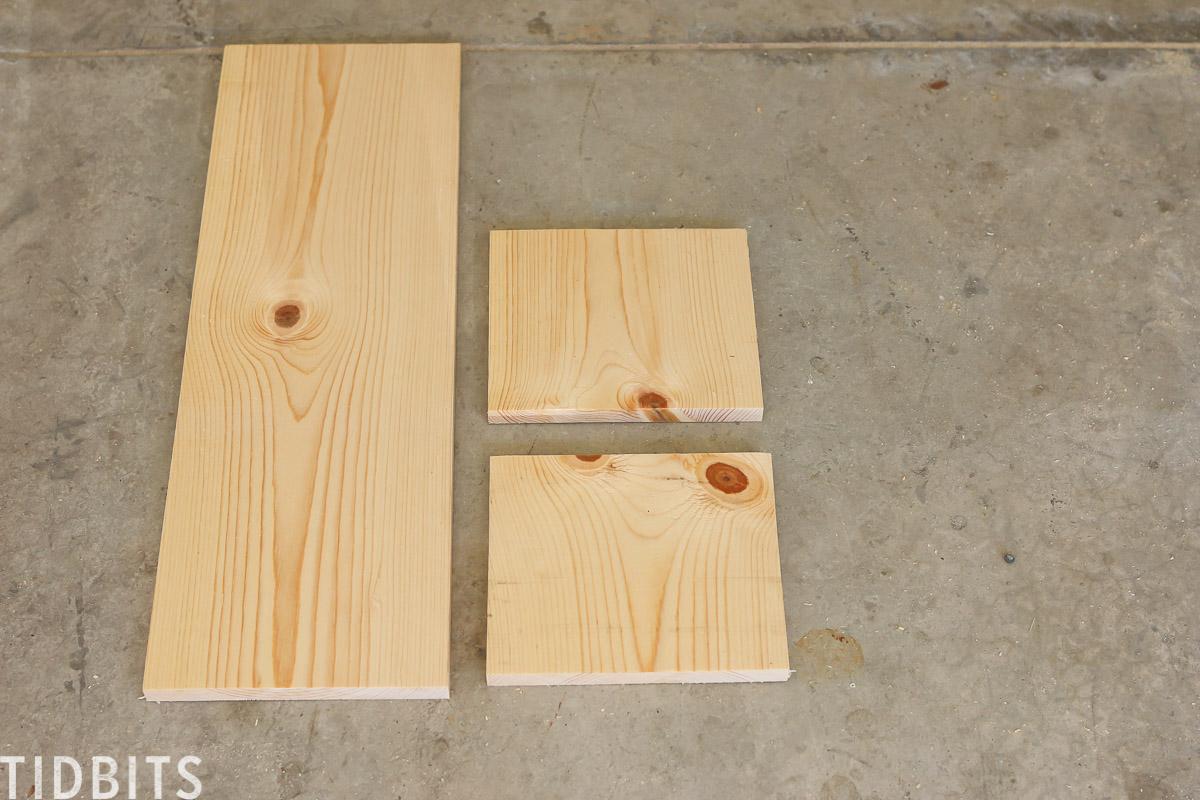

Cut Wood
Cut top shelf to 28 inches long and the two legs to 8 inches long, or according to the measurements for your particular cabinet.
-

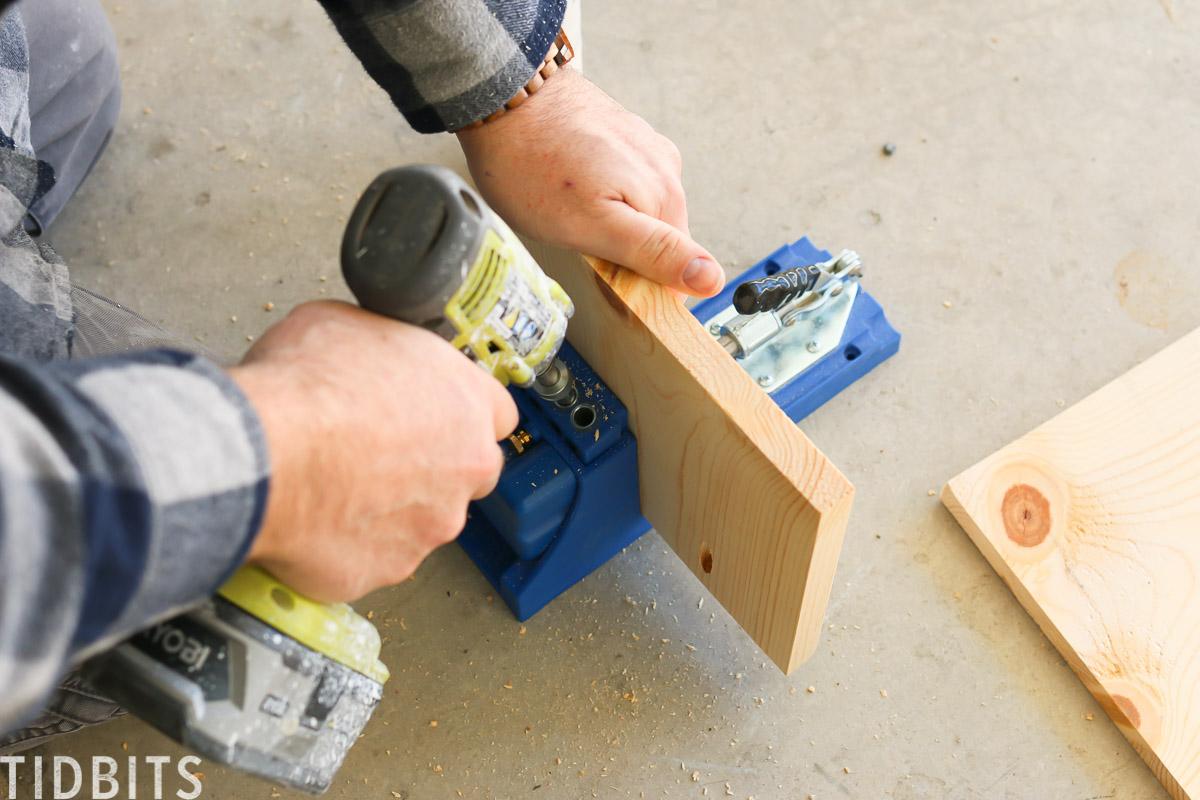

Pocket Holes for Shelf
Using the Kreg jig pocket-hole jig, drill two holes on one of the legs, evenly spaced apart. Holes should follow the grain.
-

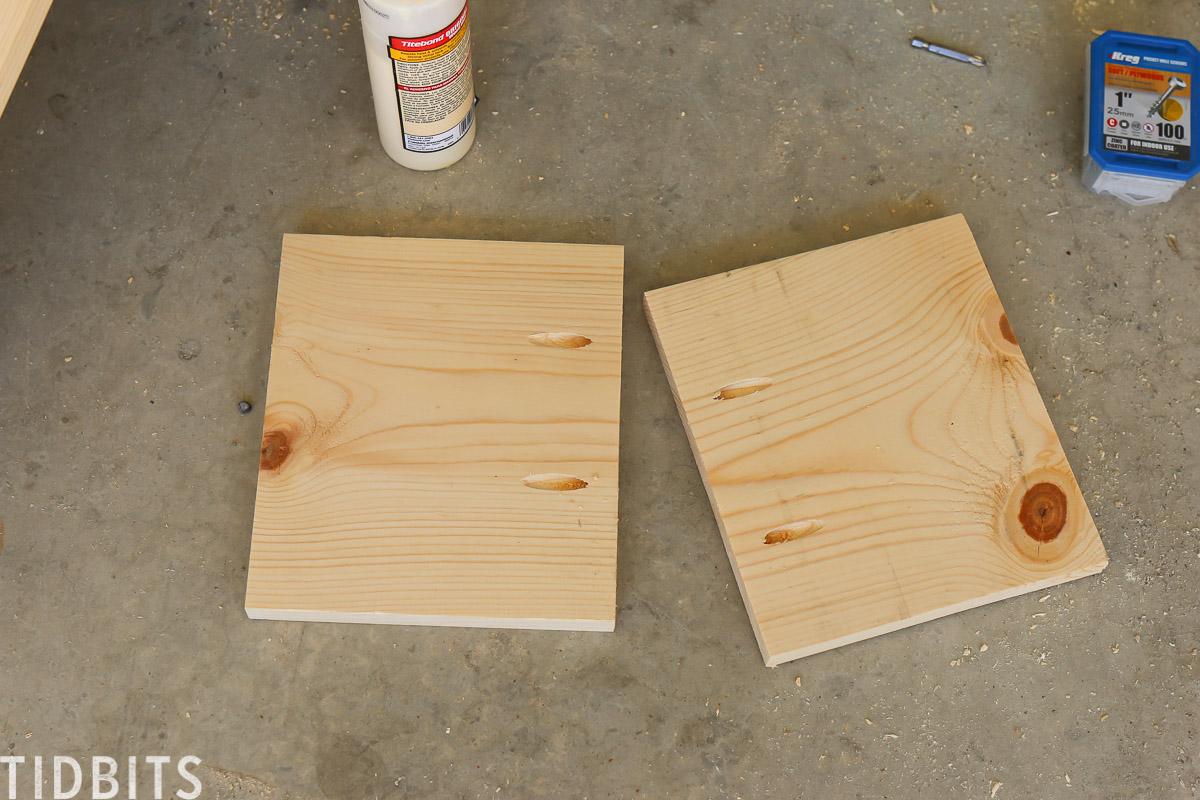

Pocket Holes for Second Leg
Repeat for both legs.
-

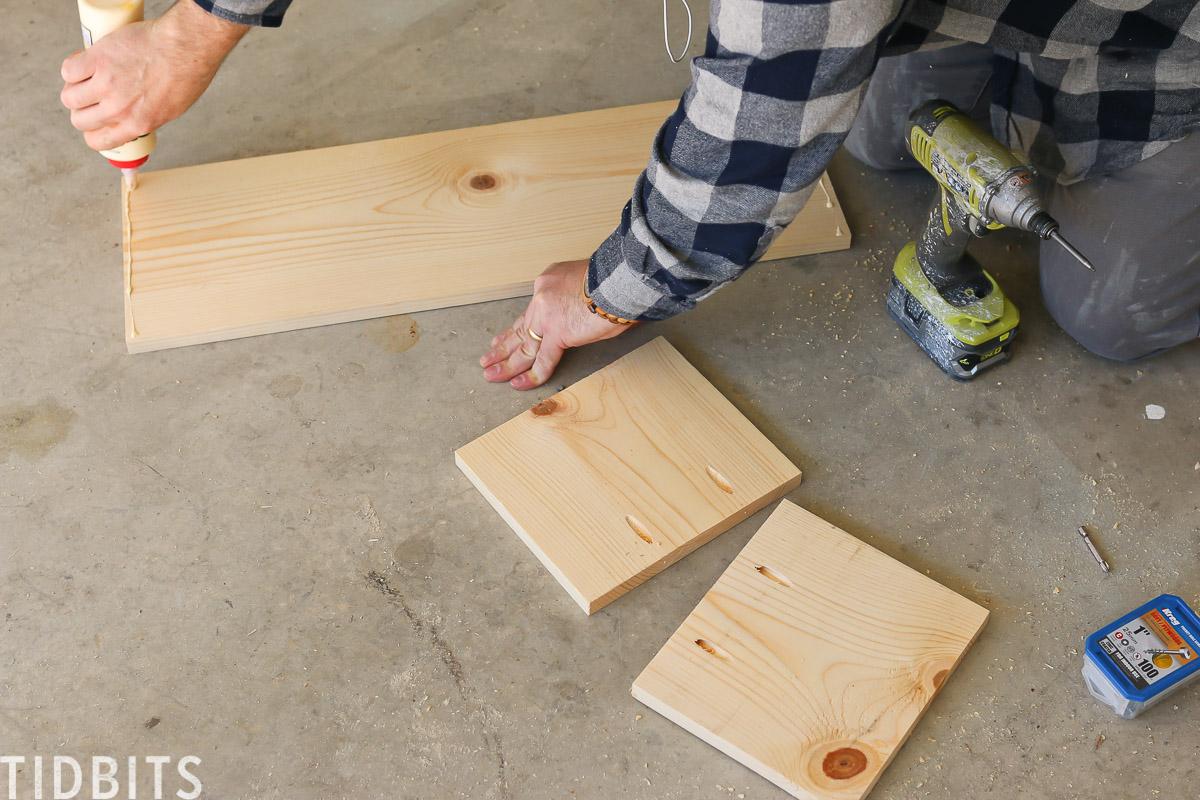

Glue Edges
Glue the ends of the legs where the holes are and the ends of one of the faces of the top shelf.
-

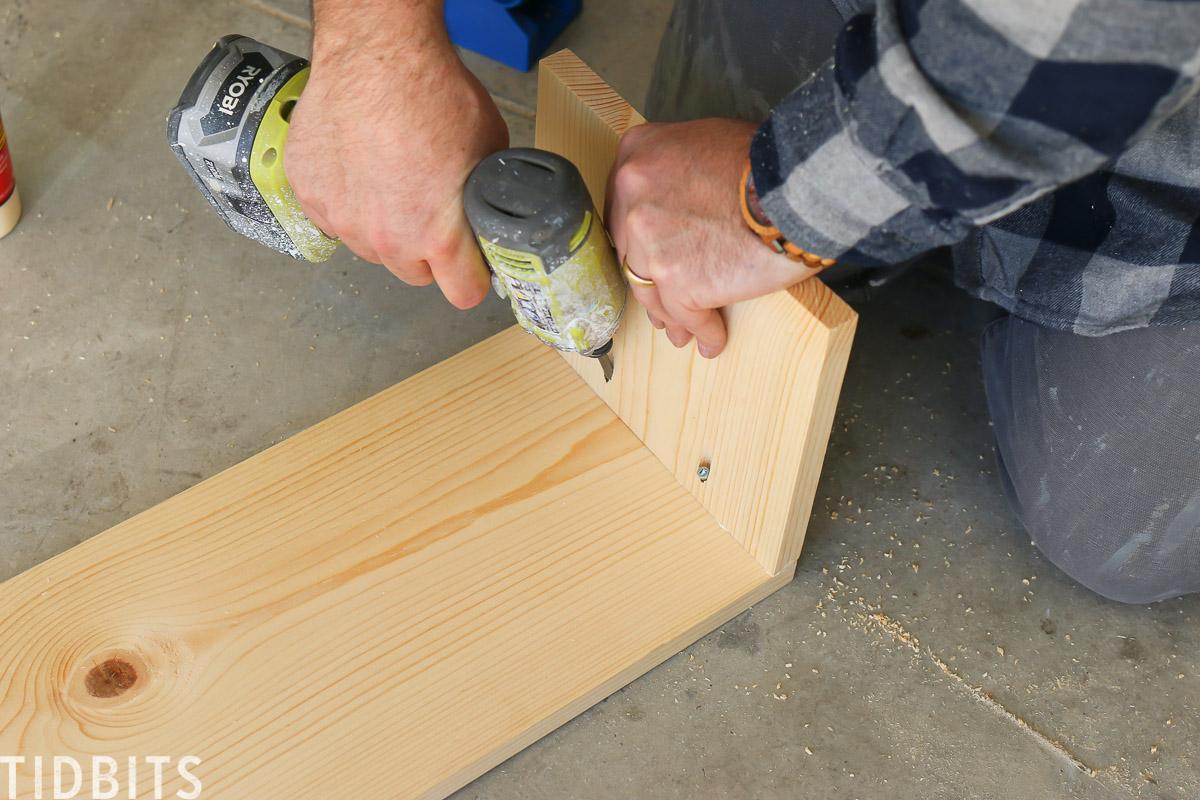

Screw in Legs
Using Kreg jig screws attach legs to the top plate. Be sure the screw holes are faced towards the center of the shelf.
-

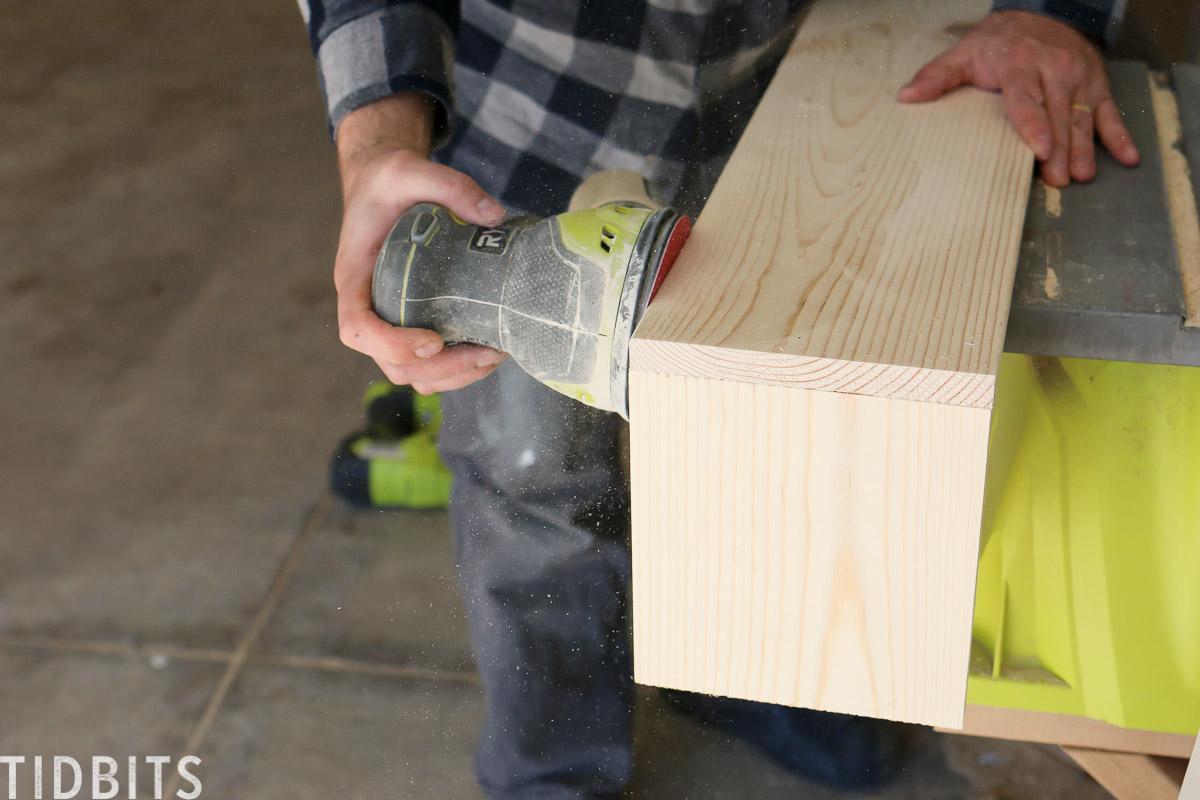

Prepare for final finish
Use Kreg Jig plugs and glue to fill in the screw holes then once dry, sand all surfaces flat and smooth.
-

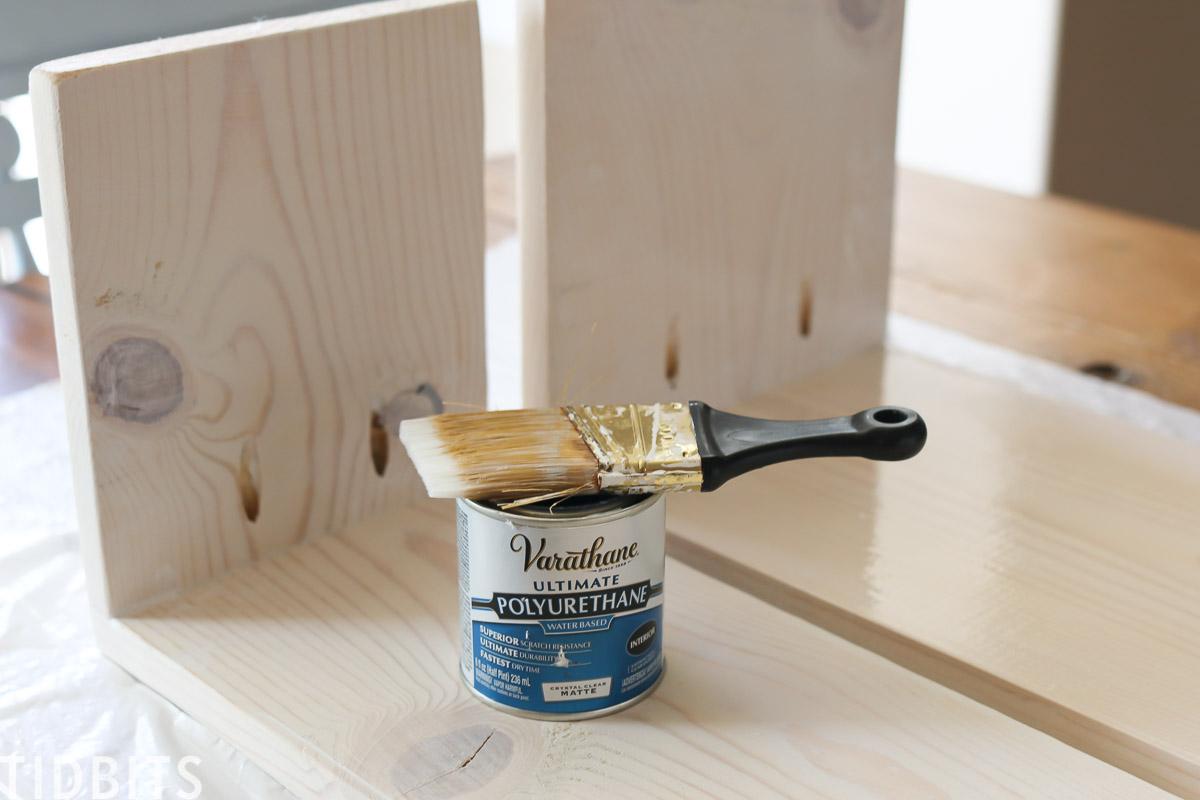

Finish Wood
Apply paint or stain based on your preference. We used pickling stain with a polyurethane coat to lighten the color of the pine.

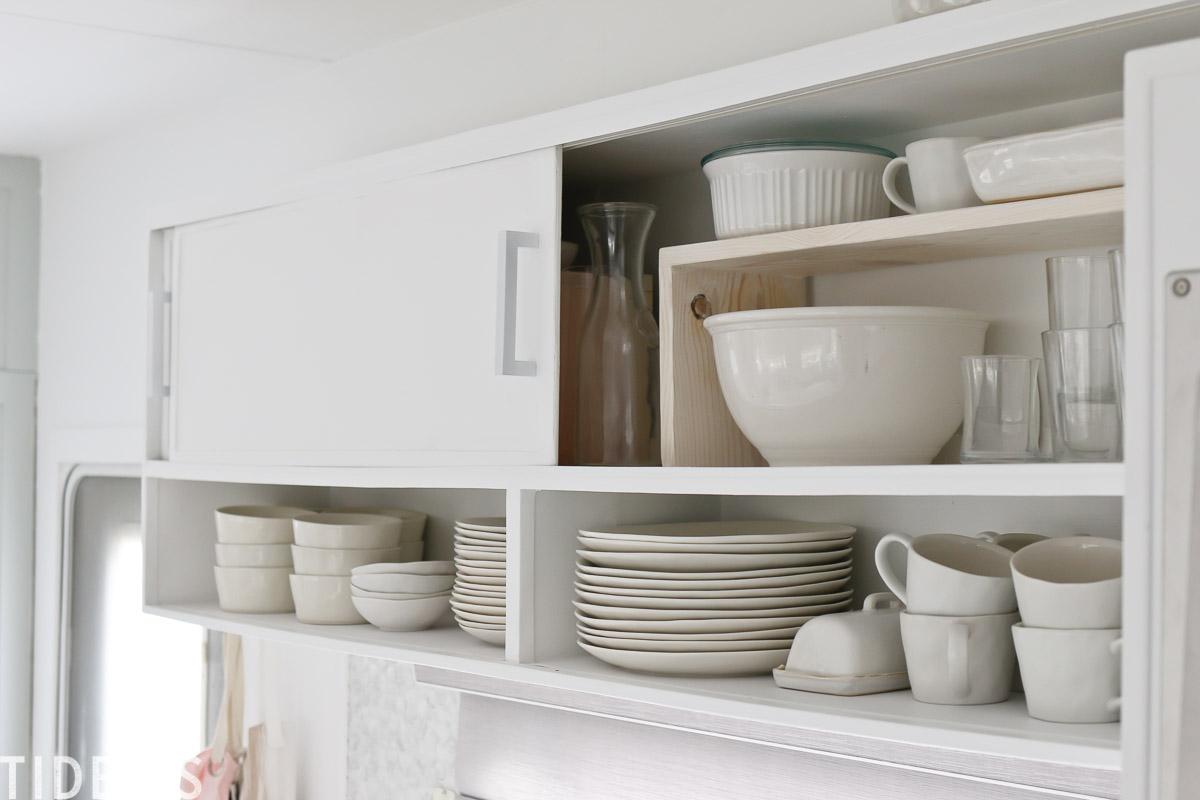

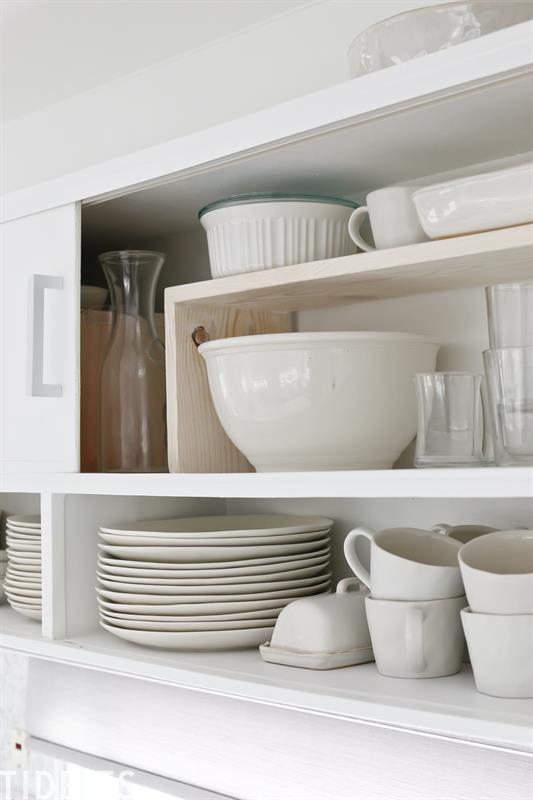

If you would like to see more of how we use these cabinet shelf risers to maximize storage in our RV, visit us at tidbits-cami.com.
