Built-In Closet Organizer

By Nick + Alicia
nursery-closet-1570
nursery-closet-1558
nursery-closet-1556
nursery-closet-1544
nursery-closet-1567
Kreg Academy Kreg Academy

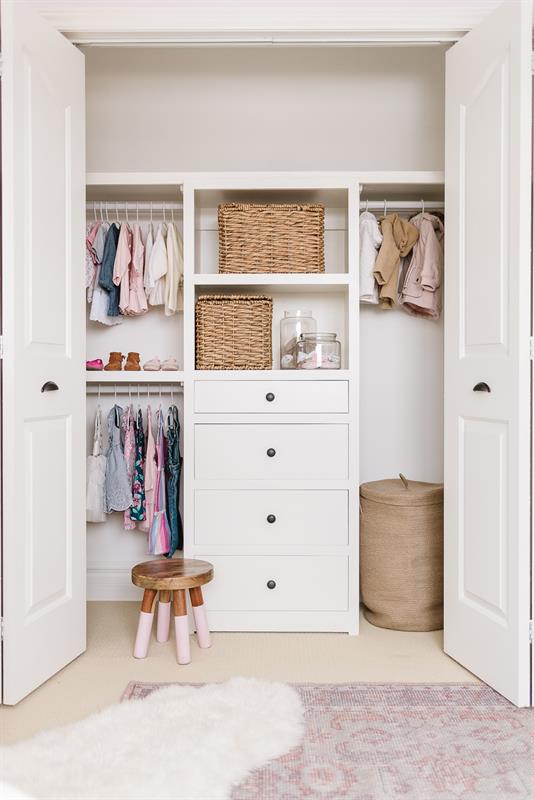

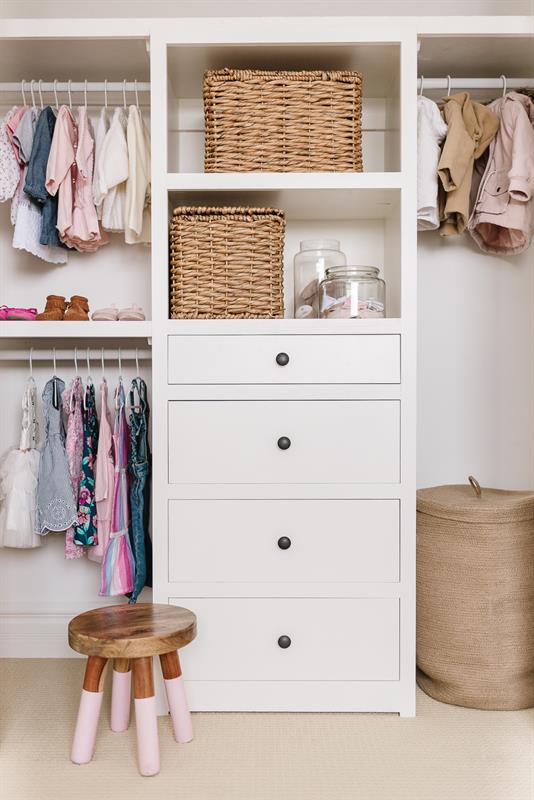

This closet organizer can be adapted to almost any size closet. With three large drawers, a smaller jewelry drawer and two shelves, it turns any closet into an organized space you’ll want to show off! NOTE: Wood for upper shelf and side shelf not included in the list since each closet vary in size.

Difficulty moderate

Tools

Kreg Tools

Other Tools

  • Circular Saw (cordless)
    Circular Saw (cordless)
  • Miter Saw
    Miter Saw
  • Table Saw
    Table Saw
  • Tape Measure
    Tape Measure
  • Drill (cordless)
    Drill (cordless)
  • Sander
    Sander
  • Shop Vacuum
    Shop Vacuum

Materials

Wood Products

  • 2 Plywood , 3/4" Thick , Full Sheet
  • 1 Plywood , 1/4" Thick , Full Sheet
  • 3 Board , 1x2 , 96"

Hardware & Supplies

  • 3 16" Ball Bearing Drawer Slides
  • 1 14" Ball Bearing Drawer Slide
  • 4 Knobs/Pulls
  • 98 1 1/4" Kreg Pocket Hole Screws
  • 1 Wood Glue
  • 1 1 1/4" Brad Nails
  • 1 Paint/Stain
  • 1 Wood Filler
  • 1 Sandpaper (120g/220g)
  • 3 1 1/4" Hardwood Dowels
  • 3 1 5/16-inch Heavy Duty Closet Pole Sockets
See All Tools & Materials

Cut List & Parts

  • 4 Top/Bott/Shelves , 3/4" x 23 3/4" x 16"
  • 2 Sides , 3/4" x 65 3/4" x 16"
  • 2 Wall Brace , 3/4" x 23 3/4" x 3 1/2"
  • 6 Drawer Box Front/Backs (LG) , 3/4" x 19 3/4" x 6 1/2"
  • 6 Drawer Sides (LG) , 3/4" x 15 1/2" x 6 1/2"
  • 8 Drawer Slide Mounts (LG) , 3/4" x 15" x 3"
  • 3 Drawer Bottoms (LG) , 1/4" x 21 1/4" x 15 1/2"
  • 1 Drawer Front (SM) , 3/4" x 22 1/8" x 4 5/8"
  • 3 Drawer Front (LG) , 3/4" x 22 1/8" x 7 7/8"
  • 1 Face Frame Bottom (This was cut out of Plywood) , 3/4" x 22 1/4" x 3 1/2"
  • 2 Drawer Box Front/Back (SM) , 3/4" x 19 3/4" x 3 1/2"
  • 1 Drawer Bottom (SM) , 1/4" x 21 1/4" x 15"
  • 2 Drawer Sides (SM) , 3/4" x 15" x 3 1/2"
  • 2 Face Frame Vertical (uses 1x2x8 boards) , 3/4" x 1 1/2" x 66 1/2"
  • 6 Face Frame Horizontal (uses 1x2x8 boards) , 3/4" x 1 1/2" x 22 1/4"

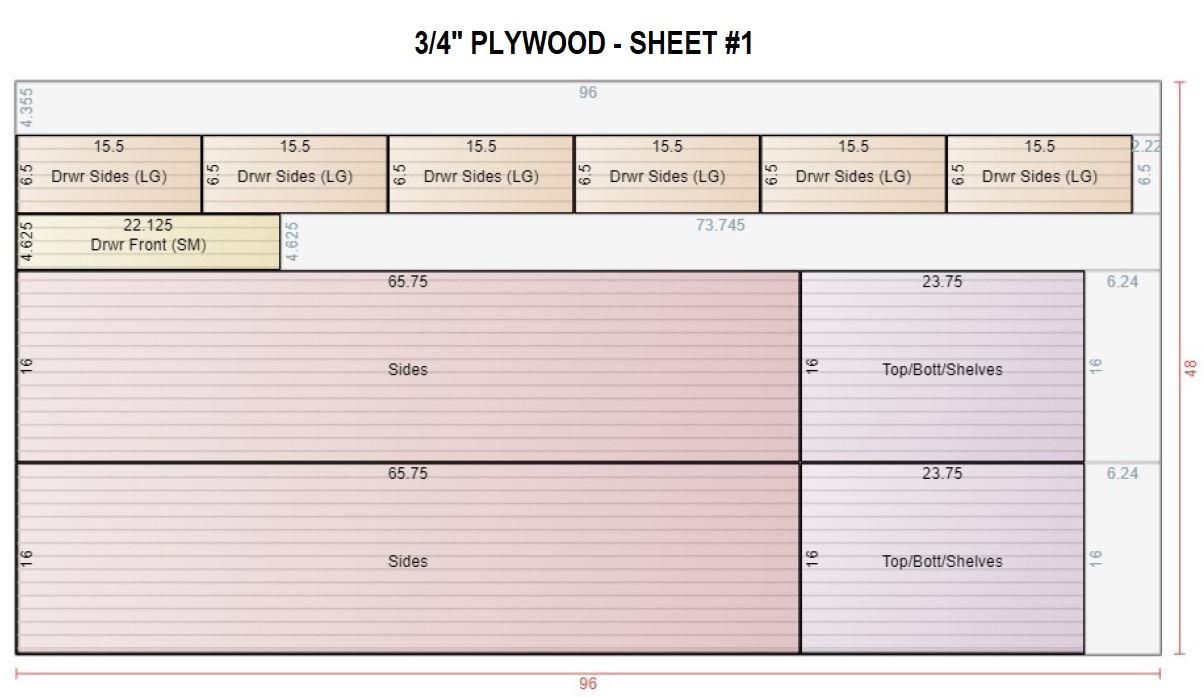

34-ply1

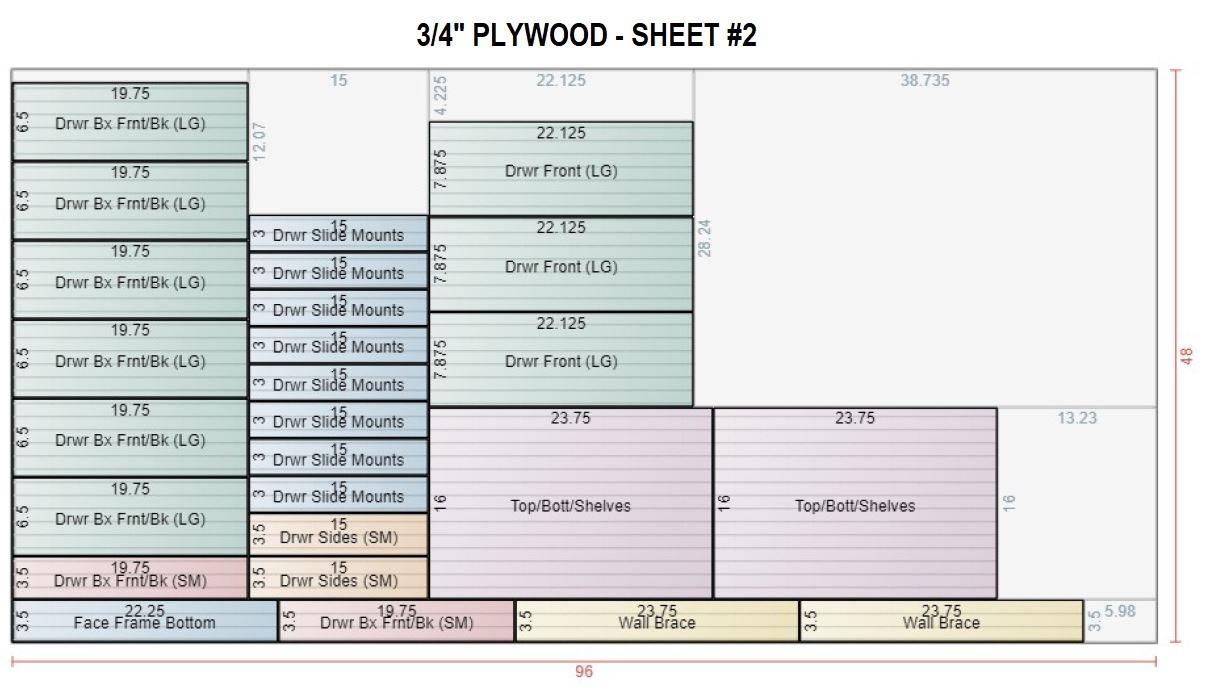

34-ply2

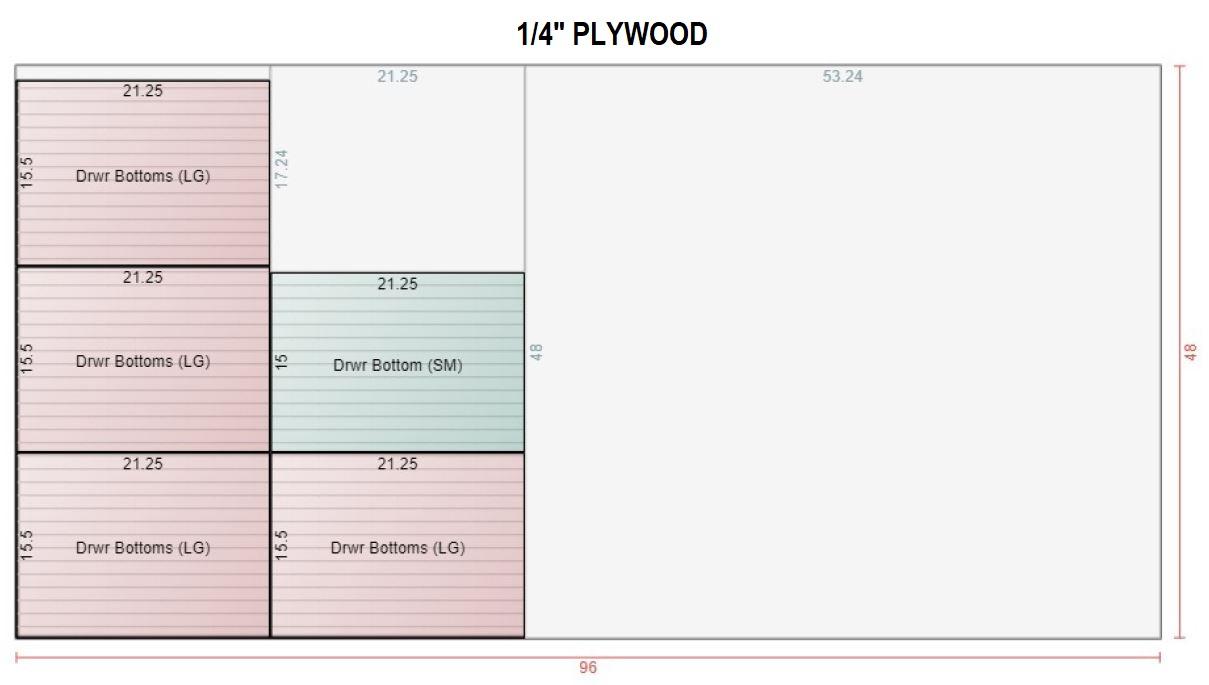

14-ply1
See Full Cut List & Parts

Directions

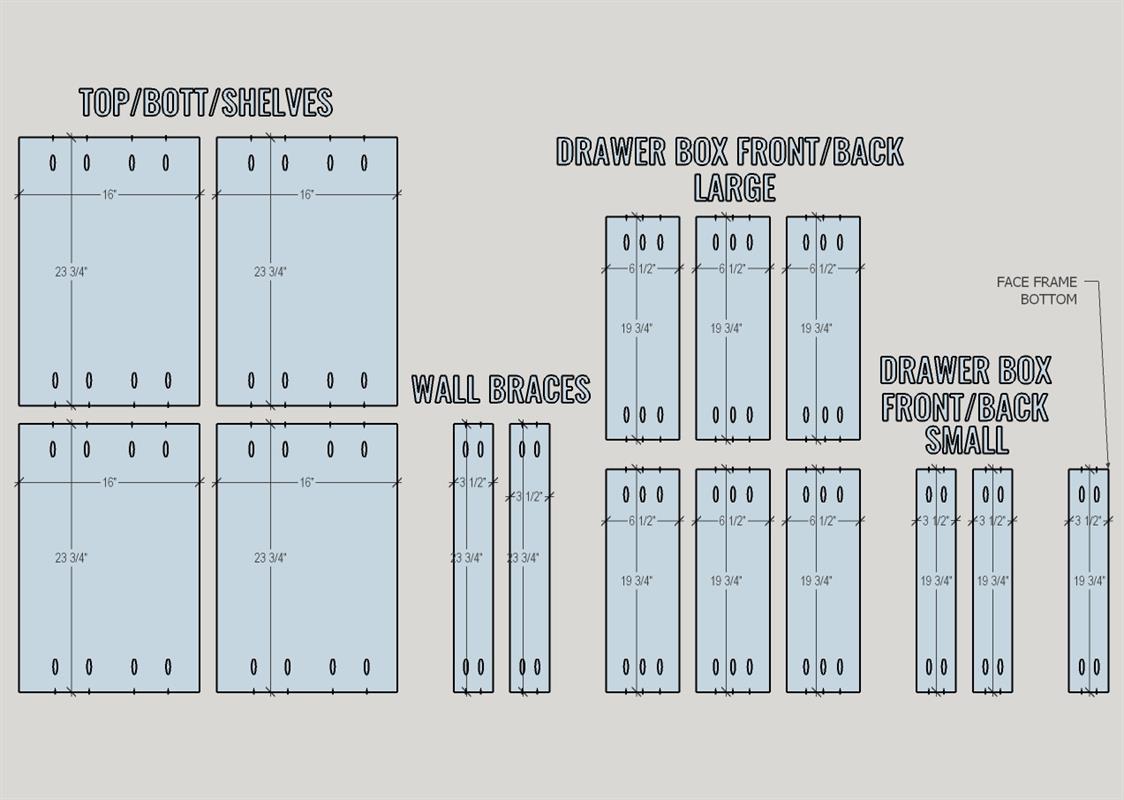

  • Pocket Holes - Plywood Pieces

    Drill pocket holes in the parts on the attached diagram in the approximate locations shown.

    Step 1

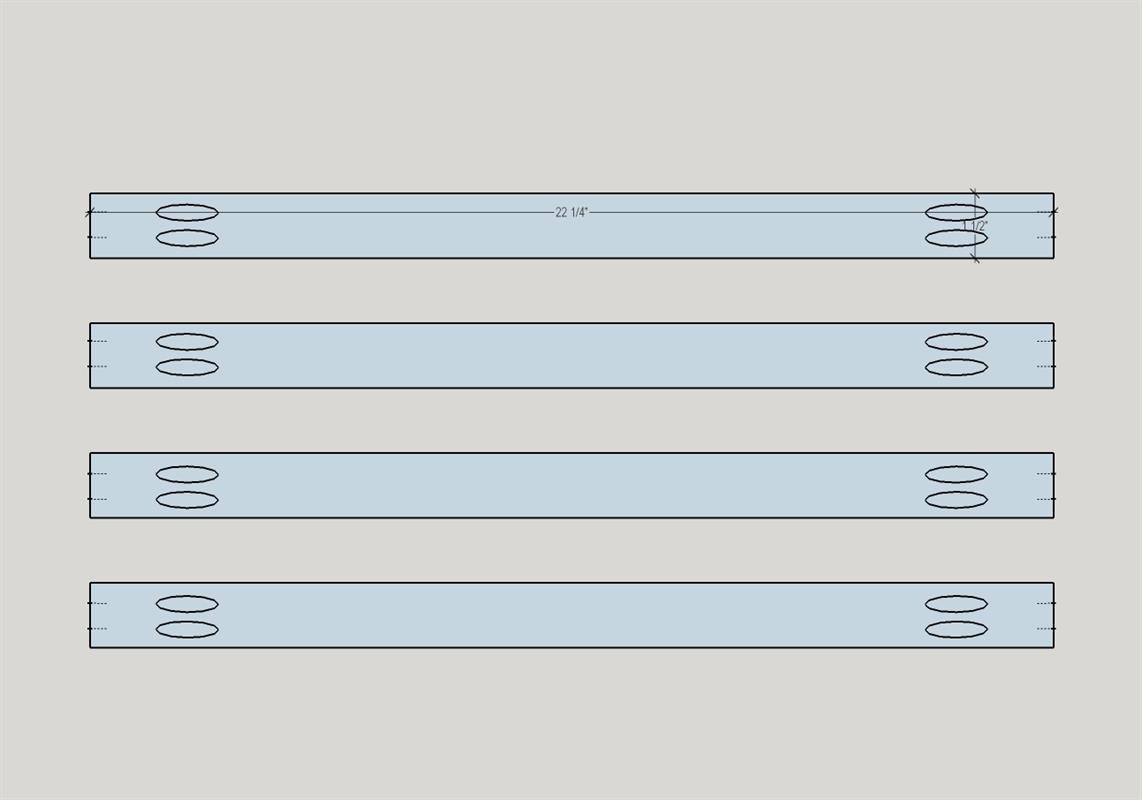

  • Pocket Holes - Face Frame

    Drill pocket holes in the parts on the attached diagram in the approximate locations shown.

    Step 2

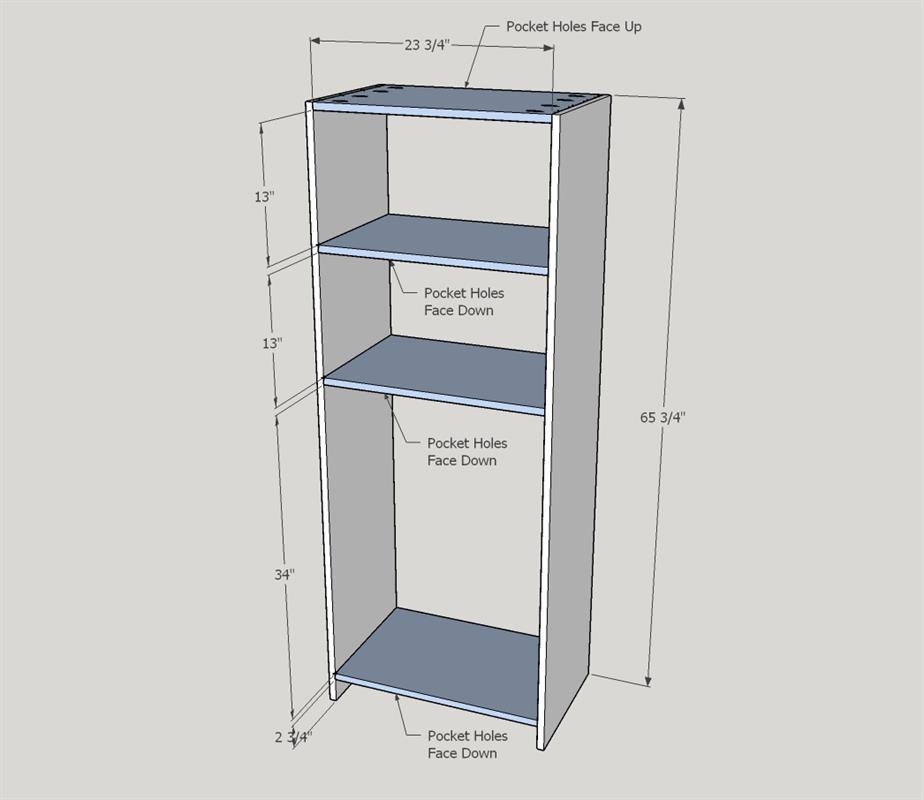

  • Build the Box

    Assemble the main box as per the diagram, paying attention to which way the pocket holes are to face. Use wood glue and 8 x 1 1/4" pocket hole screws on each board to secure all of the TOP/BOTT/SHELVES boards to the SIDES as shown.

    Step 3

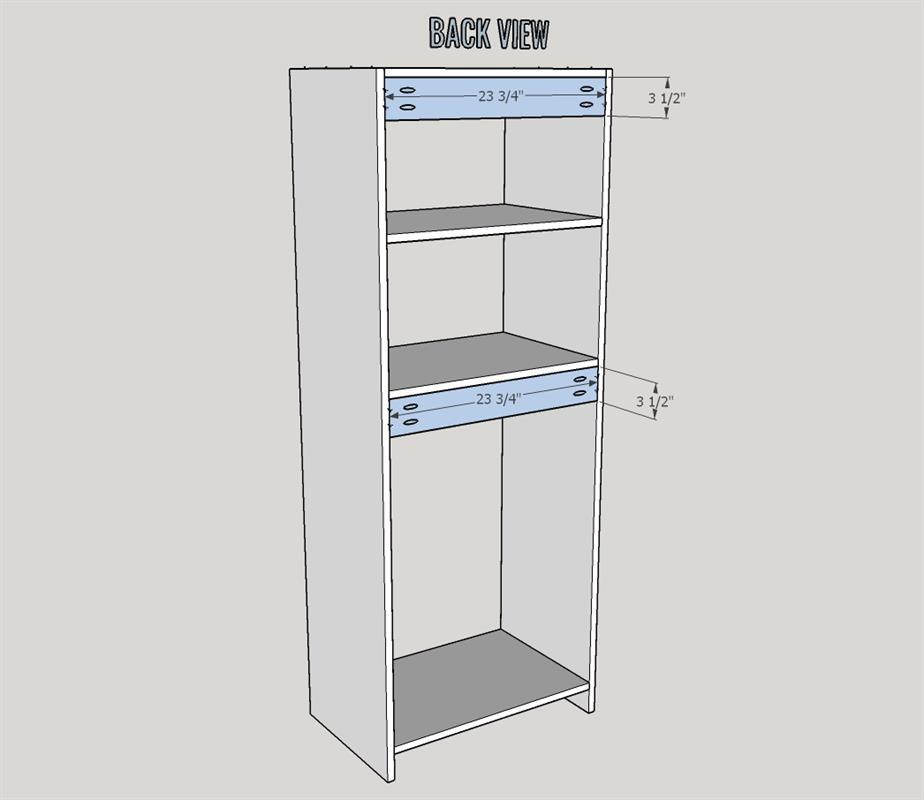

  • Add Back Wall Braces

    Add WALL BRACES at the back of the box. One at the top with 4 x 1 1/4" pocket hole screws and another under the second shelf with 4 x 1 1/4" pocket hole screws. Attach to the wall into at least one stud using 2 1/2" construction screws (you can do this step later if you are not ready to install into position yet).

    Step 4

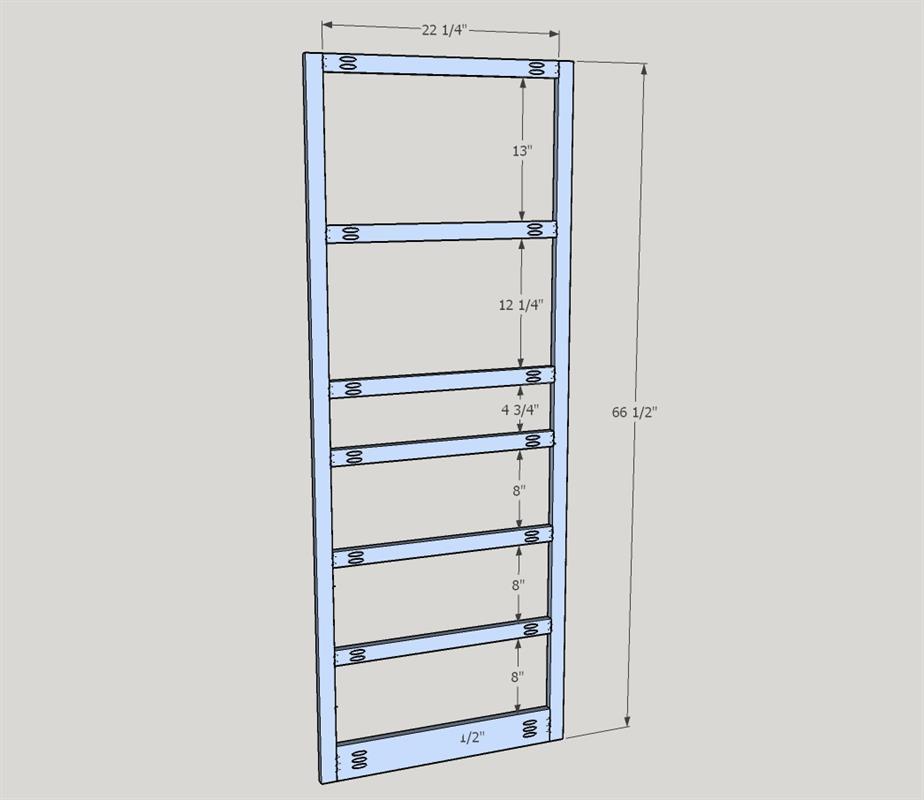

  • Build Face Frame

    Build the face frame according to the diagram. Take special care to make sure that each of the openings is square. Secure each of the FACE FRAME HORIZONTAL pieces to the FACE FRAME VERTICAL pieces in the locations shown using wood glue and 1 1/4" pocket hole screws.

    Step 5

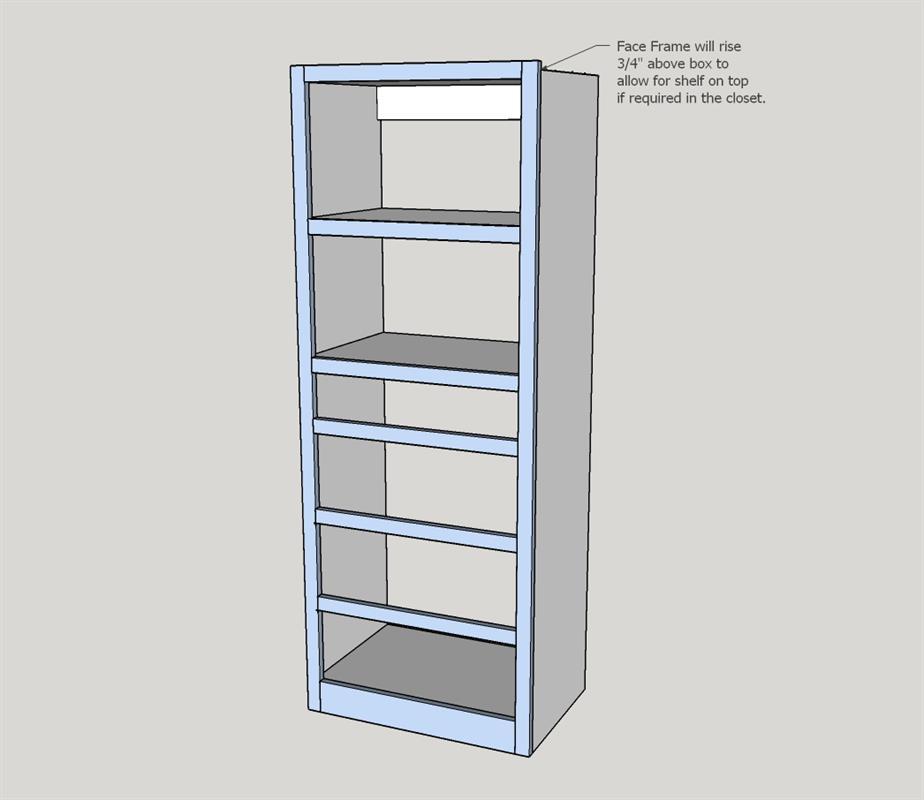

  • Attach Face Frame to Box

    Attach the face frame to the box with wood glue and 1 1/4" brad nails. The face frame will exceed the top of the box by 3/4" to allow for a top shelf (if desired) at the top of the closet.

    Step 6

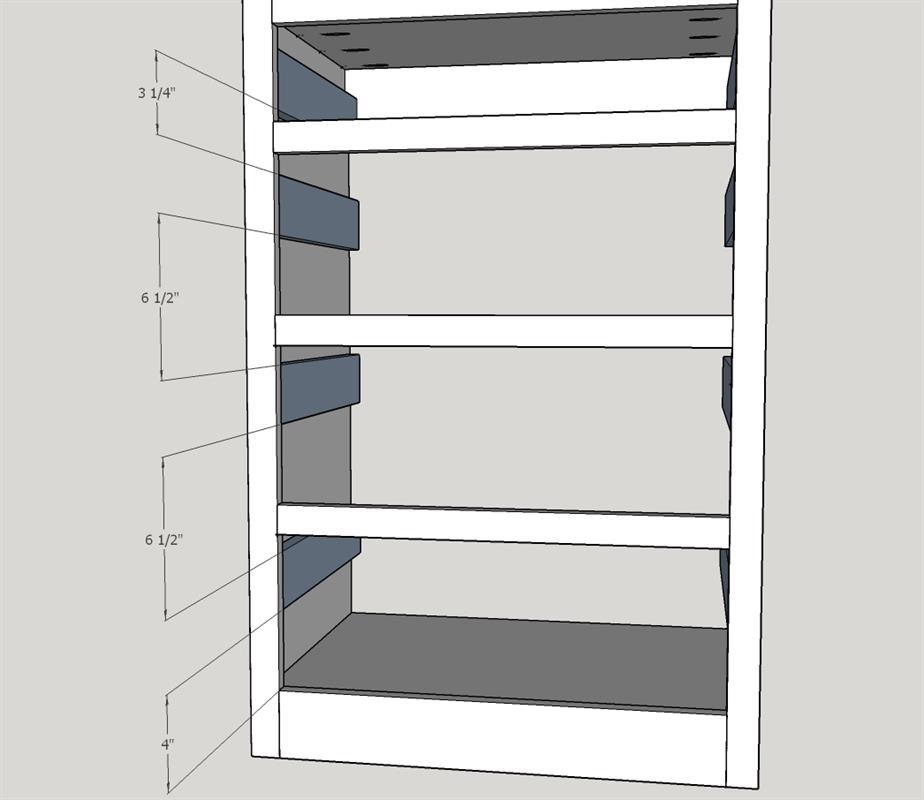

  • Attach Drawer Slide Mounts

    Attach DRAWER SLIDE MOUNTS at the locations shown. They should be attached flush up to the inside of the face frame. Attach with wood glue and 1 1/4" brad nails.

    Step 7

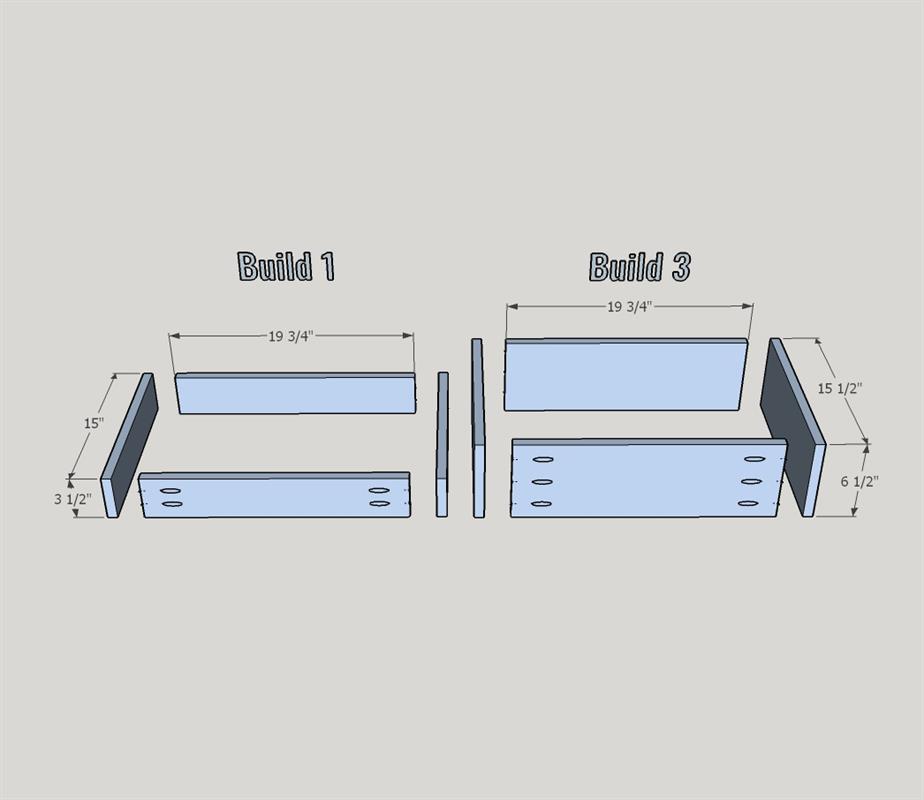

  • Build Drawers

    Build the small top drawer using the DRAWER BOX FRONT/BACK (SM) and DRAWER SIDES (SM). Attach using wood glue and 1 1/4" pocket hole screws. Build the 3 large boxes using the DRAWER BOX FRONT/BACK (LG) and DRAWER SIDES (LG). Attach using wood glue and 1 1/4" pocket hole screws.

    Step 8

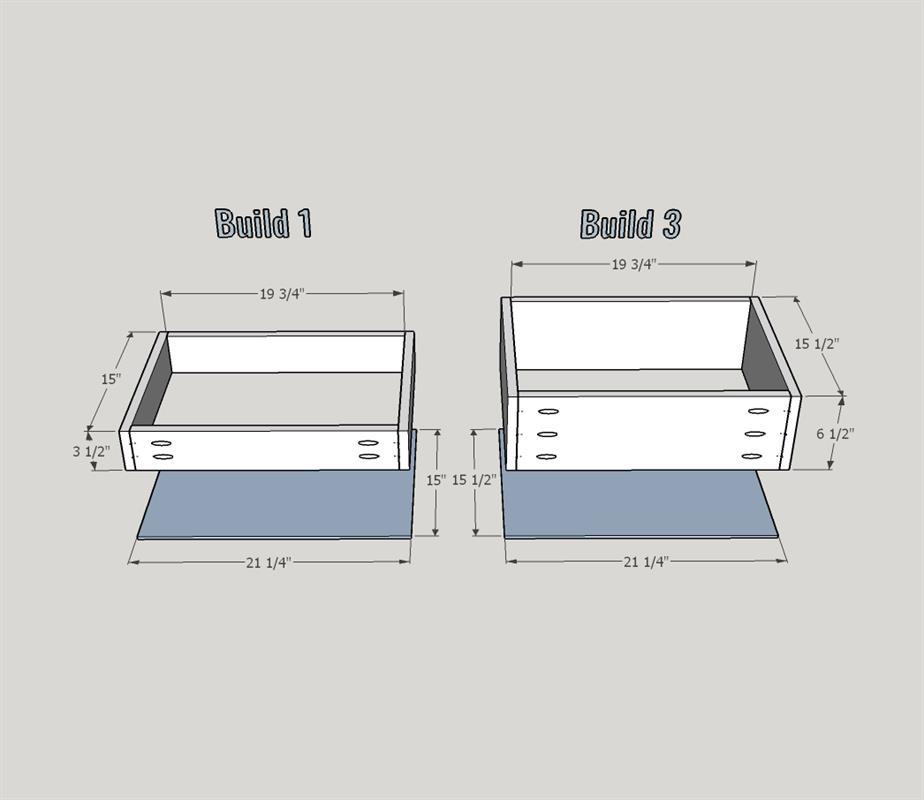

  • Attach Drawer Bottoms

    Attach DRAWER BOTTOMS (SM) & (LG) respectively using wood glue and 1 1/4" brad nails.

    Step 9

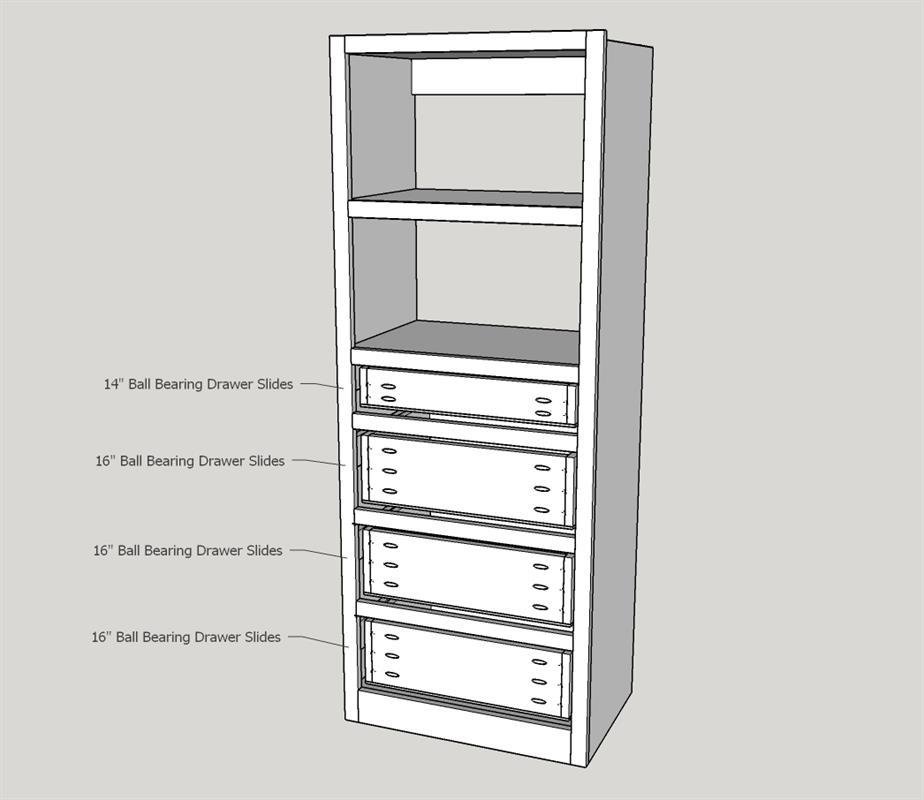

  • Install Drawer Slides

    Install ball-bearing drawer slides on each DRAWER SLIDE MOUNT and the corresponding drawer using a Kreg Drawer Slide Jig. Note, the 14" ball bearing slide will be on the top drawer.

    Step 10

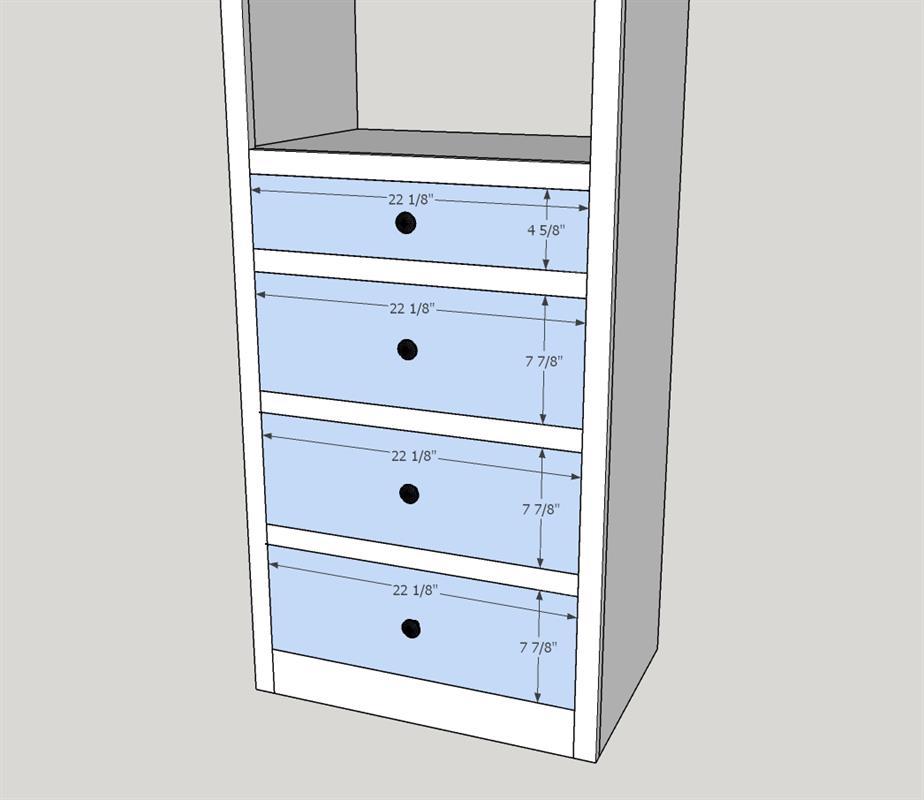

  • Install Drawer Fronts

    A trick I use to get accurate spacing around my drawers is to put double-sided tape on the drawer box and place it into position. Then open it and use 2 1 1/2" pocket hole screws to screw through the inside of the drawer and into the drawer front.

    Step 11

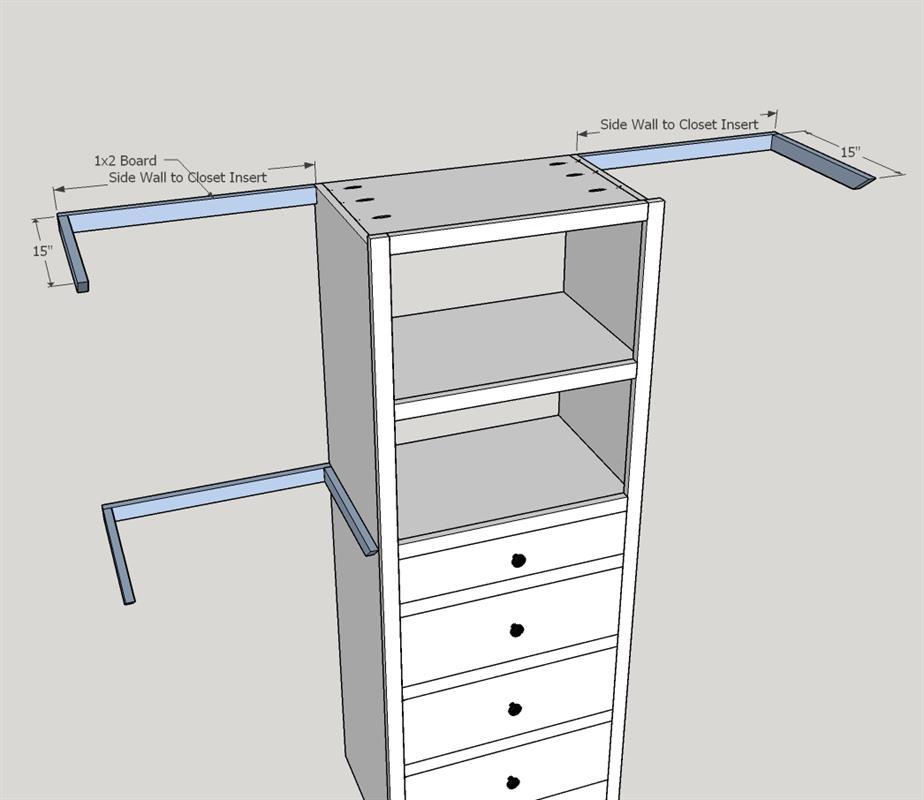

  • Top & Mid Shelf Step #1 (Optional)

    (NOTE: This lumber is not included in Parts/Cut List or Wood Product List as it is optional) To add a shelf on the top and middle, simply use 1x2 boards to create a ledge around the back and side of your closet. Start from the side of the unit to the side wall of the closet. Follow it around with a second piece that measures 15" and cut a 45° angle on the end.

    Step 12

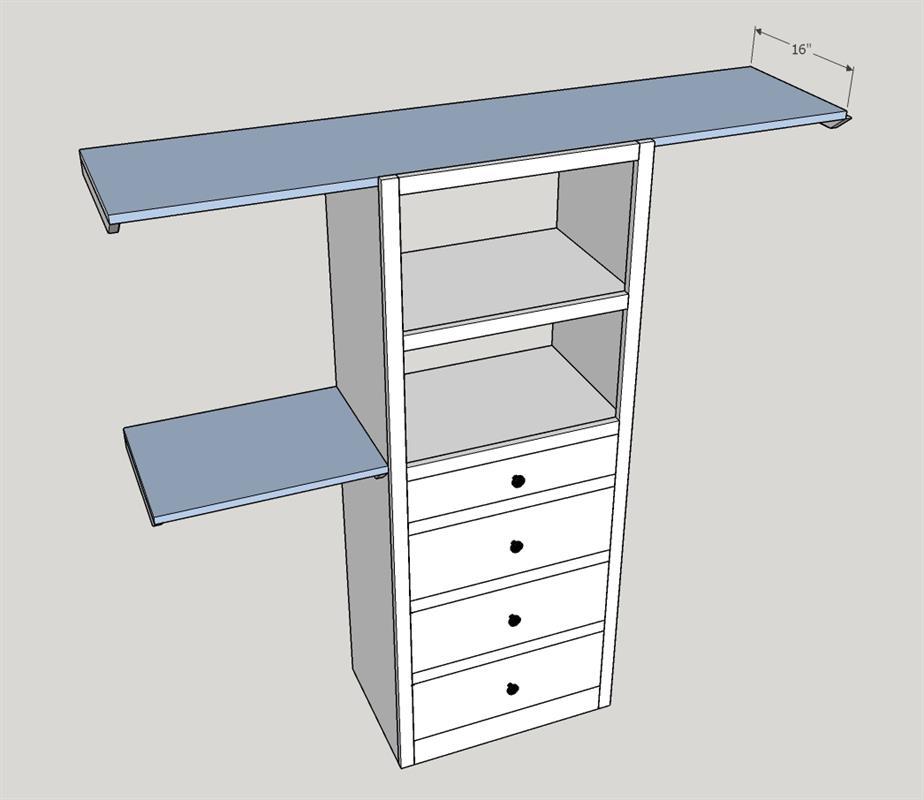

  • Top & Mid Shelf Step #2 (Optional)

    (NOTE: This lumber is not included in Parts/Cut List or Wood Product List as it is optional) Using 16" wide shelf board. Cut to size and insert on top of the wall supports. Secure into the wall supports with 1 1/4" brad nails in several locations.

    Step 13

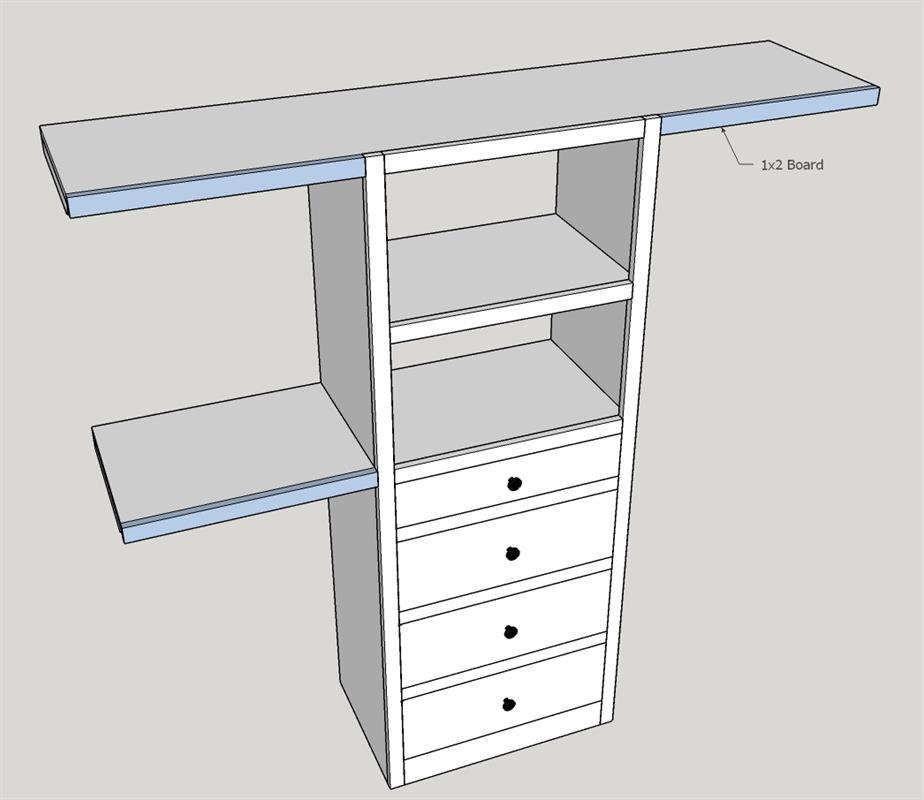

  • Top & Mid Shelf Step #3 (Optional)

    (NOTE: This lumber is not included in Parts/Cut List or Wood Product List as it is optional) Attach trim to the edge of shelving using 1x2" boards using wood glue and 1 1/4" brad nails.

    Step 14
