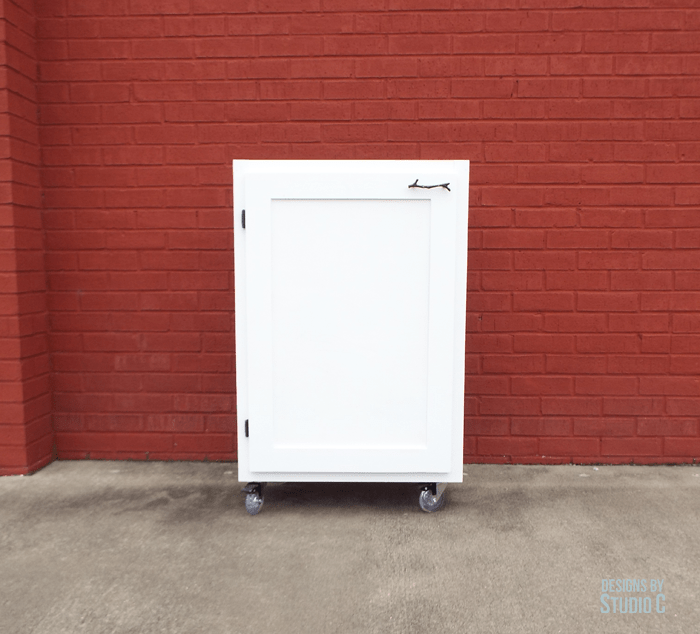

An easy to build cabinet on casters with a tile top, and a shelf behind the door. The cabinet is counter height and the perfect addition to a small space.

Difficulty moderate

Tools

Kreg Tools

Other Tools

  • Miter Saw
    Miter Saw
  • Table Saw
    Table Saw
  • Tape Measure
    Tape Measure
  • Nail Gun
    Nail Gun
  • Sander
    Sander

Materials

Wood Products

  • 2 Board , 1x2 , 96"
  • 1 Board , 1x3 , 96"
  • 2 Plywood , 1/4" Thick , Quarter Sheet
  • 1 Plywood , 3/4" Thick , Half Sheet

Hardware & Supplies

  • 1 Box of 1-1/4" Pocket Hole Screws
  • 1 Box of 1/2" Brad Nails
  • 1 Box of 1-1/2" Brad Nails
  • 2 1/4" Overlay Hinges
  • 4 3" Casters with 3/4" screws
  • 1 Wood Glue
  • 1 Sandpaper (80, 120, 220 Grits)
  • 2 Rectangular Wood Grain Ceramic Tiles

Cut List & Parts

  • 2 Case Sides , 3/4" plywood at 11-7/16" x 33"
  • 3 Case Top, Bottom & Shelves , 3/4" plywood at 11-7/16" x 22-1/4"
  • 2 Face Frame , 1x2 at 20-3/4"
  • 2 Face Frame , 1x2 at 33-1/4"
  • 1 Back , 1/4" plywood at 23" x 32-1/4"
  • 2 Door Frame , 1x3 at 16-1/4"
  • 2 Door Frame , 1x3 at 30-3/4"
  • 1 Door Panel , 1/4" plywood at 16-3/4" x 26-1/4"

Directions

  • Step One

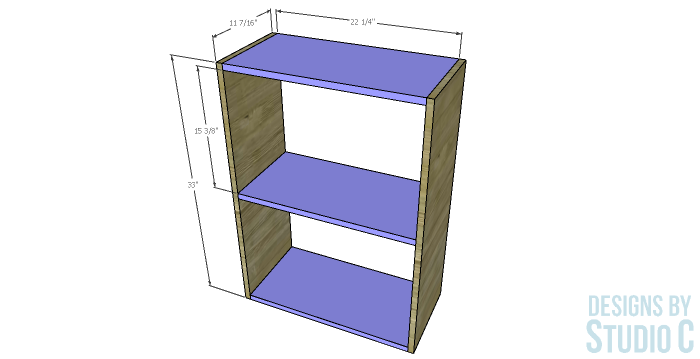

    Cut the pieces for the sides, top and shelf. With the pocket hole jig set for 3/4" material, drill pocket holes in each end of the top, bottom and shelf. Assemble the case using glue and 1-1/4" pocket hole screws.

  • Step Two

    Cut the piece for the back. Secure the back to the case using 1-1/2" brad nails.

  • Step Three

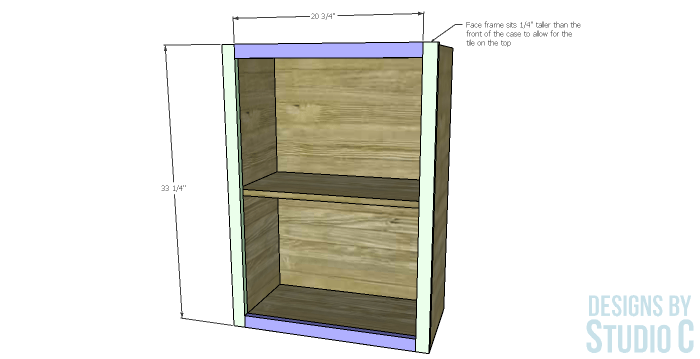

    Cut the pieces for the face frame. Drill pocket holes in each end of the shorter pieces. Assemble the frame using glue and 1-1/4" pocket hole screws.

    Position the face frame on the case with the sides and bottom flush. (Remember: the top of the face frame will sit 1/4" higher than the case to accommodate the tile.) Secure in place using glue and 1-1/2" brad nails.

  • Step Four

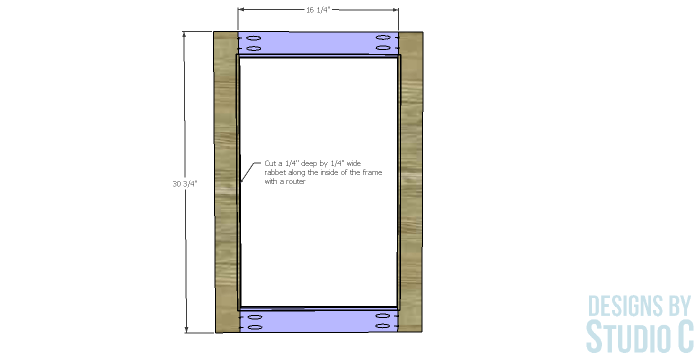

    Cut the pieces for the door frame and drill pocket holes in each end of the shorter pieces. Assemble the frame using glue and 1-1/4" pocket hole screws.

    Using a router and a 1/4" rabbeting bit, cut a 1/4" deep rabbet along the inside back of the frame to accommodate the panel. Use a chisel to square the corners so the frame will fit (the corners of the panel can also be rounded.)

  • Step Five

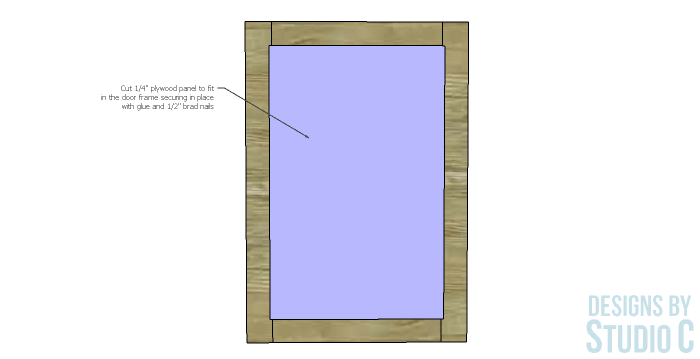

    Cut the 1/4" panel to fit, then secure to the door frame using glue and 1/2" brad nails.

  • Step Six

    Finish the cabinet as desired, then install the door following the manufacturer's installation instructions for the hinges. The door will overlap the opening by 1/4" on all sides.

  • Step Seven

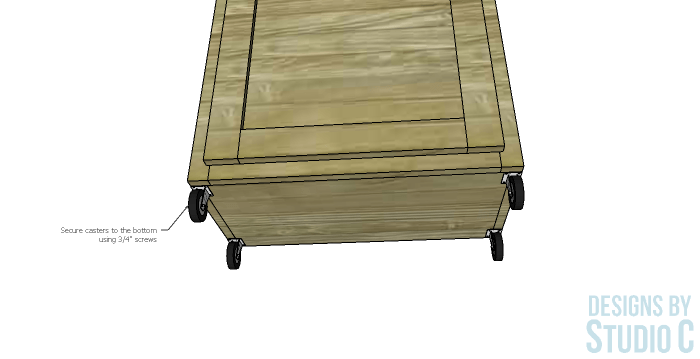

    The casters will be secured to the bottom of the case using 3/4" screws.
