7-foot Outdoor Table with Bench

By HomeMadeModern
table-red-legs-main-5
table-red-legs-main-4
table-red-legs-main-3
table-red-legs-main-2
table-red-legs-main-1
Kreg Academy Kreg Academy

This DIY outdoor table is made out of pieces of 2x6 that are screwed together with pocket holes. There is a support layer under the table top consisting of cross supports and stretchers. The legs are powder-coated steel from Semi Exact. You can build an optional bench or two to match, or add your choice of chairs to change up the look.

Difficulty easy

Tools

Kreg Tools

Other Tools

  • Circular saw
    Circular saw
  • Jig saw
    Jig saw
  • Orbital sander
    Orbital sander
  • Cordless drill
    Cordless drill
  • Impact driver
    Impact driver

Materials

Wood Products

  • 8 Treated lumber boards , 2"x6"x8'
  • 1 Treated lumber board , 2"x6"x10'

Hardware & Supplies

  • 1 150 grit sandpaper
  • 1 220 grit sandpaper (use any other grit in between these two for a better finish)

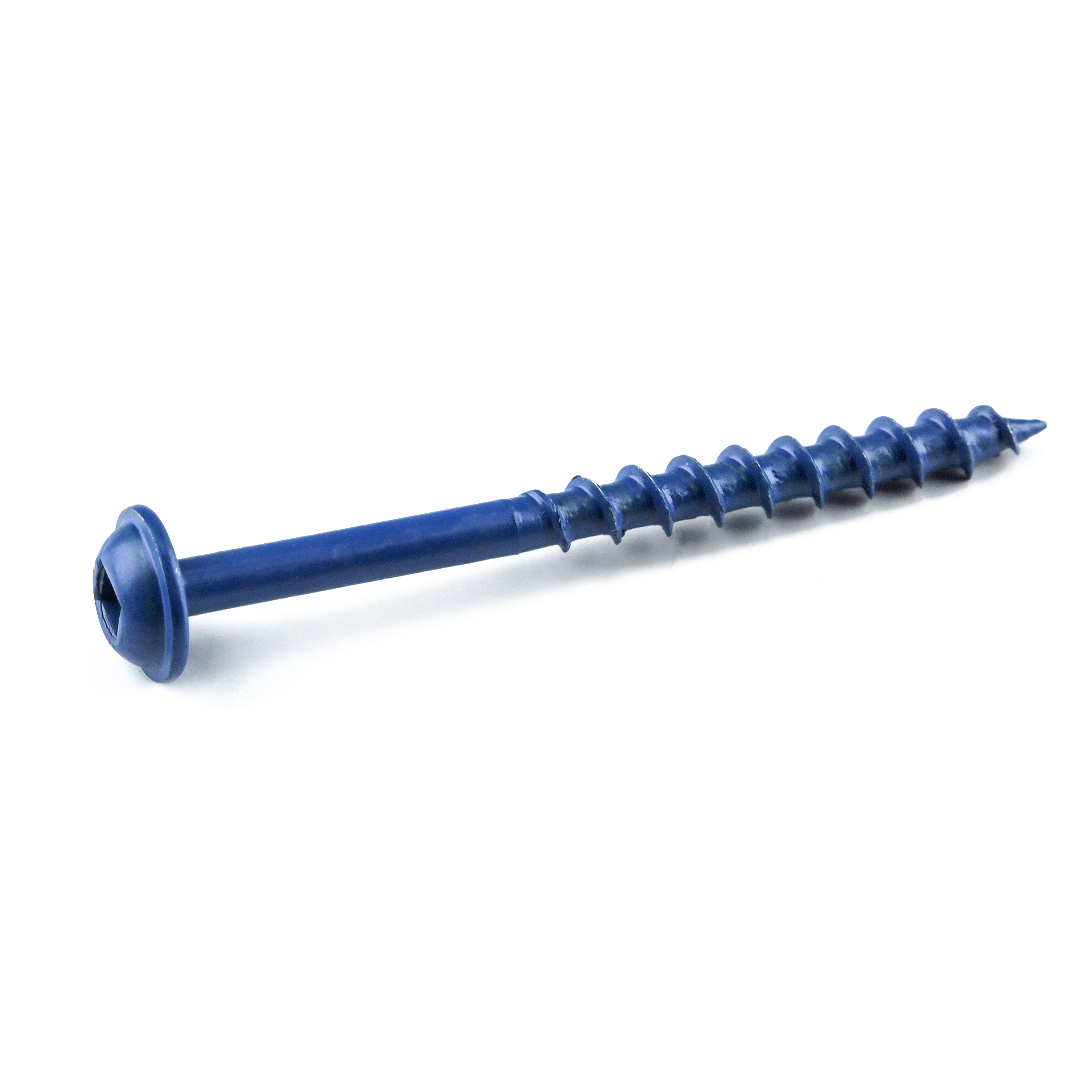

  • 1 Box of 2" Kreg Blue-Kote screws (see tools list)
  • 1 Box of small bolts
  • 2 Powder-coated legs from Semi Exact (link in Extras tab), more if you choose to build the bench
  • 1 Wood penetrating oil for finishing
See All Tools & Materials

Cut List & Parts

  • 6 Table top boards , 2"x6"x7'
  • 2 Stretchers , 2"x6"x80" with three 5 1/2" by 1 1/2" notches for cross supports cut with jig saw (see steps below for diagram and placement) as well as 45 degree notches at ends
  • 3 Cross supports , 2"x6"x30", with a 30 degree angle cut on each end (see steps below for diagram and placement)
See Full Cut List & Parts

Directions

  • Watch the Video!

    Check out the corresponding YouTube video for this project.

    Watch The YouTube Video

  • Cut and fasten the table top

    Cut 6 pieces of 2x6 at a length of 7'.

    Connect the pieces to make the top using pocket holes every 8 inches on the under side of the table top.

    I used bolts as spacers with the pocket screws going through the center to make gaps for rain water about 1/8" to 1/4" wide.

    This table top is reinforced by a support layer underneath it.

    Step 2

  • Cut the stretchers

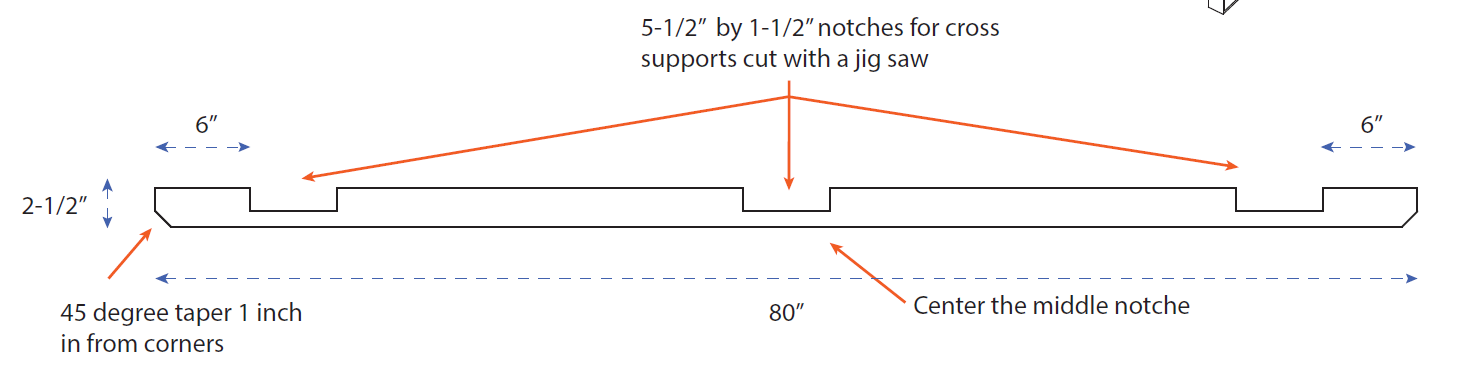

    Cut 2 stretchers with notches with tapered ends. See diagram on this step for placement.

    Step 3

  • Assemble the support layer

    CROSS SUPPORTS: Cut 3 cross supports with the ends cut at a 30 degree angle.

    STEEL LEGS: The legs are heavy-duty powder-coated steel legs from Semi-Exact and are 28" tall (see Extras tab for link).

    Step 4

  • Add the cross supports

    Screw through the cross supports and into the table top.

    Step 5

  • Add the stretchers and legs

    Screw through the stretchers and into both the cross supports and table top.

    Screw steel legs to the underside of the table top.

    Step 6

  • Optional - add benches

    If you choose to add benches to your table, the legs used are in the extras tab. Choose a length for your bench boards that are either the same length as your table (7 feet) or slightly shorter. Cut two per bench, and attach to the metal legs.
